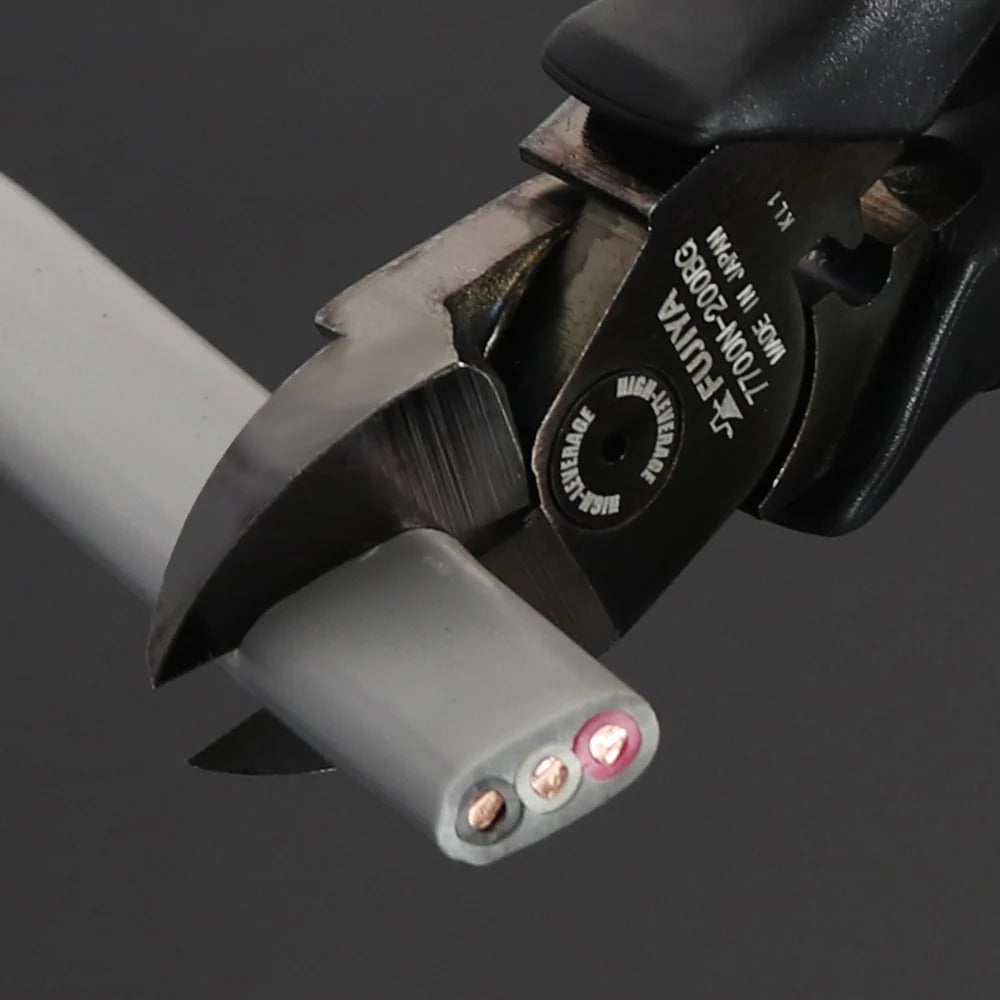

Cutting Capacity

VVF (Non-Metallic) Cable: 2.6mm x 3-core
Copper Wire: Φ3.5mm

Product Specifications

Overall Length: 208mm
Weight: 320g
JAN Code: 4952520077207
Package Dimensions: 254H x 75W x 20D mm

KUROKIN 7700N-200 Technical Dimension Drawing

Detailed Dimensions (mm)

A (Total Length): 208
B (Head Width): 26
C (Head Thickness): 13.8
D (Grip Span): 51
E (Jaw Length): 27
F (Blade Length): 22

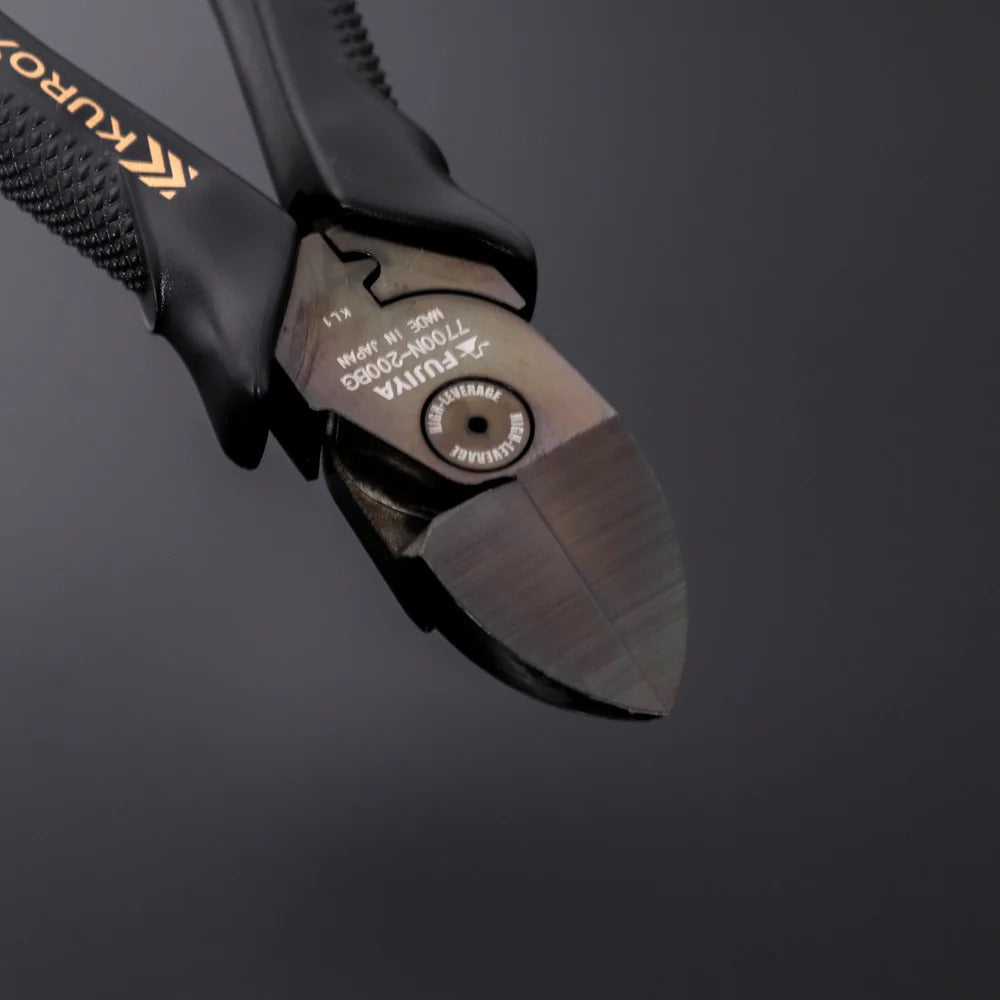

High-Leverage Eccentric Pivot & Micro-Mirror Blade Technology

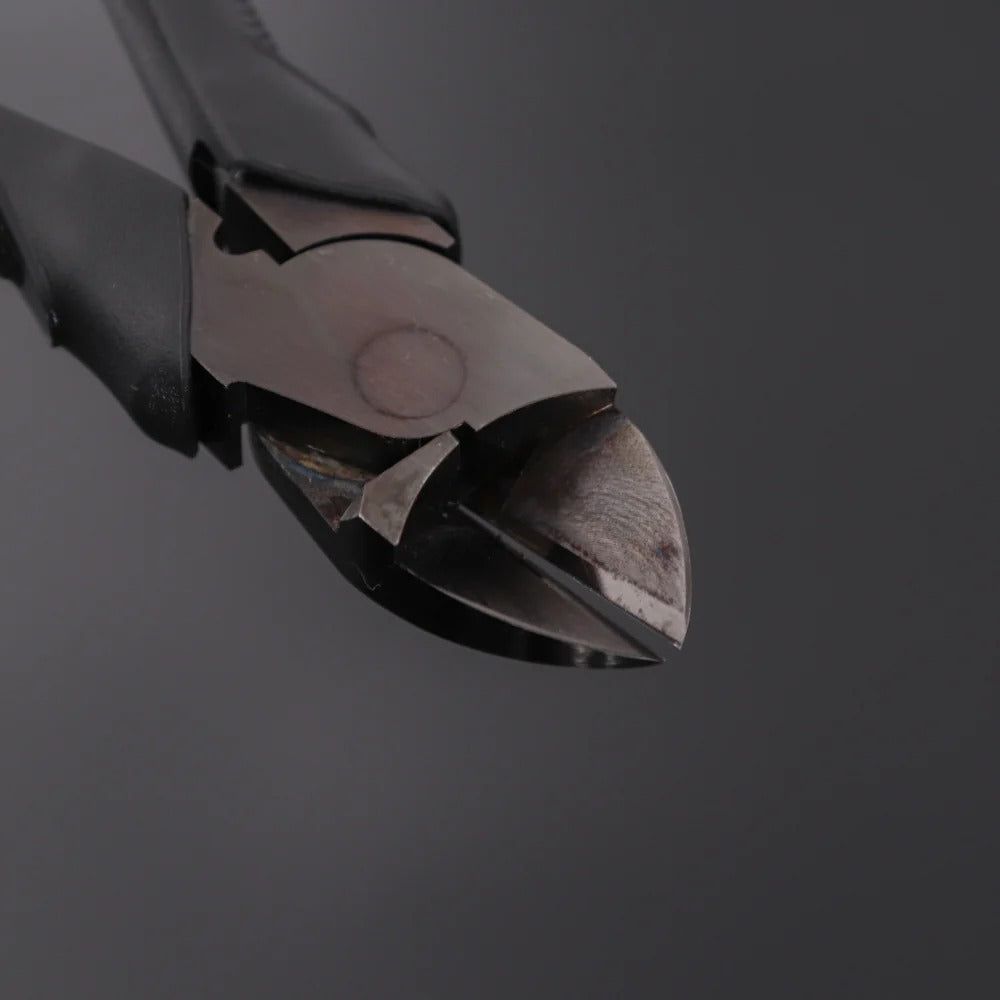

High-Leverage Micro-Mirror Blade

The eccentric mechanism significantly boosts cutting power by shortening the distance between the blade and the fulcrum, requiring minimal effort for heavy cuts. This is paired with Fujiya’s Micro-Mirror Blade technology—an ultra-precision polishing process that achieves a mirror-like finish. This reduces frictional resistance against cable insulation, allowing for effortless, surgical-grade slicing through VVF and VA wires.

KUROKIN Signature Rust-Resistant Black Finish

Industrial Black Plated Finish

The premium black plated finish provides exceptional rust resistance and long-term durability in harsh environments. This signature KUROKIN aesthetic isn't just for looks; it offers a robust, non-slip feel that professionals rely on for day-to-day operations.

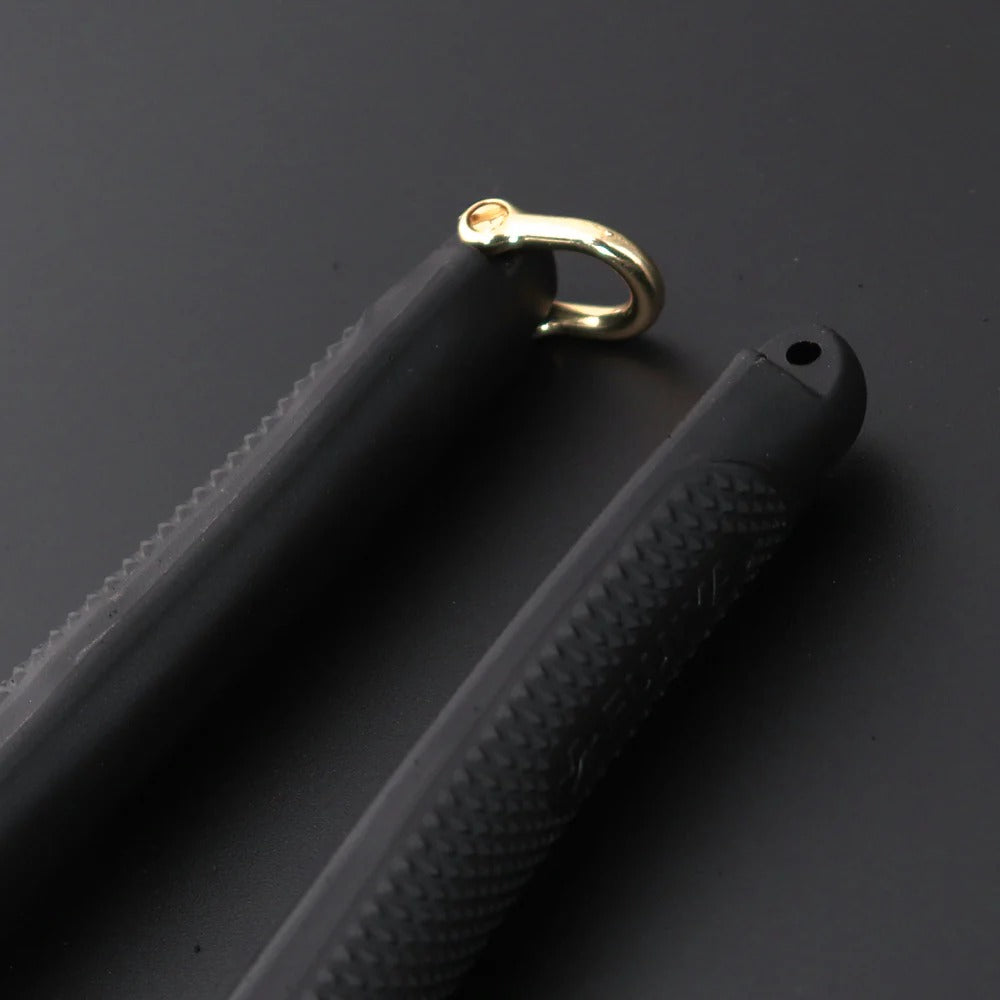

Integrated Fall Prevention Safety Shackle

Safety-First Design

Equipped with a built-in shackle for safety tether attachment, these pliers are designed for secure use at heights. This integrated feature prevents accidental drops, ensuring both the safety of the workspace below and the protection of your high-performance tools.

Master Craftsmanship

Rooted in over 100 years of tradition, every KUROKIN tool undergoes manual blade sharpening, polishing, and rigorous inspection by Fujiya’s master craftsmen. This dedication results in a level of balance and "lightness" during use that mass-produced alternatives cannot match—providing the definitive edge for professional tradespeople.

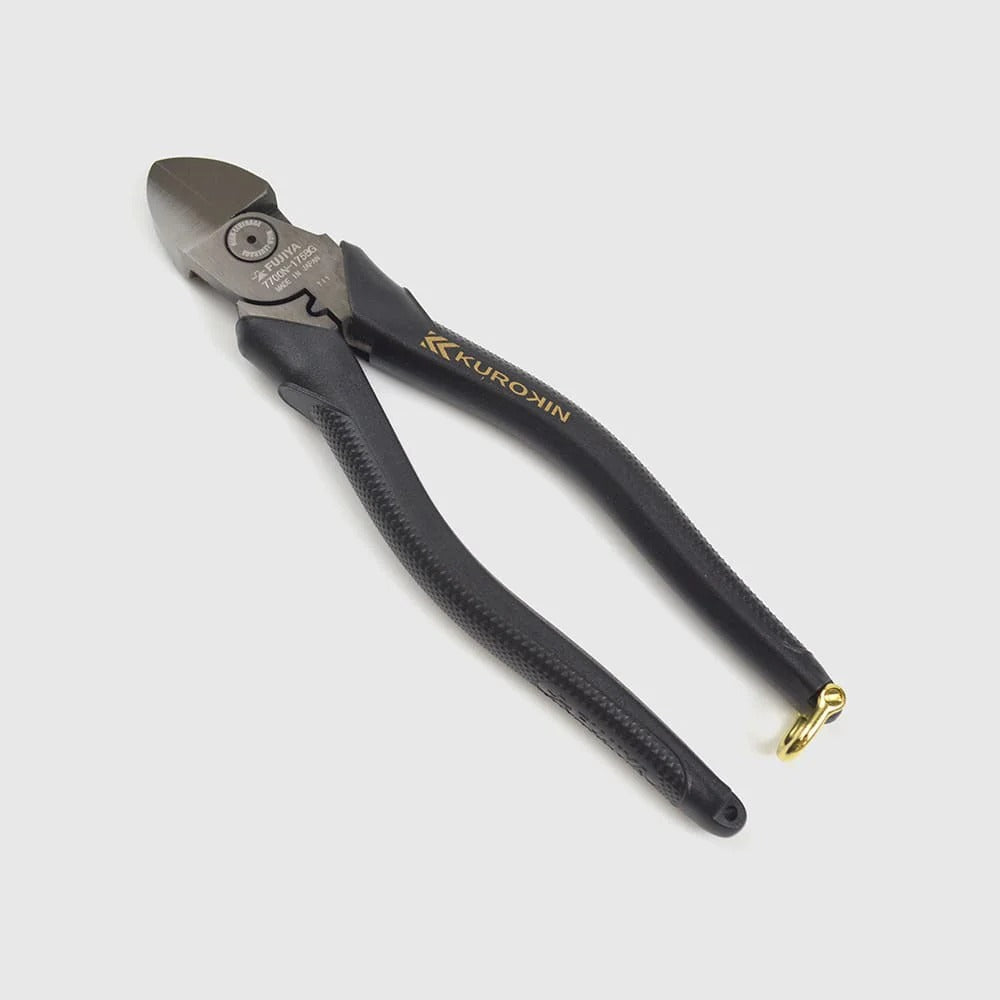

Fujiya Kurokin 7700N-200BG High leverage cutting pliers
