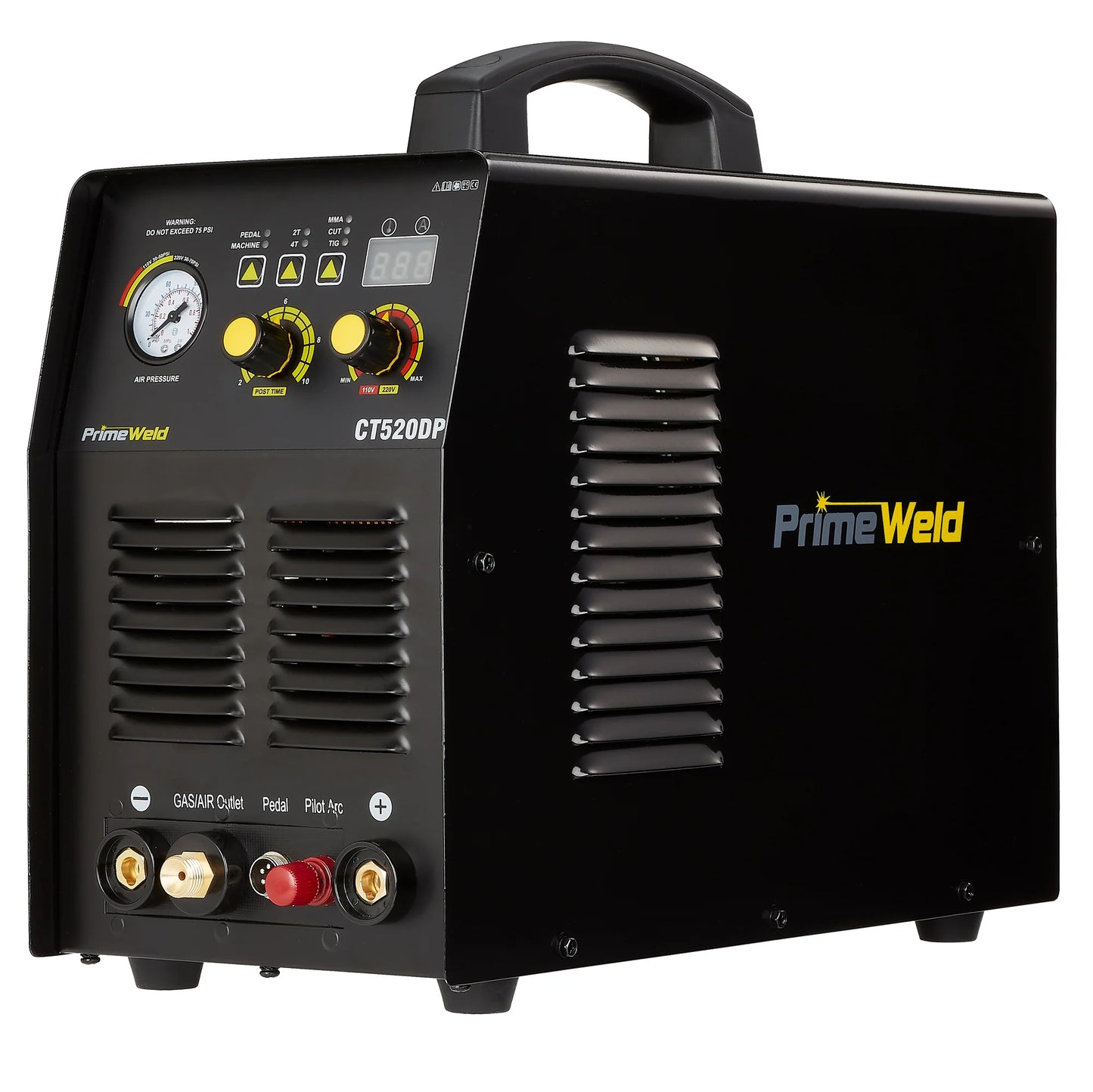

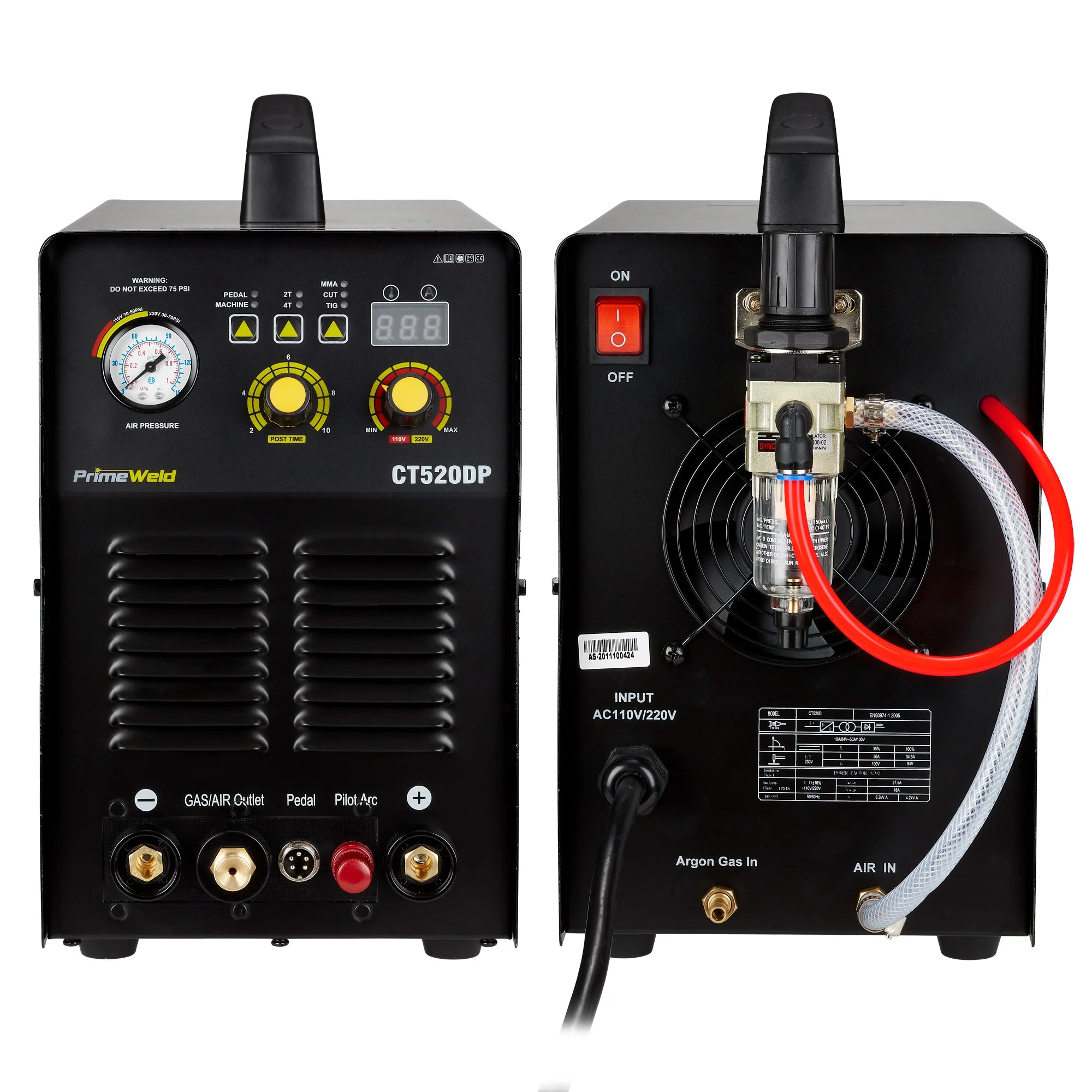

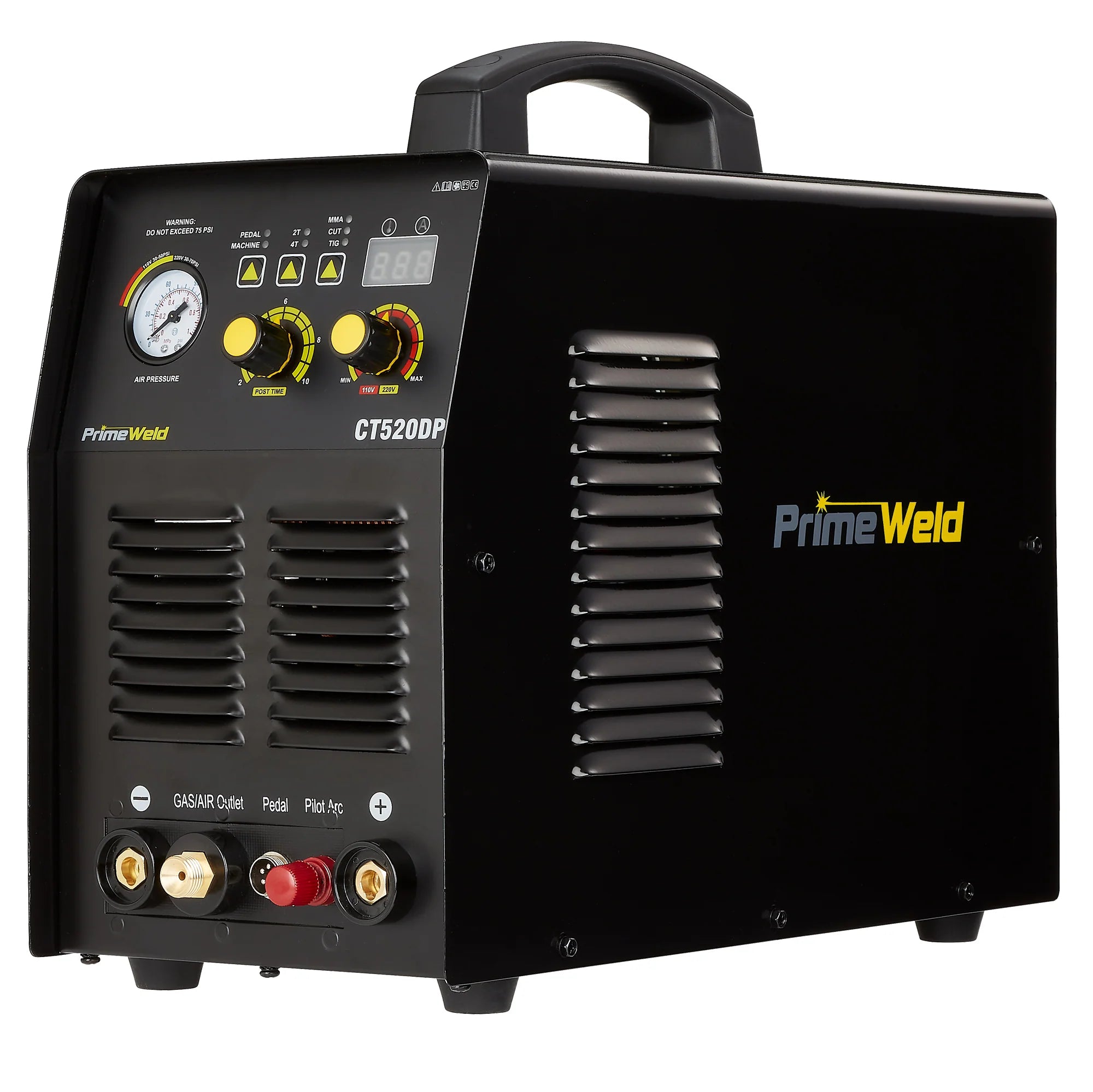

The PrimeWeld CT520DP 50A Pilot Arc Plasma Cutter Combo is a 3-in-1 triple threat featuring TIG welding, stick welding, and a plasma cutter. This pilot arc plasma cutter and TIG/stick welder cuts and welds 1/2-inch thick steel plate. You’ll be able to cut parts quickly and easily. Switch to TIG welding by changing leads and flipping a switch. If you don’t feel like the challenge or cost of shielding gas, you have a stick arc welding on tap as well.

Affordable Versatility in a Compact Package

At the other end, this pilot arc welder gets down to 10 amps on all three processes, low enough heat to work on 24-gauge sheet metal. It’s a great machine for auto bodywork, with the ability to cut damage out, prepare replacement panels, tack them into place and then weld the seams to a beautiful finish. Preparation for paint goes much faster, lowering the costs of body repair work.

The CT-520DP offers dual-voltage input power, with the ability to run on either 120 volt or 240-volt outlets. These 3 in 1 plasma cutters with welding functions are what you need to bring versatile fabrication to your workbench. Every barn shop and racing trailer has a place for the PrimeWeld CT-520DP multi-process welder.

HIGH-FREQUENCY ARC STARTS AND ADVANCED DESIGN

The pilot arc plasma cutter features high-frequency no-touch arc starts. Start your plasma cutter by simply pulling the trigger and starting the arc. Most 3 in 1 plasma cutters don’t offer no-touch arc starting or arc force control. PrimeWeld's pilot arc welder offers an ideal mix of features for under $500.

With PrimeWeld’s optional foot pedal, control the current for TIG welding and plasma cutting. The PrimeWeld CT520DP Pilot Arc Plasma Cutter and Welder is ruggedly built from the ground up to stay alive in the workshop environment.

NO-HASSLE 3-YEAR WARRANTY

ENJOY PRIMEWELD’S LEGENDARY SUPPORT

PrimeWeld Customer Support connects you real PEOPLE, real quick. We’re easy to contact and will strive to handle any issue that comes up.

Offering excellent and knowledgeable advice, they know how to keep PrimeWeld equipment up and welding right.

Features

CT-520DP Plasma Cutter Combo Features:

Dual powered 120/240-volt input
IGBT Inverter powered
DC Stick Welder (MMA)
DC TIG Welder (GTAW-PD)
50-amp Plasma Cutter
Unpack it and Weld

PROTECTION FEATURES:

Cold Electrode
Overcurrent protection
Overheating protection
Power spike protection

TIG FEATURES (GTAW):

GR-17 TIG Torch
13-foot connector hose
High-Frequency no-touch arc start
Shielding Gas Pre-Flow and Post-Flow

PLASMA CUTTER FEATURES:

Will cut 1/2-inch steel
AG60P Plasma Torch
13-foot torch hose
Air preflow/post flow

STICK ARC (MMA) FEATURES:

Quality 13-foot stinger clamp
Change to TIG/Plasma with flip of switch
Arc Force Control

USABILITY FEATURES:

Optional TIG/Plasma foot pedal
Dinse connectors

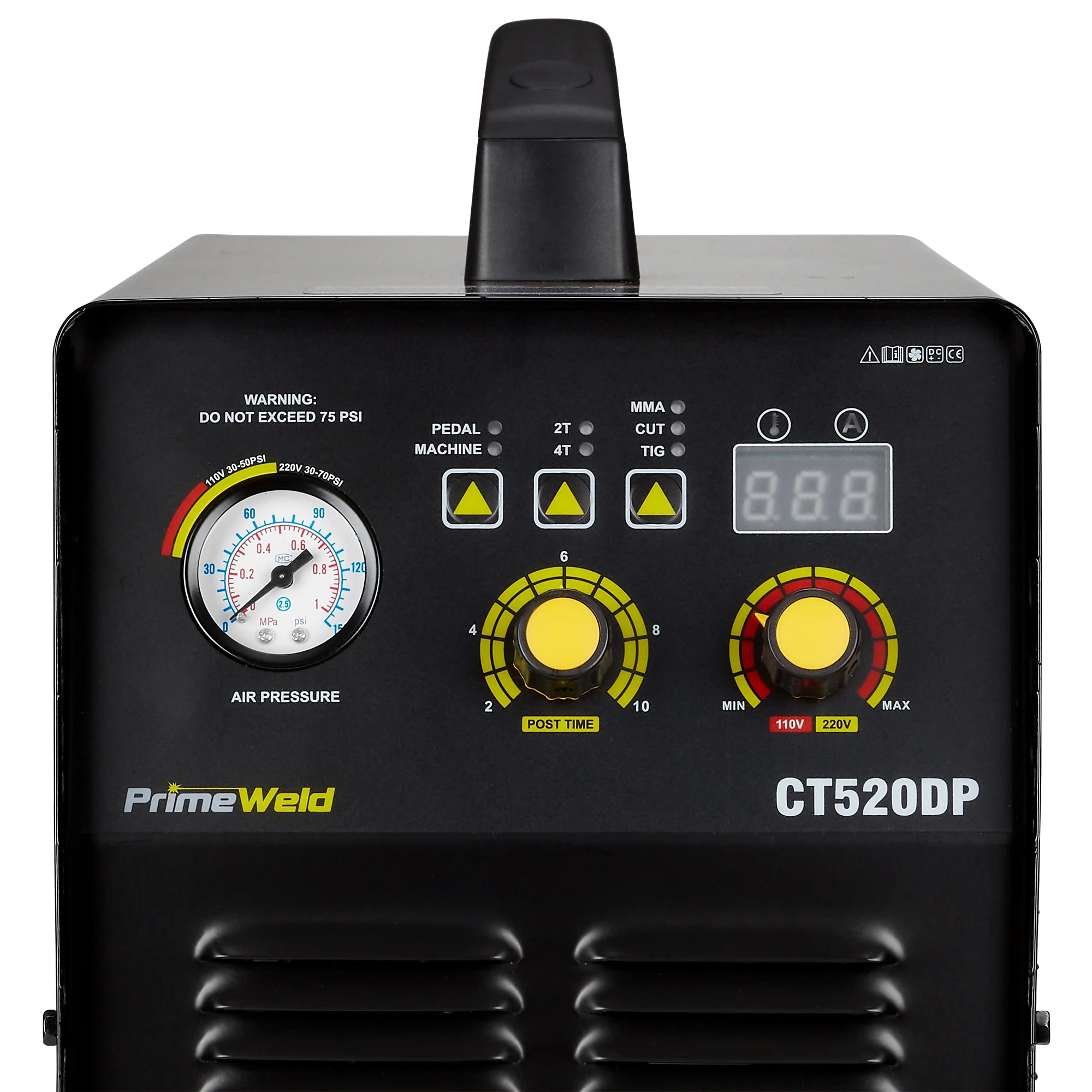

Digital Power Display
Built-in Shielding Gas solenoid

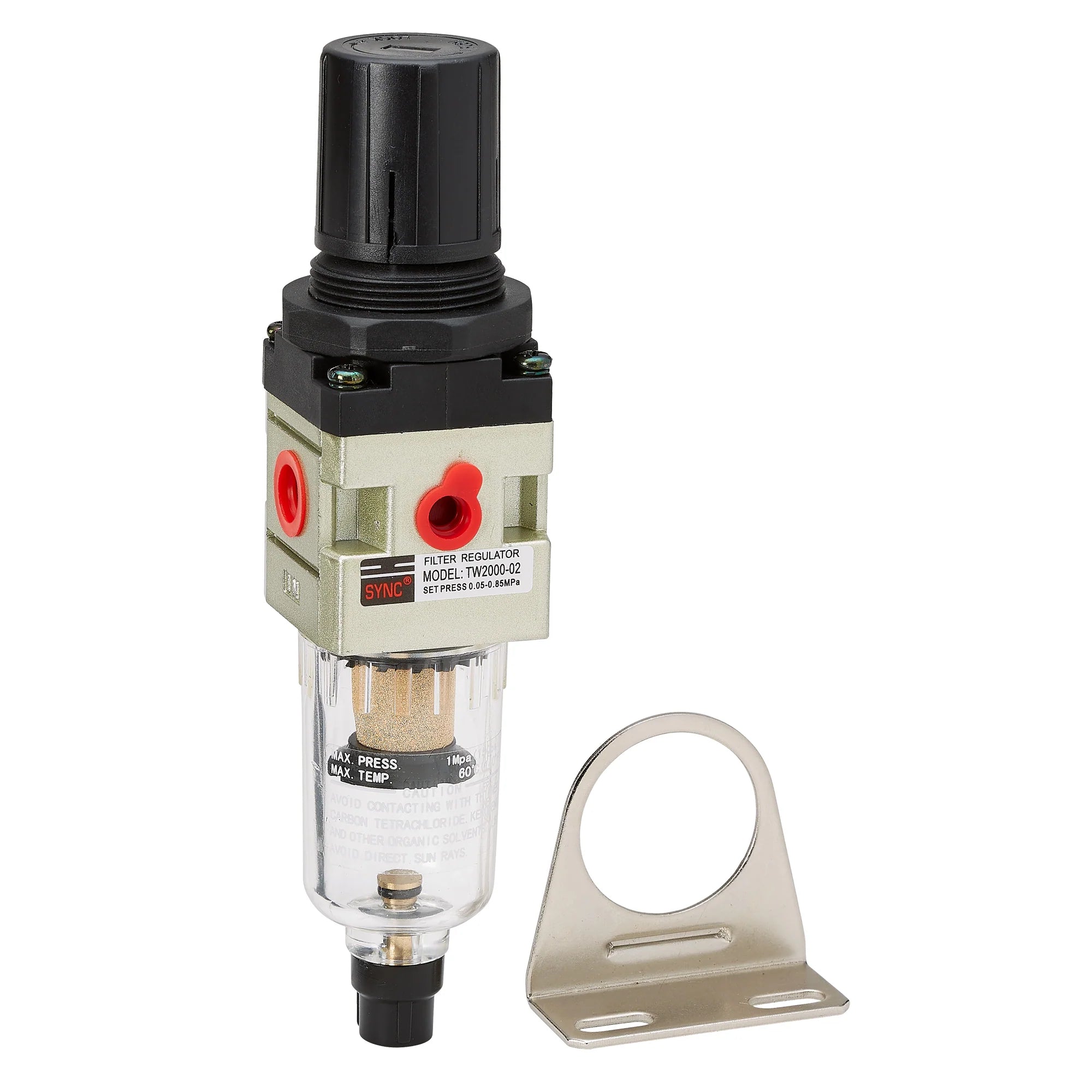

Regulator gauge on front
13-foot ground, plasma and TIG leads
TIG/MMA/Plasma selection switch

SPECIFICATIONS:

BREAKER SIZE:

(120V) 30 amps / (240V) 50 amps

TIG OUTPUT IN AMPS:

TIG 120 volts: 10-120 amps
TIG 240 volts: 10-200 amps

ARC OUTPUT IN AMPS:

Arc 120 volts: 10-120 amps
Arc 240 volts: 10-160 amps

PLASMA OUTPUT IN AMPS:

Plasma 120 volts: 10-27 amps
Plasma 240 volts: 10-50 amps

DUTY CYCLE TIG:

35 percent @ max rating (120/240V)
100 percent @ 72 amps (120V)
100 percent @ 130 amps (240V)

DUTY CYCLE STICK (MMA):

35 percent @ max rating (120/240V)
100 percent @ 72 amps (120V)
100 percent @ 100 amps (240V)

DUTY CYCLE PLASMA CUTTER:

60 percent @ max rating (120V)
30 percent @ max rating (240V)
100 percent @ 21 amps (120V)
100 percent @ 30 amps (240V)

GAS PREFLOW:

1.5 seconds

GAS POSTFLOW:

5 seconds

WEIGHT:

32 pounds

Specifications

SPECIFICATIONS TABLE

Parameter	CT-520DP Plasma Cutter Combo
IGBT Inverter Type	IGBT
Voltage/phase:	Dual Voltage 120/240 1 Phase
TIG Output Type:	DC only
TIG Start Type:	High-Frequency Only
Pulse:	No
Plasma Cutter Arc Start Type:	High-Frequency
Pilot Arc:	Yes
OK-to-Cut Indicator/Low Air Pressure Safety:	No
OCV:	TIG: 70V Stick: 70V Plasma: 220V
Max Inrush (I1MAX) Amps:	@ 110V: 31A @ 220V: 27A
Maximum Rate (I1EFF) Input Amps:	@ 110V: 19A @ 220V: 17A
TIG Output Amps/Volts @ Rated Duty Cycle:	120V: 120A/14.8V @ 35% Duty Cycle 93A/13.7V @ 60% Duty Cycle 72A/12.9V @ 100% Duty Cycle 240V: 200A/18V @ 35% Duty Cycle 160A/16.4V @ 60% Duty Cycle 130A/15.2V @ 100% Duty Cycle
Stick Output Amps/Volts @ Rated Duty Cycle:	120V: 120A/24.8V @ 35% Duty Cycle 93A/23.7V @ 60% Duty Cycle 72A/22.9V @ 100% Duty Cycle 240V: 160A/26.4V @ 35% Duty Cycle 130A/25.2V @ 60% Duty Cycle 100A/24V @ 100% Duty Cycle
Plasma Output Amps/Volts @ Rated Duty Cycle:	120V: 27A/90.8V @ 60% Duty Cycle 21A/88.4V @ 100% Duty Cycle 240V: 50A/100V @ 35% Duty Cycle 40A/96V @ 60% Duty Cycle 30A/92V @ 100% Duty Cycle
TIG DC Amp/Volt Range:	120V: 10A-120A 10.4V-14.8V 240V: 10A-200A 10.4V-18V
Stick Amp/Volt Range:	120V: 10A-120A 20.4V-24.8V 240V: 10A-160A 20.4V-26.4V
Plasma Amp/Volt Range:	120V: 10A-27A 84V-94V 240V: 10A-50A 84V-100V
Preflow time:	Fixed
Post Flow Time:	Fixed
OverCurrent Protection:	Yes
Duty Cycle Protection:	Yes
Air Pressure OK Safety Indicator:	No
Stick Arc Force Control:	Auto-Adaptive
Torch Type:	t AG-60 High-Frequency
Recommended Cutting Air Pressure:	55-60 psi

What's Included

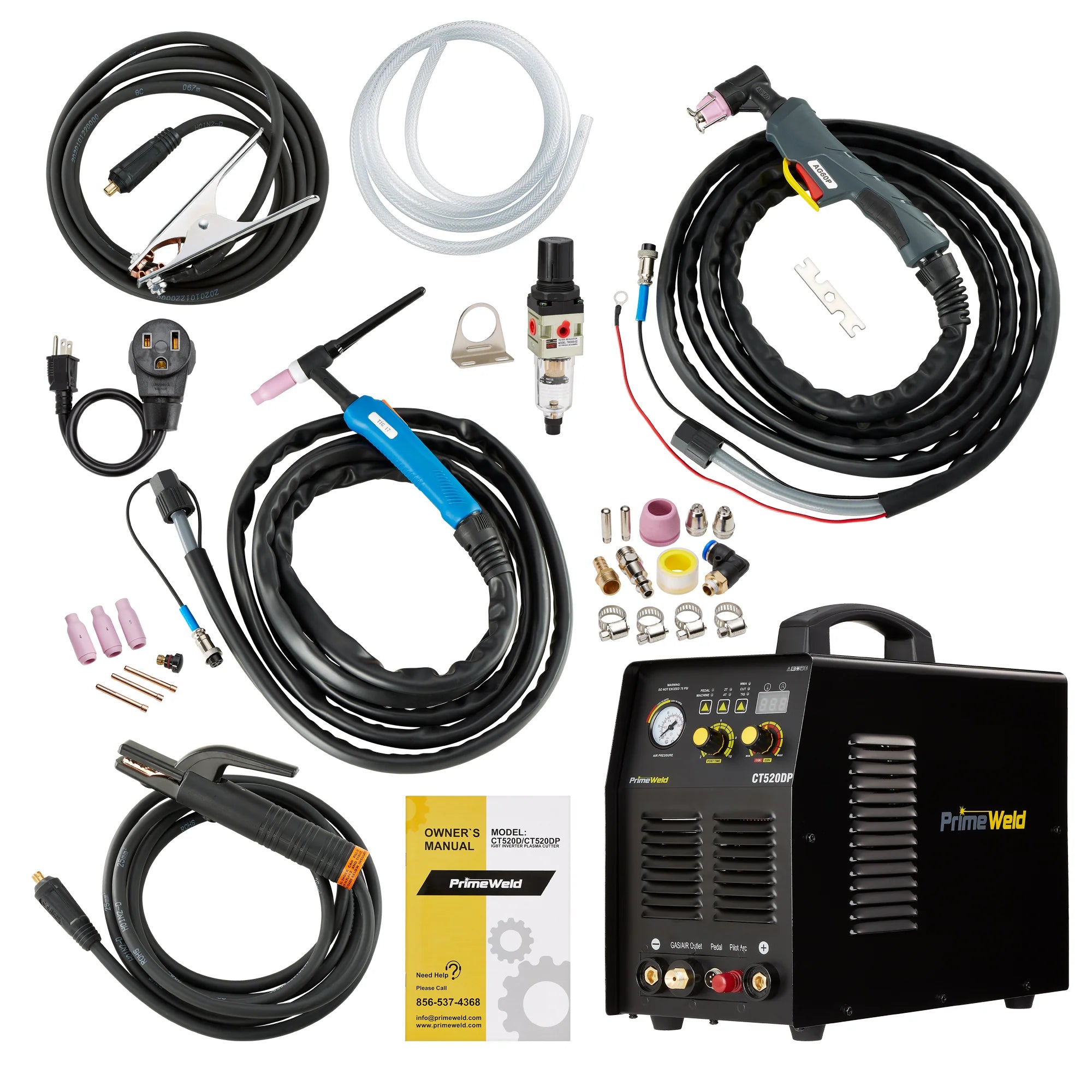

CT-520DP 50A Pilot Arc Plasma Cutter Combo Comes With:

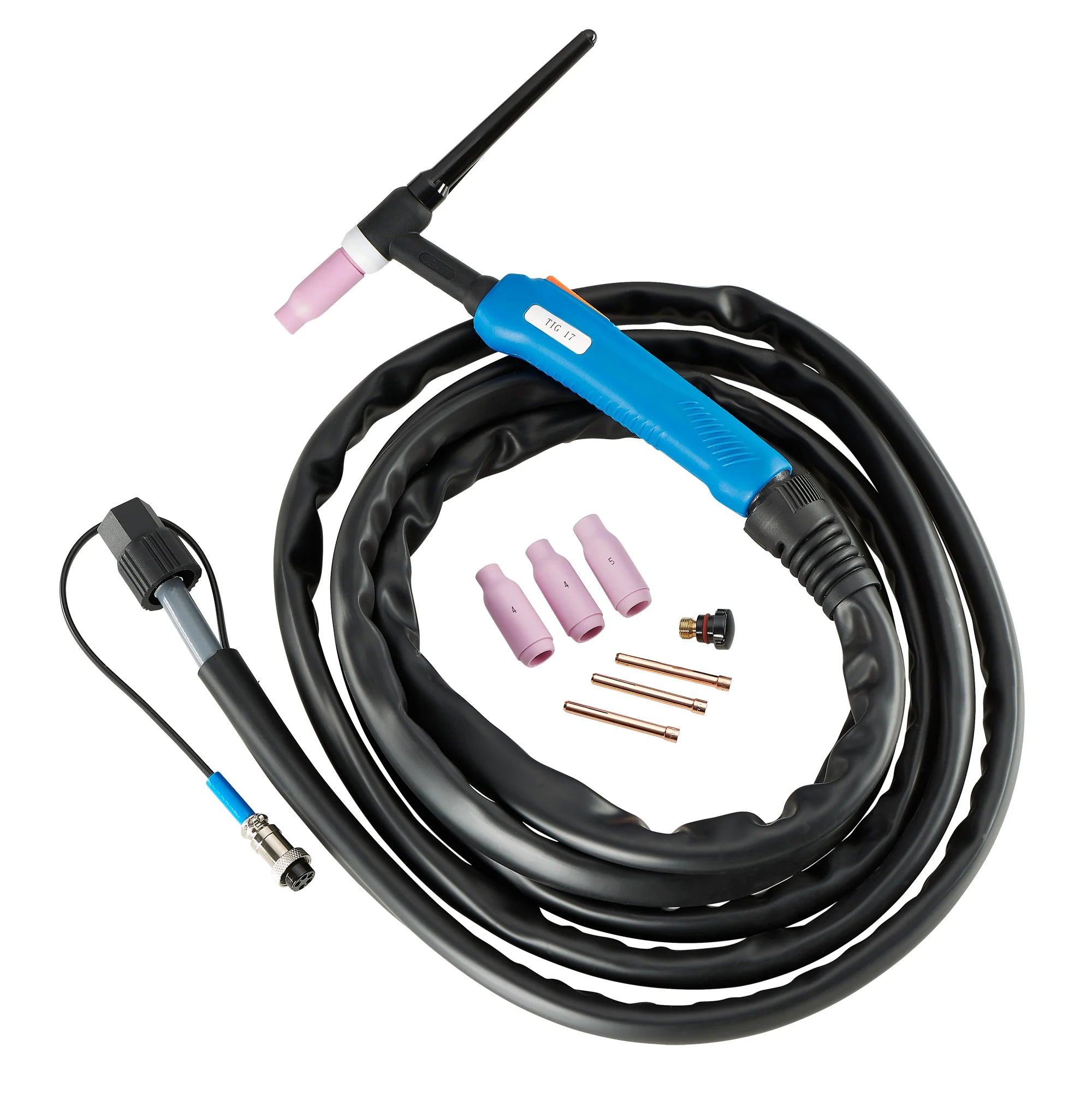

Size 17 TIG Torch
TIG Hose

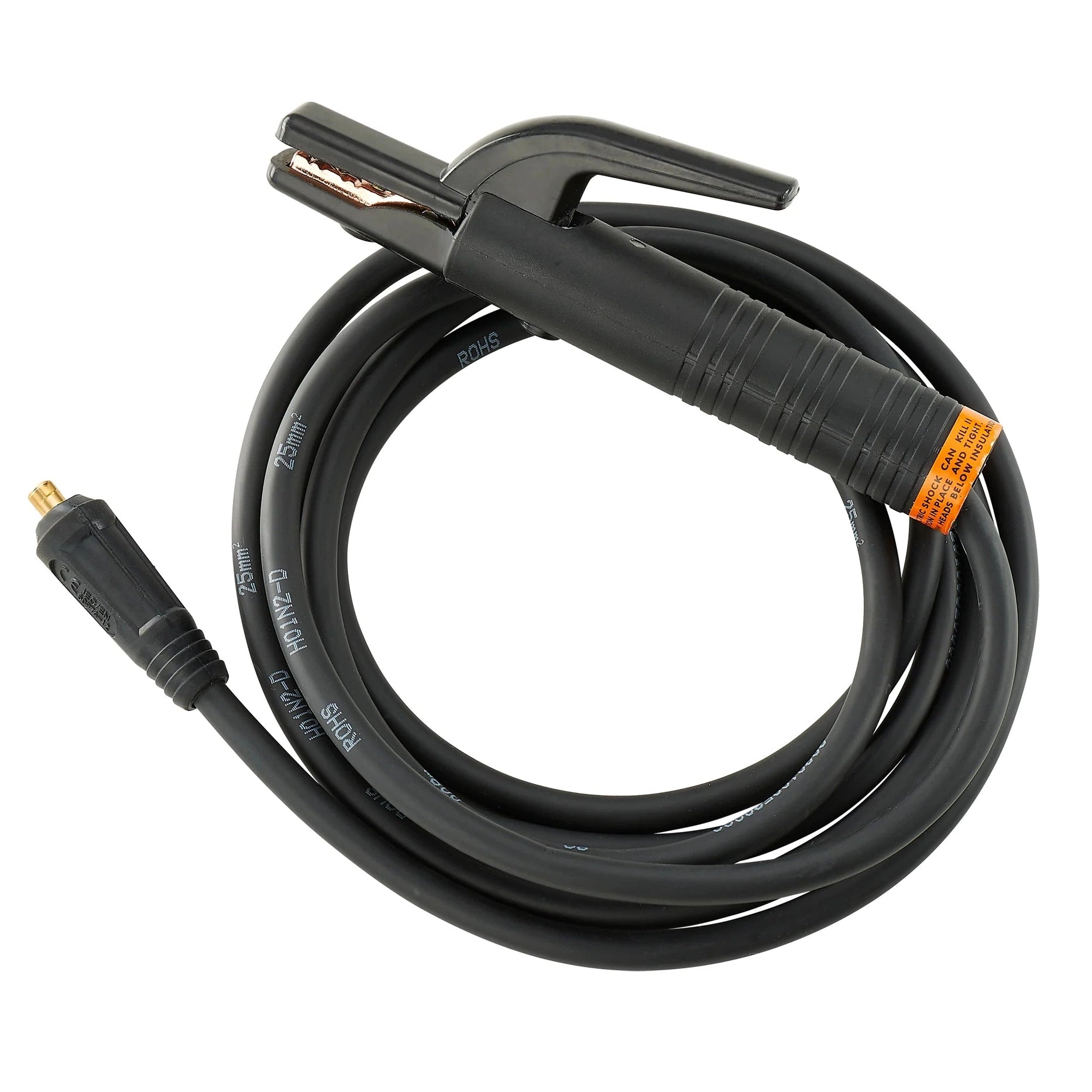

Arc Welder Electrode Clamp 13 ft

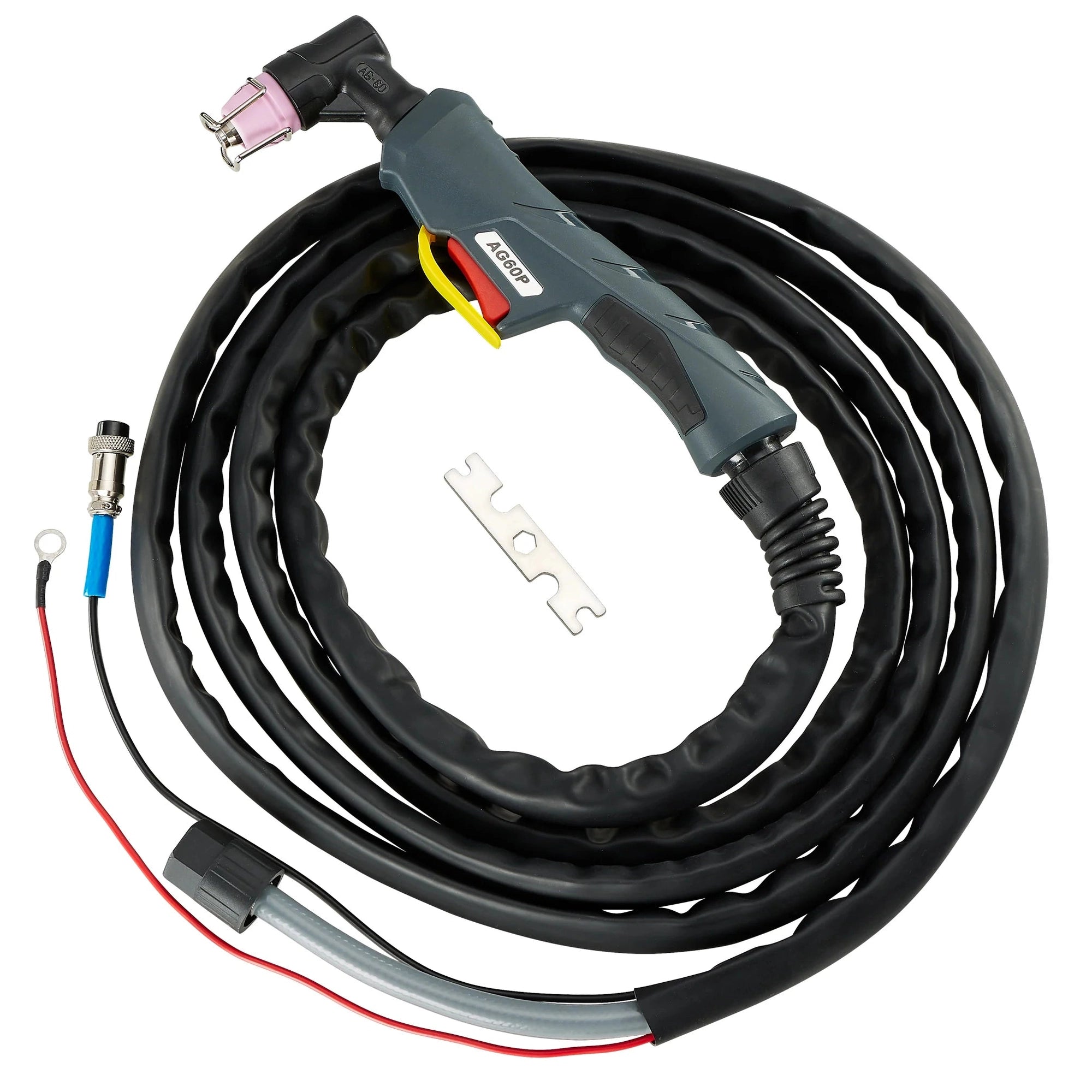

AG60 Plasma Torch
Plasma Hose

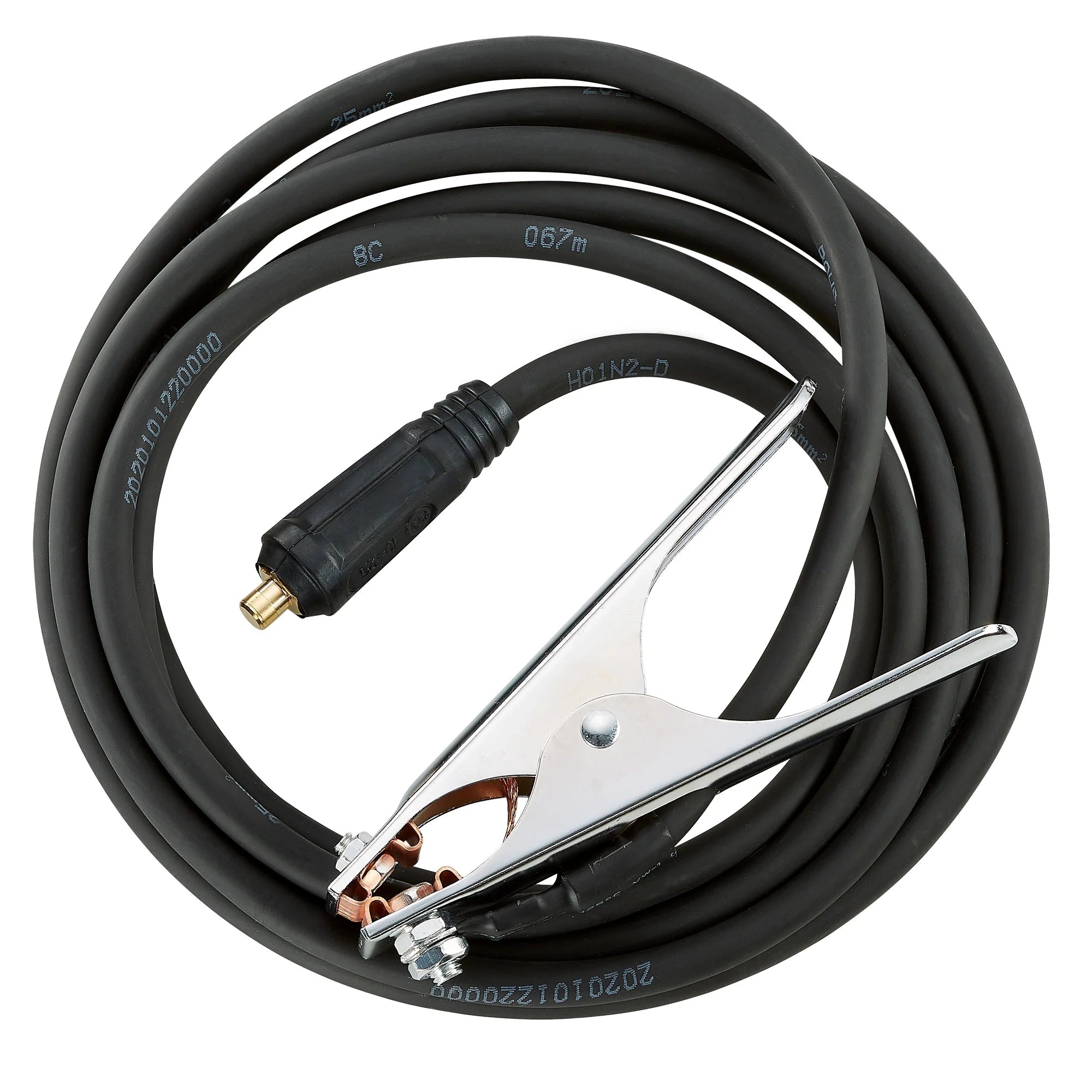

Ground Clamp 13 ft

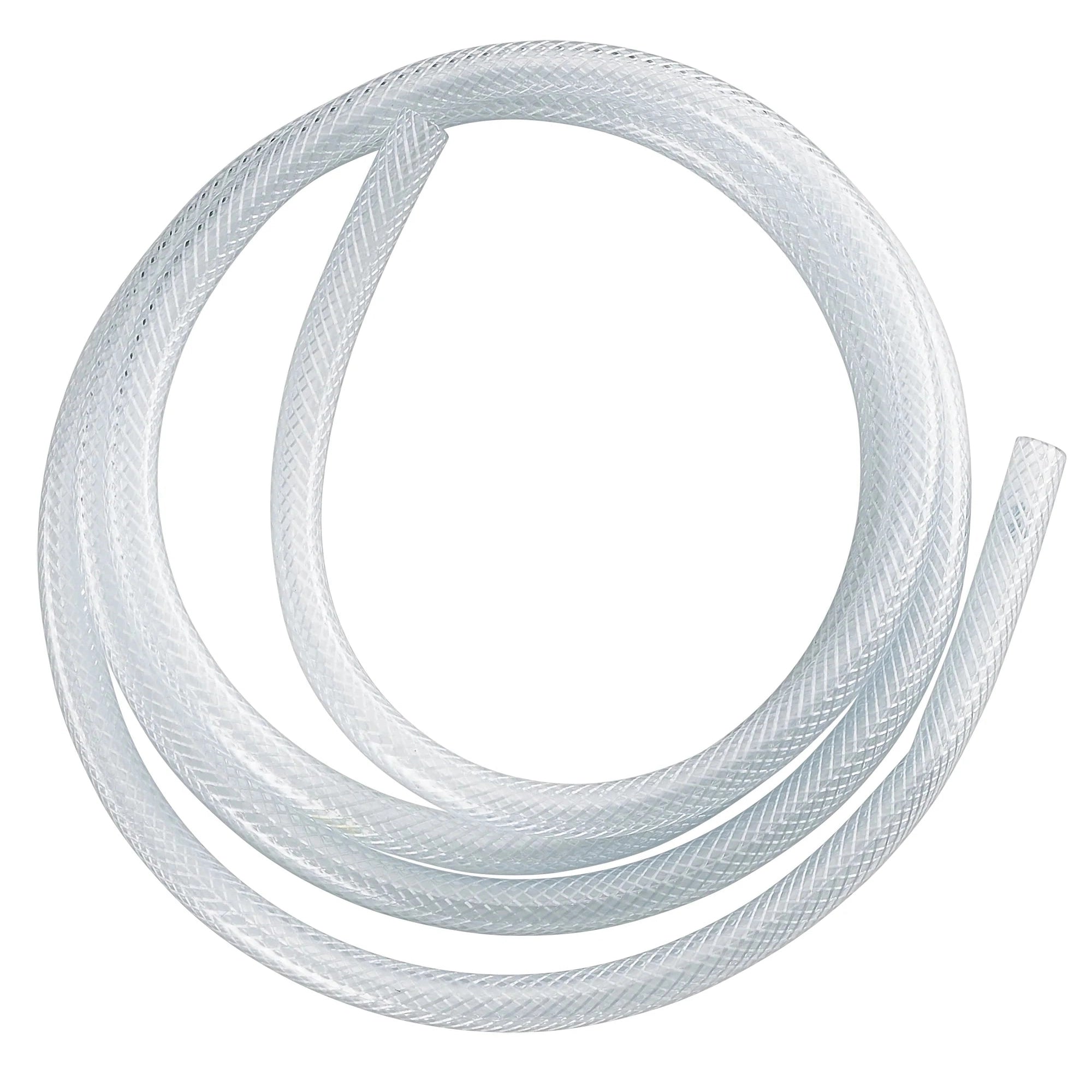

Gas hose

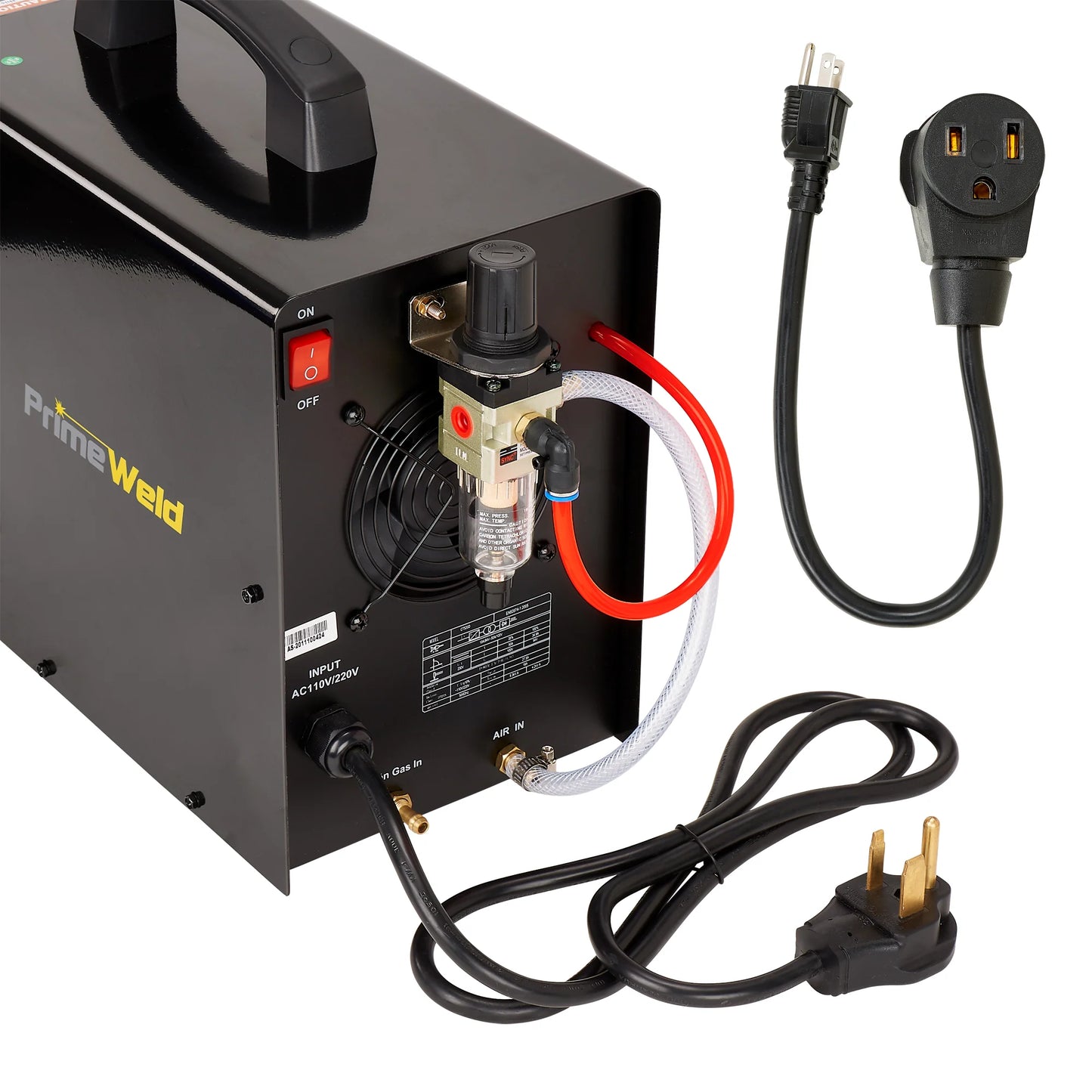

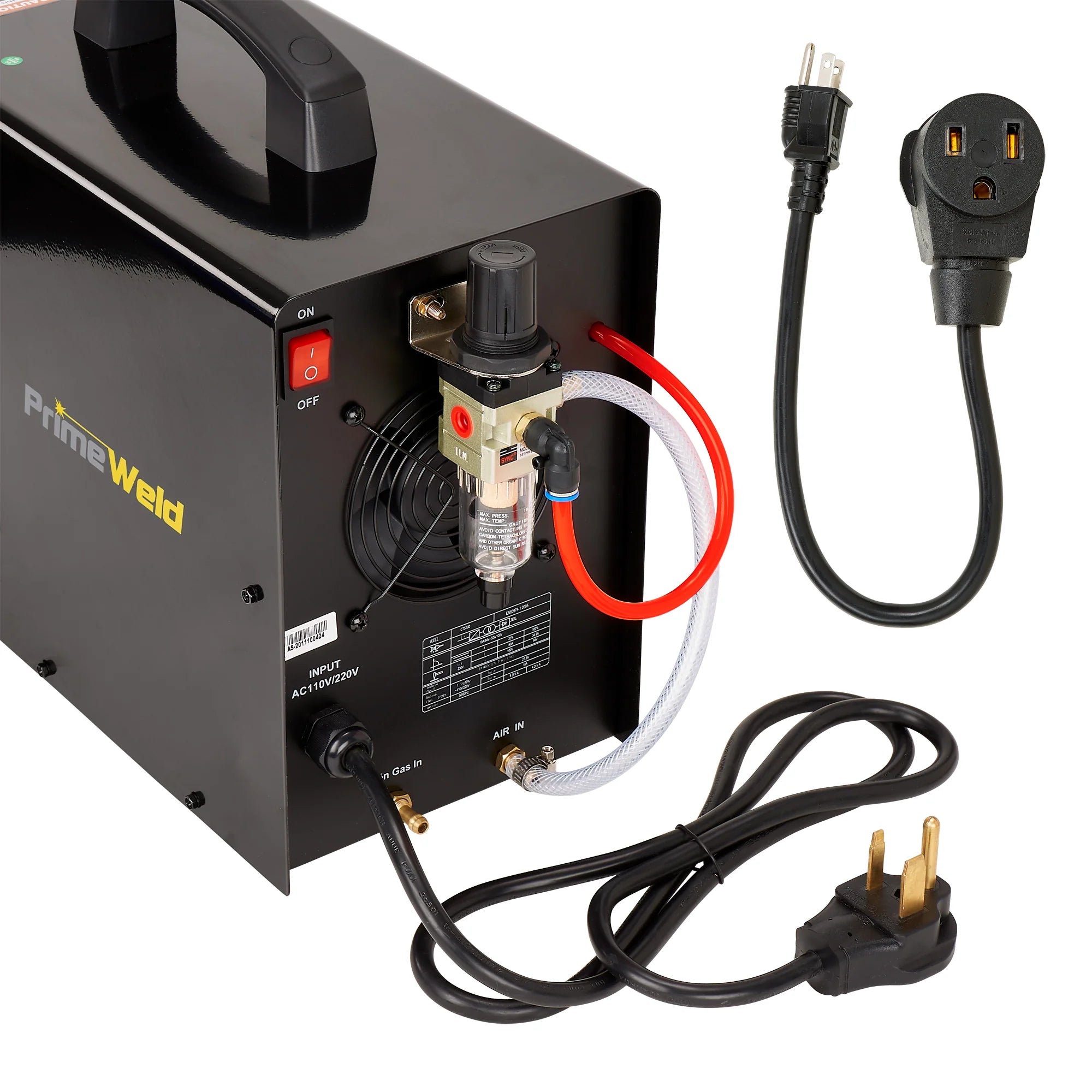

240-volt to 120-volt adapter pigtail
FREE SHIPPING in our WELL-PACKED, HEAVY-DUTY CARTON!
