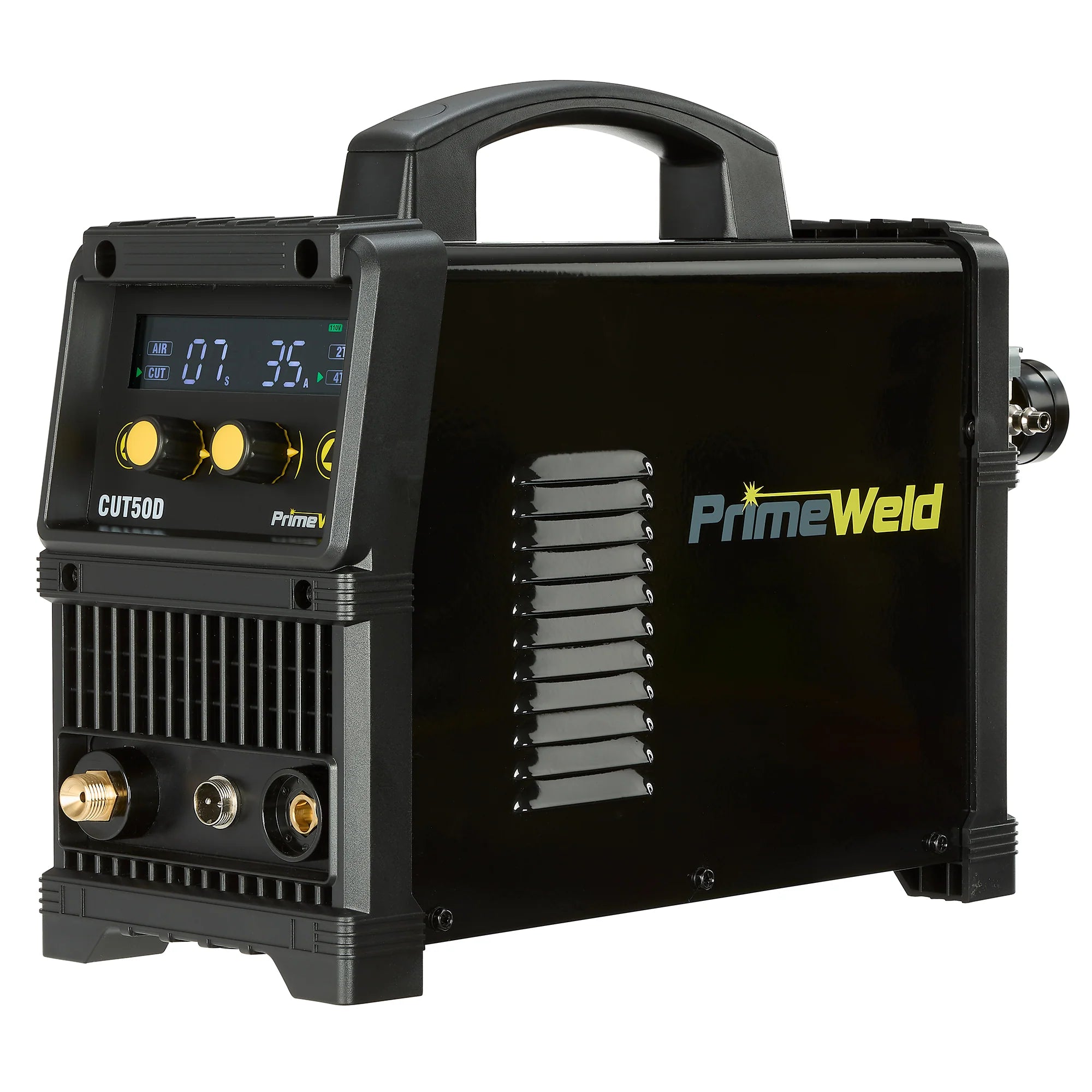

It's difficult to beat the convenience of a portable plasma cutter. Keep your preferred cutting tool within reach with the CUT50D Portable Plasma Cutter. This light-weight, 50-amp machine provides heavy-duty cutting right out of the box. With 50 amps of power on tap, this portable plasma cutter can cut up to 1/2-inch thick steel plate, no problem.

A Portable Plasma Cutter — Convenience & Power

A plasma cutter is one tool that every fabricator needs in their arsenal. Save space, time, and money with PrimeWeld's 50-amp air inverter plasma cutter. It's all you need for an array of cutting applications, all in one convenient package.

The CUT50D is a MOSFET (metal–oxide–semiconductor field-effect transistor) inverter plasma cutter that weighs only 23 pounds. This portable machine is light enough to take between shop, job site, and home. Imagine bringing your plasma cutter to your friend’s to handle a little auto body and suspension work!

Cut Sensitive Sheet Metal With Ease

The lower limit output of 20 amps cuts sheet metal as thin as 22-gauge without blowing your nicely cut edges out, saving preparation time to get the workpiece prepared for welding.

The CUT50D Air Inverter Portable Plasma Cutter can power any DIY workshop project. Durable build quality combined with innovative design make it an excellent choice. Plus, get helpful support from a knowledgeable service team whenever you need it. Bring exceptional cutting power to your shop for under $300.

High-Frequency Arc Control for Precise Cuts

This portable plasma cutter’s high-frequency arc control uses a non-pilot “touch and lift” arc start. Lift-start machines are great for drag starts and drag cutting. Just touch the torch momentarily to light the arc, then drag the torch across the surface to make your cut. Using the CUT50D plasma cutter couldn't be easier. With the torch tip so close to the metal, drag starts let you get finer, more precise cuts with your portable cutter.

LIGHTWEIGHT, WITH DUAL-VOLTAGE INPUT POWER

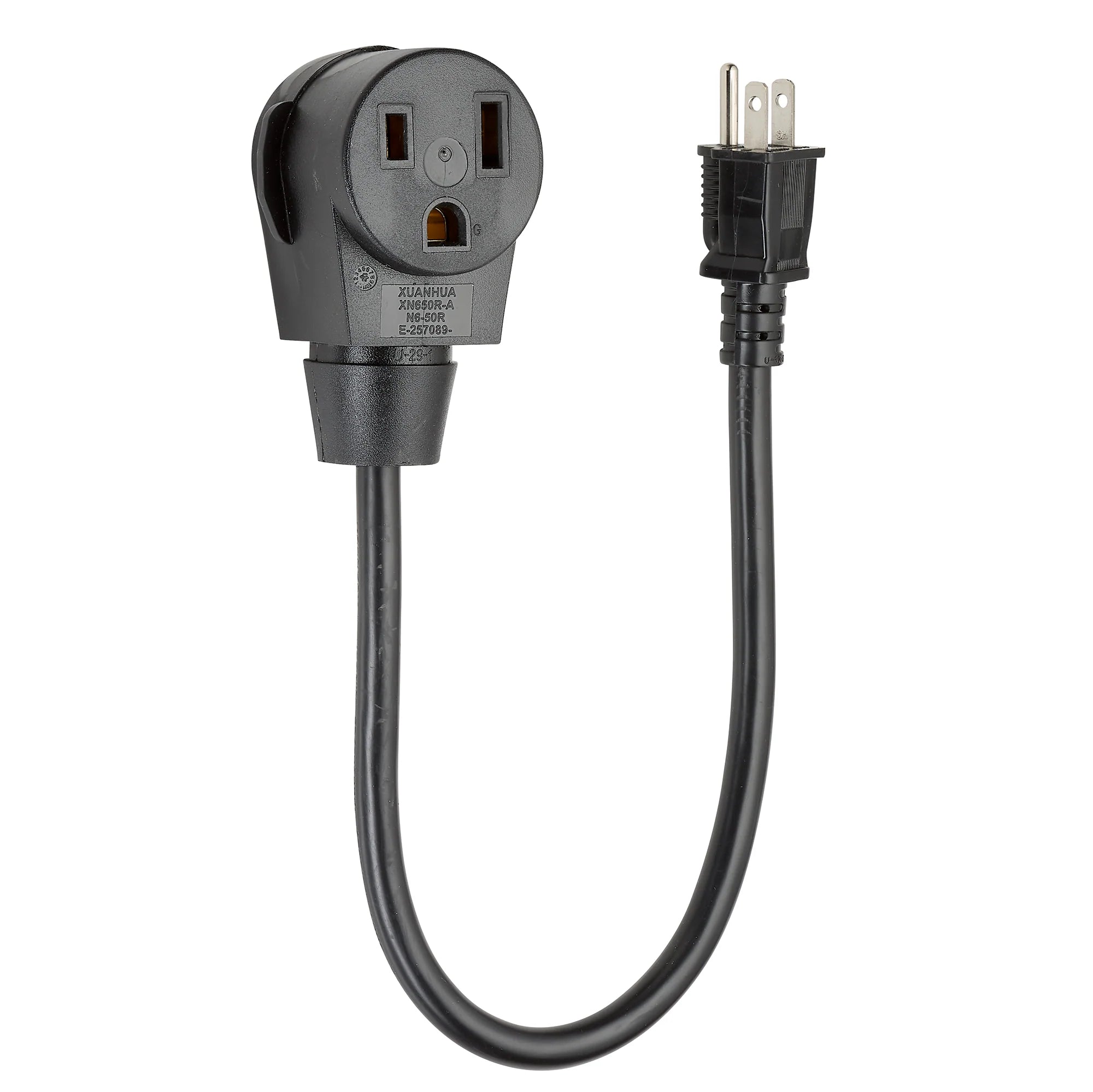

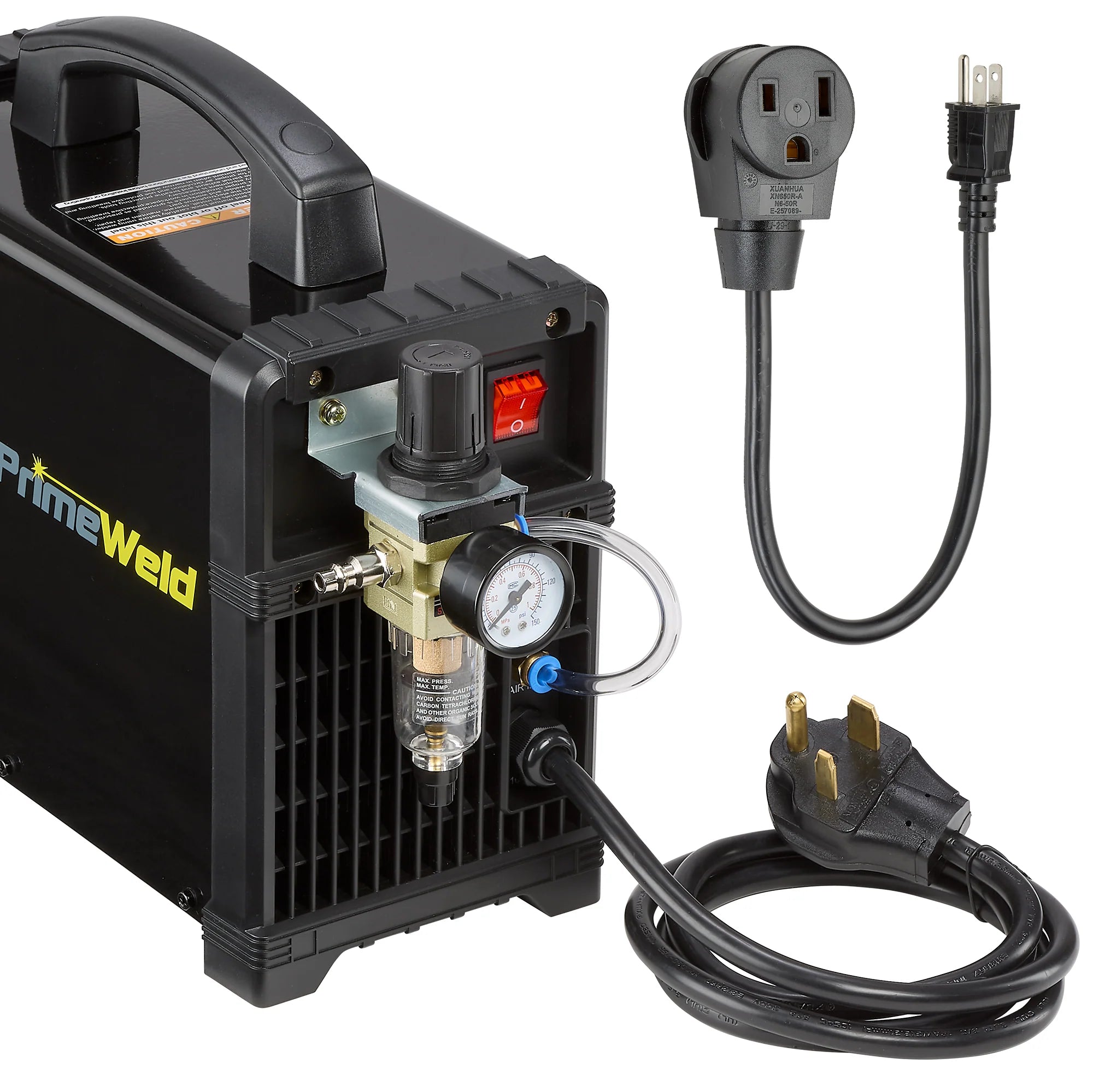

PrimeWeld's CUT50D 50A Air Inverter Portable Plasma Cutter can use whatever voltage is available! This portable, lightweight machine runs on either 120 volts or 240 volts input power. It uses an adapter pigtail to enable the base 240-volt power supply to plug into 120-volt outlets. Powerful plasma cutting power at your fingertips, no matter where you find yourself.

NO-HASSLE 3-YEAR WARRANTY!

If you run into issues, have a problem, or want advice, call PrimeWeld for personalized support from live people. We pride ourselves in being easy to contact, knowledgeable, and deliver the kind of troubleshooting know-how that keeps you producing.

Features

50A Air Inverter Portable Plasma Cutter Features:

Dual 120/240-volts input
MOSFET Inverter-powered
Start cutting out of the box
Lift-type arc start
Air Supply Postflow
Drag Start capability

PROTECTION FEATURES:

Overcurrent protection
Overheating protection
Power spike protection

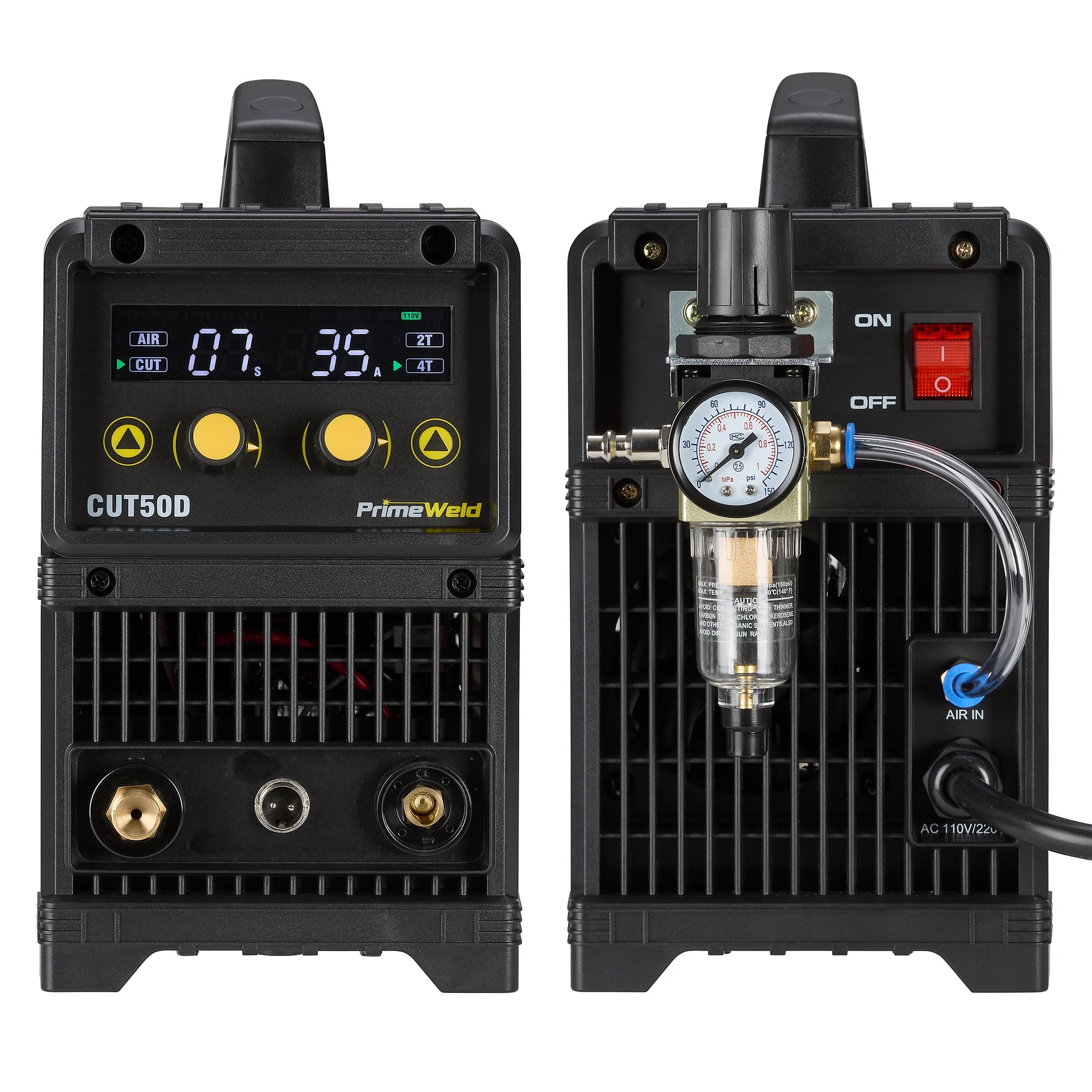

USABILITY FEATURES:

Dinse connections
Front Panel air pressure gauge
Digital Power Display

SPECIFICATIONS:

BREAKER SIZE:

(120V) 30 amps
(240V) 50 amps

PLASMA OUTPUT IN AMPS:

Arc 120 volts: 20-40 amps
Arc 240 volts: 20-50 amps

DUTY CYCLE:

60 percent @ max rating (120/240V)
100 percent @ 23 amps (120V)
100 percent @ 40 amps (240V)

AIR PRESSURE:

40-75 PSI

AIRFLOW REQUIRED:

5 CFM @ 80 PSI

AIR POSTFLOW:

5 seconds

WEIGHT:

22.5 pounds

Specifications

SPECIFICATIONS TABLE

The CUT50D Air Inverter Portable Plasma Cutter weighs only 8.9 kgs, less than 20 lbs. It is industrial-rated, with 50-amps of cutting current, lightweight, and portable. Check out the other specifications for this highly-rated plasma cutter below:

Model	CUT50D (110/220V)
Model	110V	220V
Power Supply / Phases (V-Ph)	220V +/-15%	110V +/-15%
Duty Cycle @ 78°F (25C)	60% @ 50 Amps	60% @ 40 Amps
Rated Power (KVA)	5.90	4.40
Input Current Range (A)	35-40	40-45
Output Current Range (A)	20-50 Amps	20-40 Amps
Rated Output Voltage (V)	100	96
No-Load Voltage (Open CricuC(V))	260	260
Efficiency (%)	60	60
Insulation Class	F	F
Protection Class	IP21S	IP21S
Plasma Arc Starting	HF Scratch Start	HF Scratch Start
Air Flow Pressure Range	40 - 65 PSI	40 - 65 PSI
Air Flow Rate (CFM)	5 L/min	5 L/min
Clean Cutting Thickness (mm)	12mm	12mm
Cutting Thickness Severance (mm)	16mm 065psi	12mm 065psi
Cutting Speed (10mm)	200mm/min (065psi)	150mm/min (065psi)
Machine Dimensions (inch)	13.7 x 5.6 x 9.2	13.7 x 5.6 x 9.2
Shipping Weight (kg)	8.9kg (19.62 lb)	8.9kg (19.62 lb)

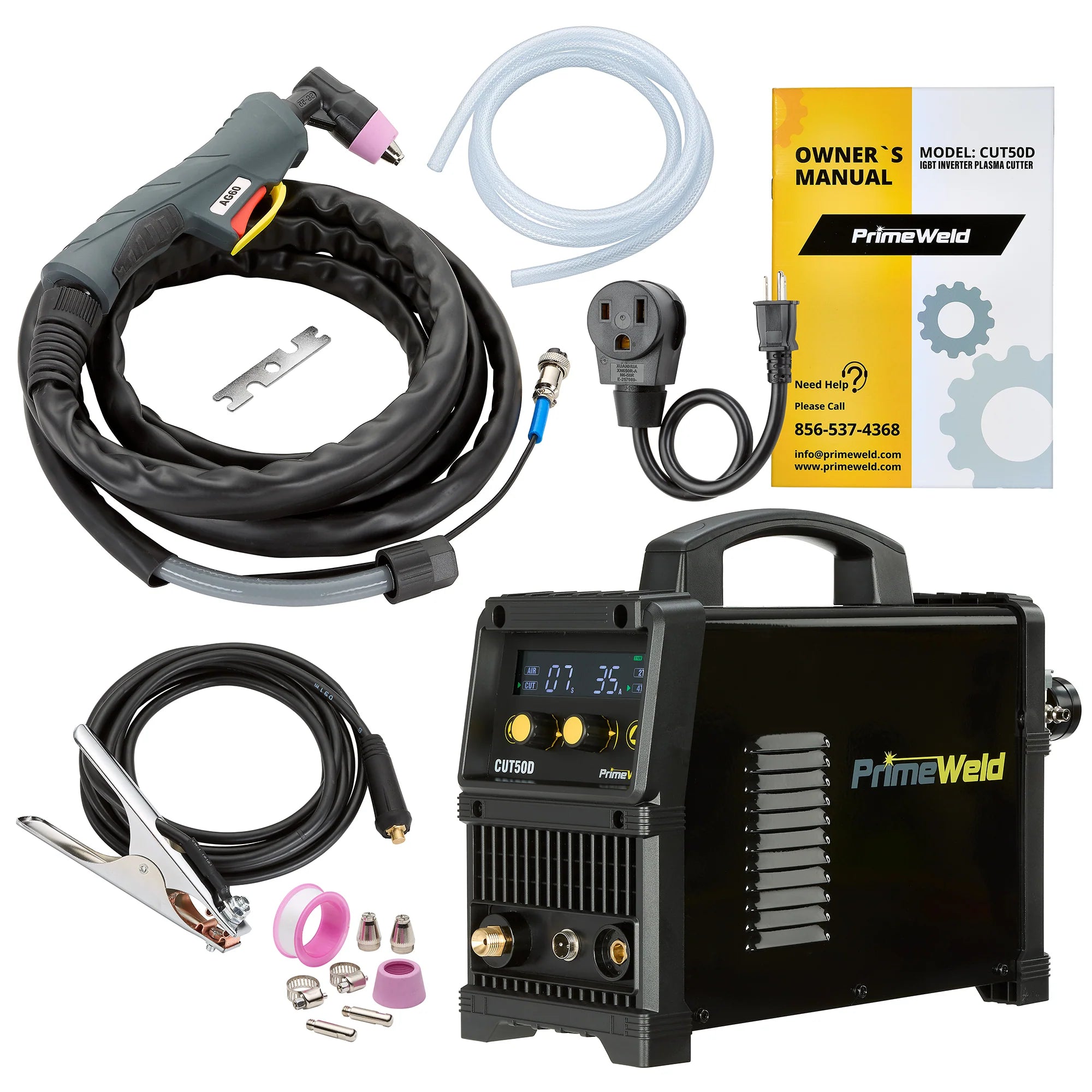

What's Included

CUT50D Dual Voltage 60-Amp Plasma Cutter Comes With:

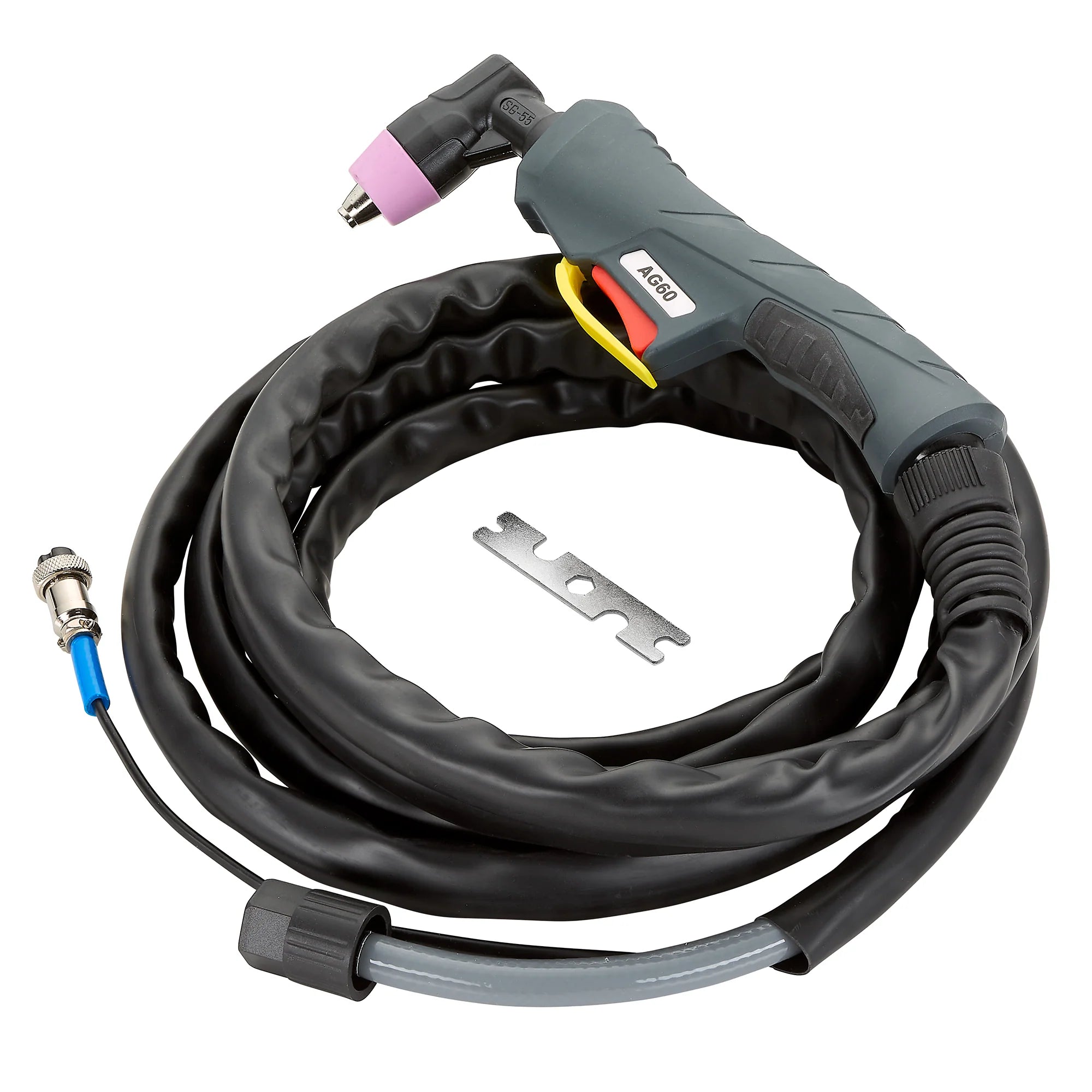

AG60 Torch
13-foot Torch Hose
Flowmeter
Air supply hose

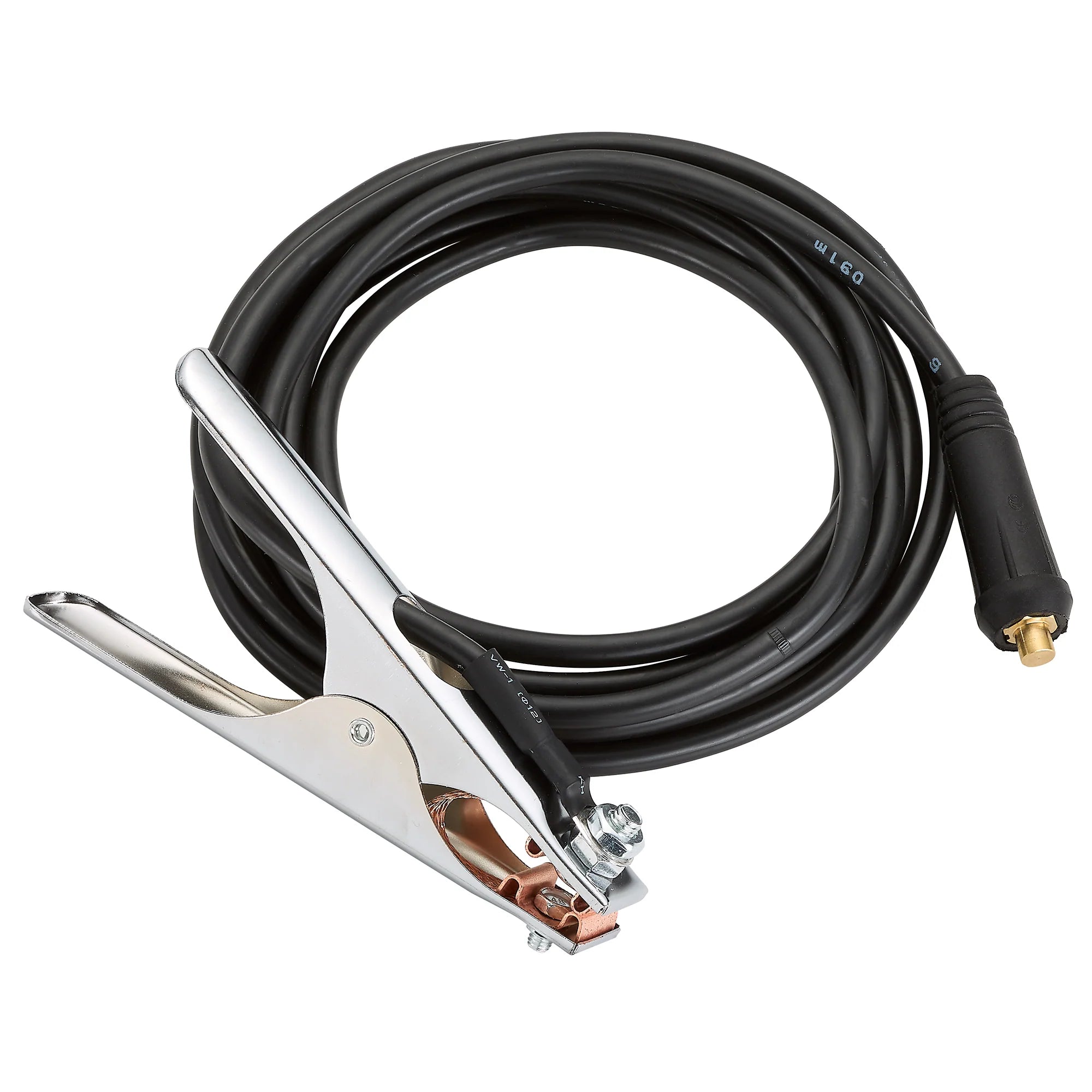

Ground Clamp 10 ft
Brush
Hand-held mask
Reference Manual
240-volt to 120-volt adapter pigtail
FREE SHIPPING IN A WELL-PACKED, HEAVY-DUTY CARTON!

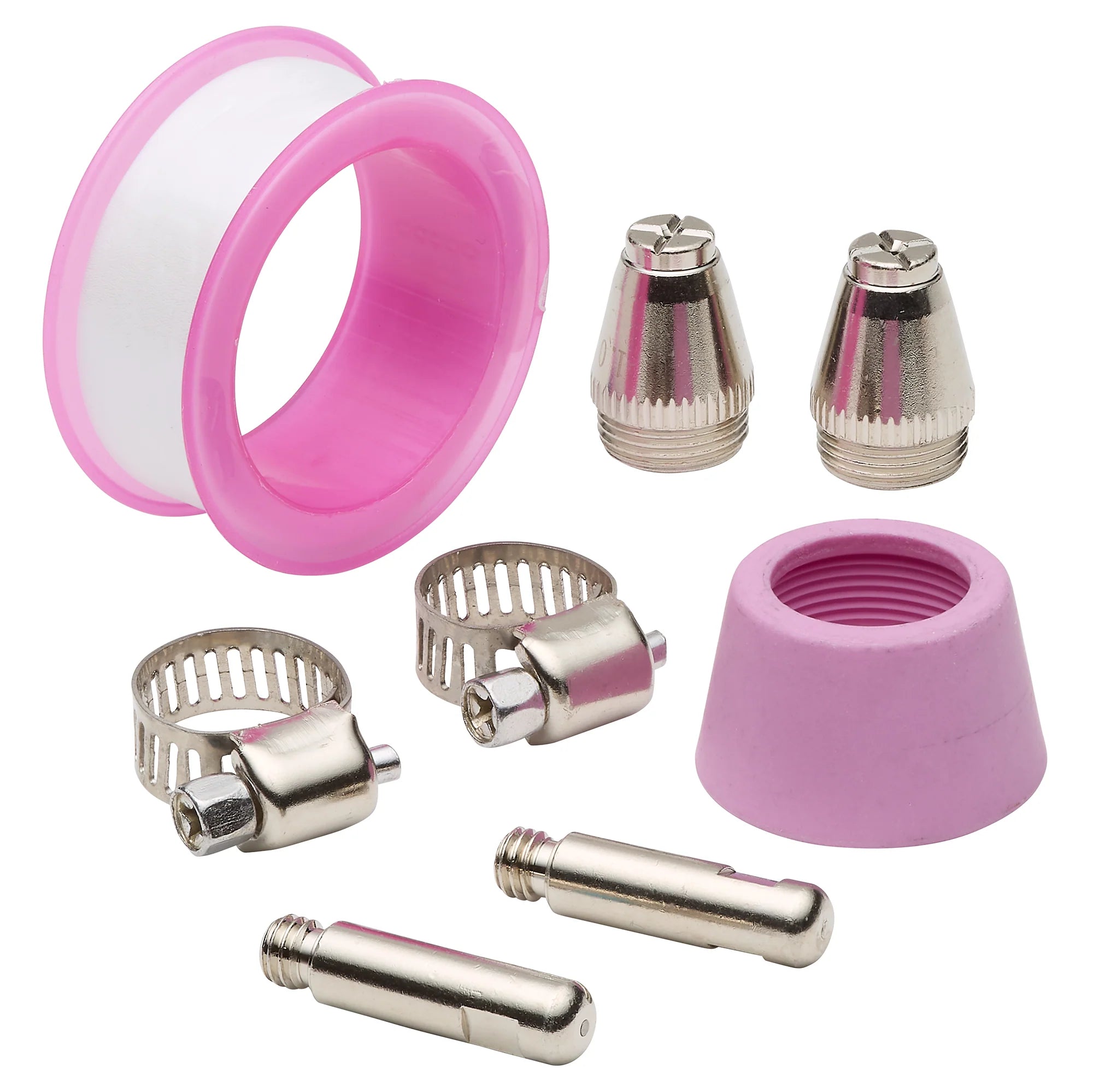

cut50d torch consumables

How to Use

TECHNIQUE TIPS

It is easier to pull the torch through the cut than to push it.
To cut thin material, reduce the amperage until you get the best quality cut.
Use the correct size tip orifice for the amperage being used.
For straight cuts, use a straight edge or cutting buggy as a guide. For circles, use a template or circle-cutting attachment.
Check that the front-end consumable parts of the plasma cutting torch are in good condition.
