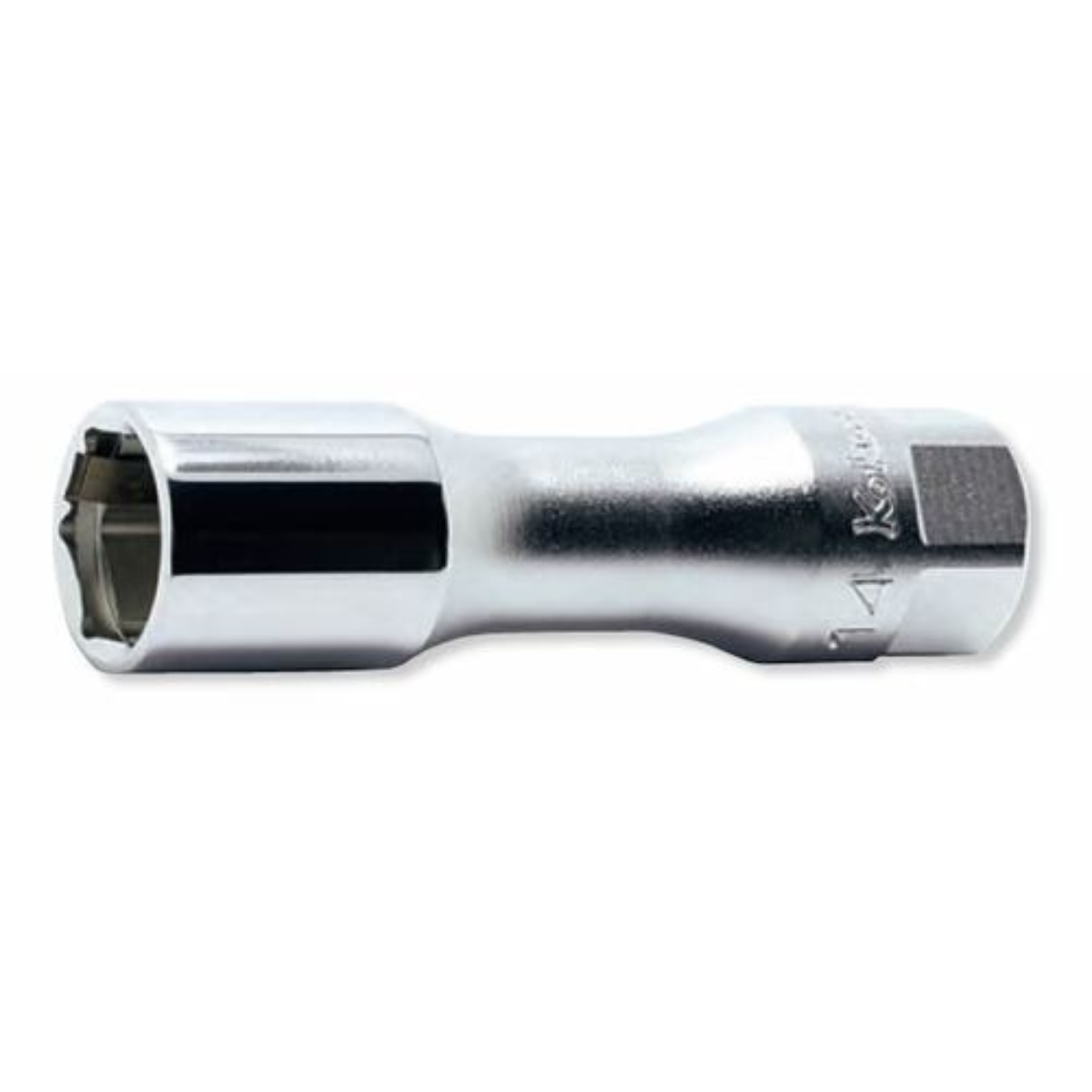

Koken 3300CZ-14 - 3/8" Sq Drive Z-Series 6-Point Clip Type Spark Plug Socket

Thin Wall Z-Series Clip Type Spark Plug Socket – the epitome of precision and protection for your spark plug maintenance needs. Crafted with meticulous attention to detail, this specialized socket is designed to facilitate seamless and damage-free spark plug installations.

The thin wall design of our socket takes center stage, offering a sleek and low-profile construction that is almost flush with the spark plug. This unique feature ensures easy access to spark plugs even in tight spaces, allowing for efficient and hassle-free installations. The slender build of the socket minimizes interference, making it the ideal tool for intricate engine compartments.

What sets our socket apart is the innovative Clip Type mechanism, featuring a retaining spring clip dedicated to guiding the spark plug into its designated position. This thoughtful addition not only streamlines the installation process but also acts as a safeguard against potential damage to the delicate ceramic components of the spark plug. The clip ensures a secure and precise fit, minimizing the risk of accidental slips or mishandling during installation or removal.

Input Drive Size:	3/8"
Drive shape:	Square
Length:	70mm
Type:	Spark Plug Socket with Spring Clips
Output size:	14mm
Opening:	6pt

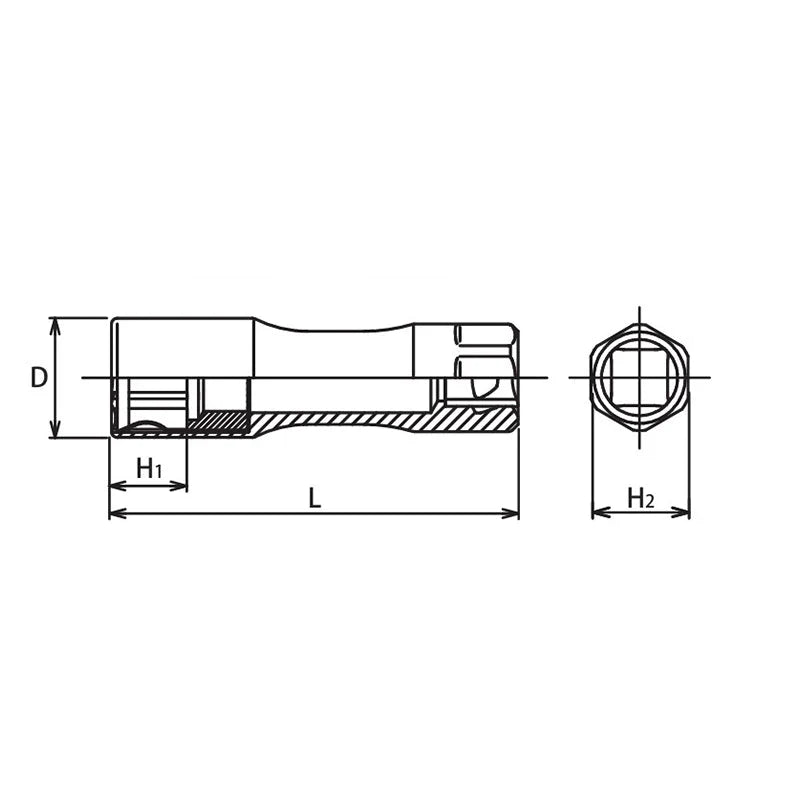

Product Dimension (Refer Line Drawing Image):

D Size:	18.4mm
H1 Size:	11mm
H2 Size:	17mm
L Size:	70mm

Koken 3300CZ-14 - 3/8" Sq Drive Z-Series 6-Point Clip Type Spark Plug Socket
