Grip Capacity

Opening Width: 0 – 48mm
Compatible Pipe Sizes: 9.0mm to 48mm
Compatible Nut Sizes: M6 to M30

Product Specifications

Overall Length: 251mm
Weight: 294g
JAN Code: 4952520853054
Package Dimensions: 323H x 75W x 17D mm

KUROKIN Water Pump Pliers 130-250-SD Dimension Diagram

Detailed Dimensions (mm)

A (Total Length): 251
B (Head Width): 57
C (Head Thickness): 8.5

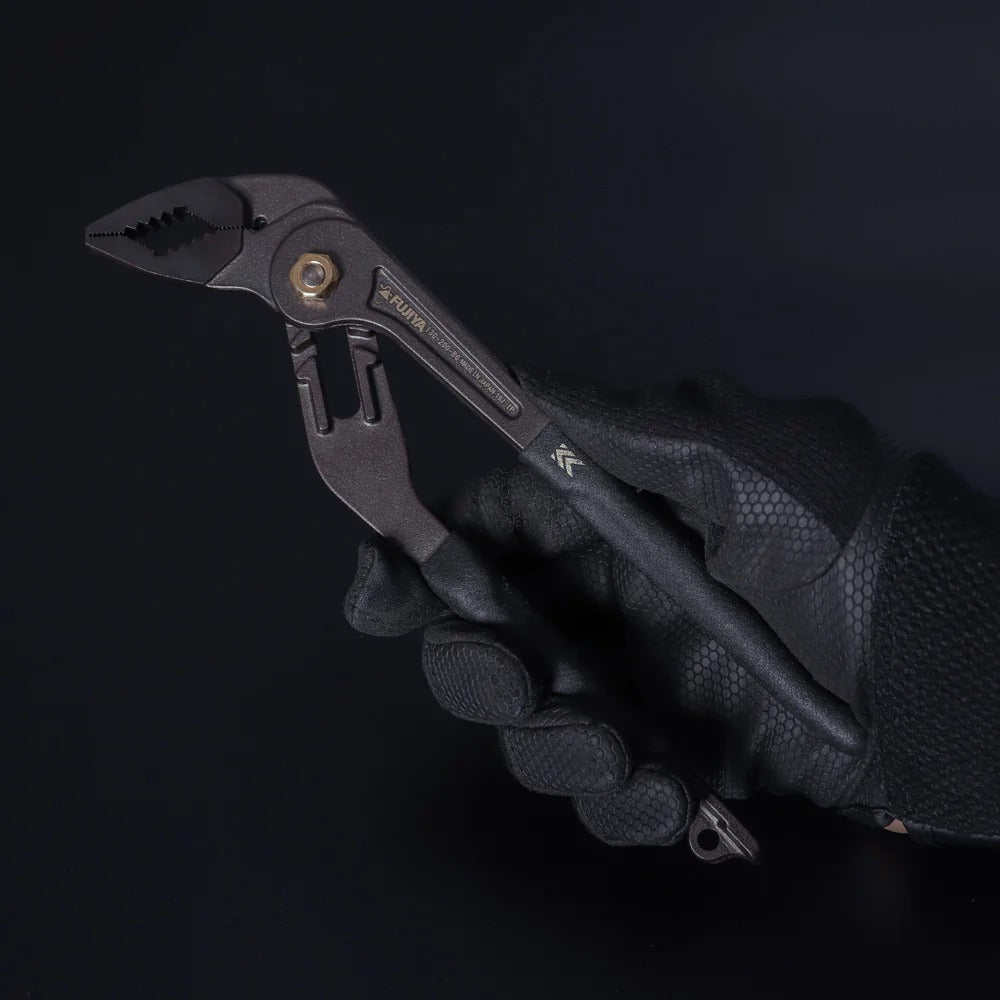

Ultralight Slim-Profile Design

Engineered for maximum weight reduction without sacrificing structural integrity. This slim build allows for easy access into narrow, confined spaces while significantly reducing hand and arm fatigue during extended use.

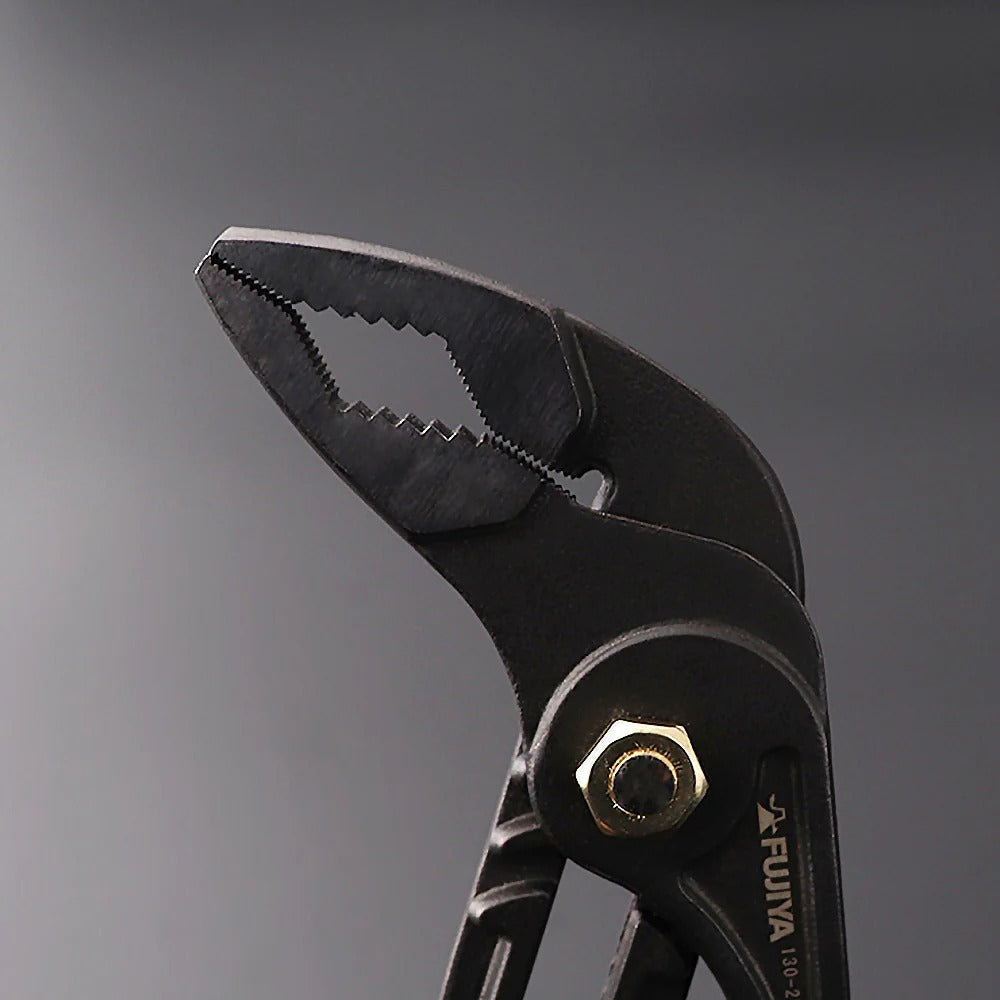

Precision Diamond-Grip Jaws

The specialized diamond-shaped jaw geometry provides a secure, four-point contact grip on everything from pipes to flat sheet metal. It ensures a non-slip hold on diameters from 8.5mm to 42mm and hardware sizes M5 to M27.

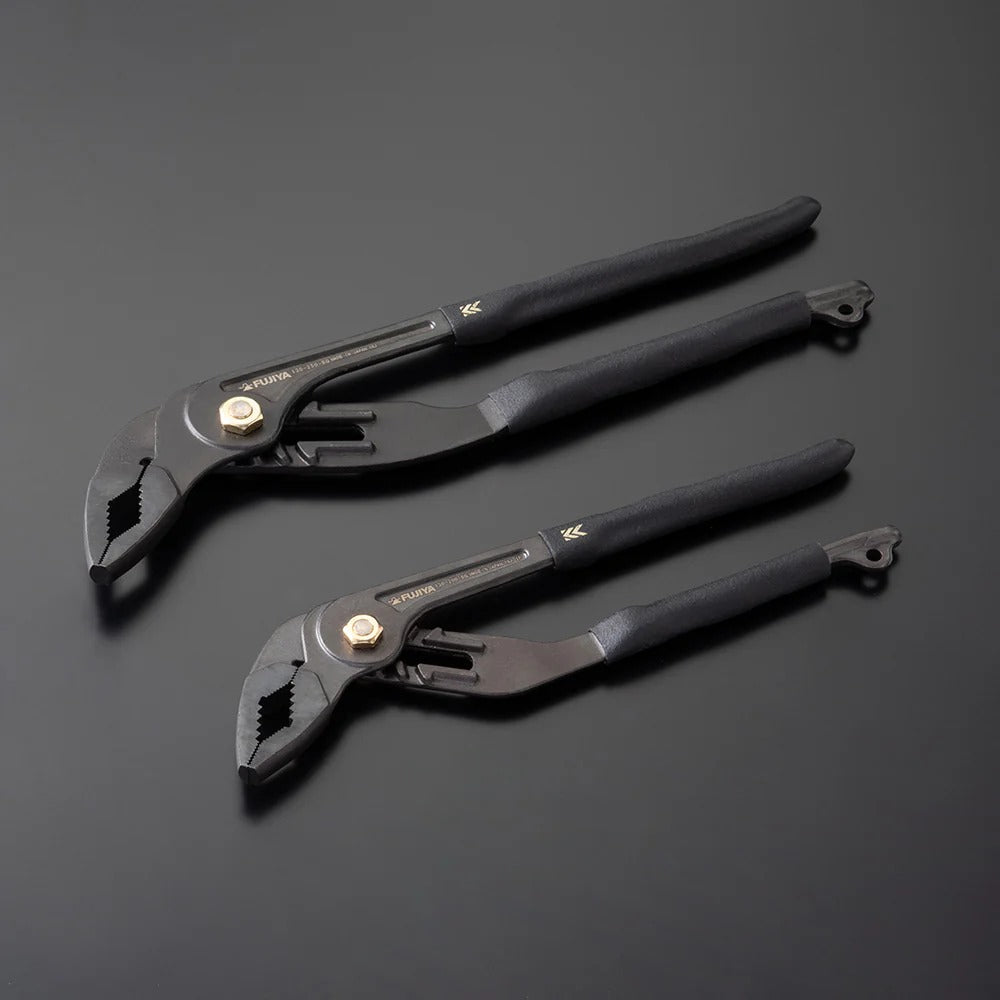

Available in Two Precision Sizes

Choose the 200mm model for high portability and tight-access tasks, or the 250mm model for increased leverage and mechanical advantage when working with larger fittings.

Pinch-Free Safety Stopper

Equipped with an integrated safety stopper that prevents the handles from fully closing on your hand, eliminating painful palm pinches during high-force applications.

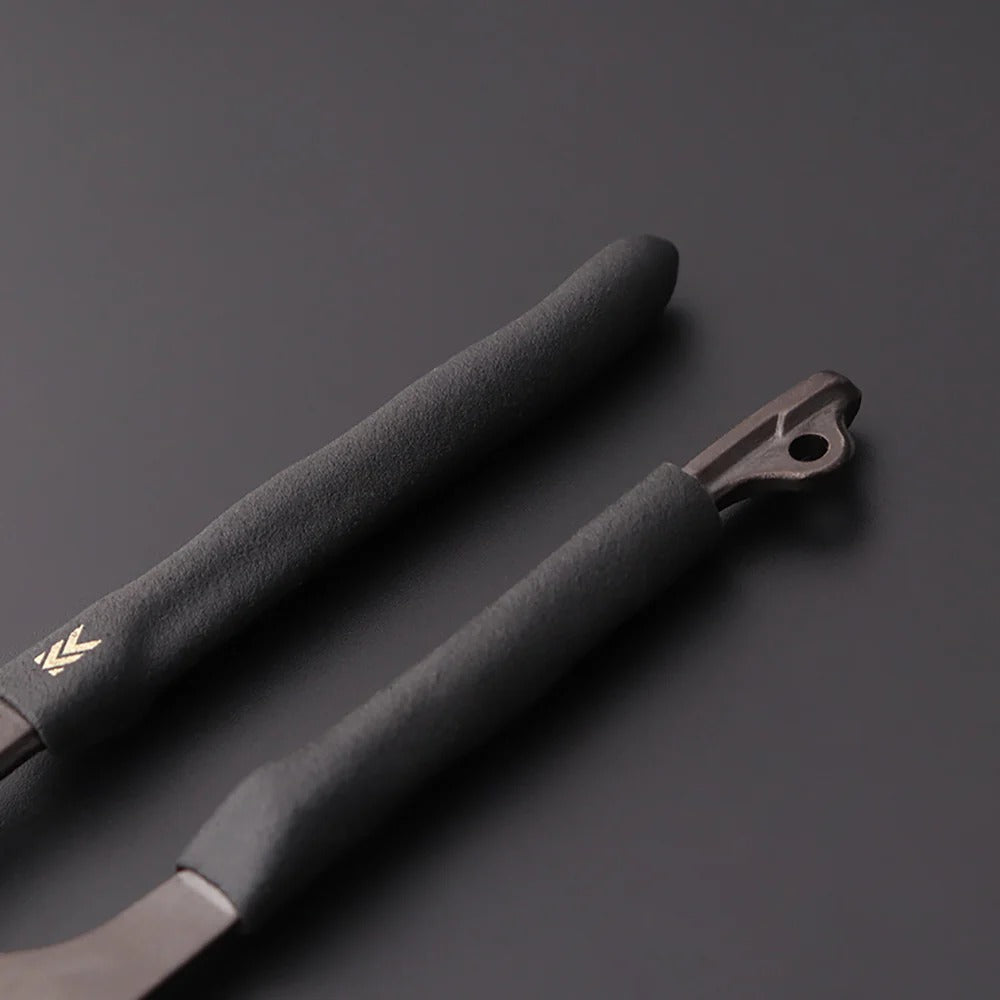

Tether-Ready for Height Safety

Features a dedicated attachment hole for safety cords, making these pliers ideal for work at heights or on jobsites where drop prevention is mandatory.

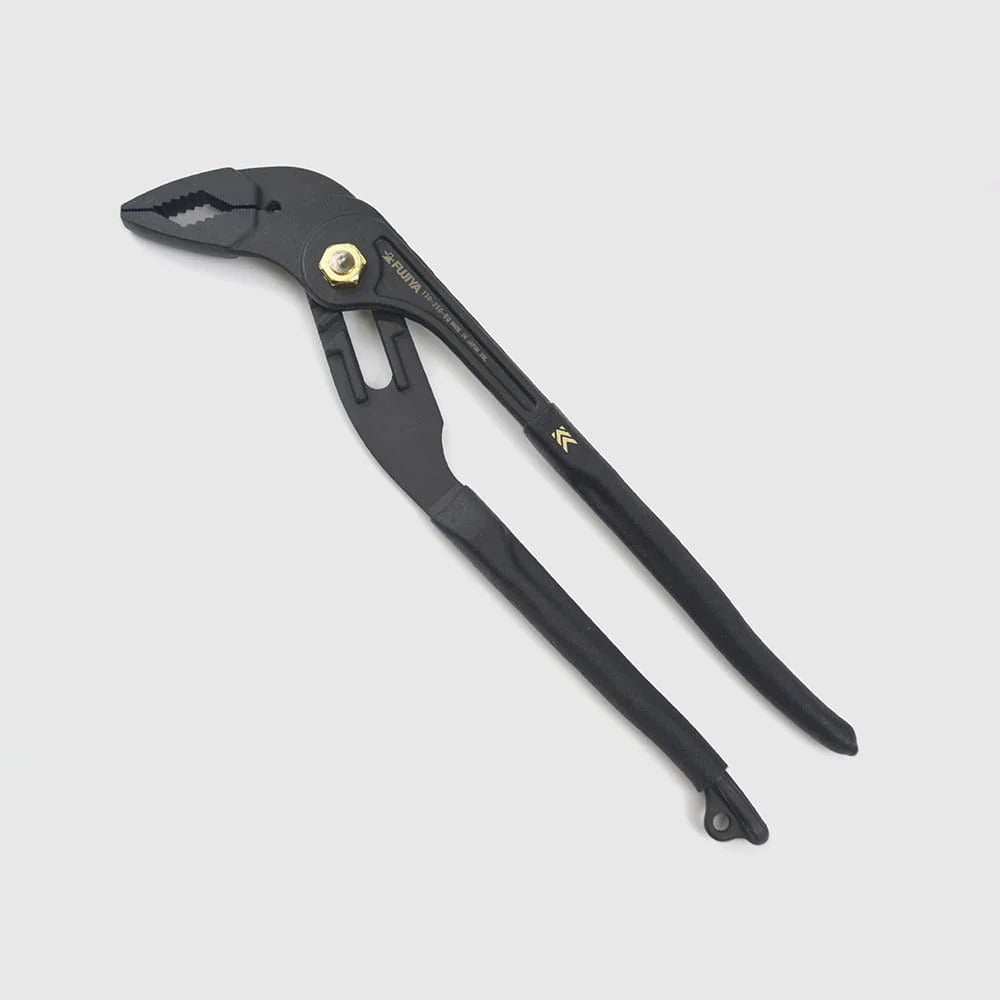

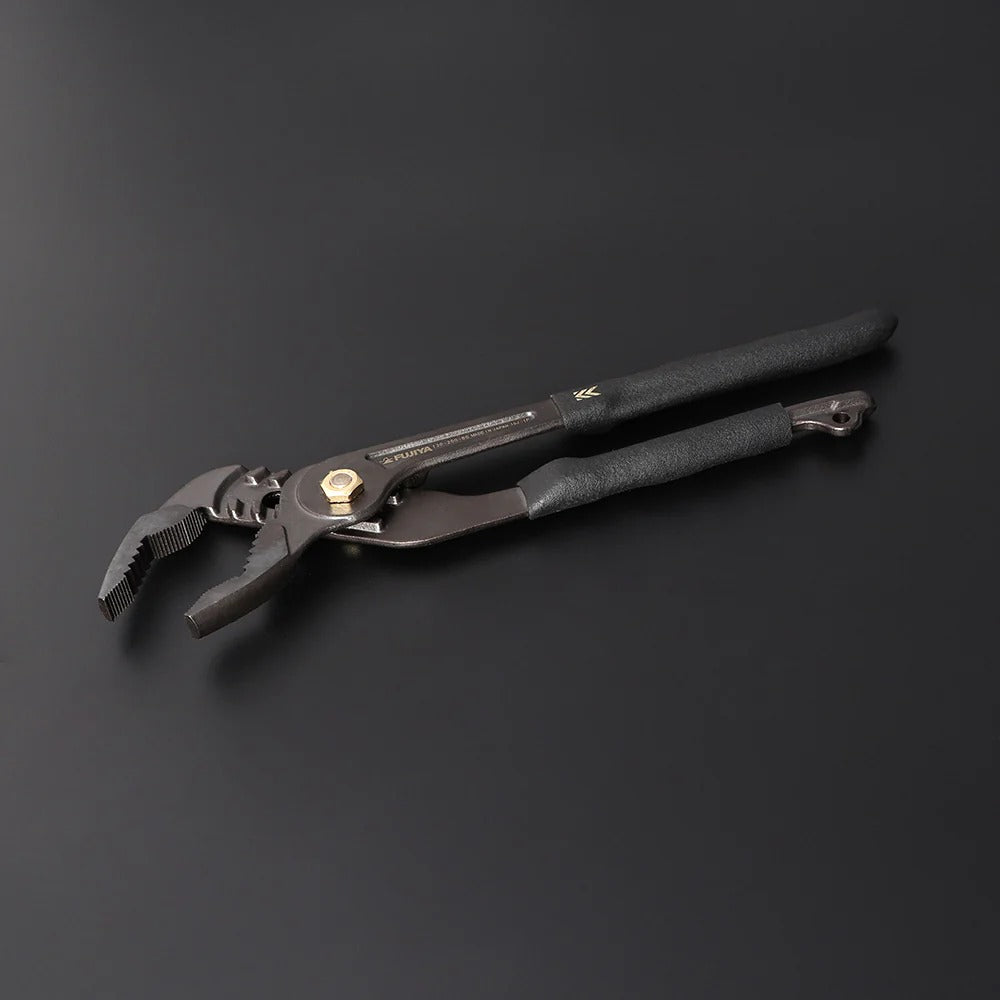

Fujiya Kurokin 130-250-BG Water Pump Pliers
