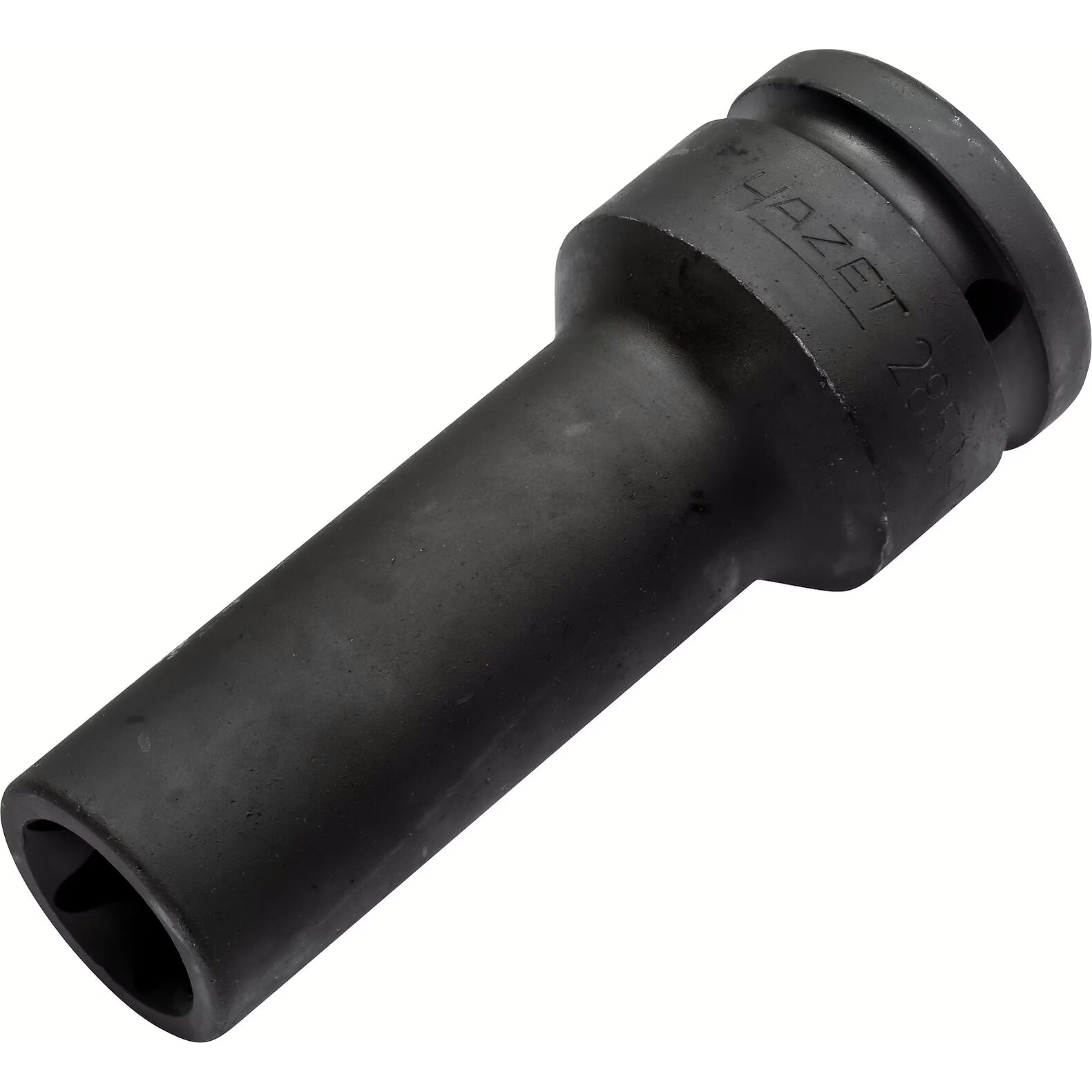

Hazet 2850-E24 3⁄4″ Impact socket - Outside TORX® profile - E24
Size E24 ∙ 3/4 inch square ∙ hollow ∙ Outside TORX® profile
NOTE* This item ships in 1-2 weeks
-
Application:

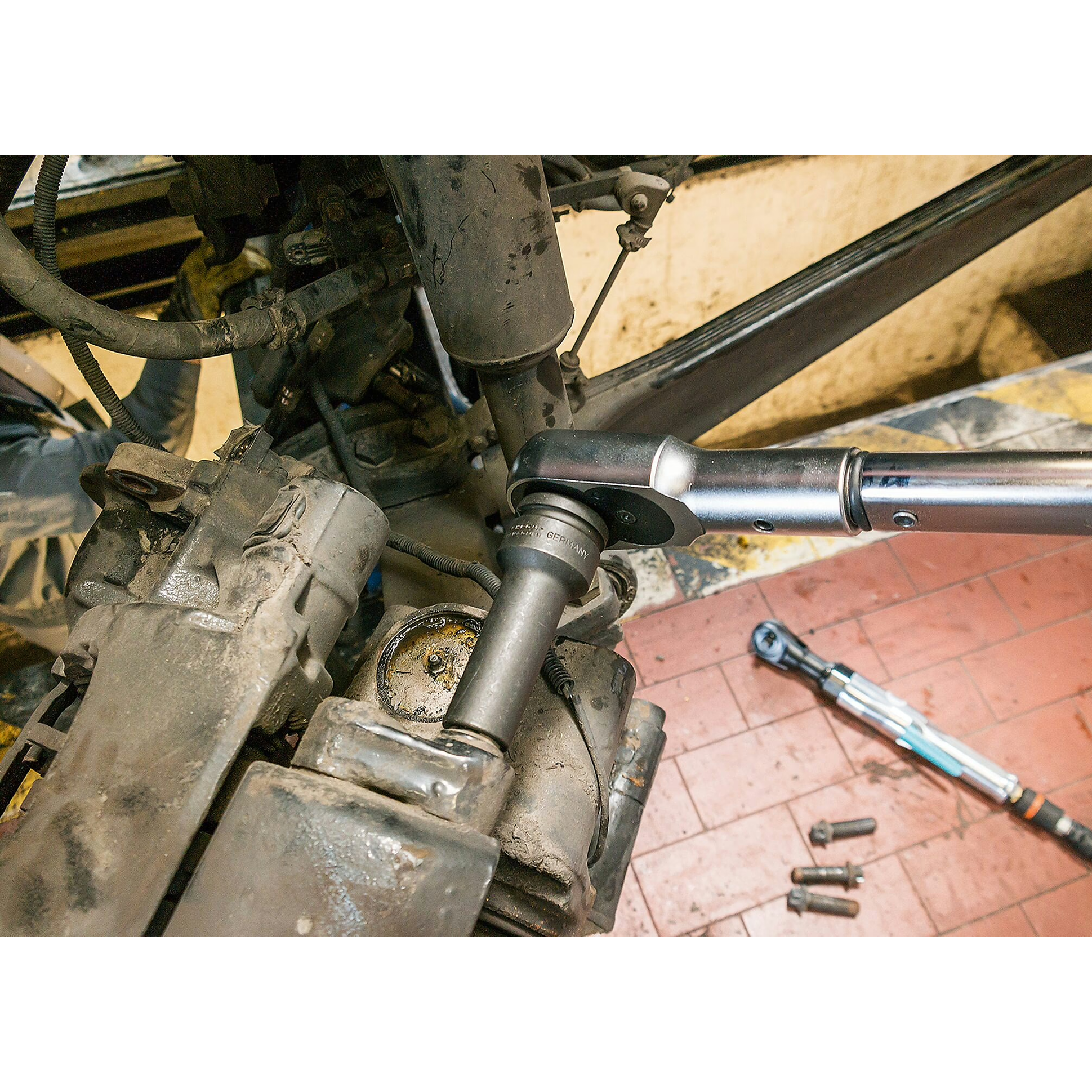

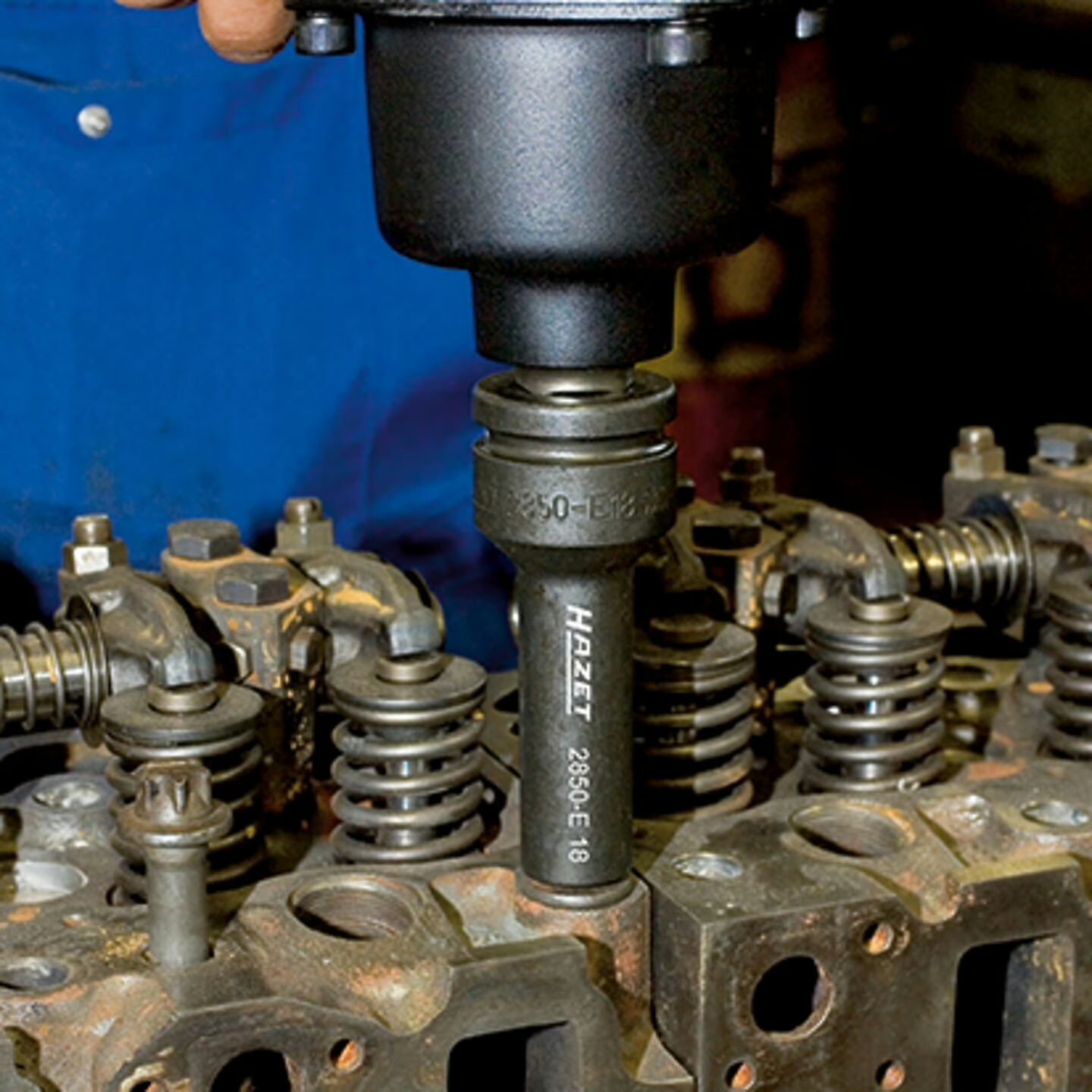

MAN commercial vehicles with Common Rail Engine (D20) - Operation of cylinder head bolts
- Reinforced design
- Made in Germany
| Output |
Outside TORX® profile |
| Wrench size | E24 |
| Drive |
3/4 inch (20 mm) square, hollow |
| Manual/impact operation |
For impact operation |

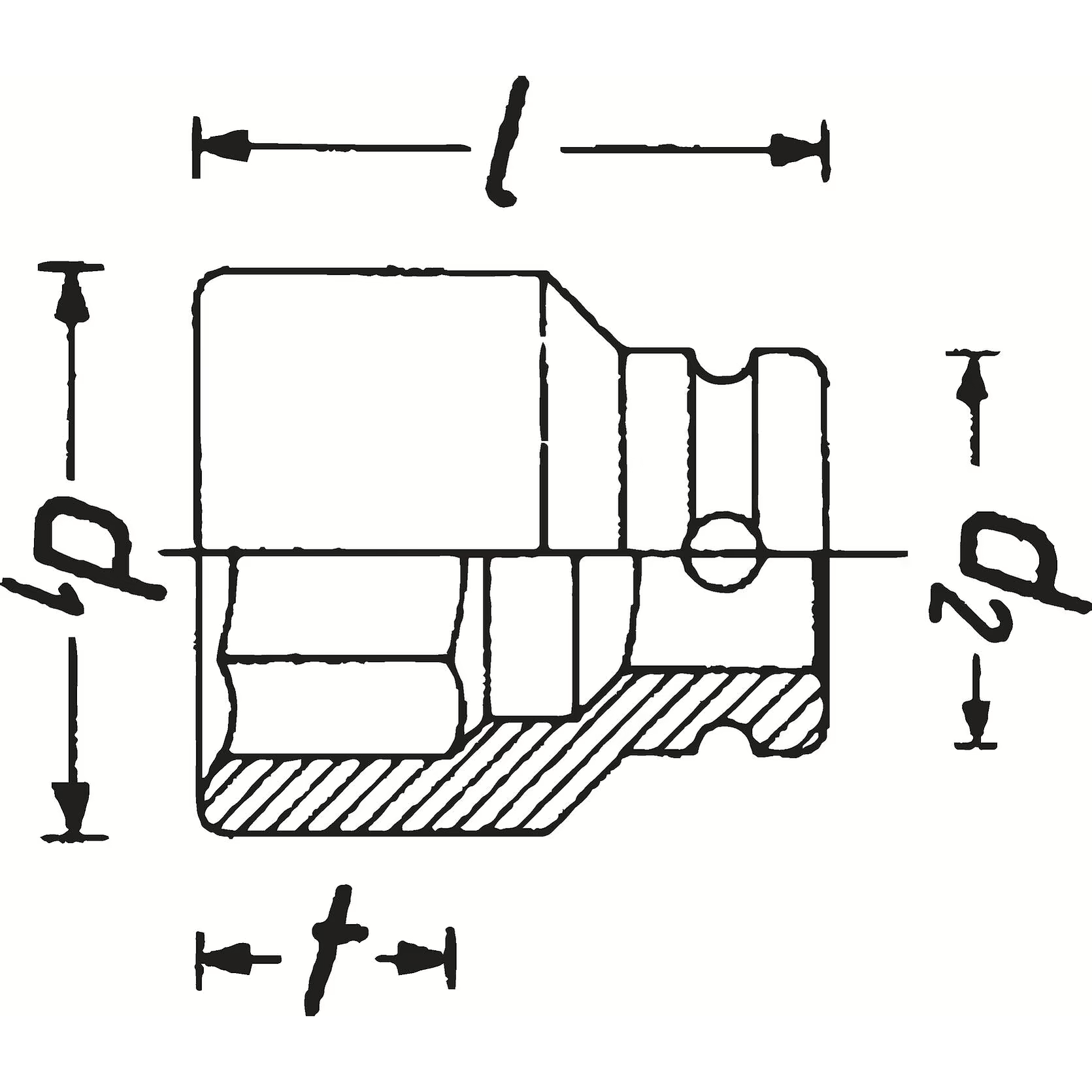

| Diameter d1 (output side) | 30 mm |
| Diameter d2 (drive side) | 44 mm |
| Design drive / output |
With borehole for locking pin or safety spring and groove for O-ring |
| Surface |
phosphatized, oiled |
| Dimension | 110 mm |
| Depth | 17.5 mm |
