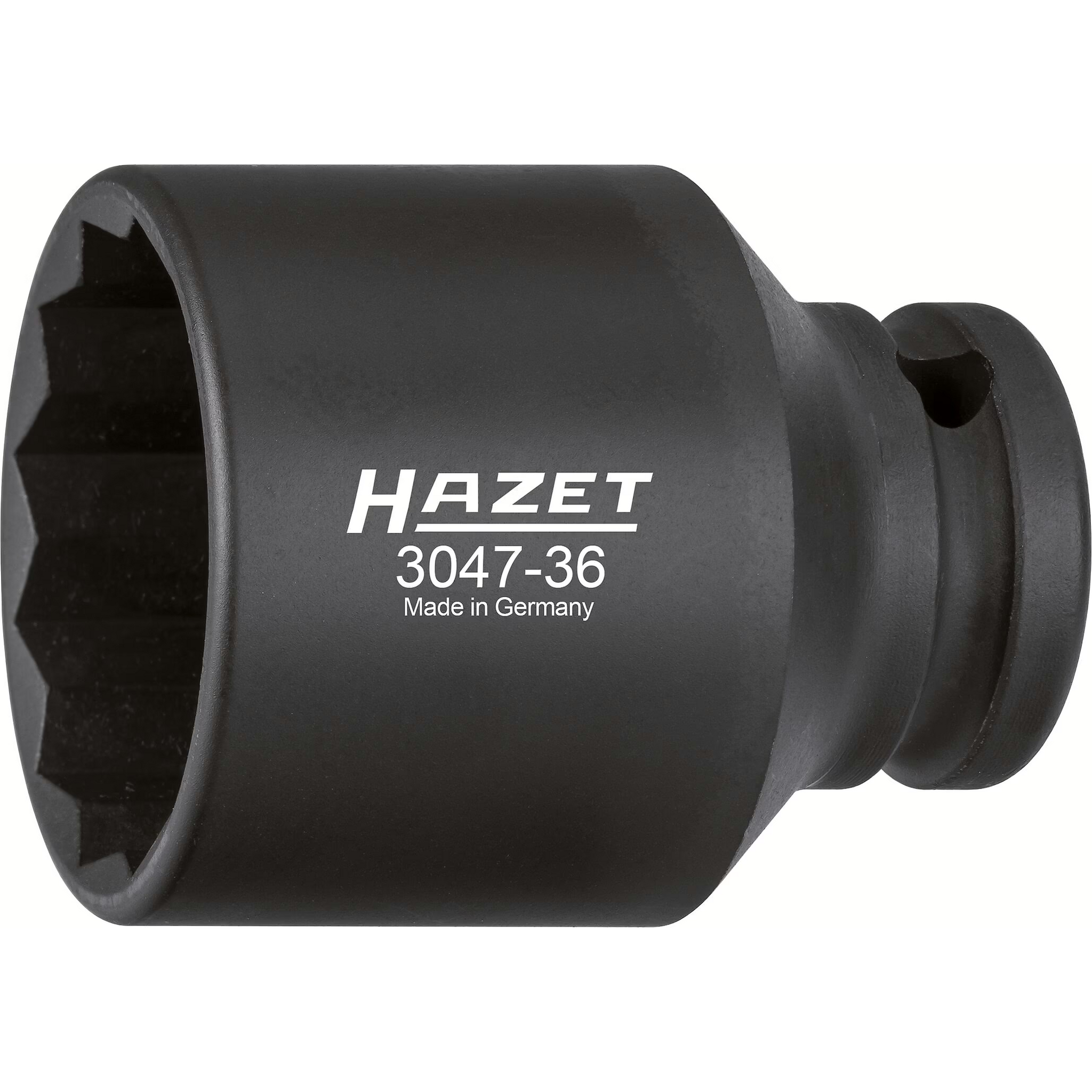

Hazet 3047-36 1⁄2″ Impact socket - Outside 12-point traction profile - 36 mm
Hazet 3047-36 1⁄2″ Impact socket - Outside 12-point traction profile - 36 mm
Size 36 mm ∙ 1/2 inch square ∙ hollow ∙ Outside 12-point traction profileNOTE* This item ships in 1-2 weeks

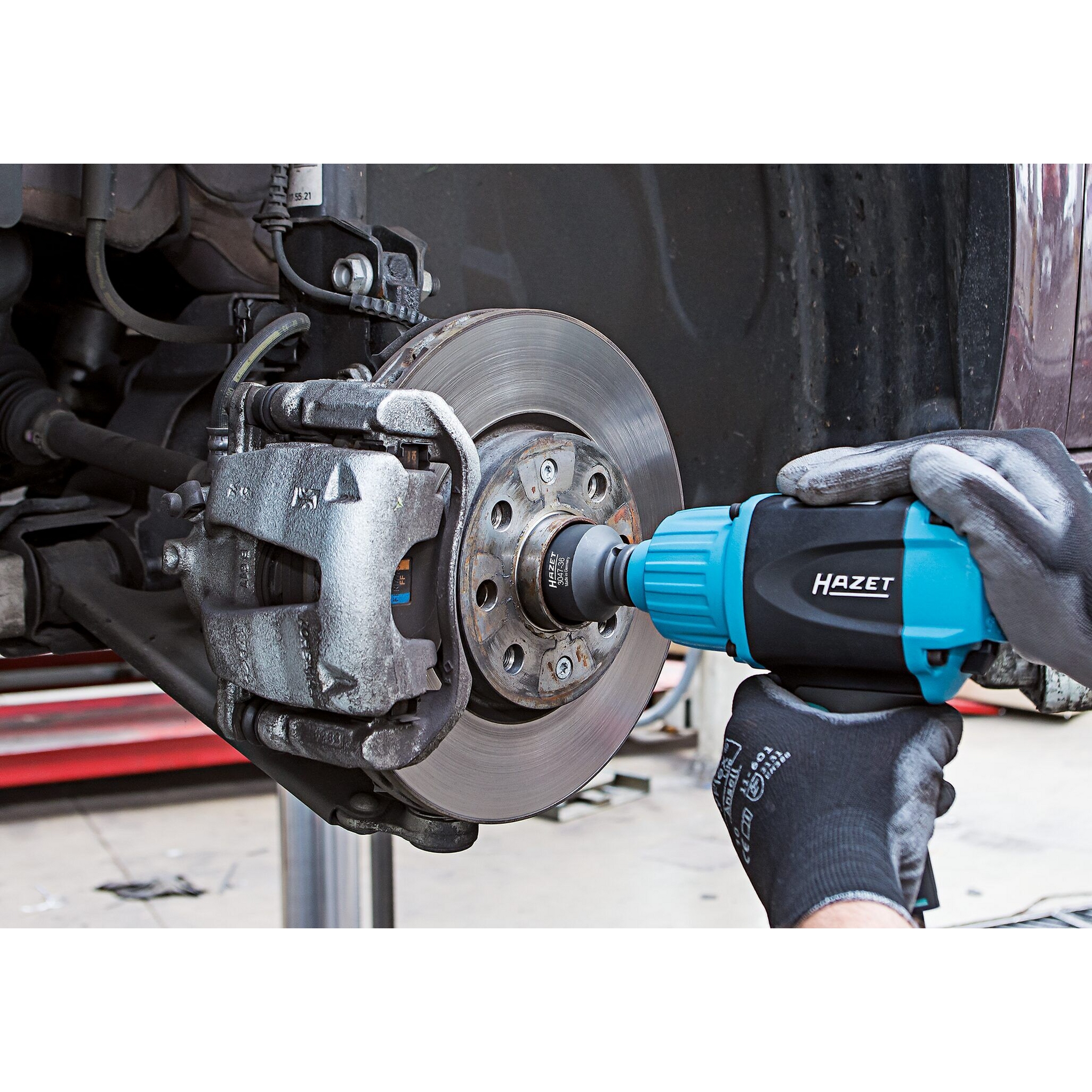

- Operating the 12-point cardan shaft screw connection s 36 mm in the wheel hub
- A considerably smaller outside ⌀ than in conventional standard sockets with just 47 mm ⌀
- Precisely adapted to the given spaces in the wheel hub
- For OPEL Corsa D model year 2006 → ∙ Adam model year 2012 → ∙ Mokka model year 2012 →
CHEVROLET Trax model year 2013 →
Also for BMW ∙ SEAT and VW vehicles - Made in Germany
| Output |
Outside 12-point traction profile |
| Wrench size | 36 mm |
| Drive |
1/2 inch (12.5 mm) square, hollow |
| Manual/impact operation |
For impact operation |

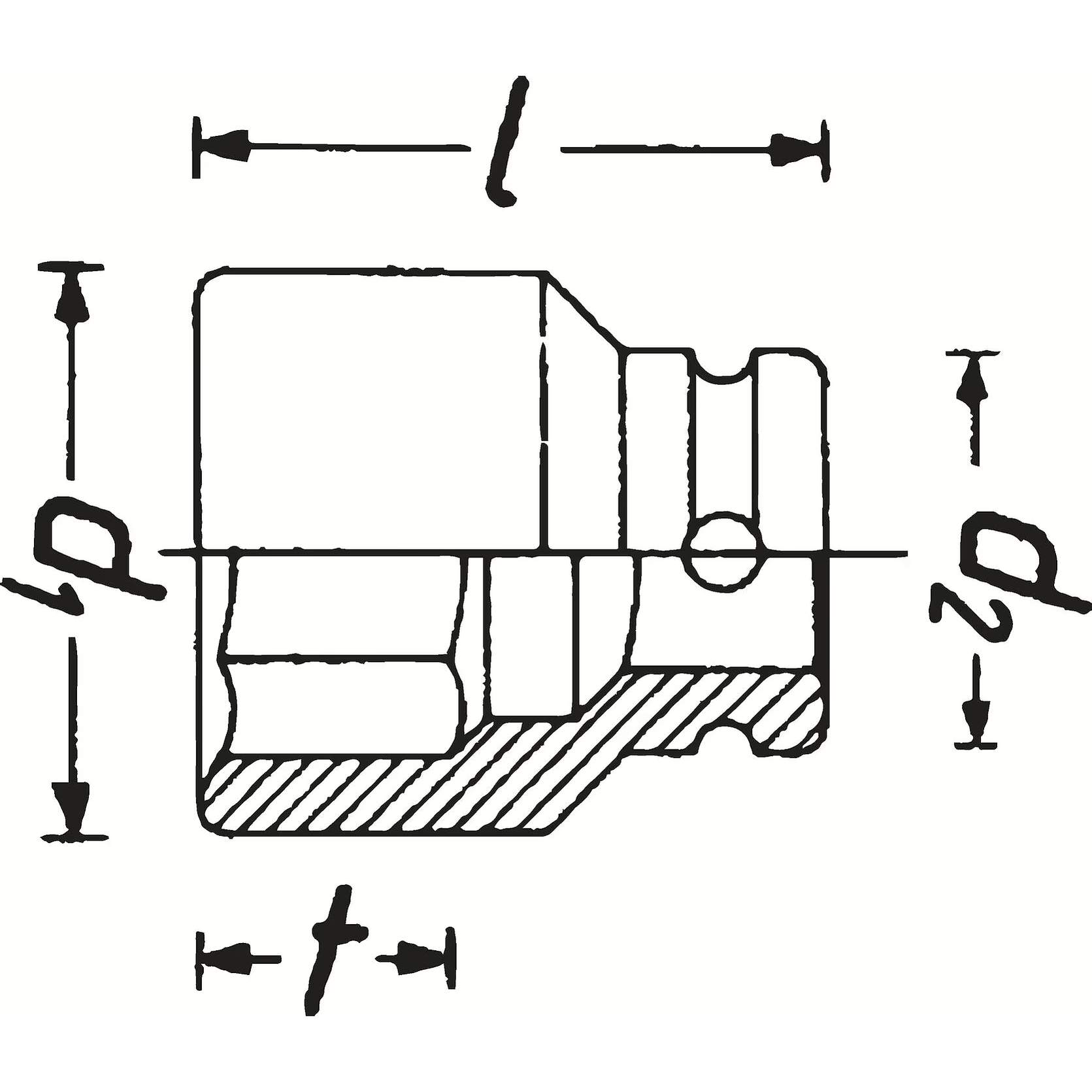

| Diameter d1 (output side) | 47 mm |
| Diameter d2 (drive side) | 30 mm |
| Standard |
|
| Design drive / output |
With borehole for locking pin or safety spring and groove for O-ring |
| Surface |
phosphatized, oiled |
| Dimension | 60 mm |
| Depth | 25 mm |
