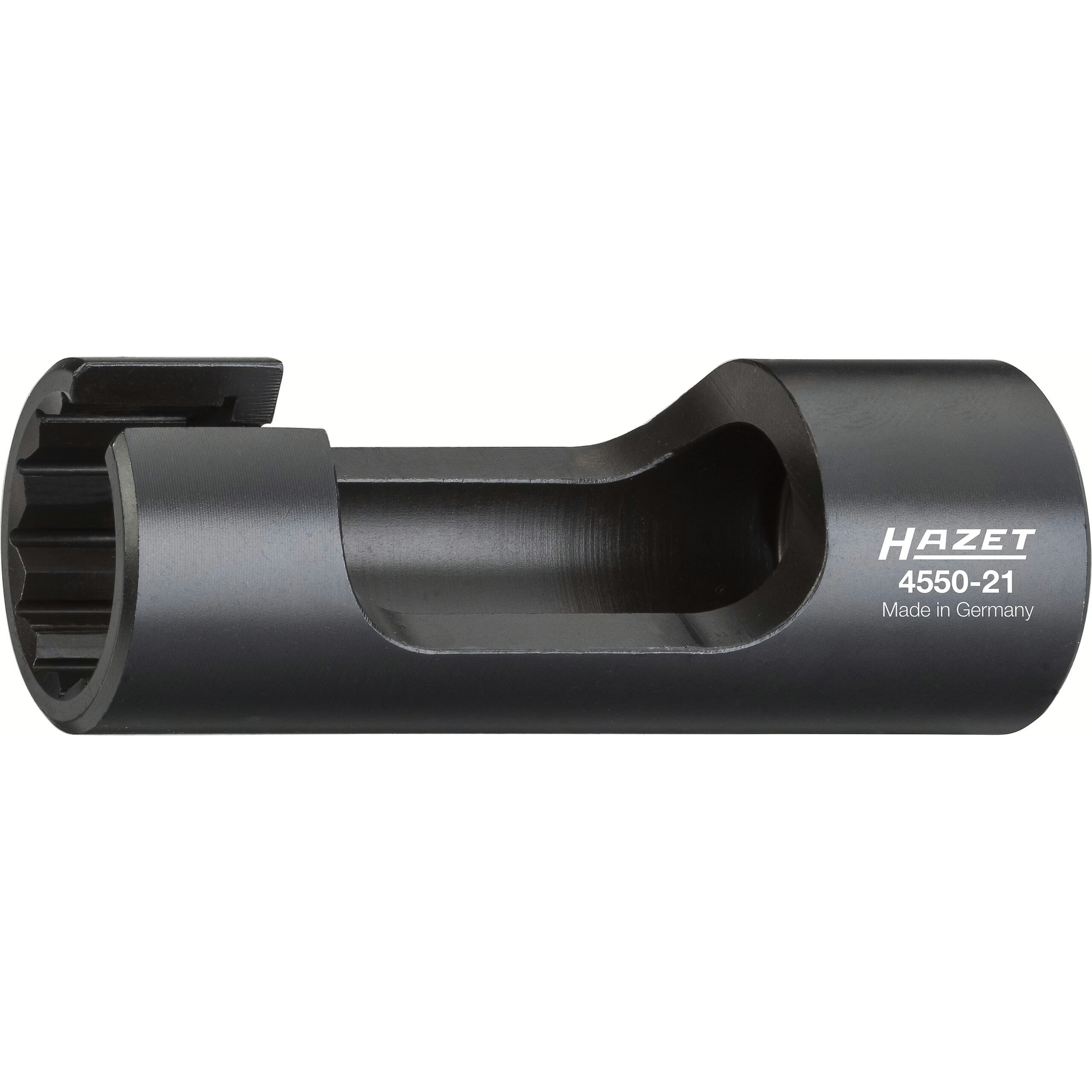

Hazet 4550-21 1⁄2″ Injection line spanner - Outside 12-point profile - 21 mm

  • $60.50
    Unit price per
Shipping calculated at checkout.


Size 21 mm ∙ 1/2 inch square ∙ hollow ∙ Outside 12-point profile

NOTE* This item ships in 1-2 weeks

  • Application:

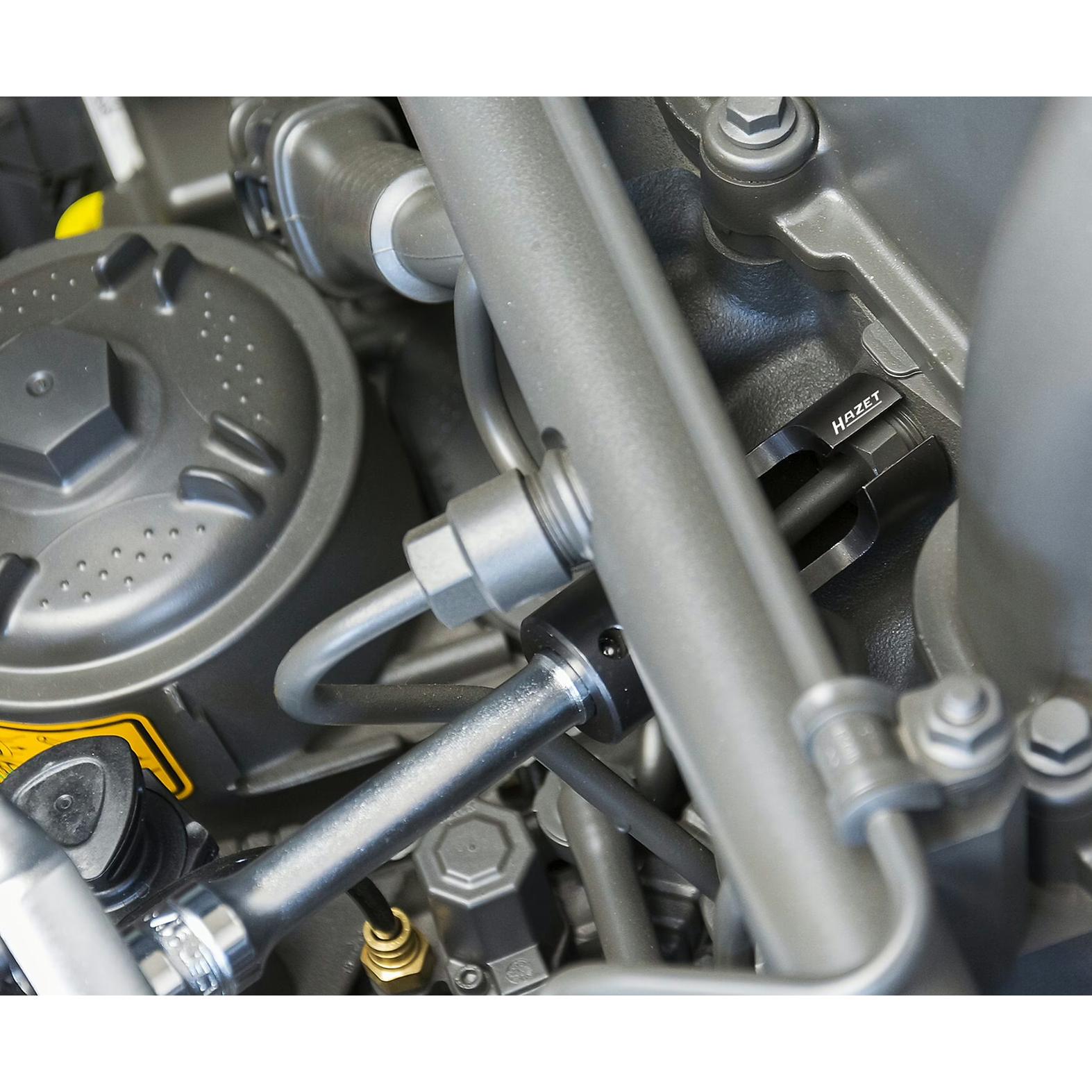

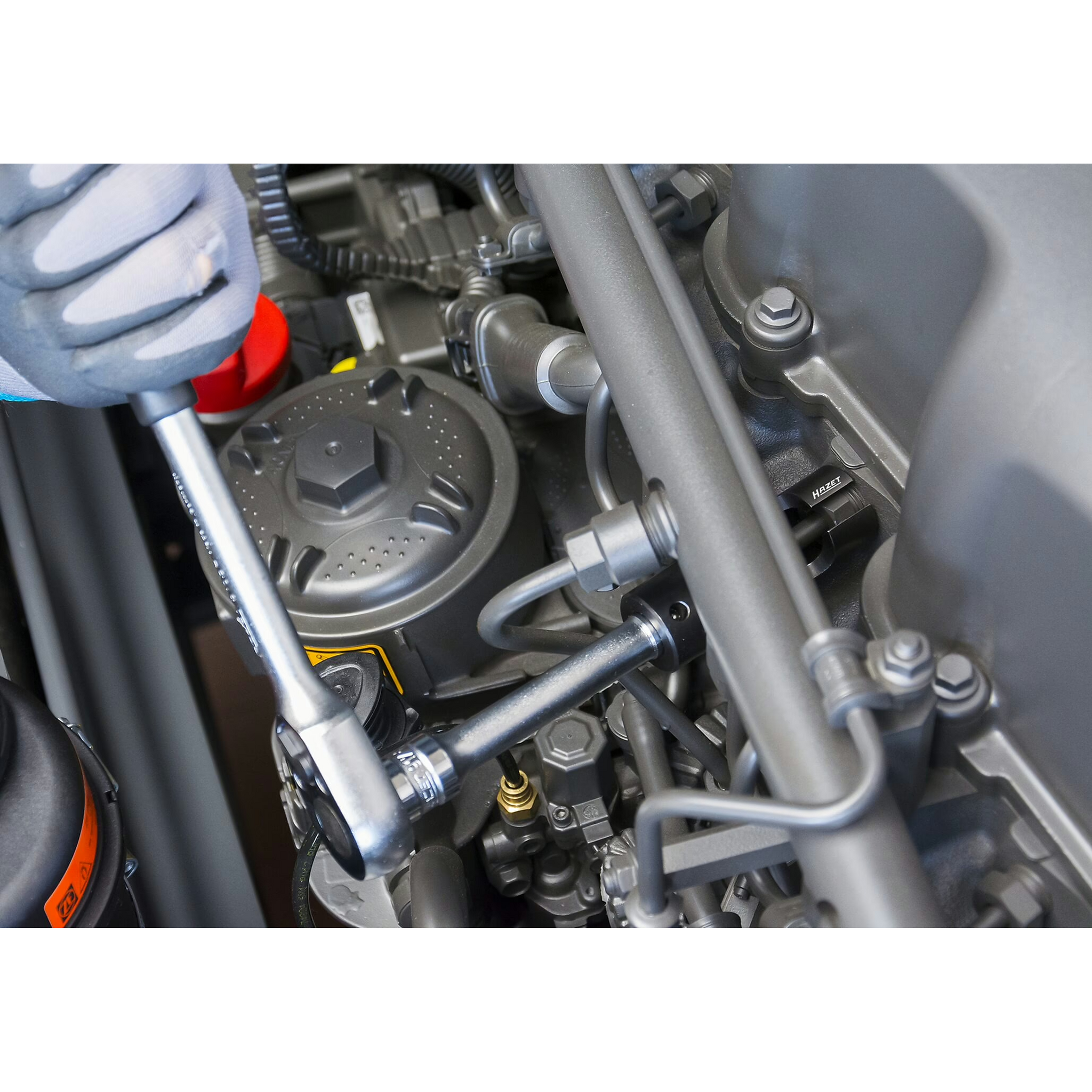

    Operation of the union nut on the high-pressure line on the injection valve common rail injection system
  • Proper operation of the injection line screw connection
  • DAF Euro 6 engines MX11/ MX13 e.g. XF ∙ CF
  • Drive 12.5 = 12
  • Open double hexagon socket for injection lines
  • The tightening torque required by the manufacturer is achieved by using a HAZET torque wrench (observe manufacturer specifications)
  • Made in Germany
Output

Outside 12-point profile

Wrench size 21 mm
Drive

1/2 inch (12.5 mm) square, hollow

Manual/impact operation

For manual operation

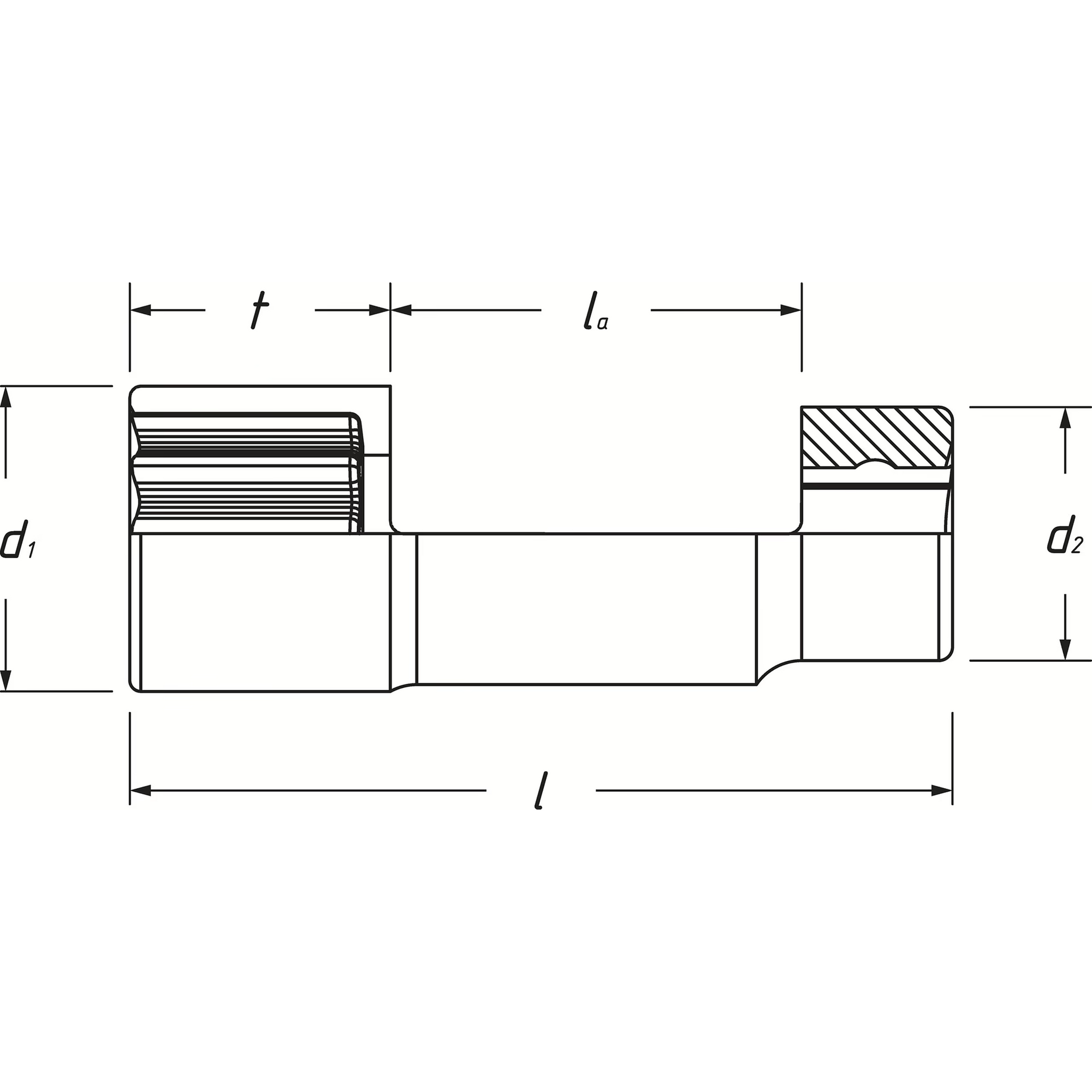

Diameter d1 (output side) 33 mm
Diameter d2 (drive side) 32 mm
Surface

burnished

Dimension 91 mm
Depth 21 mm
Length of recess la [mm] 44 mm
