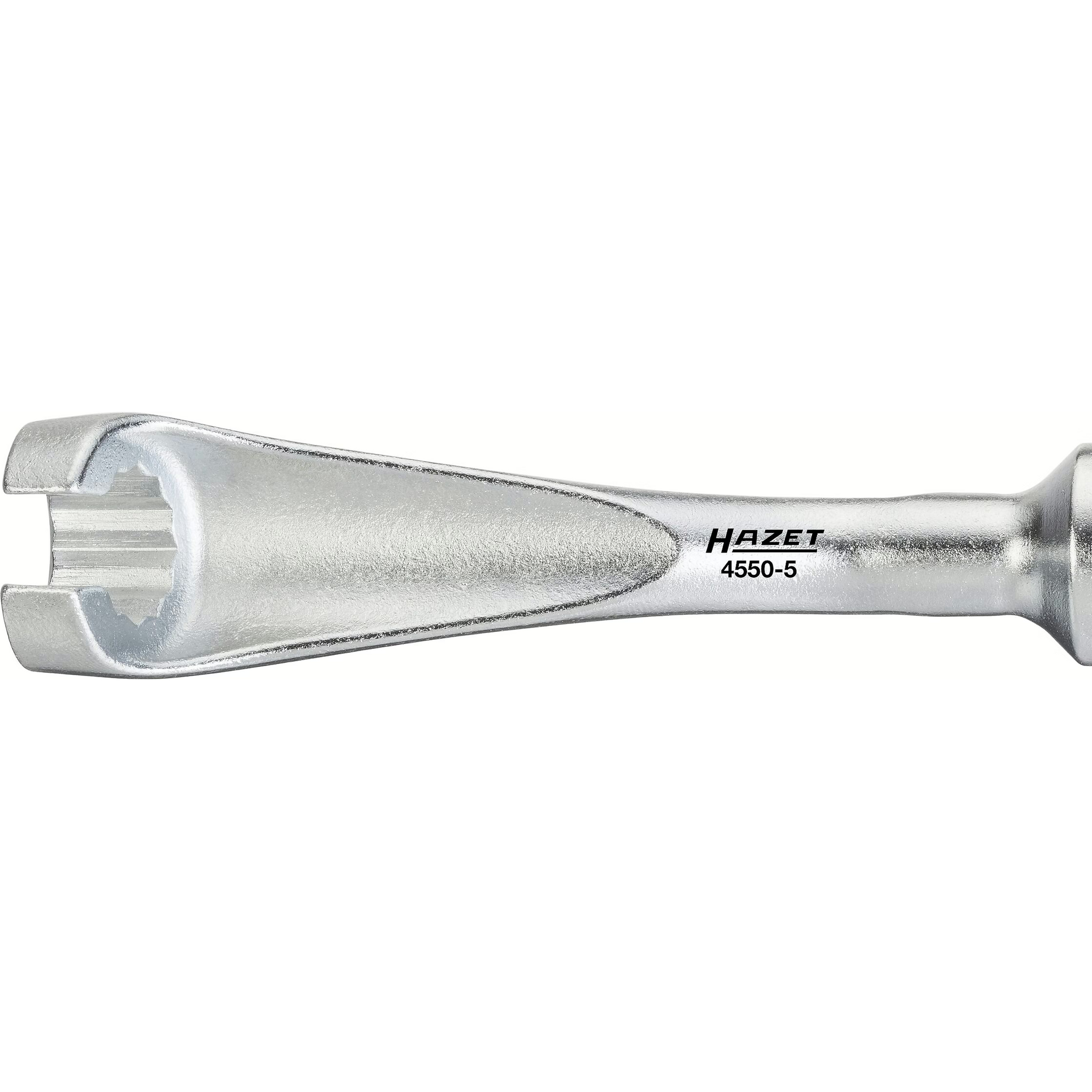

Hazet 4550-5 1⁄2″ Injection line spanner - Outside 12-point profile - 14 mm
Size 14 mm ∙ 1/2 inch square ∙ hollow ∙ Outside 12-point profile
NOTE* This item ships in 1-2 weeks
-
Application:

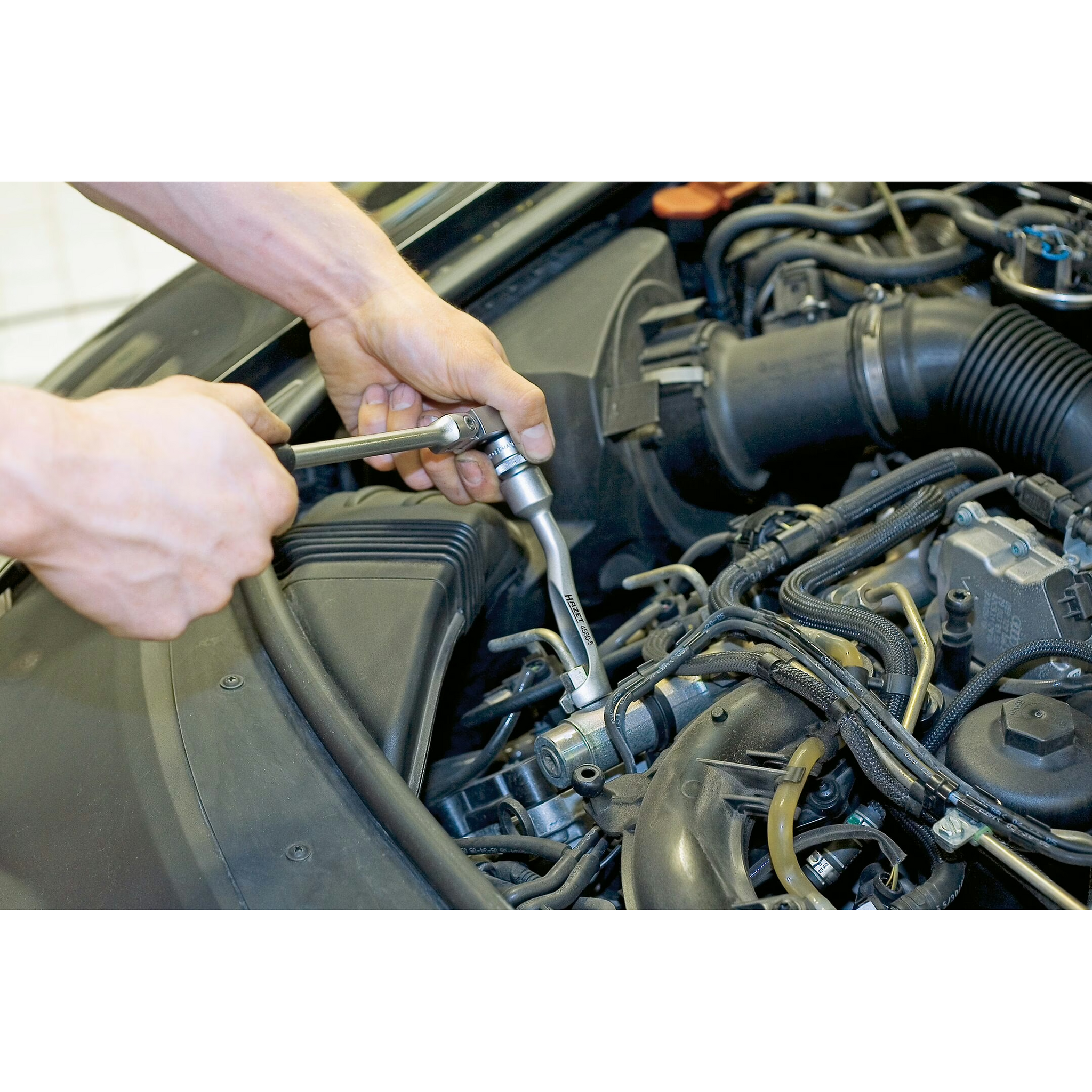

Injection lines s 14 mm - The special design of the socket ensures proper seat of the injection line fitting
- FIAT ∙ CITROËN ∙ PEUGEOT ∙ RENAULT and IVECO models with Common Rail engines
- Injection line screw connection e.g. on BMW ∙ MERCEDES-BENZ ∙ VW
- Operation of the exhaust temperature sensor on VAG diesel engines from Euronorm 6
- Long design
- □ Drive 1⁄2″ (12.5 mm)
- Open double hexagon socket for injection lines
- The torque-controlled screw tightening required by the manufacturer can be achieved by using a HAZET torque wrench (observe manufacturer specifications)
- Made in Germany
| Output |
|
| Wrench size | 14 mm |
| Drive |
|
| Manual/impact operation |
|
| Diameter d1 (output side) | 27 mm |
| Diameter d2 (drive side) | 22.9 mm |
| Surface |
|
| Dimension | 119 mm |
