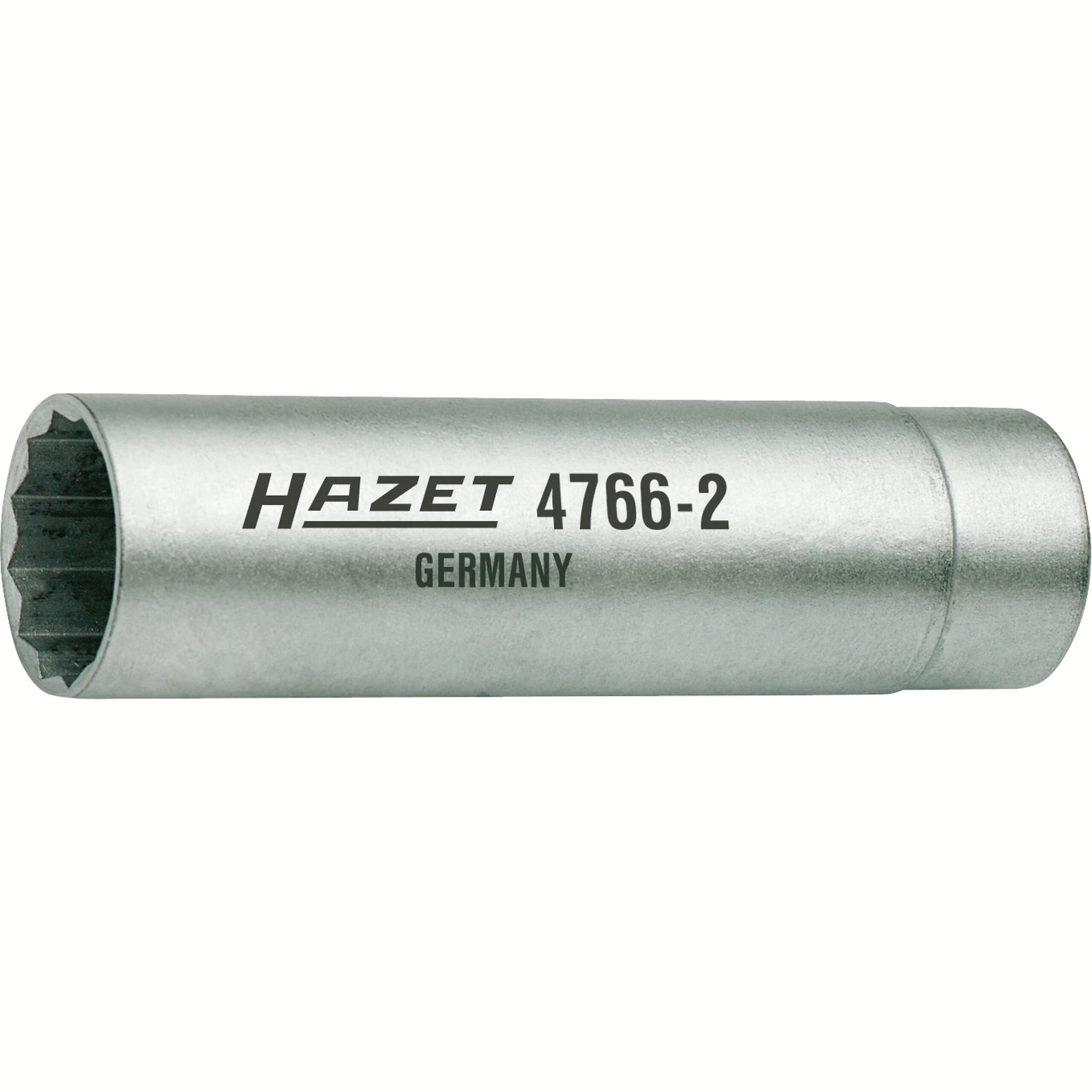

Hazet 4766-2 3⁄8″ Spark plug spanner Outside 12-point profile 14 mm
Hazet 4766-2 3⁄8″ Spark plug spanner Outside 12-point profile 14 mm
NOTE* This item ships in 1-2 weeks
Form A ∙ Size 14 mm ∙ 3/8 inch square ∙ hollow ∙ Outside 12-point profile
-
Application:

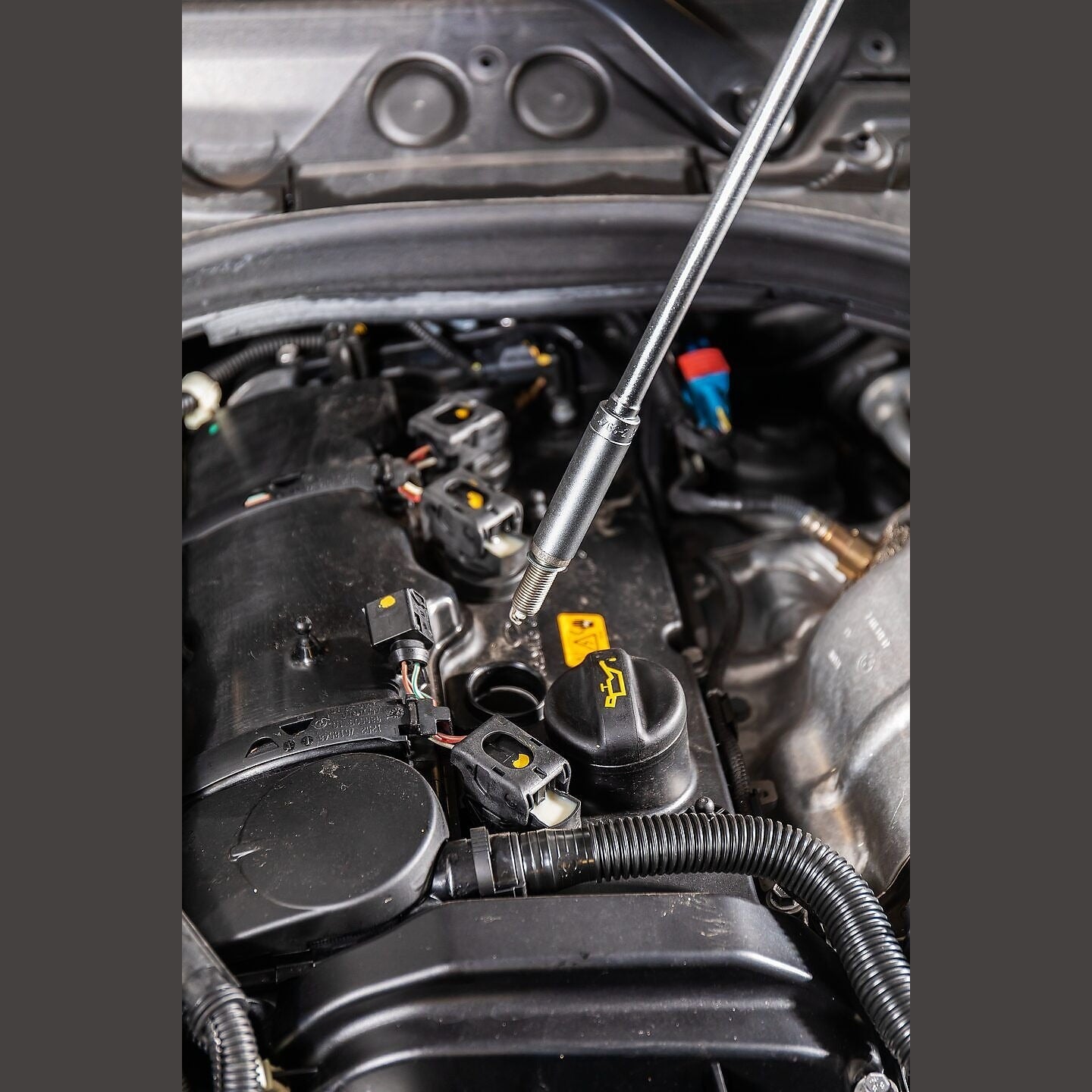

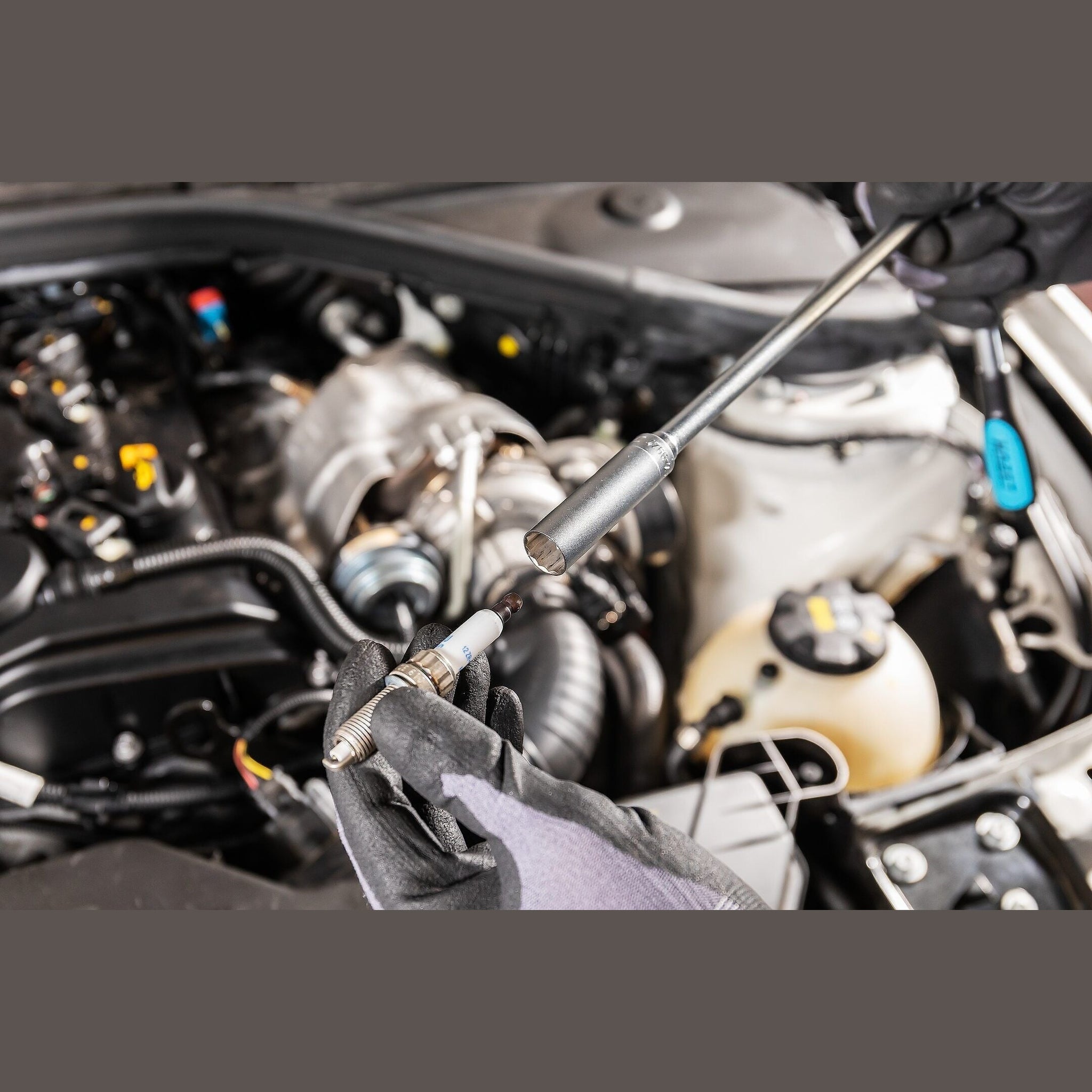

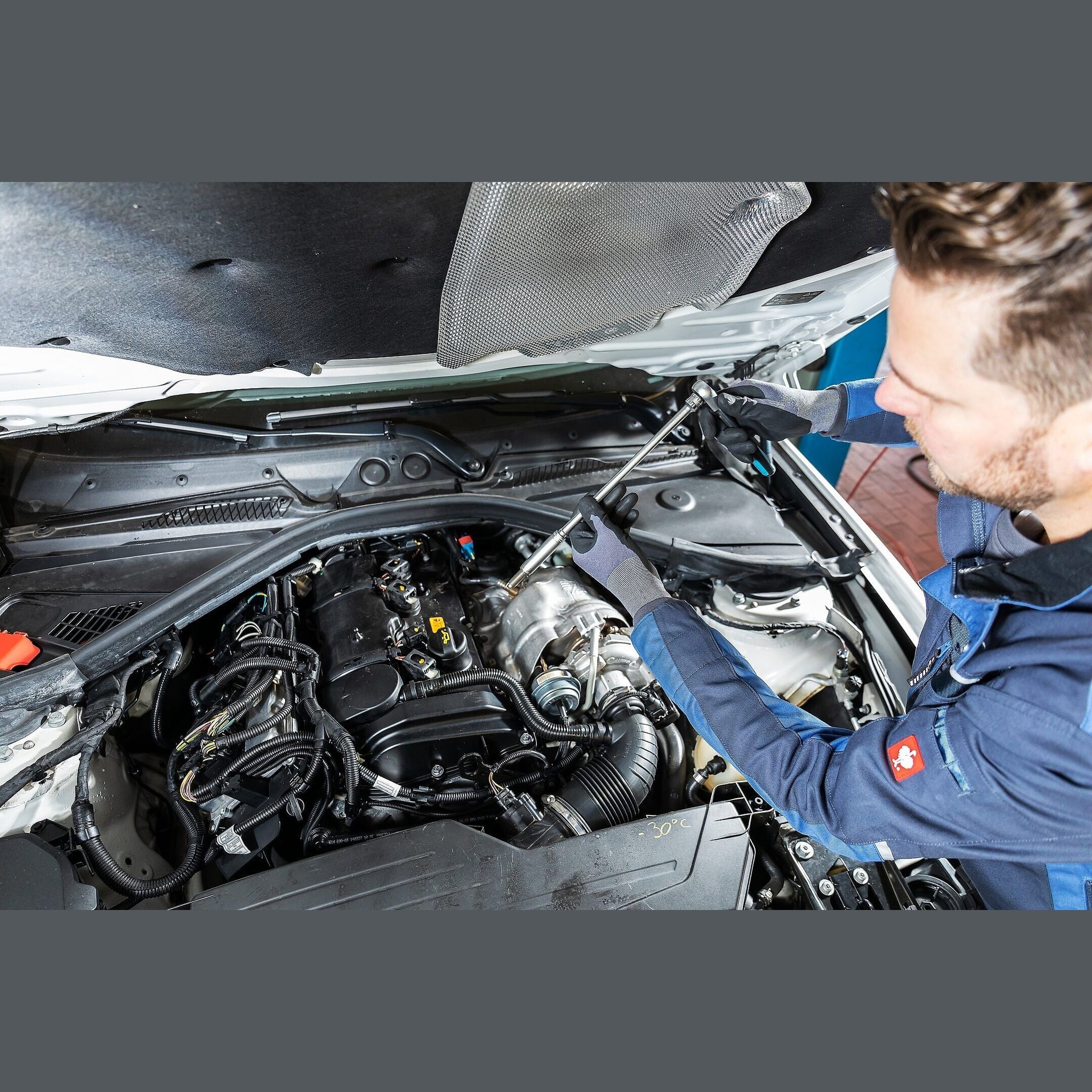

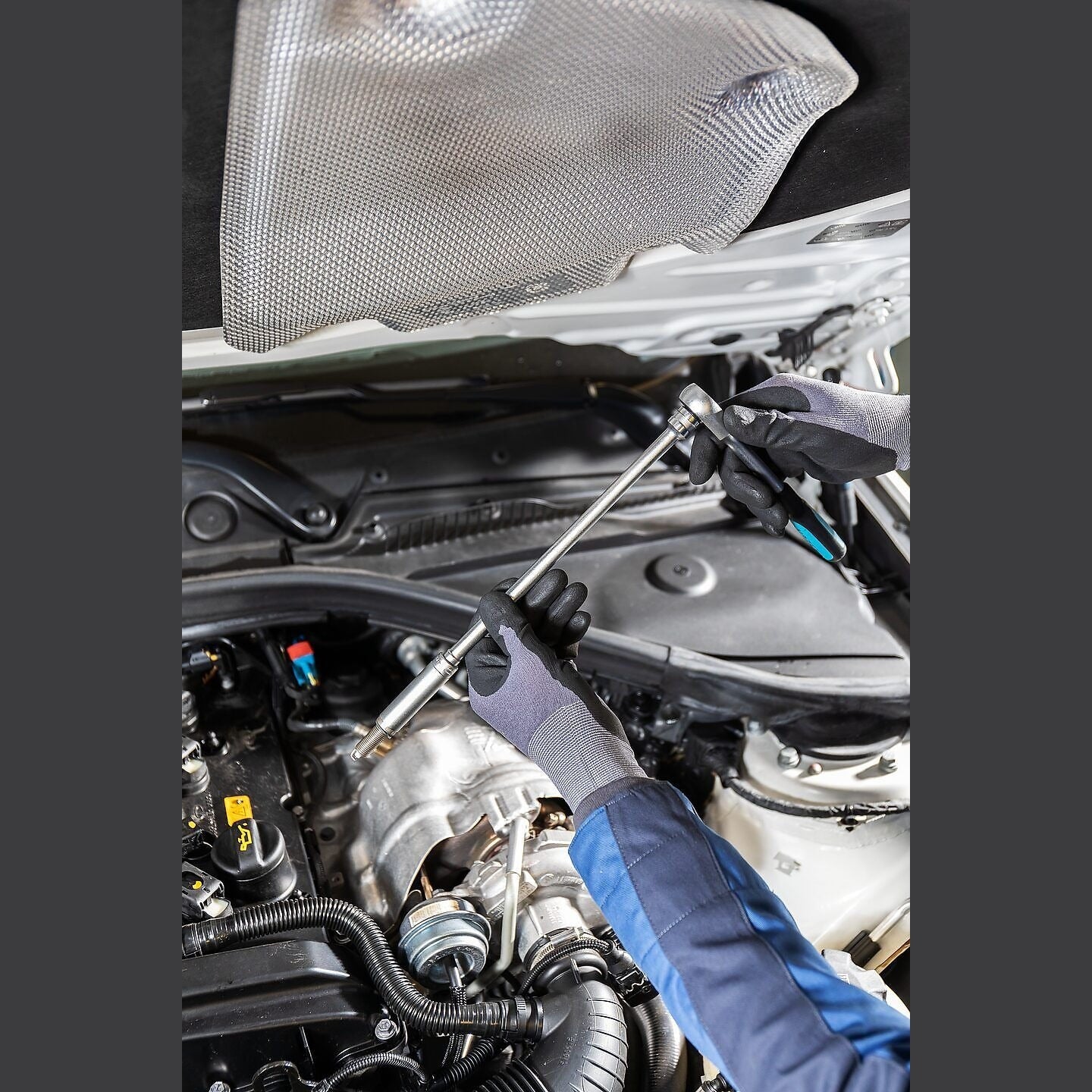

Spark plug change (s 14 mm) - 12-point profile enables application of spark plugs with 6-point and 12-point

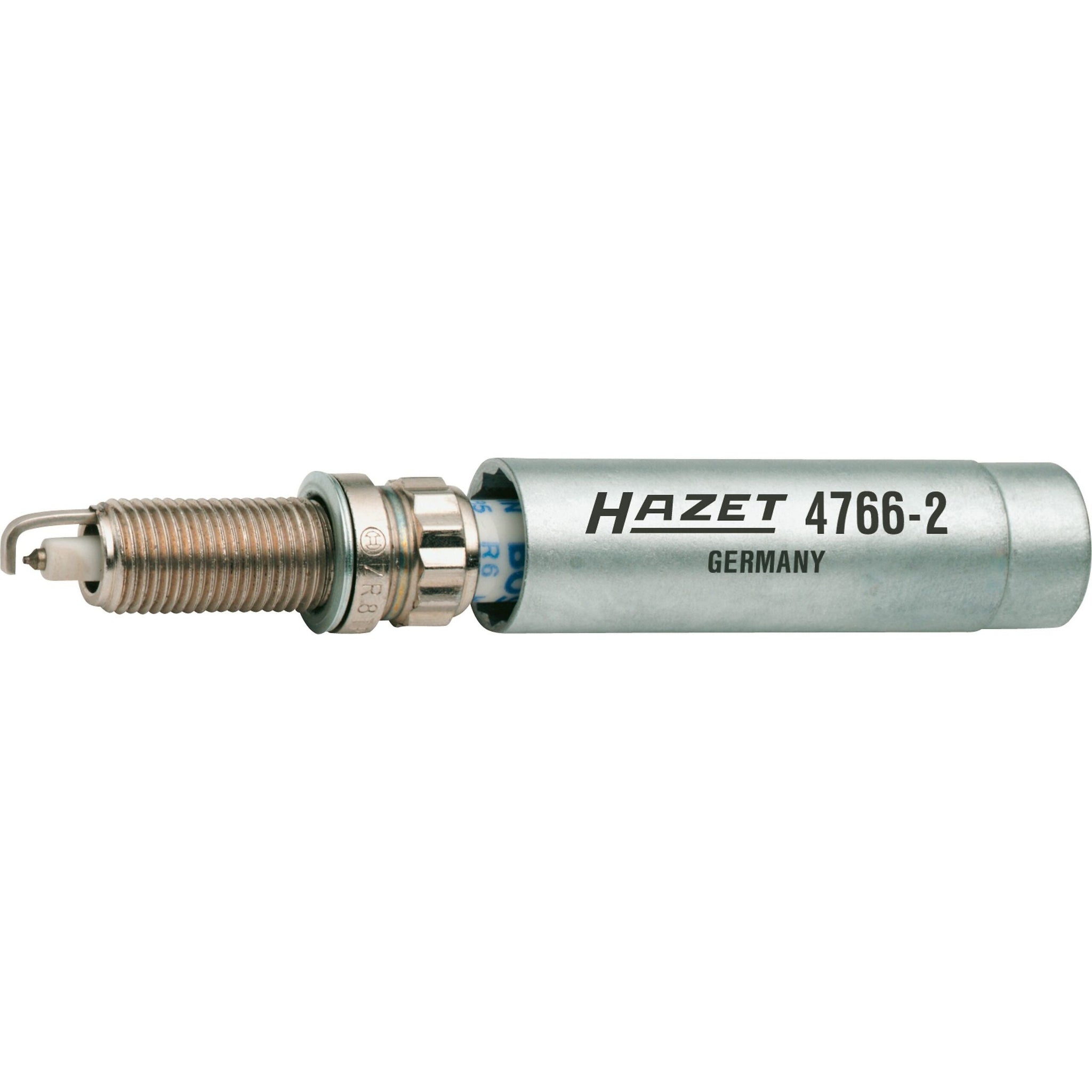

- Fixing clamp for a firm hold of the spark plug
- On BMW E90 N 54 engine 335 i saloon model year 2006 → ∙ 1 Series (F20) 118i ∙ RENAULT Modus ∙ Twingo ∙ Clio ∙ Kangoo with 1.2 l 16 V engine ∙ PEUGEOT 207 ∙ 307 and CITROËN C4 with 1.4 and 1.6 l 16 V engine ∙ C5 with 2.0 l HPi engine ∙ MERCEDES-BENZ engine M 156 ∙ engine M 276 ∙ NISSAN Micra ∙ Note ∙ MINI 1.2 – 1.4 l 4-cylinder model year 2007 → ∙ FORD 1.0 EcoBoost engine ∙ ALFA ROMEO 1.8 TBI engine ∙ KIA ∙ PORSCHE 911 GT3 model year 2014 → ∙ 2.9 l ∙ 3 l ∙ 4 l ∙ AUDI 3 l TFSI ∙ VW 3 l TSI
- Made in Germany
Stainless and insensitive to heat
Largest possible clearance of insulator
6 spring elements – firm hold of the spark plug
Damping of transverse motion
Technical Data
| Design ∙ Special feature |
Form A |
| Output |
Outside 12-point profile |
| Wrench size | 14 mm |
| Drive |
3/8 inch (10 mm) square, hollow |
| Manual/impact operation |
For manual operation |

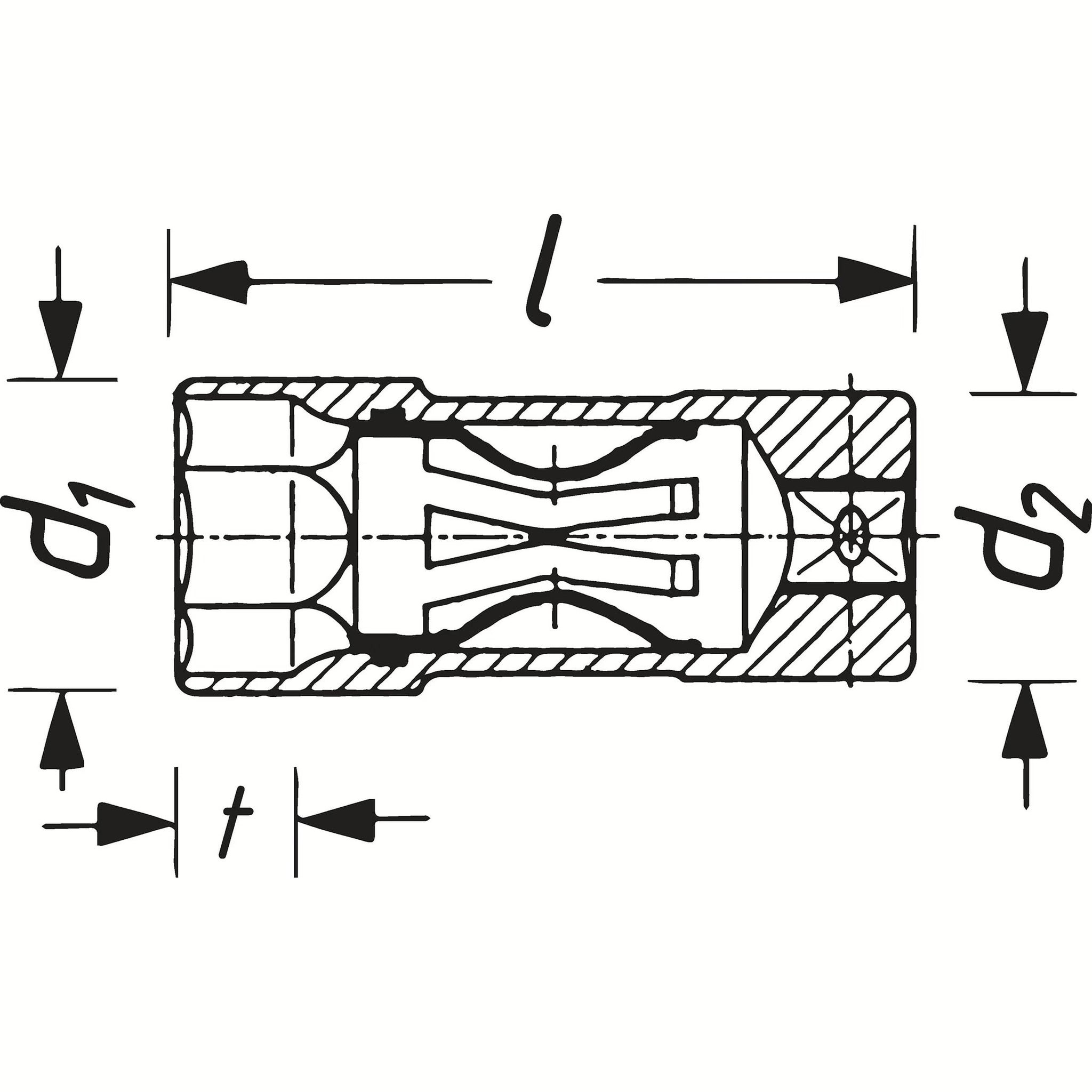

| Diameter d1 (output side) | 18 mm |
| Diameter d2 (drive side) | 17.3 mm |
| Design drive / output |
Drive with ball race |
| Dimension | 64 mm |
| Depth | 10 mm |
