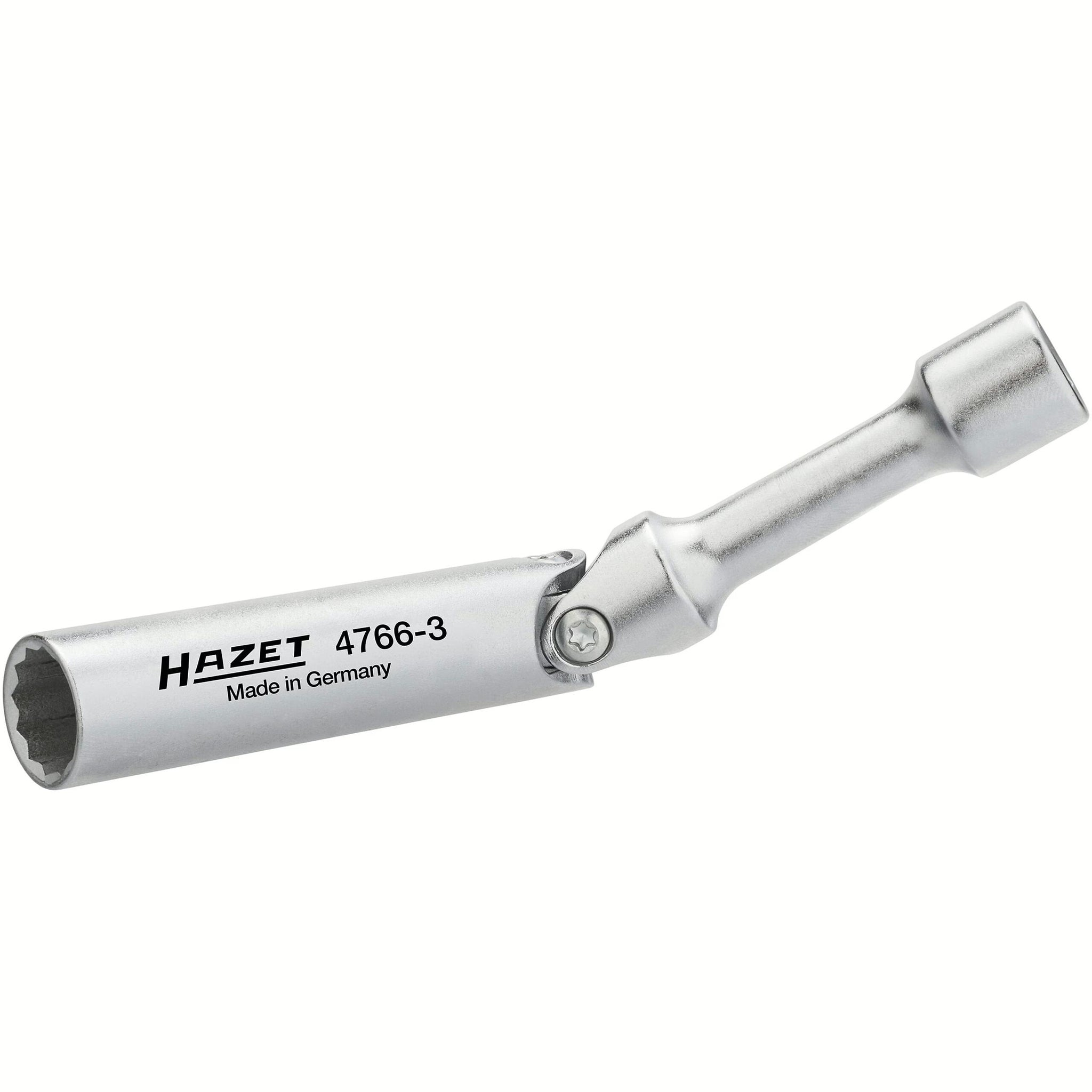

Hazet 4766-3 3⁄8″ Spark plug spanner Outside 12-point profile 14 mm
Hazet 4766-3 3⁄8″ Spark plug spanner Outside 12-point profile 14 mm
NOTE* This item ships in 1-2 weeks
Form B ∙ Size 14 mm ∙ 3/8 inch square ∙ hollow ∙ Outside 12-point profile
-
Application:

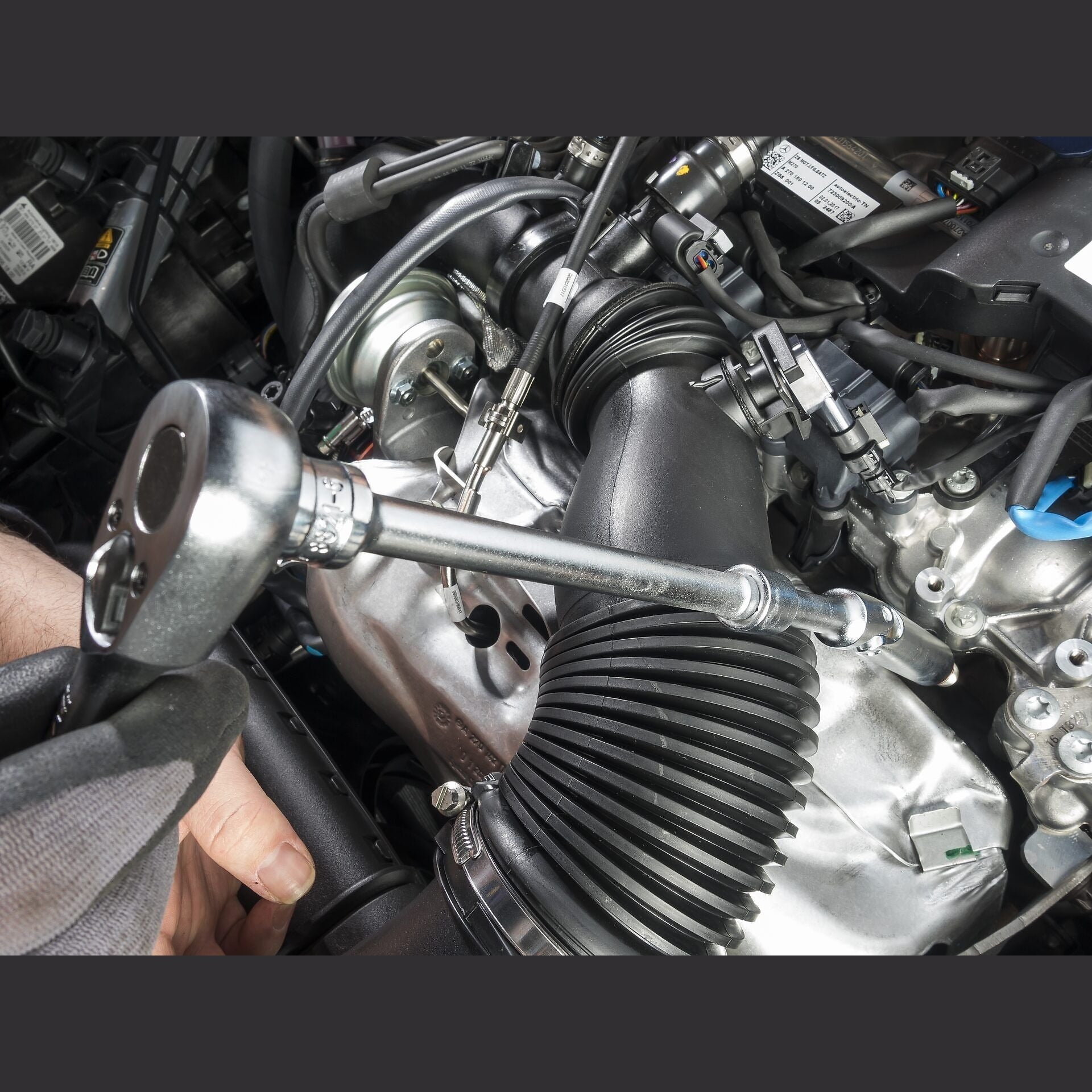

14 mm spark plug changing e. g. BMW and MERCEDES-BENZ - 12-point profile enables application of 14 mm spark plugs with 6-point and 12-point

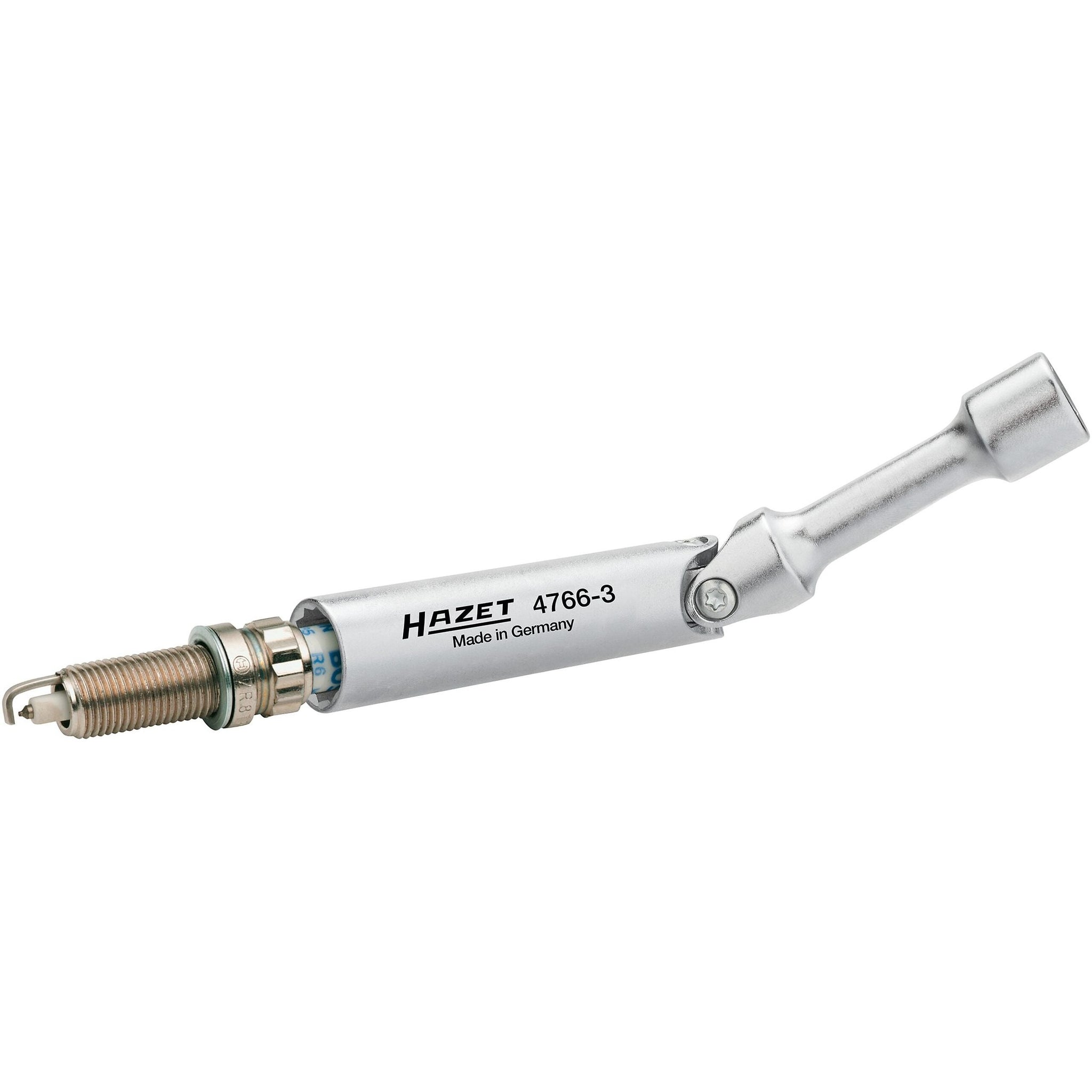

- Fixing clamp for a firm hold and problem-free positioning and assembly of the spark plug
- Angular movement ±56°
- Made in Germany
Stainless and insensitive to heat
Largest possible clearance of insulator
6 spring elements – firm hold of the spark plug
Damping of transverse motion
Technical Data
| Design ∙ Special feature |
Form B |
| Output |
Outside 12-point profile |
| Wrench size | 14 mm |
| Drive |
3/8 inch (10 mm) square, hollow |
| Manual/impact operation |
For manual operation |

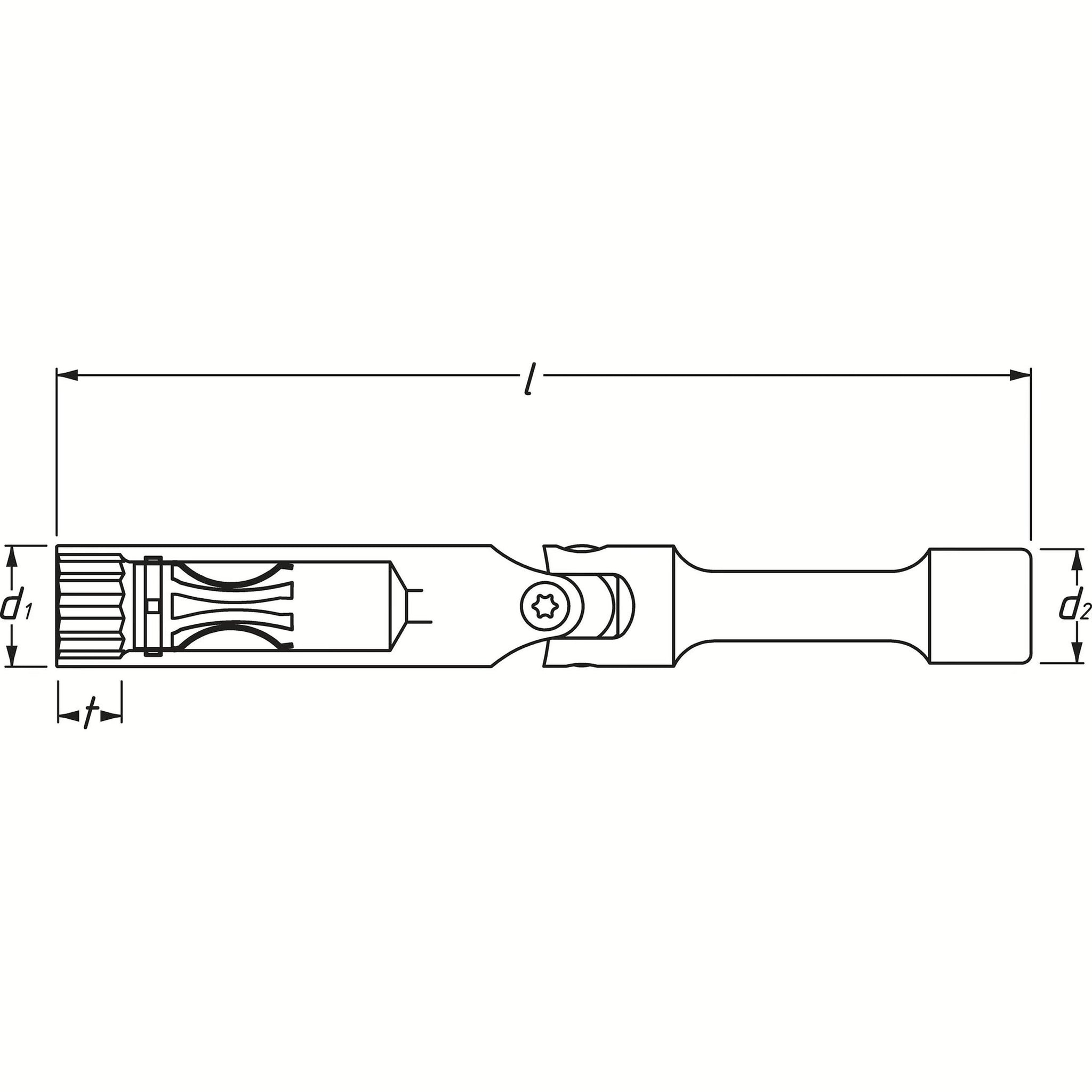

| Diameter d1 (output side) | 19.1 mm |
| Diameter d2 (drive side) | 18 mm |
| Hinge / bent shape |
With hinge - for working in areas with restricted access and for getting around obstructive edges |
| Design drive / output |
Drive with ball race |
| Dimension | 154 mm |
| Depth | 10 mm |
