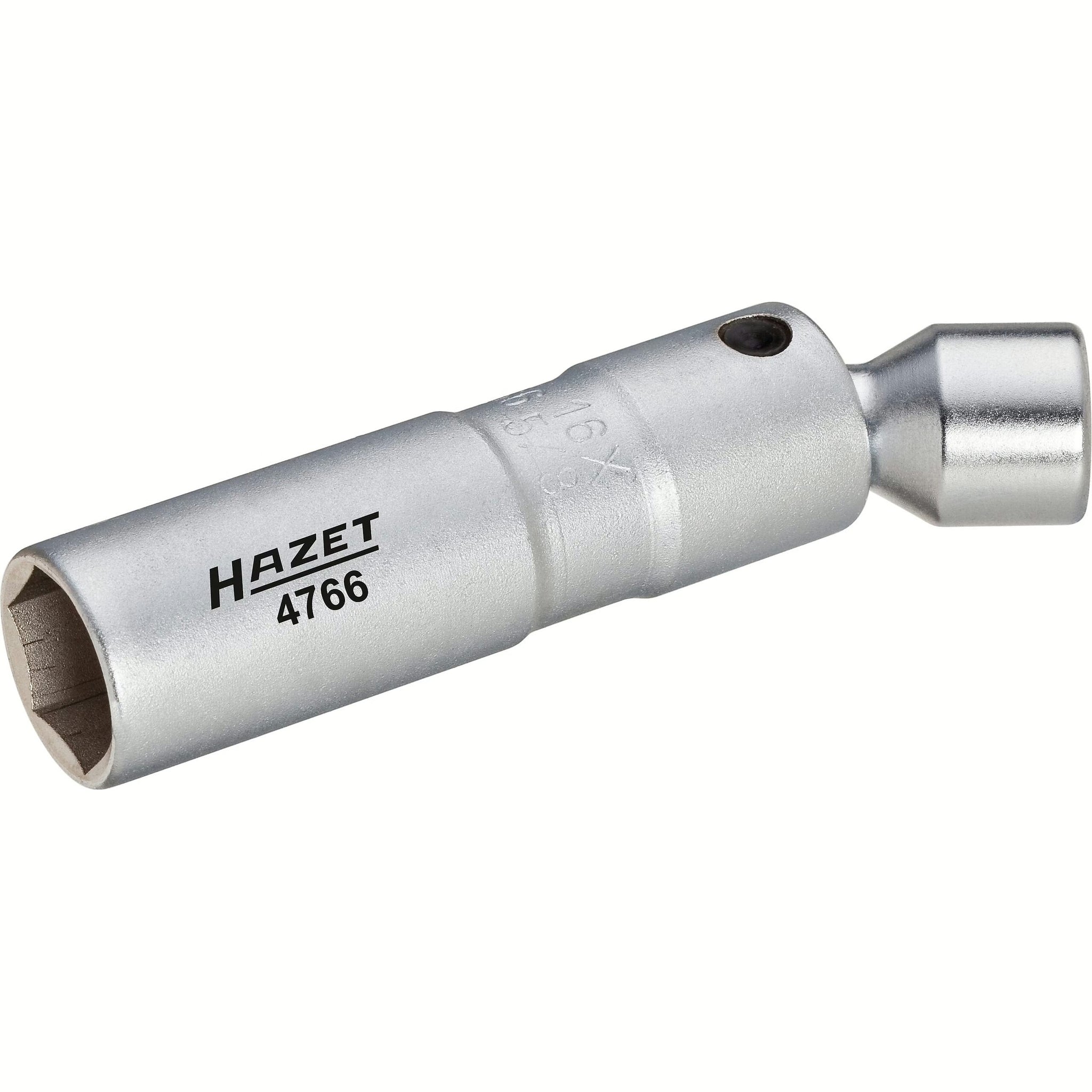

Hazet 4766 3⁄8″ Spark plug spanner Outside hexagon profile 16 mm 5/8″
Hazet 4766 3⁄8″ Spark plug spanner Outside hexagon profile 16 mm 5/8″
NOTE* This item ships in 1-2 weeks
Form A ∙ Size 16 mm ∙ 5/8″ ∙ 3/8 inch square ∙ hollow ∙ Outside hexagon profile
-
Application:

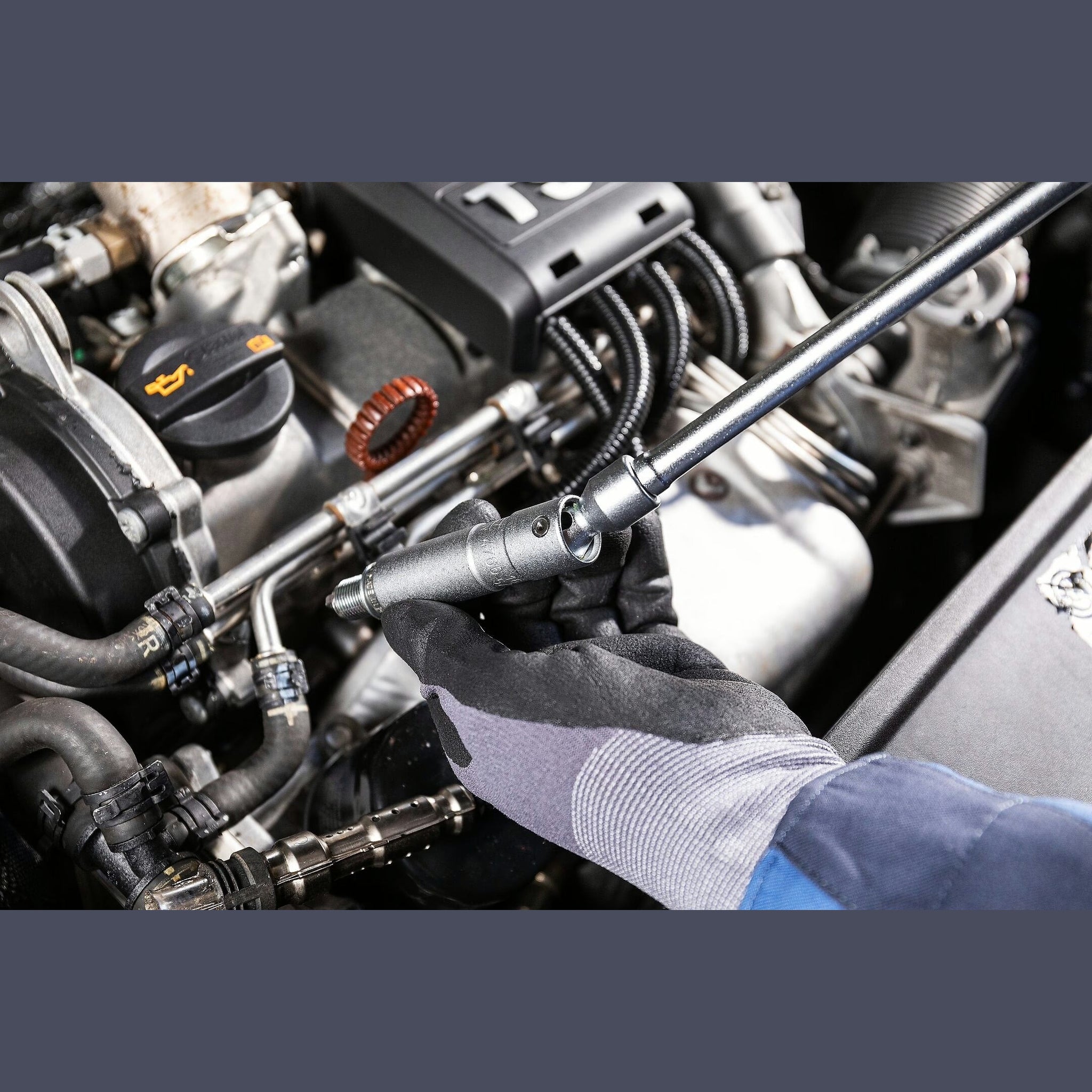

Spark plug changing (C plugs) (s 5⁄8″ (16 mm) - Short style
- On e.g. Motorcylces, BMW C1 ∙ KAWASAKI ∙ YAMAHA ∙ HONDA ∙ SUZUKI ∙ DUCATI
MERCEDES-BENZ passenger cars e.g. A-Class (type 168 ∙ 169) ∙ B-Class (type 245) ∙ SMART (type 451)
IVECO Daily with gas engine F1A 2.3 l ∙ F1C 3.0 l - With fixing clamp for a firm hold of the spark plug
- Angular movement ± 25°
- Made in Germany
Stainless and insensitive to heat
Largest possible clearance of insulator

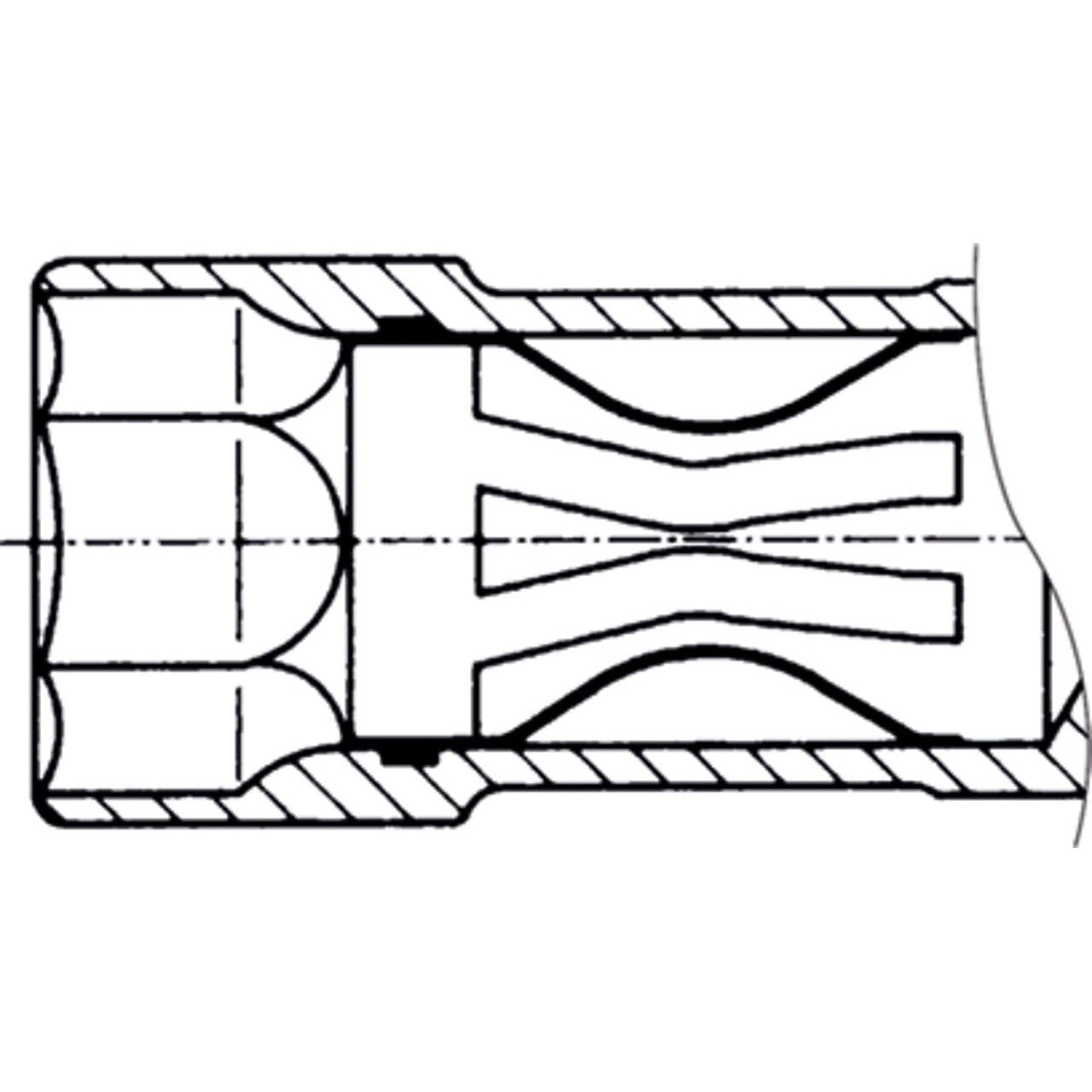

6 spring elements – firm hold of the spark plug
Damping of transverse motion
Technical Data
| Design ∙ Special feature |
Form A |
| Output |
Outside hexagon profile |
| Wrench size | 16 mm ∙ 5⁄8″ |
| Drive |
3/8 inch (10 mm) square, hollow |
| metric/imperial |
American dimensions |
| Manual/impact operation |
For manual operation |

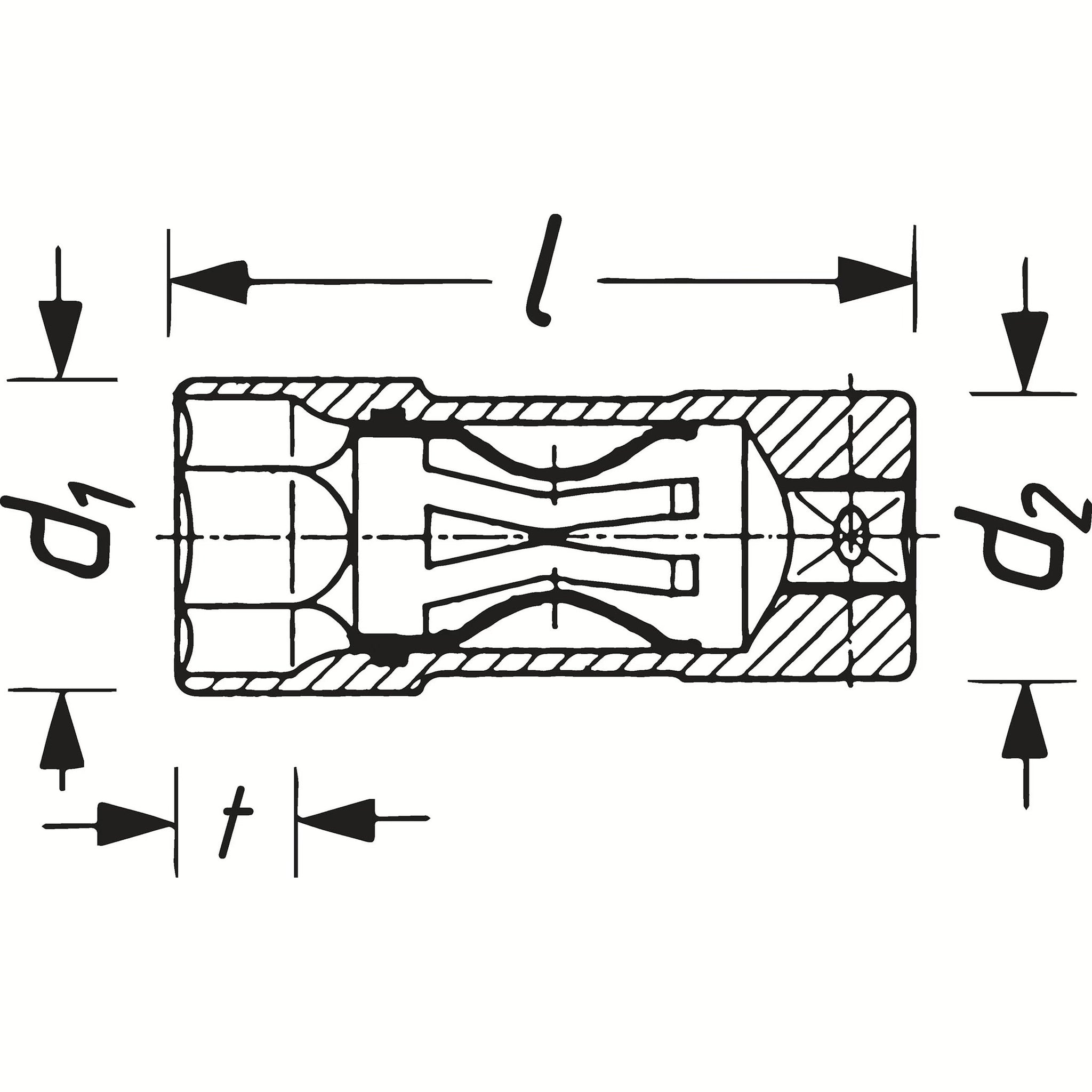

| Diameter d1 (output side) | 21.4 mm |
| Diameter d2 (drive side) | 18 mm |
| Hinge / bent shape |
With hinge - for working in areas with restricted access and for getting around obstructive edges |
| Design drive / output |
Drive with ball race |
| Surface |
chrome-plated |
| Dimension | 97 mm |
| Depth | 10 mm |
