HD borescope set with front and side camera ∙ ⌀ 4.9 mm

5-pieces

Application:

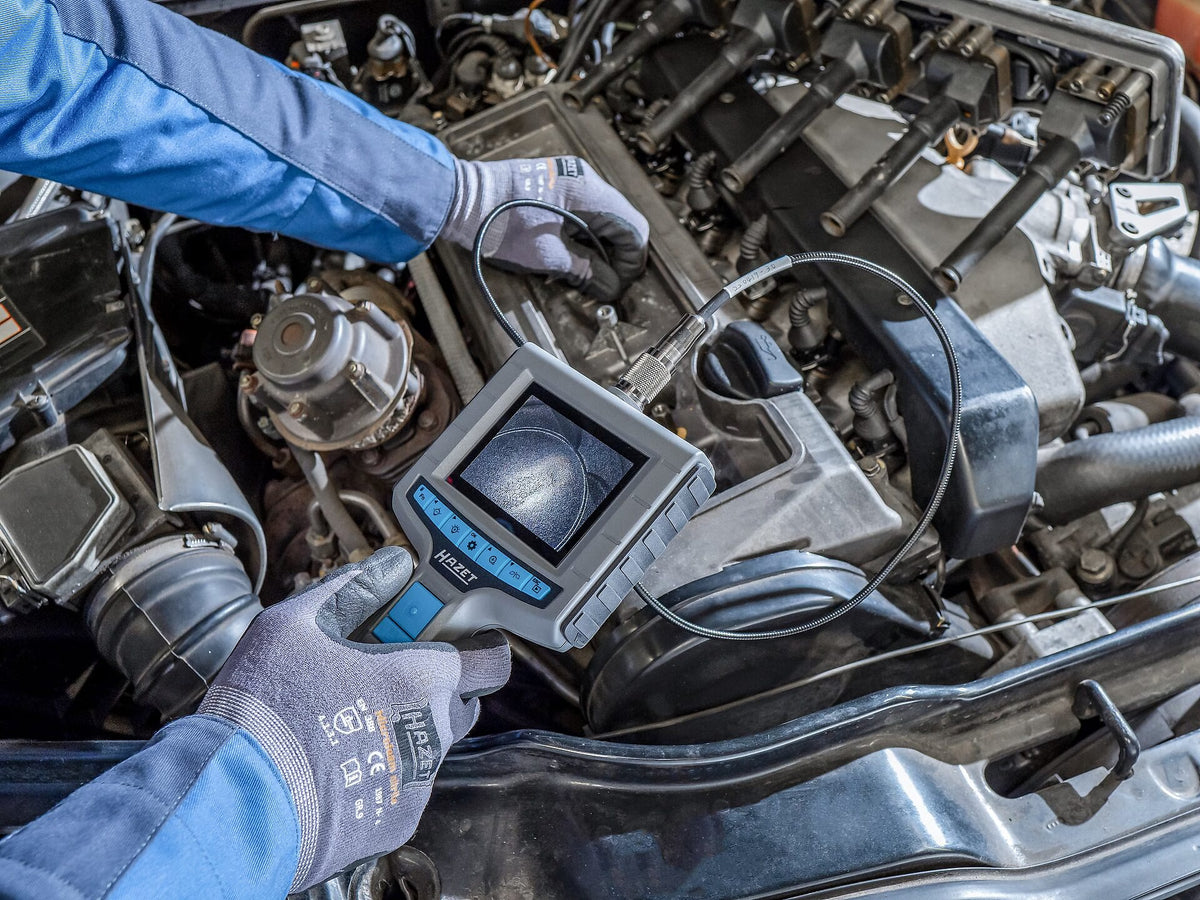

Diagnosis and documentation of cavities for damage assessment
Improved level of detail thanks to two cameras (90° and 180°) with HD resolution

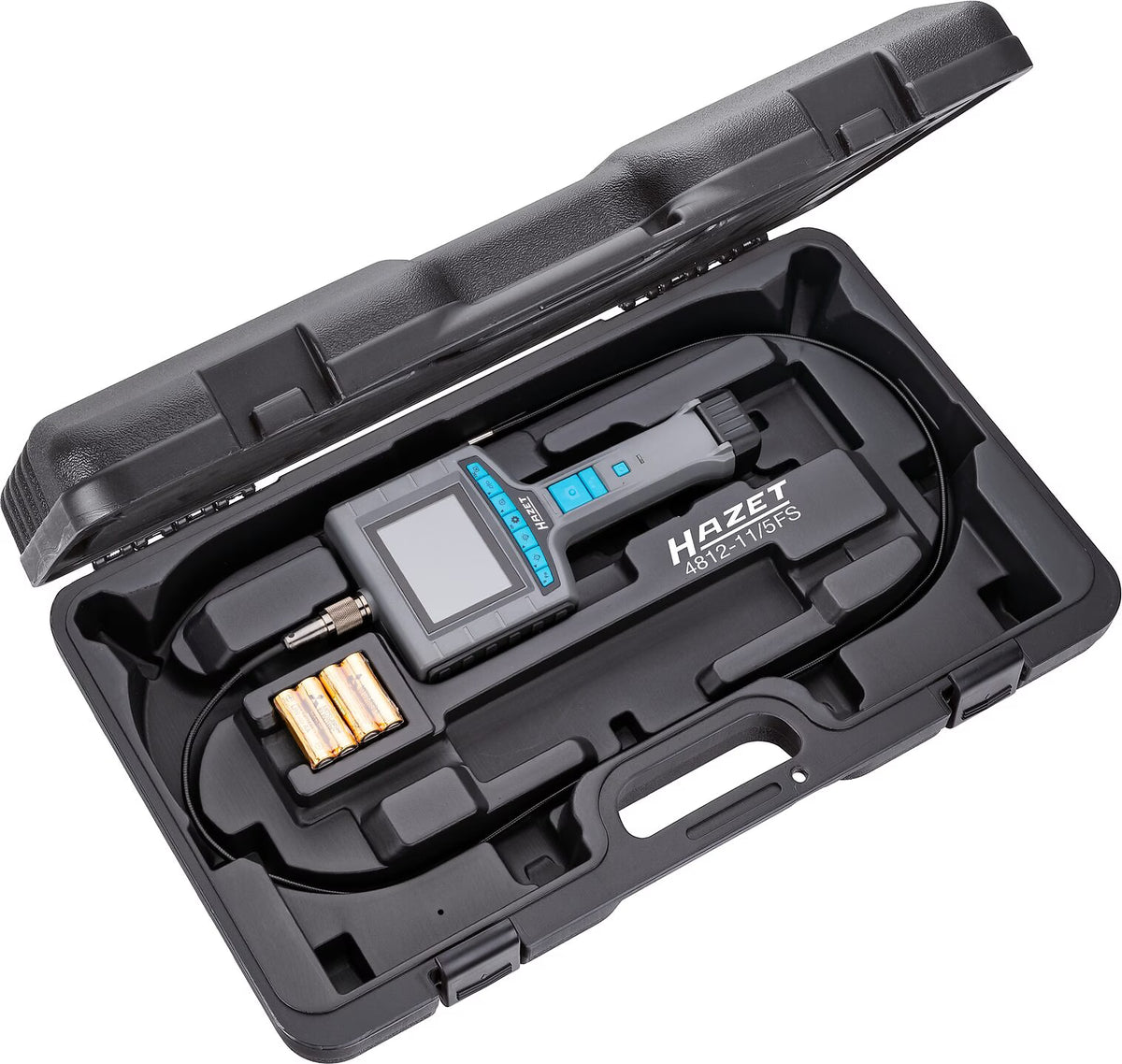

5-piece set in plastic case:

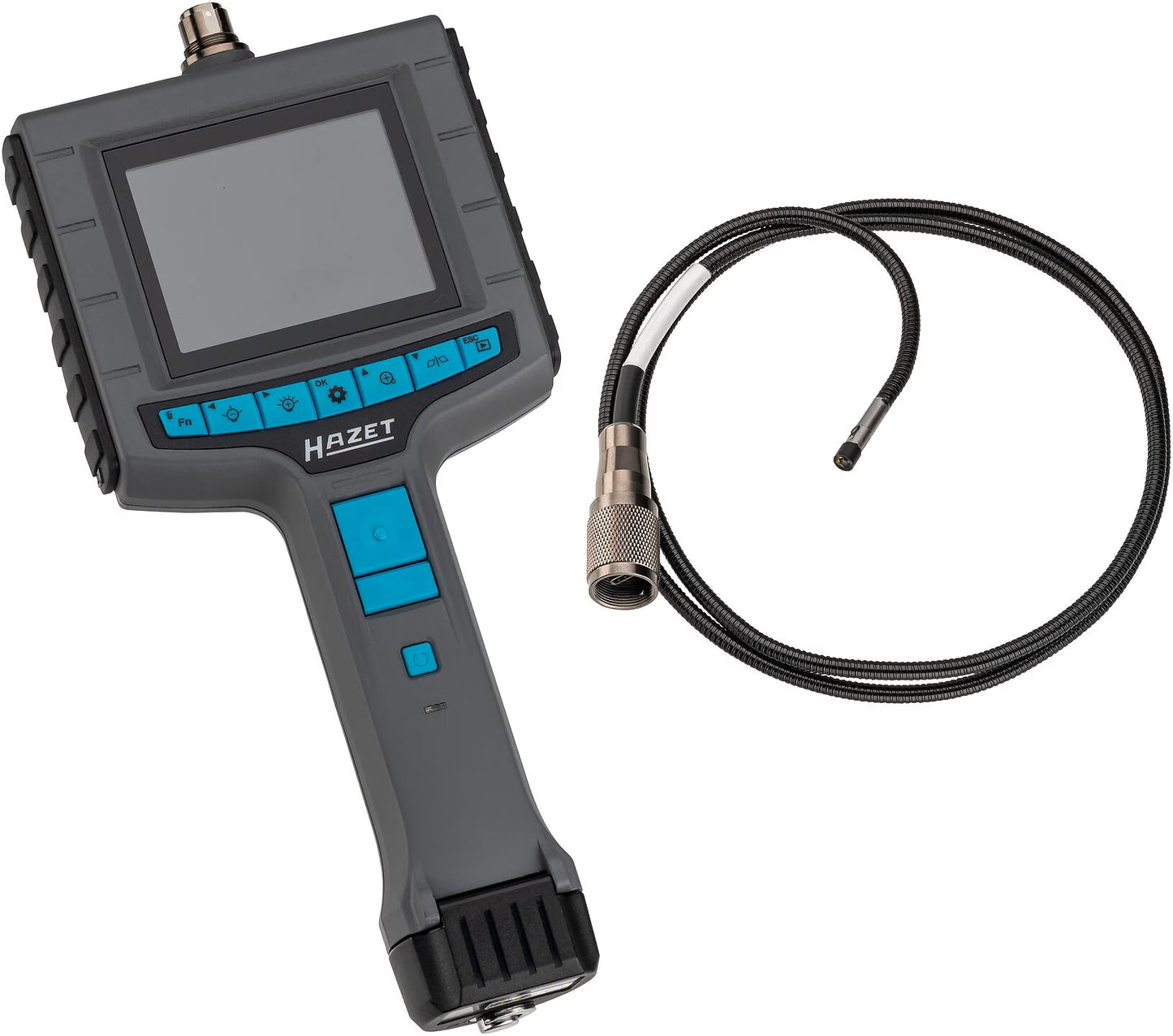

Basic unit 4812-11G
HD probe 4812-11FS
⌀ 4.9 mm, semi-flexible
SD card 32 GB
Micro HDMI cable (A to D) 1.8 m
USB-C cable (A to C) 1 m
USB-C cable (A to C) 1 m
90 mm (3.5 inch) large reduced-reflection LCD screen (320 x 240 pixels)
Luminous source: 5 dimmable (10-stage) LED for optimum lighting
Light intensity: front LED 200 – 300 Lux, side LED 550 – 700 Lux (measured at 5 cm distance)
Optional recording in different time loops (5 ∙ 10 ∙ 15 ∙ 20 minutes)
Zoom: 1.5 x and 2 x
Mirroring of the camera image
Negative display of the camera image (better detection of damaged areas)
Data transfer: USB-C
Video output: Micro HDMI
Operating humidity of up to 90 % (non-condensing)
IP protection rating (basic unit): IP54
Compatible with HAZET HD probes 4812-11FS and 4812-23AF
Energy source: 4 x battery AA
USB interface can be used as a power source when no batteries are inserted
Weight: 370 grams without batteries
Dimensions (L x W x H): 276 x 123 x 54 mm
Easy to handle
Eyelet on the battery compartment for mounting a hand strap (drop guard)
Thread for mounting a tripod screw connection (1/4″)
Reset button
Auto power-off function, 3-way adjustable (Off ∙ 5 ∙ 10 minutes)
Record videos (MOV format) and photos (Jpeg format) with optional timestamp
Resolution 1920 x1080 pixels
29 different menu languages can be selected
Use as a card reader / camera via USB connection to PC

Power supply	USB cable (micro USB)
Number of tools	5
Battery / rechargeable battery chemical composition	ALMN/NIZN
Rechargeable battery / battery replaceable	J
Operating temperature range	10°C – 50°C
ElektroG [Electrical and Electronic Equipment Act] – weight to be reported	3.15 KG
Battery name	1.5 V Mignon / AA / (L)R6
Battery category under the German Electrical and Electronic Equipment Act (ElektroG)	Device battery
Number of batteries	4 ST
ElektroG [Electrical and Electronic Equipment Act] device category / type of use	Category 5 – Small equipment 50 cm or less / B2C
Battery type	Primary battery (non-rechargeable)
Batteries/Rechargeable batteries required for operation	Ja

Hazet 4812-11/5FS HD borescope set with front and side camera ∙ ⌀ 4.9 mm
