NOTE* This unit ships in 2-3 weeks

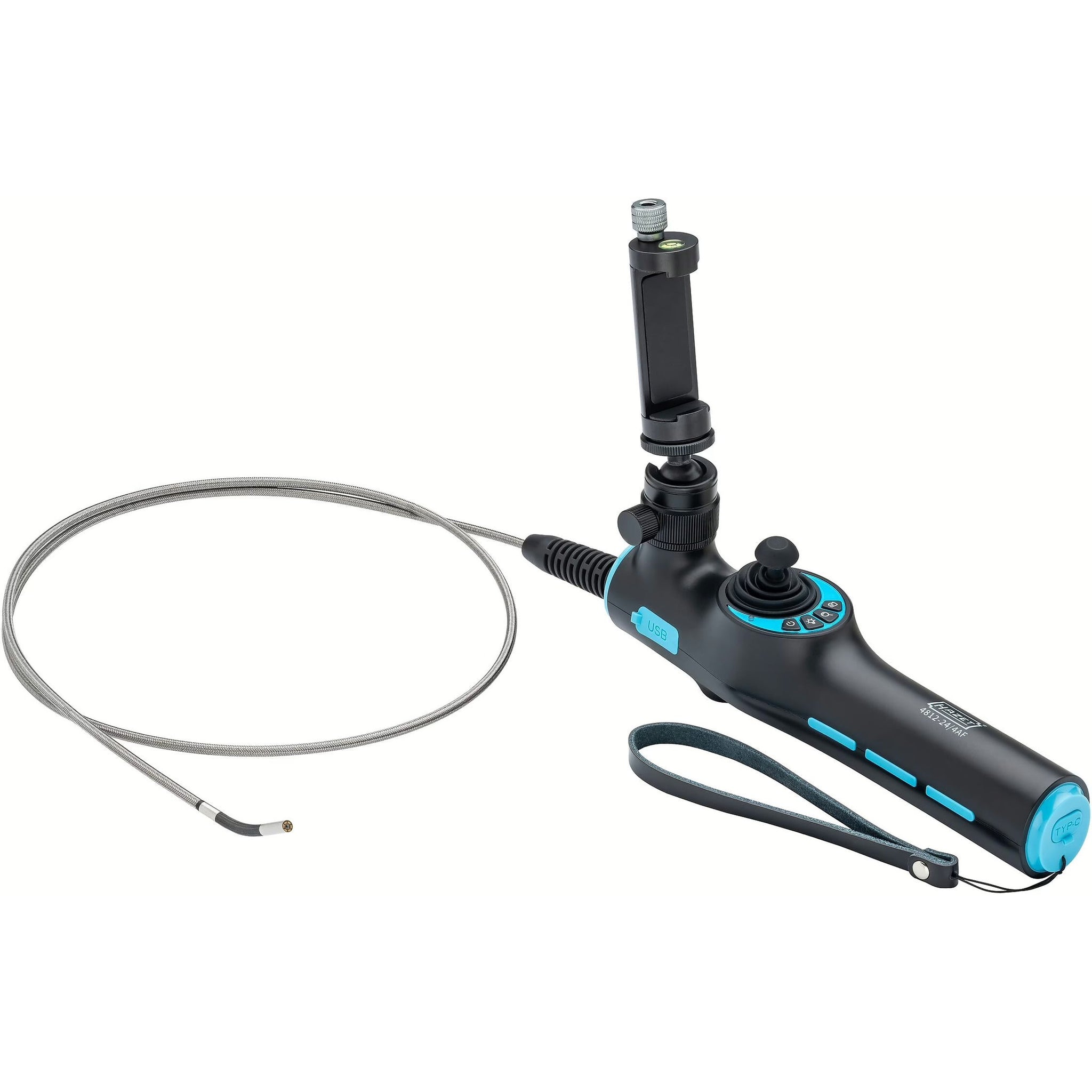

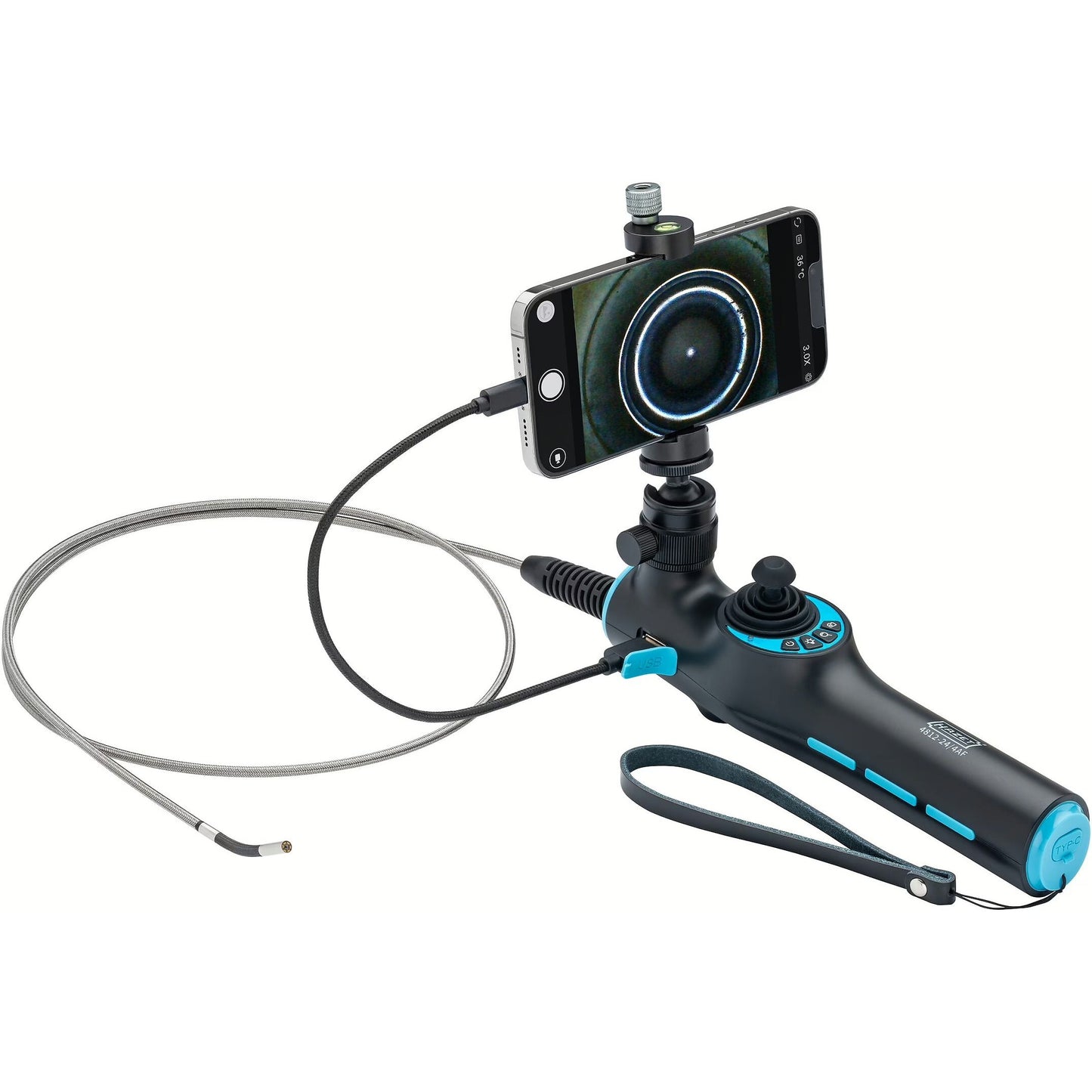

Hazet 4812-24/4AF - HD Video Borescope Set With 360° Swiveling Probe ⌀ 3.9 mm

Product information

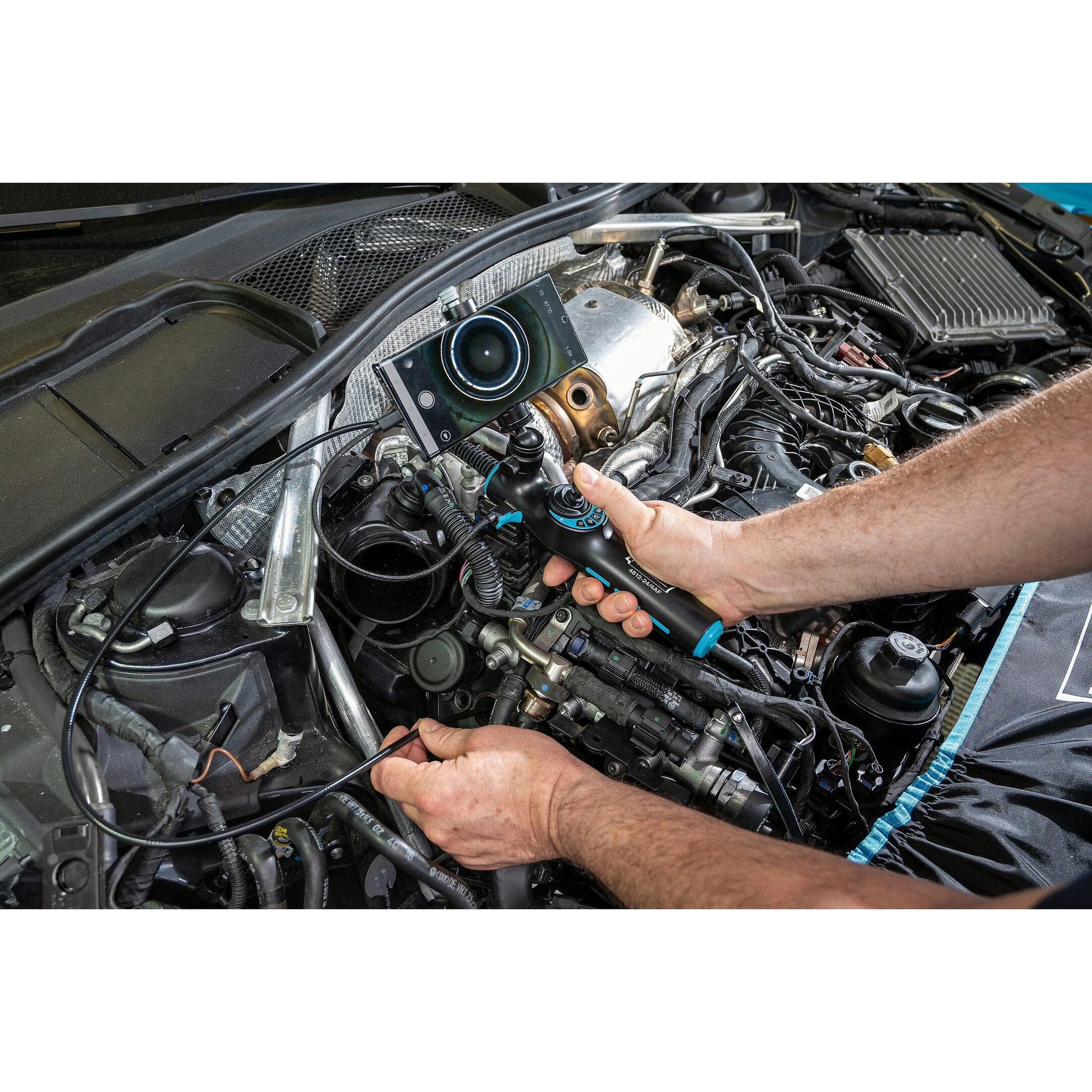

Application: Diagnosis and documentation of cavities for damage assessment
Fully articulated 3.9 mm ⌀ probe – hard-to-reach areas are now much easier to access
Photo and video recording via app or control via operating elements of the borescope
Joystick control of the camera probe via operating elements on the basic unit

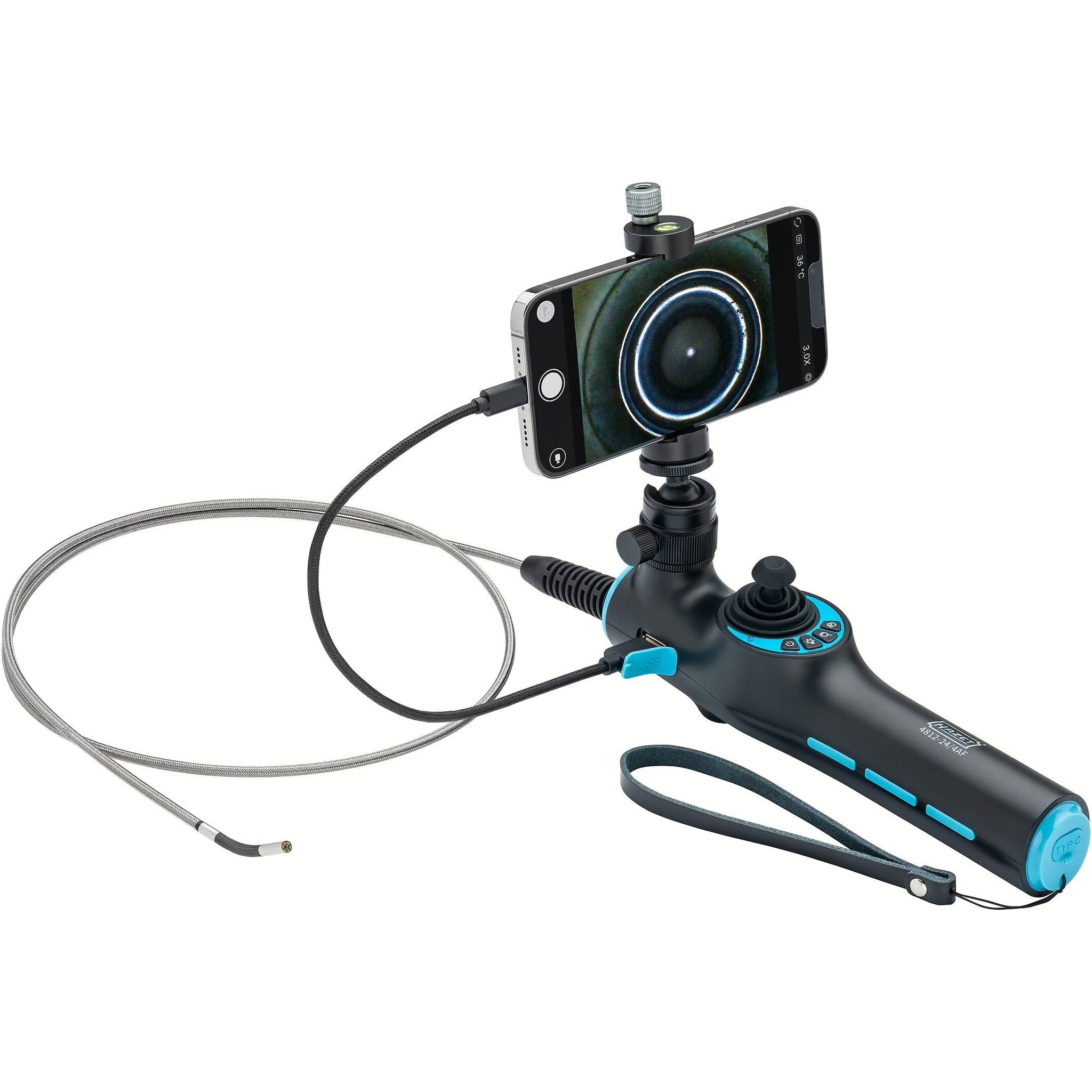

Wired connection of a smartphone as a display (Lightning ∙ USB-C)
Image memory dependent on smartphone memory
Removable Li-ion battery (1 x type 18650 – 3350 mAh) without additional tools
Battery life: ≥ 2 hours
Focus range (DOF): 5 – 100 mm
Viewing angle (FOV): 100°
Temperature warning alarm (app) and automatic switch-off if the maximum permissible camera temperature is exceeded

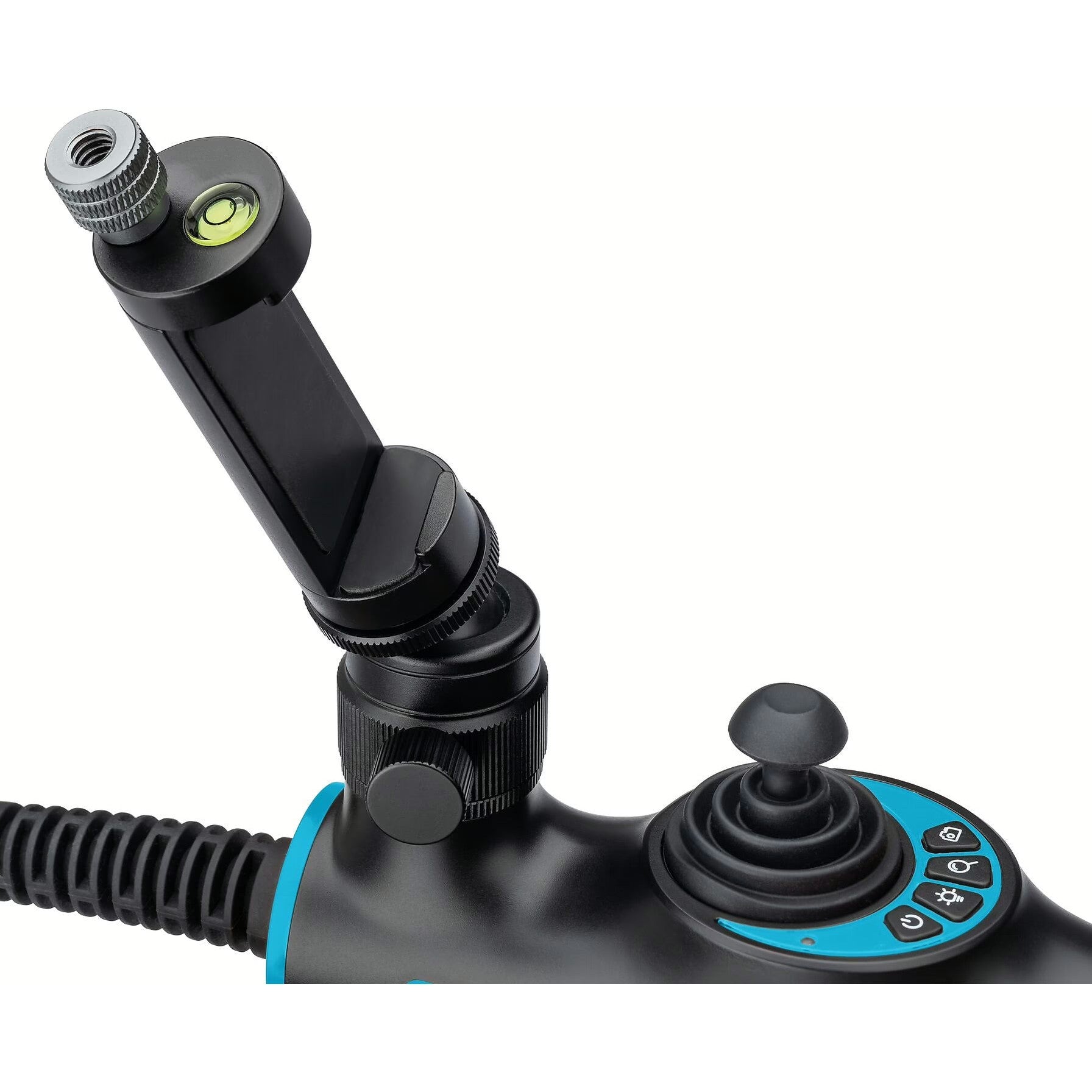

Robust, swiveling and adjustable smartphone holder (span: 58 – 100 mm)
Additional magnification of the image using the smartphone display (drag)

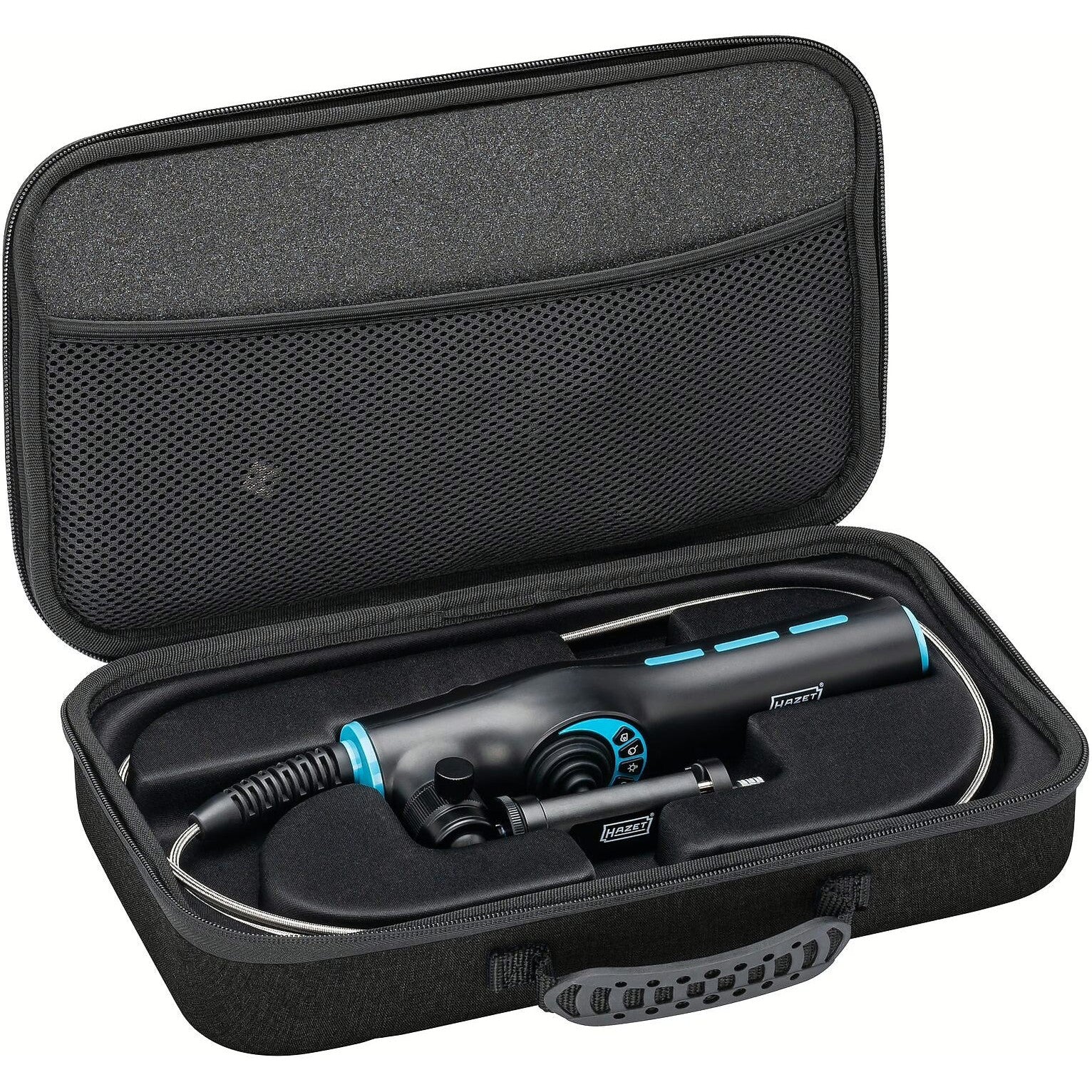

4-piece set in soft case with moulded insert
- Data cable USB-A to Lightning (iOS legacy) ∙ length: 0.3 m
- Data cable USB-A to USB-C (Android, current iOS etc.) ∙ length: 0.3 m
- Data cable USB-A to USB Micro (Android legacy)∙ length: 0.3 m
- Charging cable USB-A to USB-C ∙ length: 1.0 m
- Basic unit and HD probe
- USB-C charging port
Smartphone app
- Four-language smartphone app for Android and IOS
- Temperature display of the camera
- Five-fold zoom (with display of the zoom factor in the app)
- Rotation of the image in 90° increments
- Adding a timestamp
Probe
- Probe length: 1 m
- IP protection rating: IP67

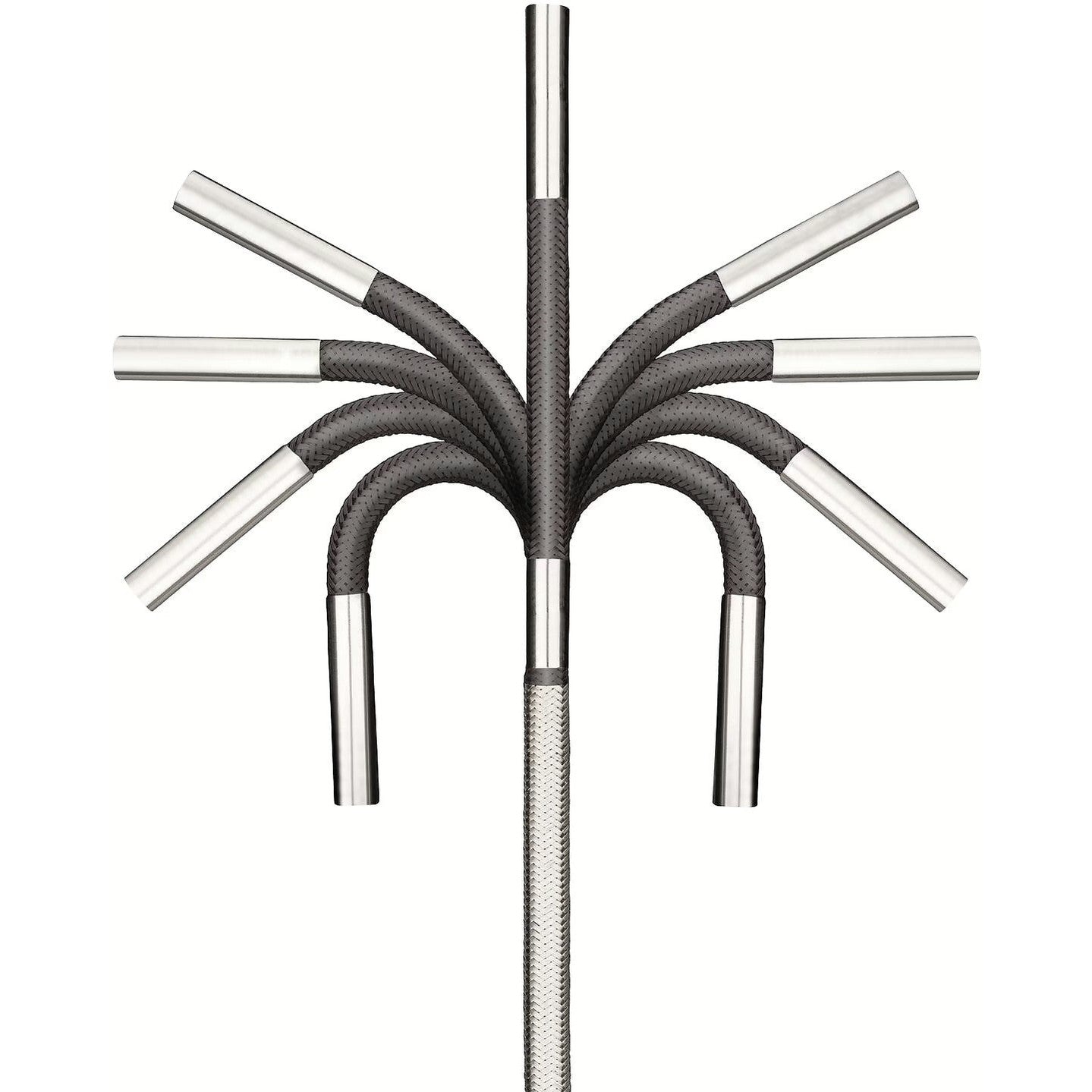

- Articulation of the camera probe: Axial 180° ∙ Radial 360°
- Camera light: LED with white light 6000 to 8000 lux
- Three-stage brightness setting
- Temperature range: -20° C to 70° C
- Wear-resistant, elastic metal hose (stainless steel)
- Photo image format: Jpeg: resolution: 1280 x 720 ∙ 640 x 480 pixels
- Video format MP4: resolution: 1280 x 720 ∙ 640 x 480 pixels
Device:
- With handle and sturdy smartphone holder
- IP protection rating: IP54
- Temperature range: -10° C to 50° C
- Operating humidity of up to 90 % (non-condensing)
- Weight (with battery ∙ without smartphone): 430 g

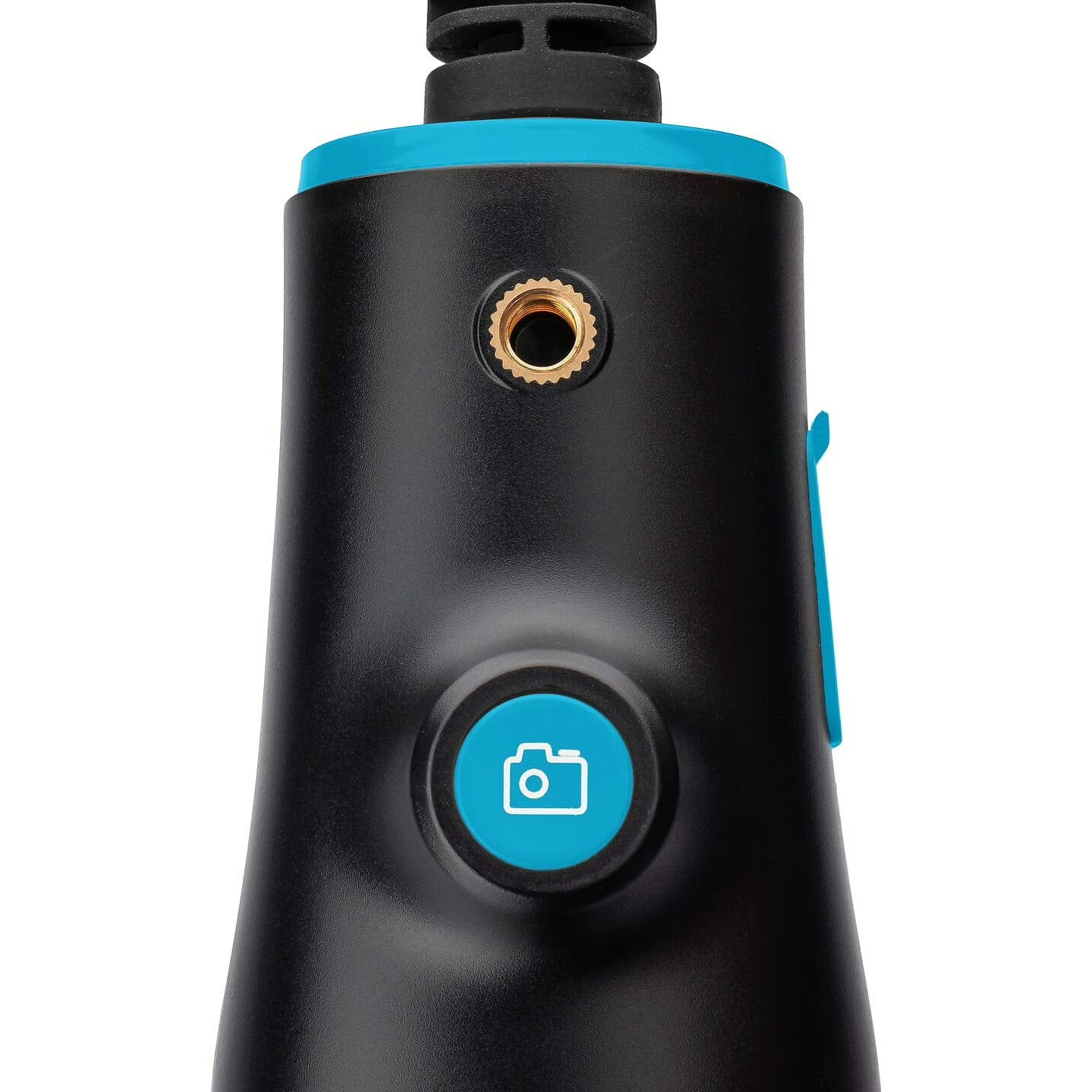

- Tripod mounting thread in the basic unit
- Buttons for On/Off switch ∙ Light control ∙ Zoom ∙ Photo ∙ Video start on the basic unit
- USB-C data and charging socket
