Stationary universal spring vice set ∙ 3 pieces

Increased safety – thanks to load-free installation
Prerequisite: if the 4900-2A safety spring vice basic unit is already available, this set is the perfect choice (for the complete set, see 4903/4)

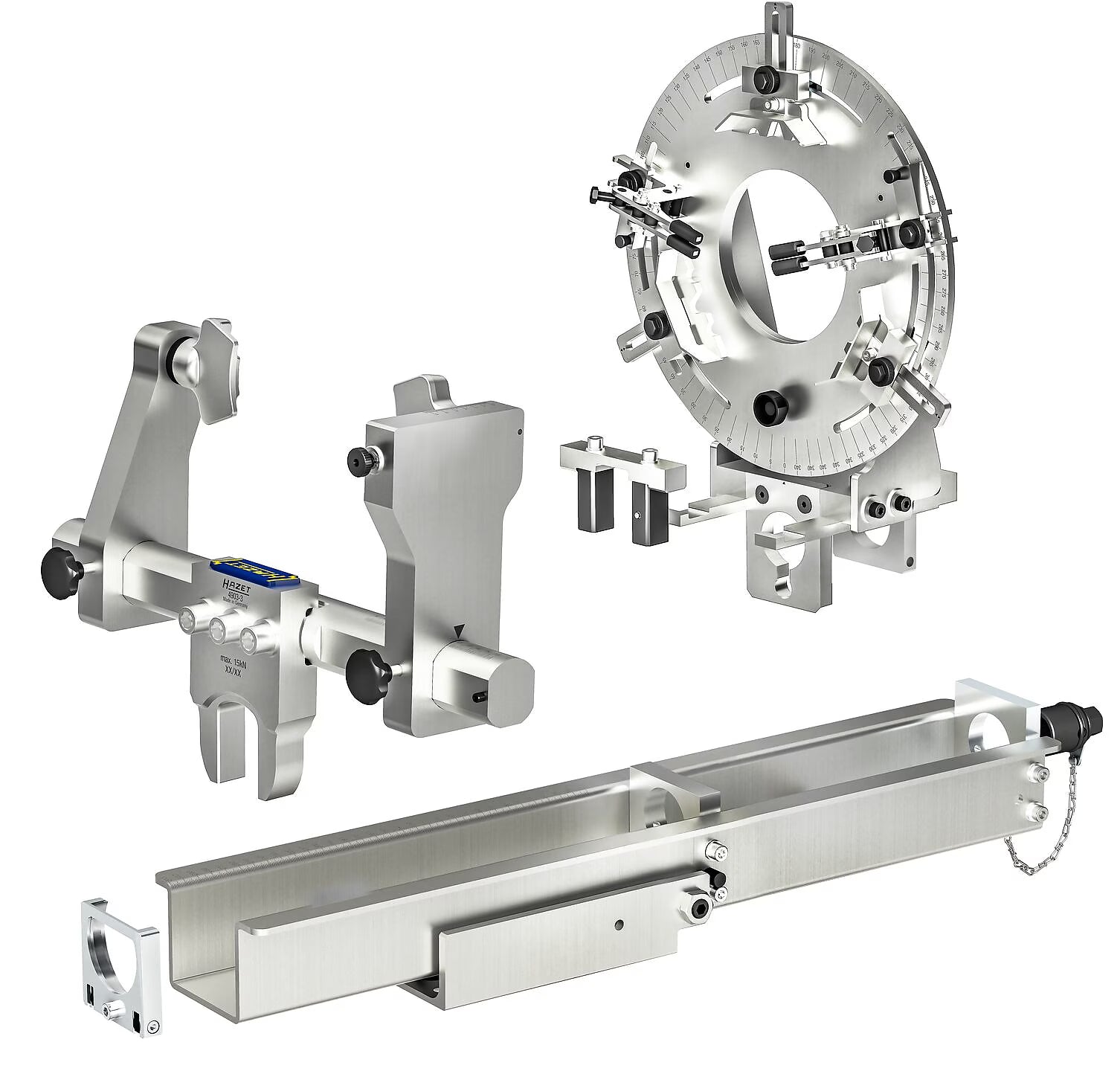

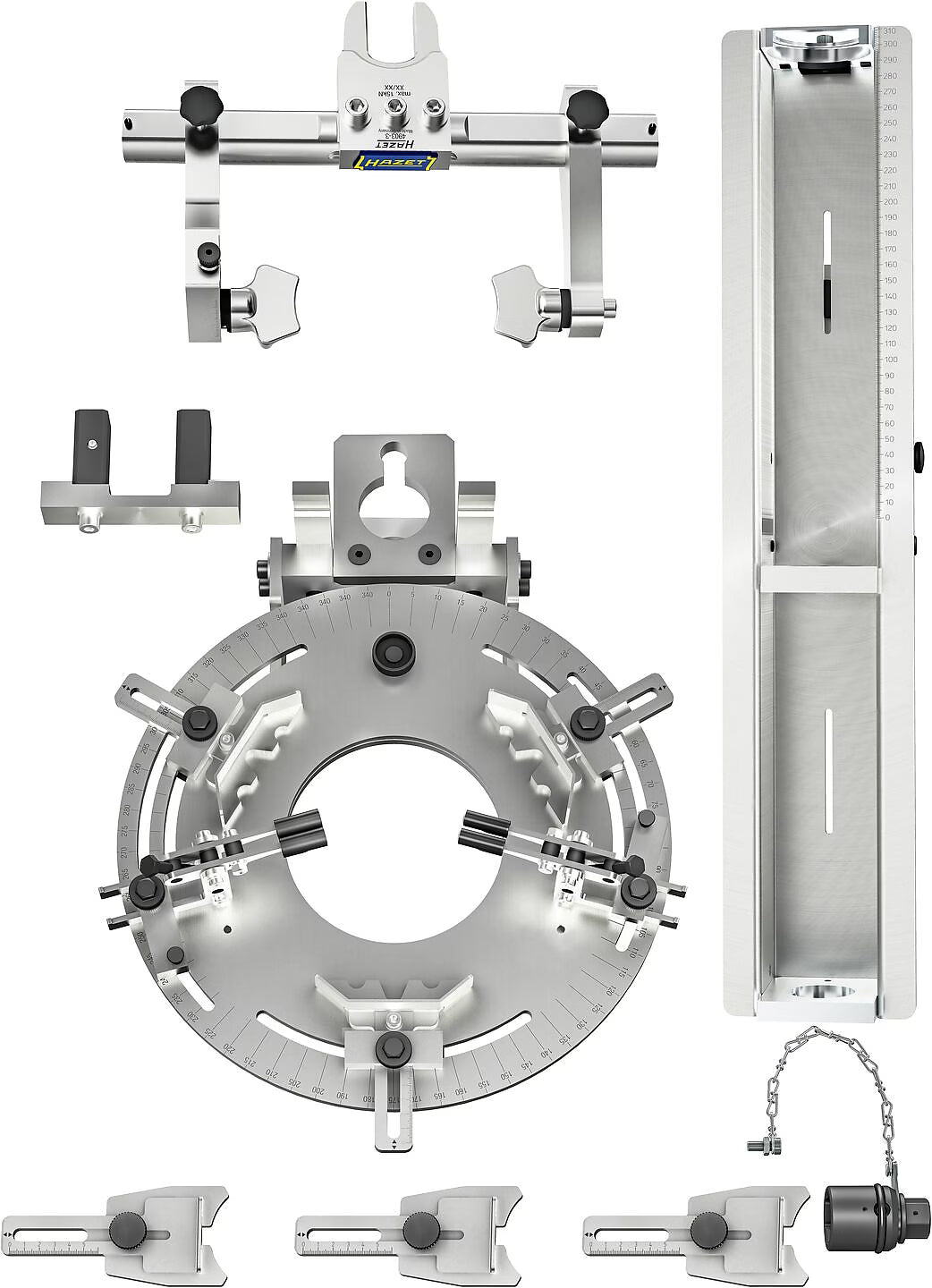

3-piece set ∙ Contents:
4903-1 Basic support
4903-2 universal clamping disc ∙ adjustable
4903-3 universal tensioning jaw ∙ adjustable, safety adapter included
Can be used for almost any spring strut / shock absorber strut
Load-free disassembly/assembly with completely relieved shock absorber

Innovative mounting and installation concept

Swivelling in horizontal or vertical working position
- HAZET recommendation for ergonomic working height: adjust vertically, operate horizontally
No damage to shock absorbers and head plates
- No overload possibility
Simple, lockable strut mount

High safety

Secured investment – by using existing components of SYSTEM 4900

Allows record keeping by scaling

4 steps to success

Mount strut on clamping disc above gripper and brakes
Grip spring with universal tensioning jaw
Operate the tensioner with reversible ratchet, cordless screwdriver or compressed air ratchet
Removing / installing the shock absorber – then continue in the reverse sequence

Hazet 4903/3 Stationary universal spring vice set ∙ 3 pieces
