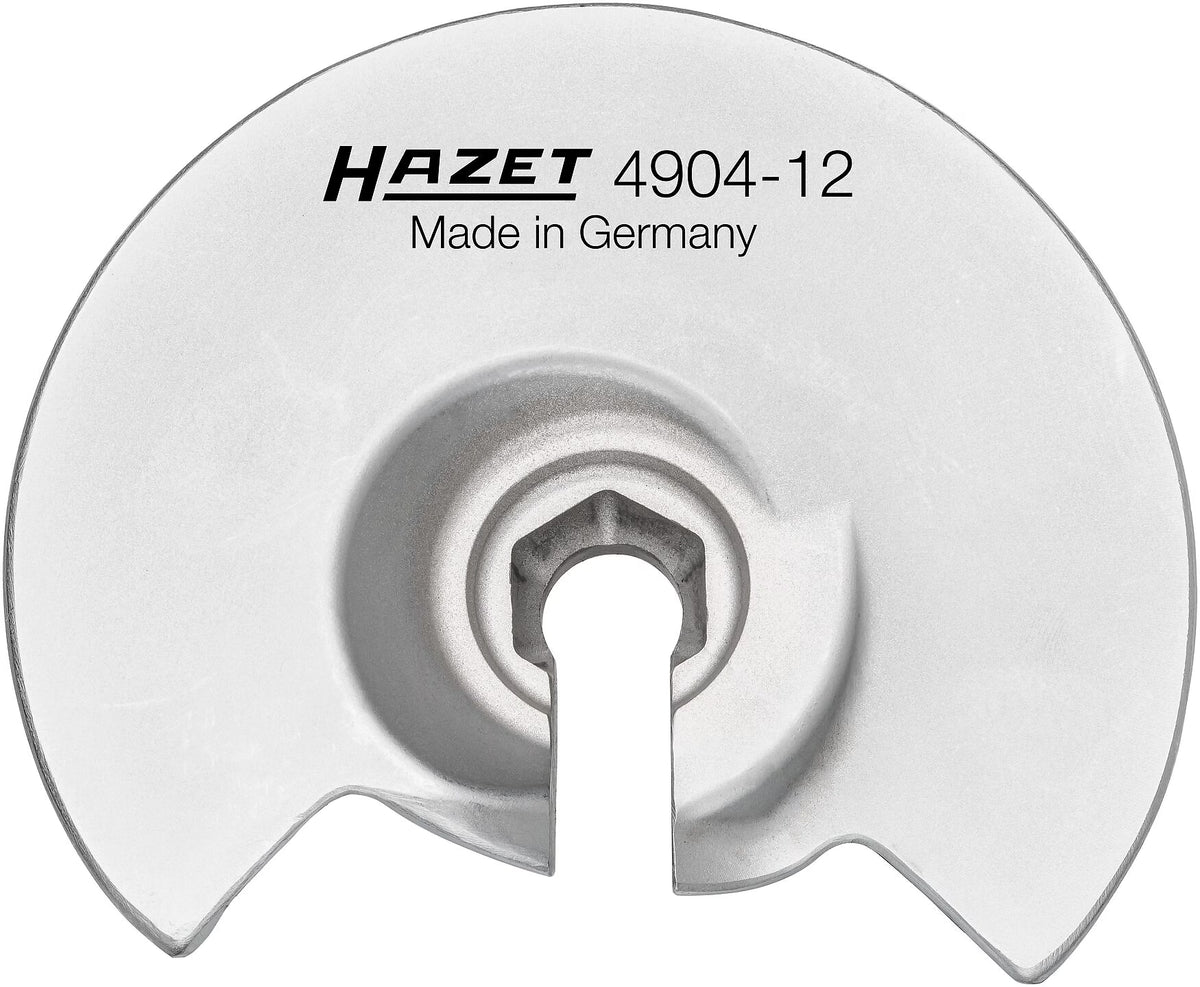

Tensioning jaw

79.5 – 133 mm

Compact HAZET design enables spring replacement with remarkable time savings
Universal application on almost all passenger cars
Tensioning jaw ∙ span width 79.5 – 133 mm
Anti-rotation device for lower tensioning jaws integrated in the base component reduces the outer diameter to 32 mm
Pendulum 6-point head for uniform distribution of power
Integrated anti-rotation device for upper clamping plates
One-sided counterholder for the spindle by hexagon on top, e.g. with combination wrench HAZET 600N-13
Removal and installation of springs with small coil spacing, e.g. for the MINI Cooper S (third generation) ∙ VW Passat (B8)
Span 120 mm
Loading up to 31,000 N – work safely on electric and hybrid vehicles
GS mark for tested safety – tested with at least four-fold safety against breakage
17° swivel angle of the clamping plates ensures removal of C-shaped (bent) springs, e.g. on AUDI A4 (B9) ∙ VW Golf 7
Internal and external guidance the clamping plates prevents the spring from sliding out

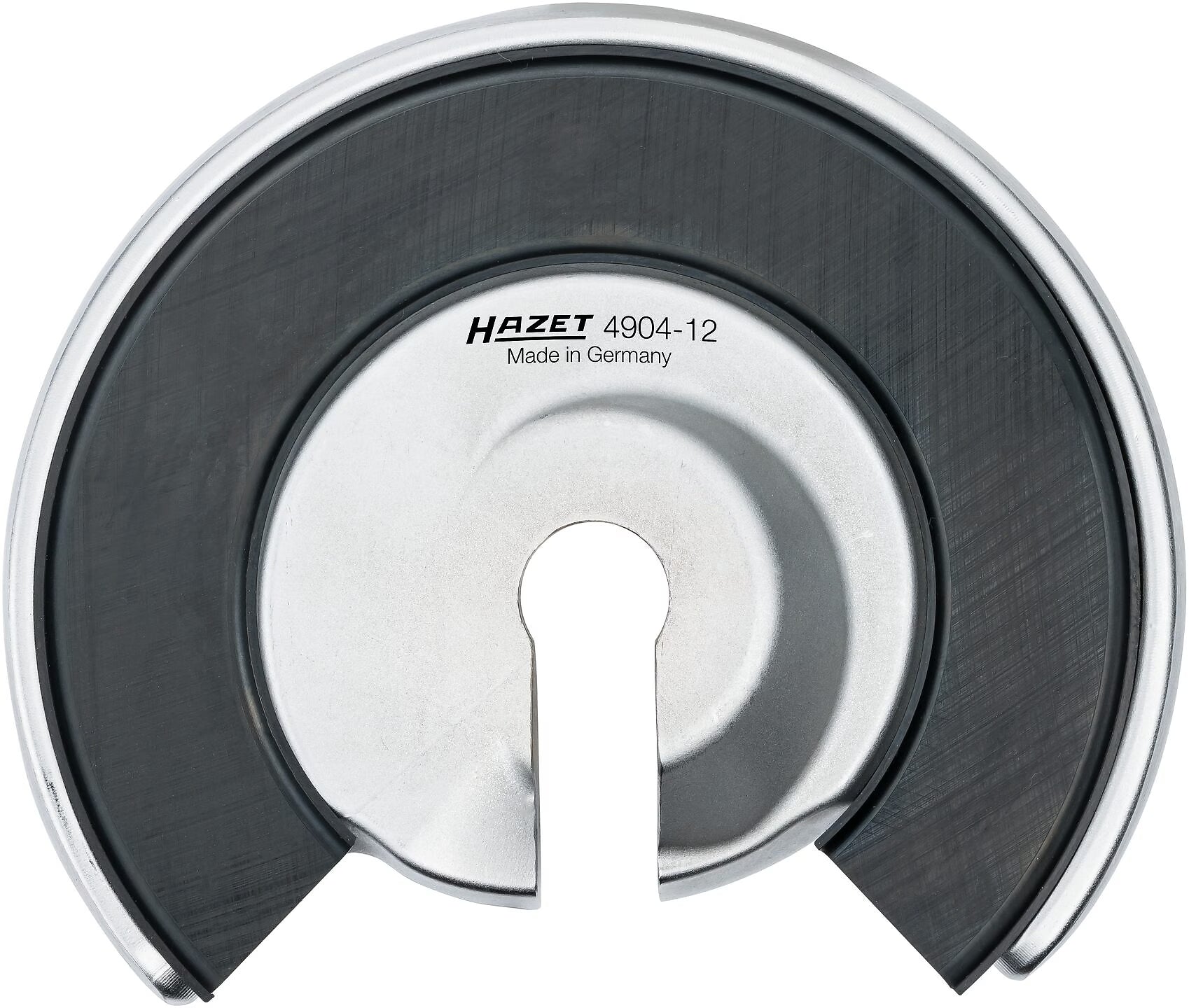

All clamping plates included, reusable, replaceable plastic protective pads
Tested on vehicles of the following manufacturers:
AUDI ∙ BMW ∙ CITROËN ∙ FIAT ∙ FORD ∙ HYUNDAI ∙ KIA ∙ MAZDA ∙ MERCEDES-BENZ ∙ MINI ∙ OPEL ∙ PEUGEOT ∙ RENAULT ∙ SEAT ∙ ŠKODA ∙ TOYOTA ∙ VW

Highlights:

Easy handling for just one user
Eliminates time-consuming work associated with most spring removal:
- Removal of axle parts unnecessary
- Axle alignment no longer necessary

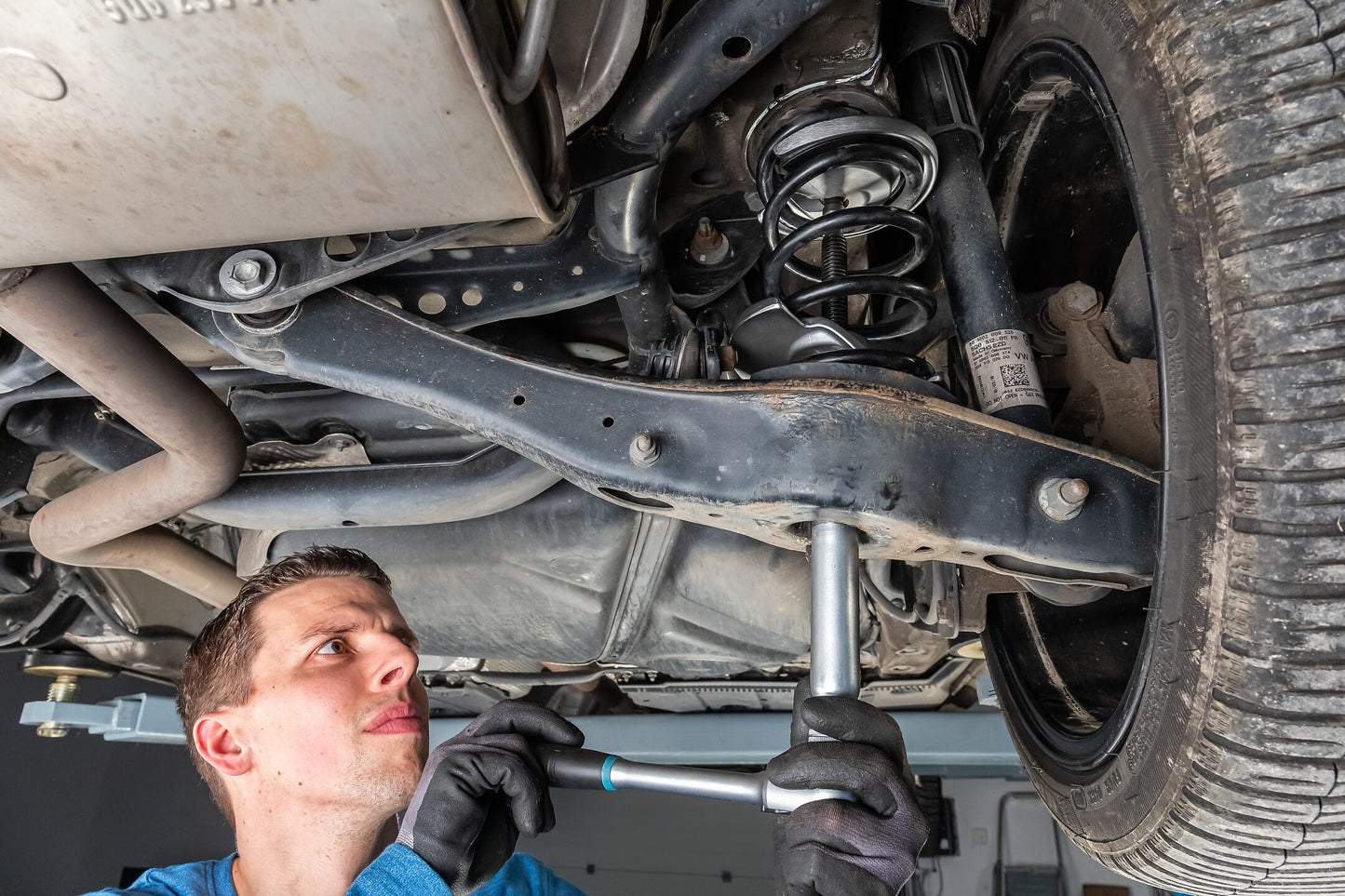

- Removal and installation possible in just a few minutes on each side
Made in Germany

Hazet 4904-12 Tensioning jaw
