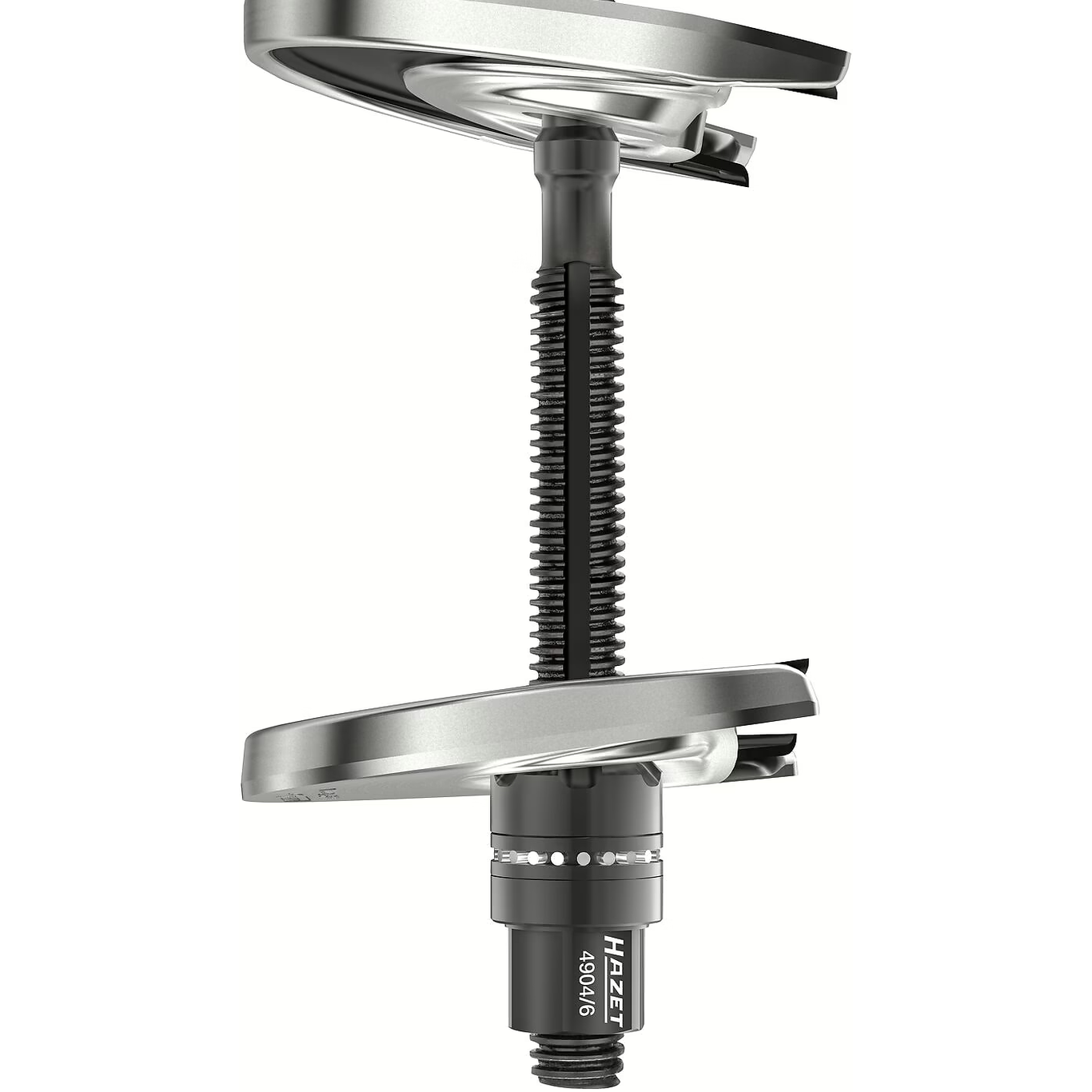

Hazet 4904/6 Universal inside spring vice set
Hazet 4904/6 Universal inside spring vice set
6-pieces
NOTE* This item ships in 1-2 weeks
-
Application:

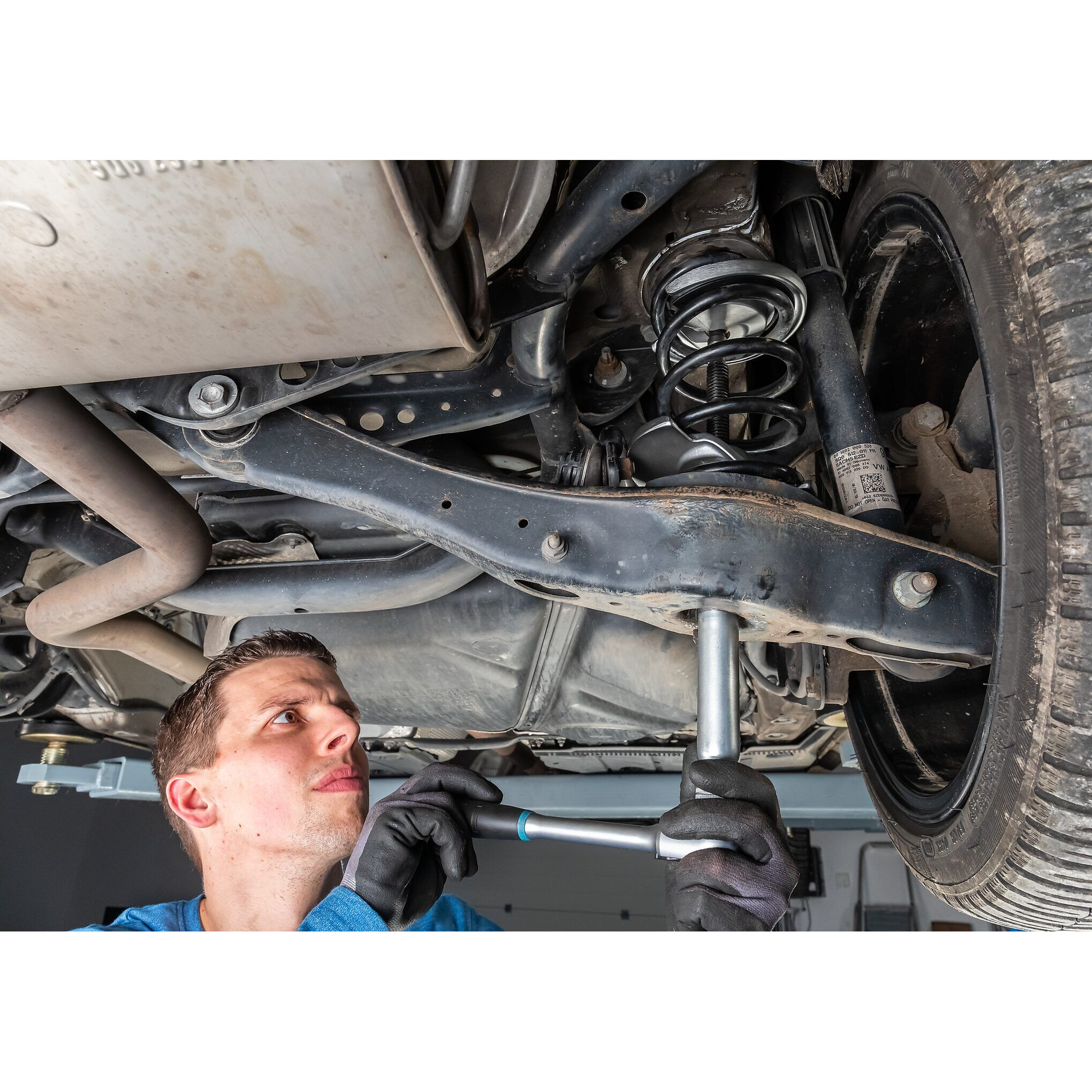

Removal and installation of the coil spring on the rear axle - Compact HAZET design enables spring replacement with remarkable time savings
- Universal application on almost all passenger cars

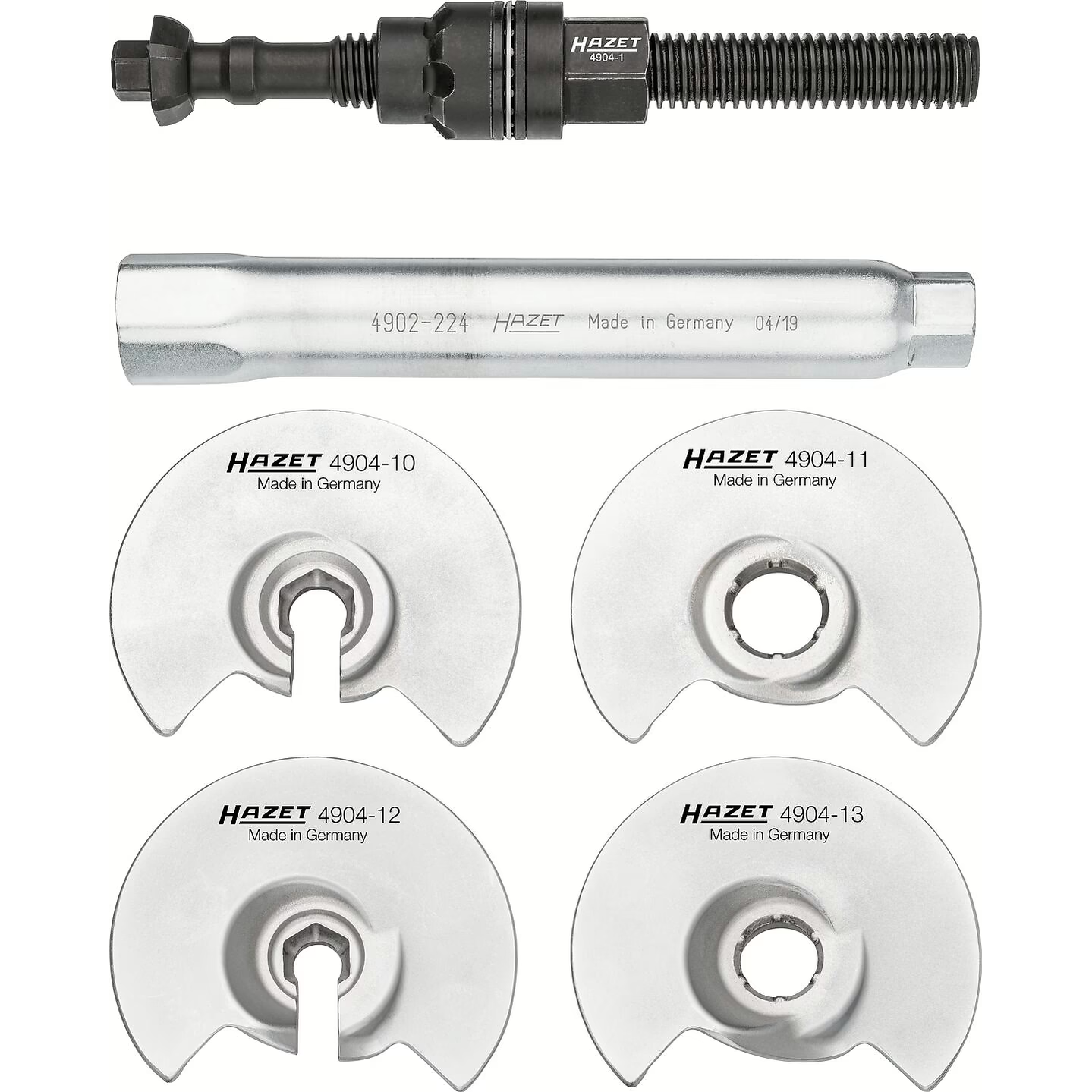

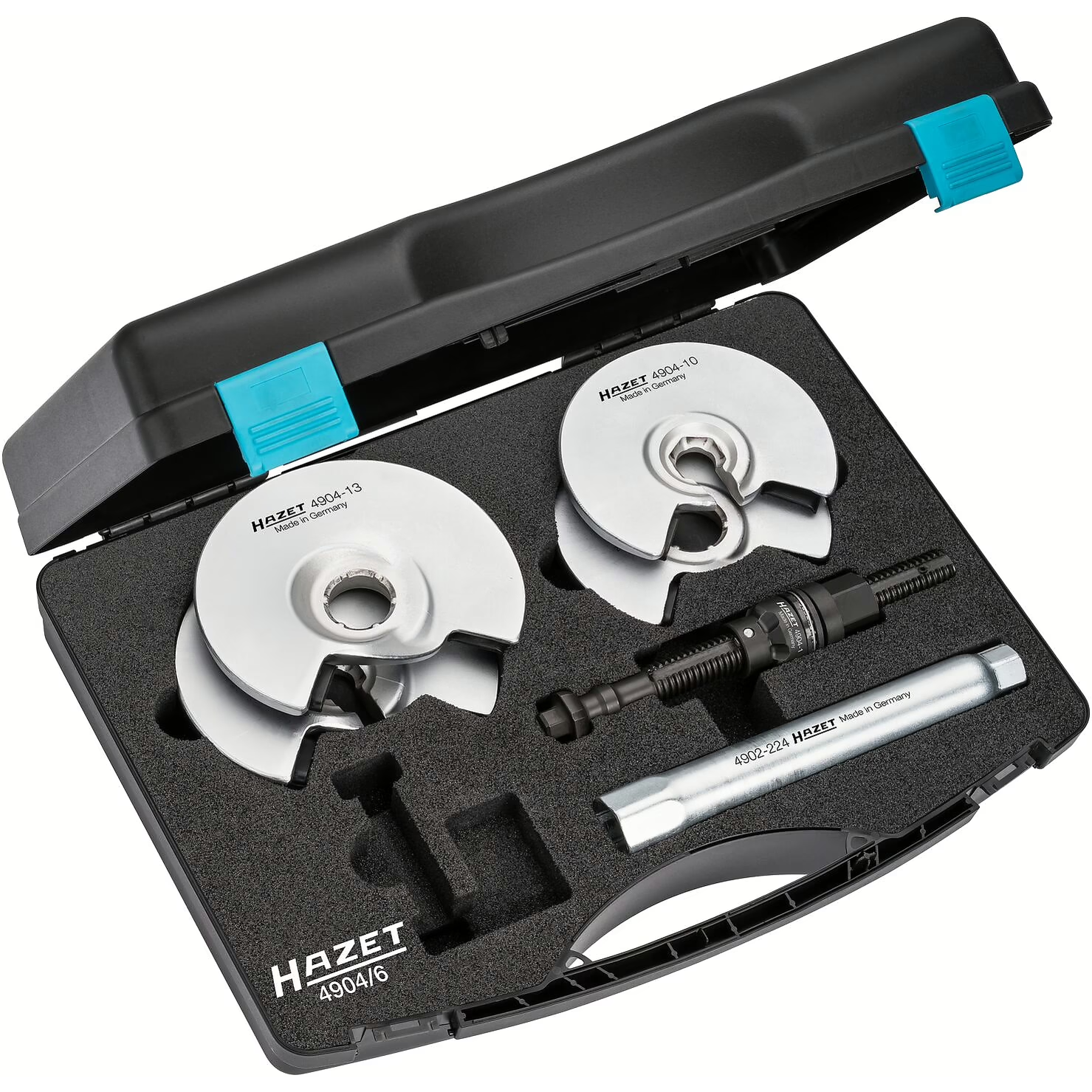

- 6-piece set ∙ Contents:
- 1 inside spring vice 4904-1
- 1 tensioning jaw 4904-10∙ span width 64 – 115 mm
- 1 tensioning jaw 4904-11∙ span width 64 – 115 mm
- 1 tensioning jaw 4904-12∙ span width 79.5 – 133 mm
- 1 tensioning jaw 4904-13∙ span width 79.5 – 133 mm
- 1 tubular box wrench 4902-224∙ s 24 mm
- Anti-rotation device for lower tensioning jaws integrated in the base component reduces the outer diameter to 32 mm
- Pendulum 6-point head for uniform distribution of power
- Integrated anti-rotation device for upper clamping plates
- One-sided counterholder for the spindle by hexagon on top, e.g. with combination wrench HAZET 600N-13
- Removal and installation of springs with small coil spacing, e.g. for the MINI Cooper S (third generation) ∙ VW Passat (B8)
- Span 120 mm
- Loading up to 31,000 N – work safely on electric and hybrid vehicles
- GS mark for tested safety – tested with at least four-fold safety against breakage

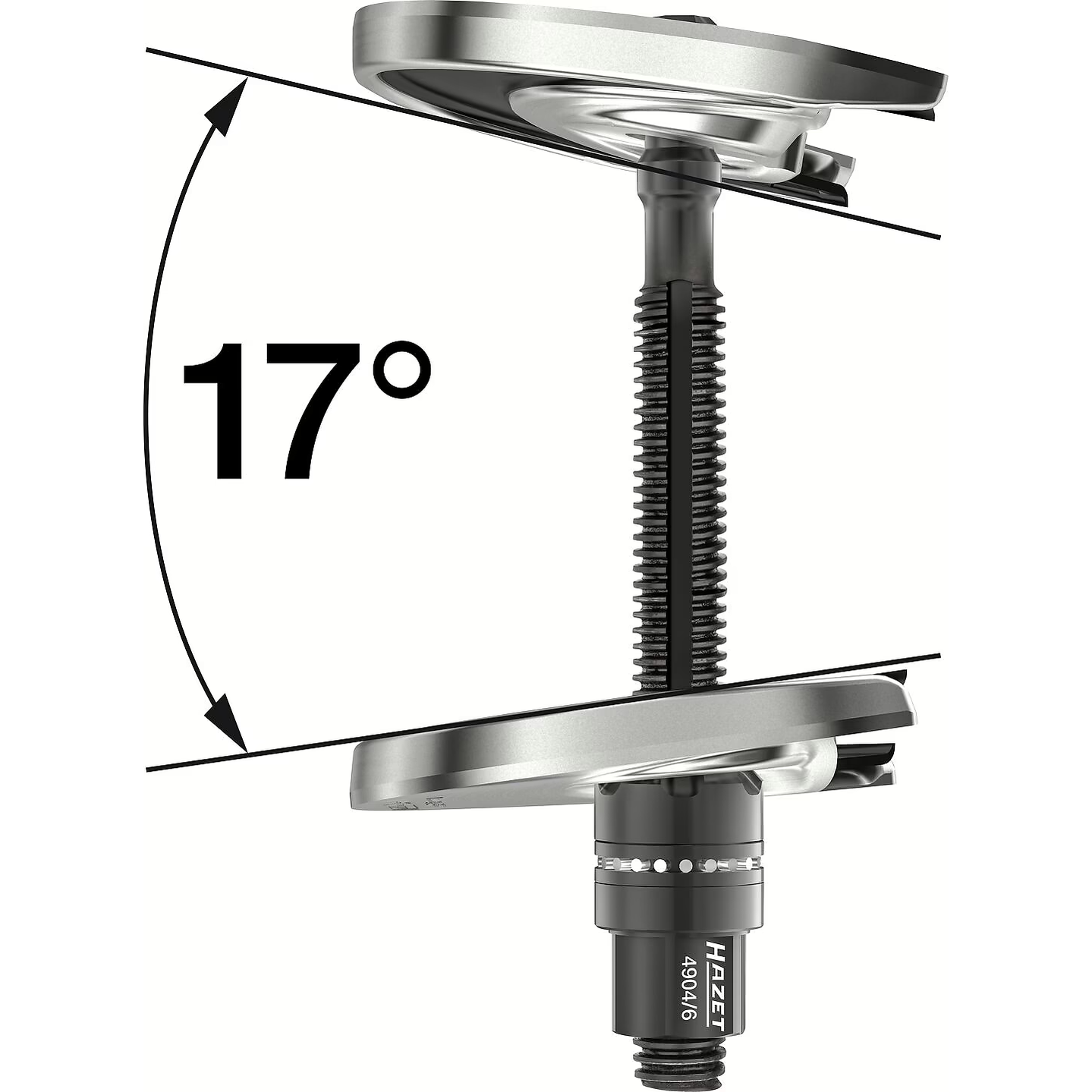

- 17° angular movement of the tensioning jaws ensures removal of C-shaped (bent) springs, e.g. AUDI A4 (B9) ∙ VW Golf 7
- Internal and external guidance the clamping plates prevents the spring from sliding out
- All clamping plates included, reusable, replaceable plastic protective pads
- Tested on vehicles of the following manufacturers:
AUDI ∙ BMW ∙ CITROËN ∙ FIAT ∙ FORD ∙ HYUNDAI ∙ KIA ∙ MAZDA ∙ MERCEDES-BENZ ∙ MINI ∙ OPEL ∙ PEUGEOT ∙ RENAULT ∙ SEAT ∙ ŠKODA ∙ TOYOTA ∙ VW
Highlights:
- Easy handling for just one user
- Eliminates time-consuming work associated with most spring removal:
- Removal of axle parts unnecessary
- Axle alignment no longer necessary
- Removal and installation possible in just a few minutes on each side
- Made in Germany
