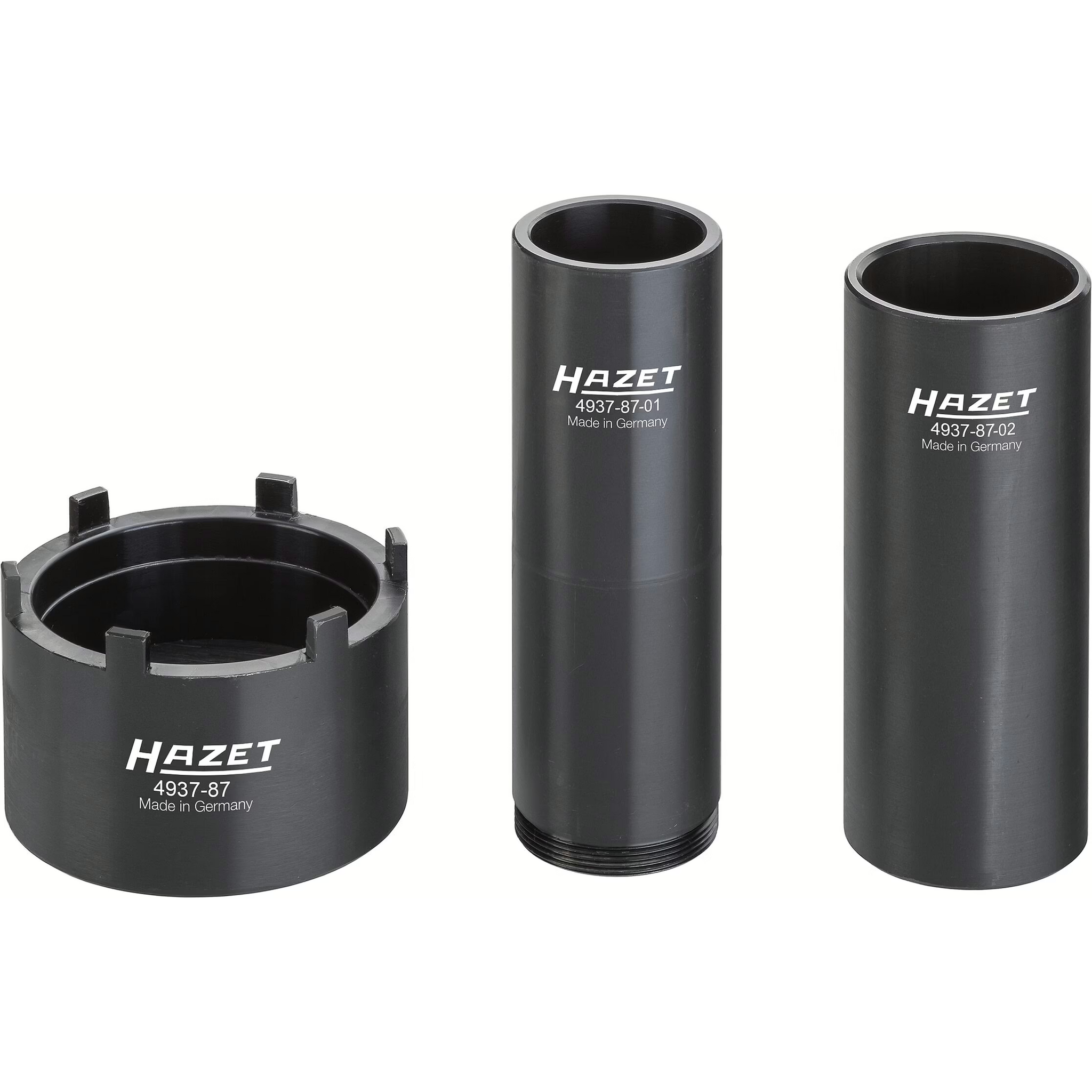

Hazet 4937-87/3 Commercial vehicle pin wrench set
Hazet 4937-87/3 Commercial vehicle pin wrench set
3-pieces ∙ 3/4 inch square ∙ hollow
NOTE* This item ships in 1-2 weeks

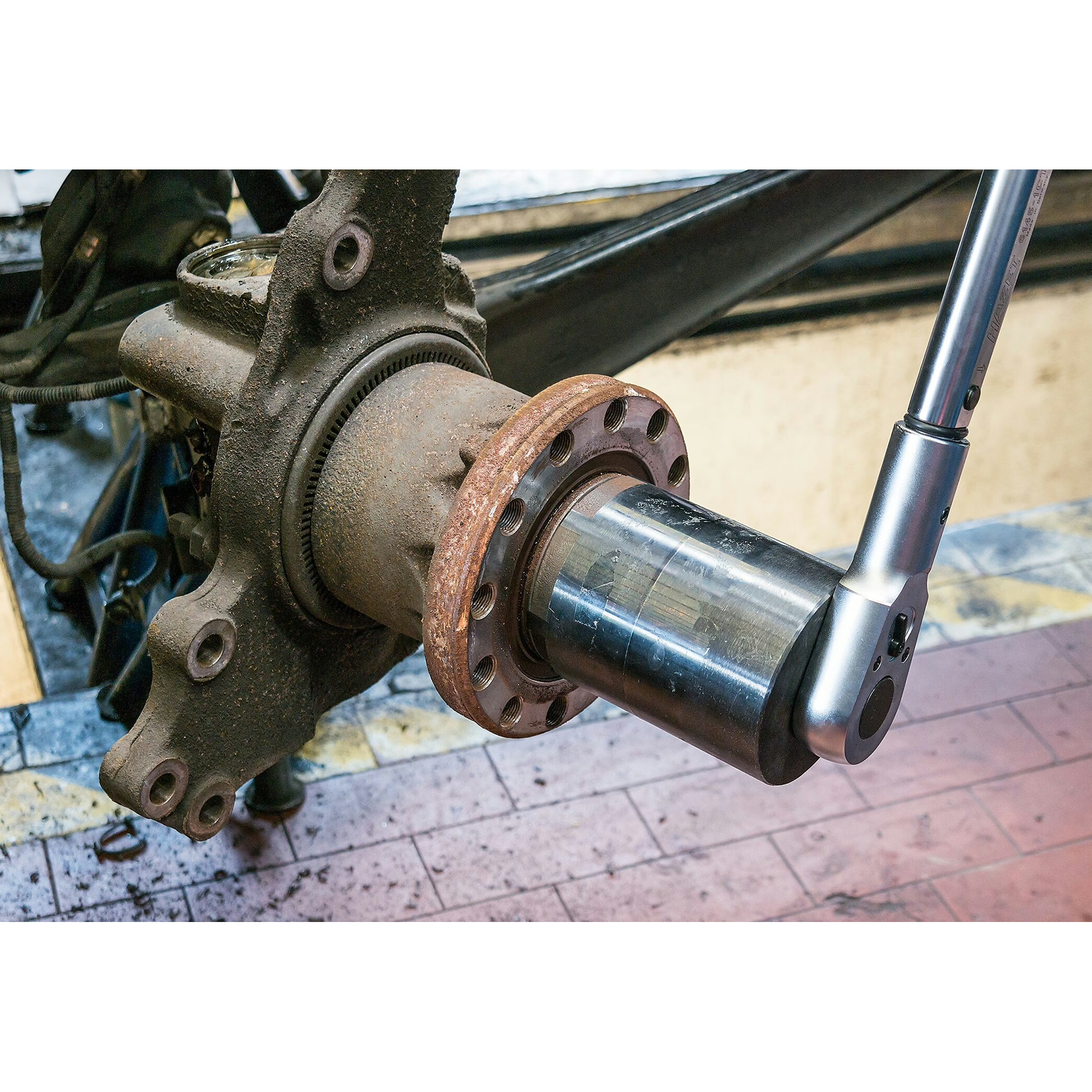

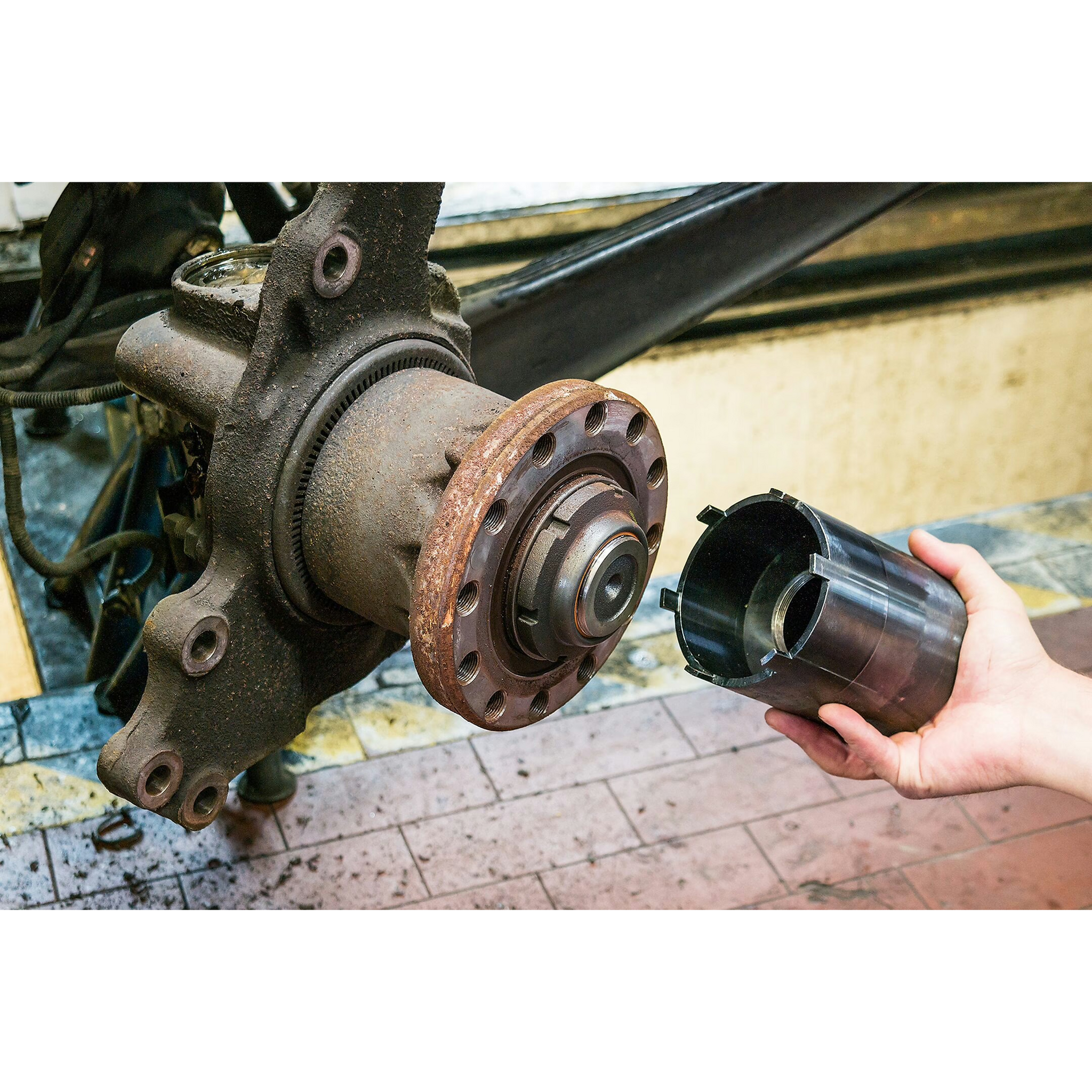

- For repair and maintenance work on the wheel hub, wheel bearing or brake disc on MAN ∙ MERCEDES-BENZ
- For e.g. MAN TGM rear axle 13T/15T with 4x4 drive
MERCEDES-BENZ Atego rear axle HL2 - Precise fit

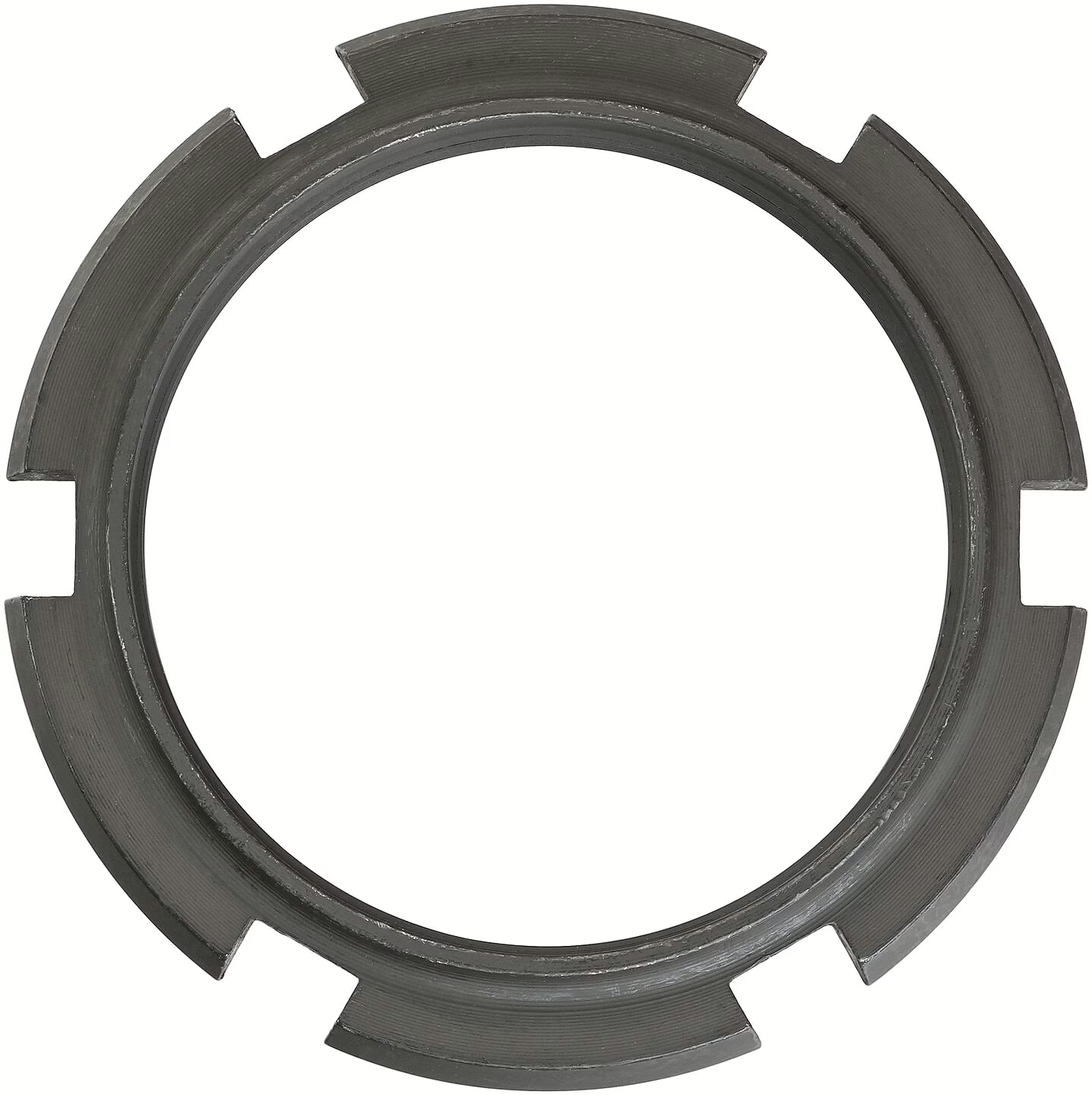

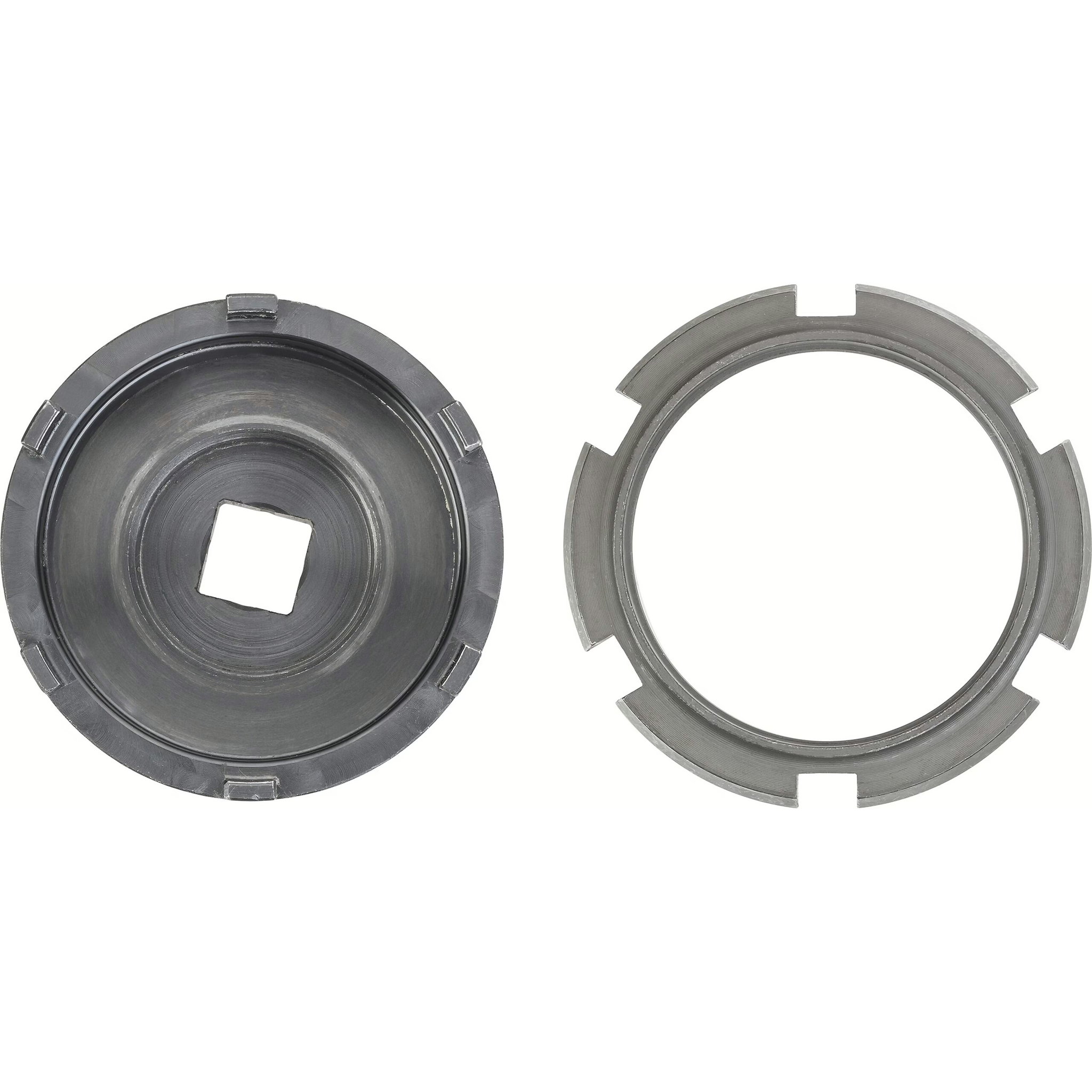

- Precise pin geometry for ideal tool operation in slotted nuts
- Solid design: High (shape) stability even with high loosening or tightening torques

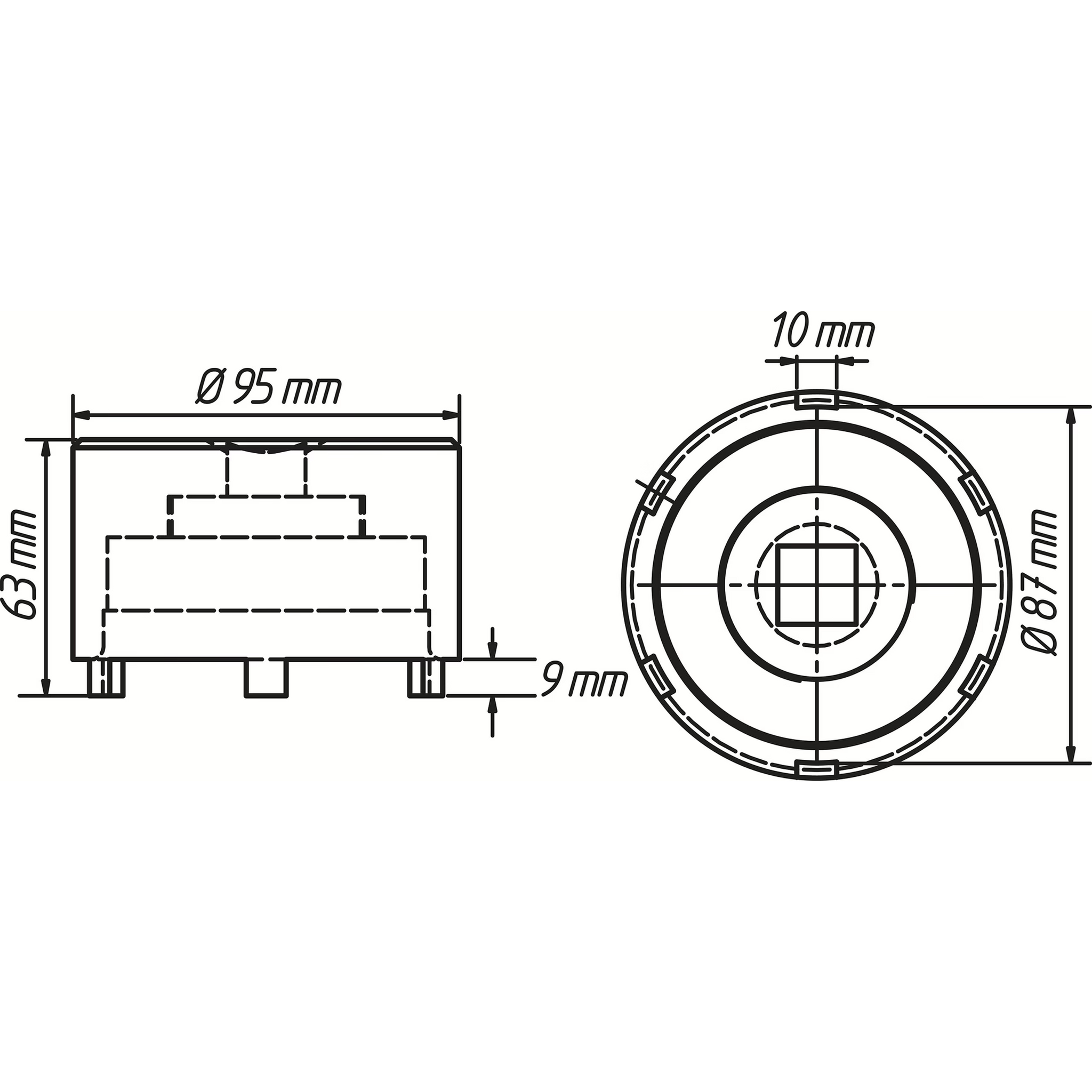

- Pin wrench for rear axle, inside ⌀: 87 mm
- Total length: 65 mm
- 6 pins, width of pins: 10 mm
- Two replaceable guide tubes
Outside-∅: 49 mm ∙ 57 mm
Total length: 140 mm
Operating tools for commercial vehicle axle nuts and wheel hubs
| Drive |
3/4 inch (20 mm) square, hollow |
| Diameter d1 (output side) | 95 mm |
| Manual/impact operation |
For manual operation |
| Surface |
burnished |
| Length l2 | 54 mm |
