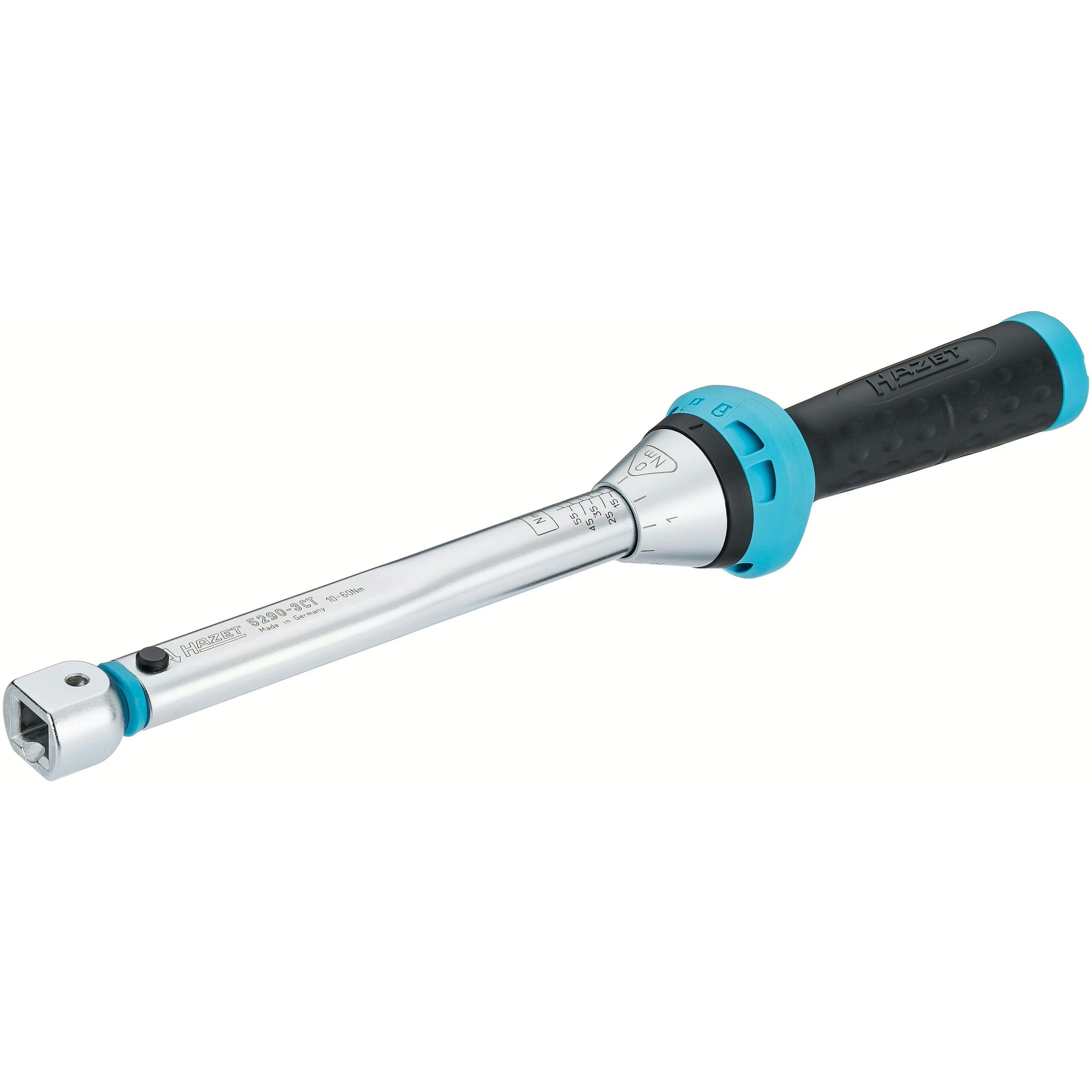

Hazet 5290-3CT - 9 x 12 mm Torque wrench ∙ 10 – 60 Nm ∙ ±3%
NOTE* This item ships in 1-2 weeks
Length: 291 mm ∙ Torque range : 10 – 60 Nm ∙ Accuracy: 3 % ∙ 9 x 12 mm insert square ∙ hollow

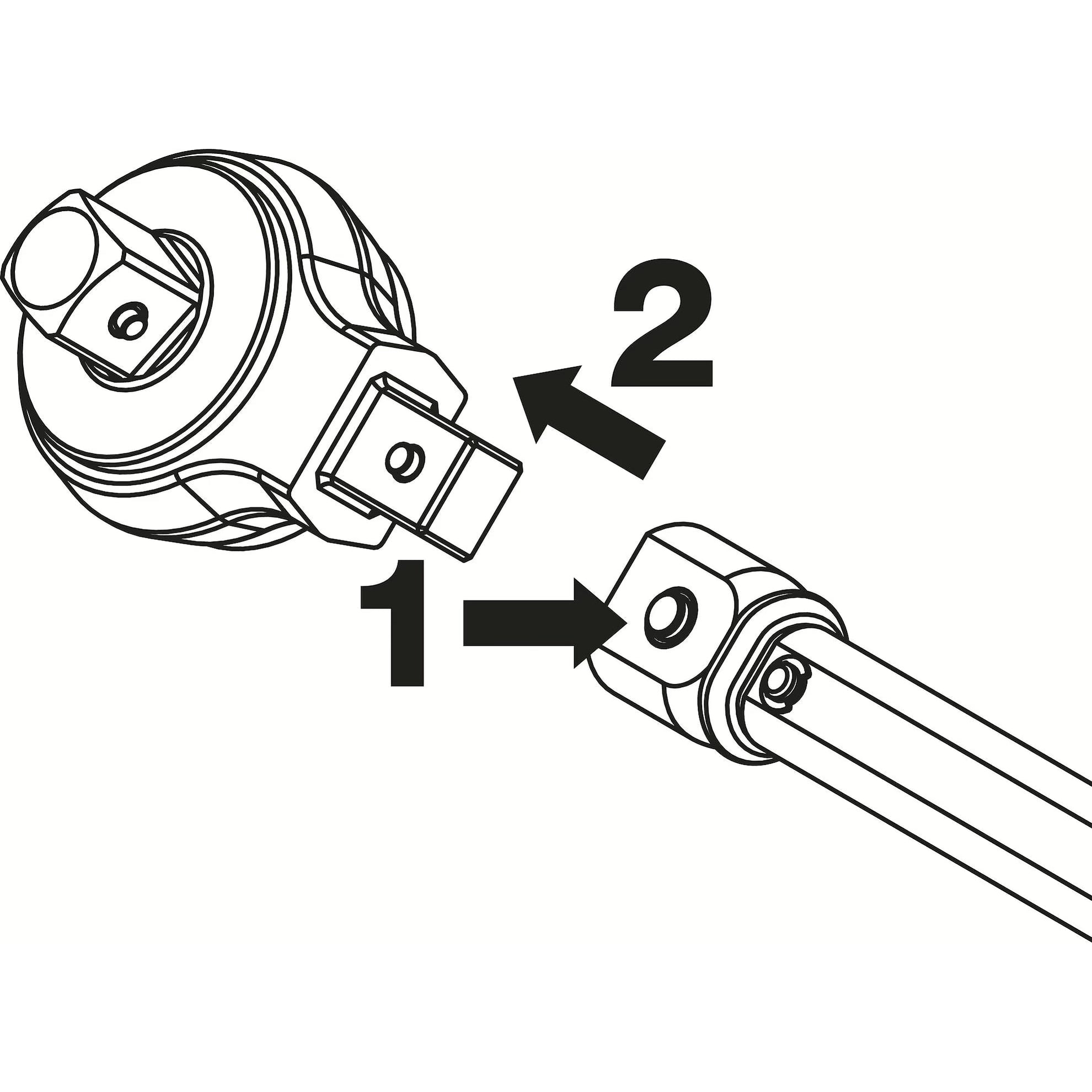

- Plug connection for holding insert tools
-
Accuracy ± 3 % of the scale value (in the direction of actuation)
Can be used for right-hand and left-hand threads by turning the insert tool - Safe:
- Haptic (close-gap release)
- Audible (“click” sound)
- Designed for rough workshop use

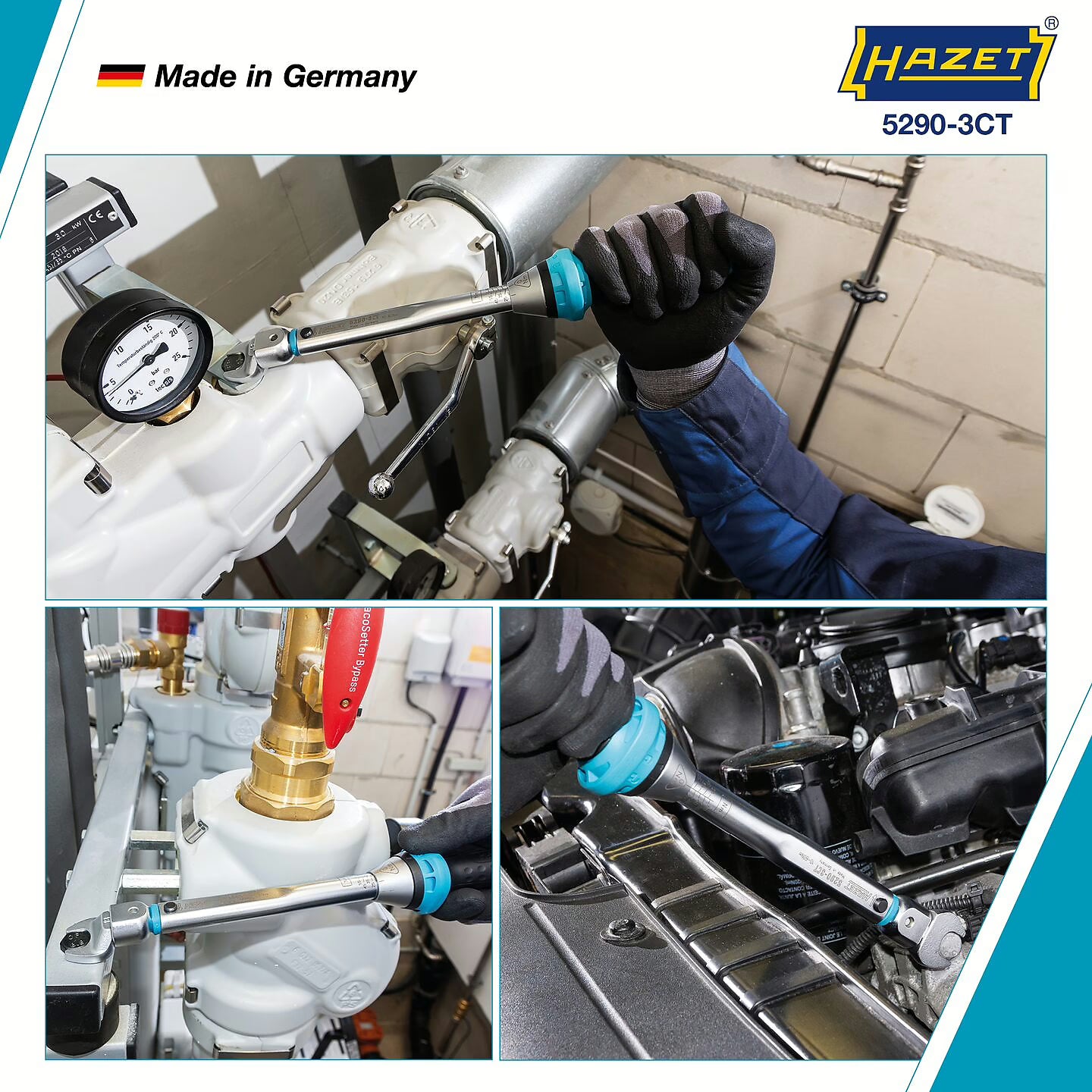

- Wide range of applications for controlled screw tightening in tyre service, bicycle, passenger car and commercial vehicle applications as well as various applications in trade and industry
- Optimised sealing ring to protect against debris
- Handle with better grip for easier power transmission

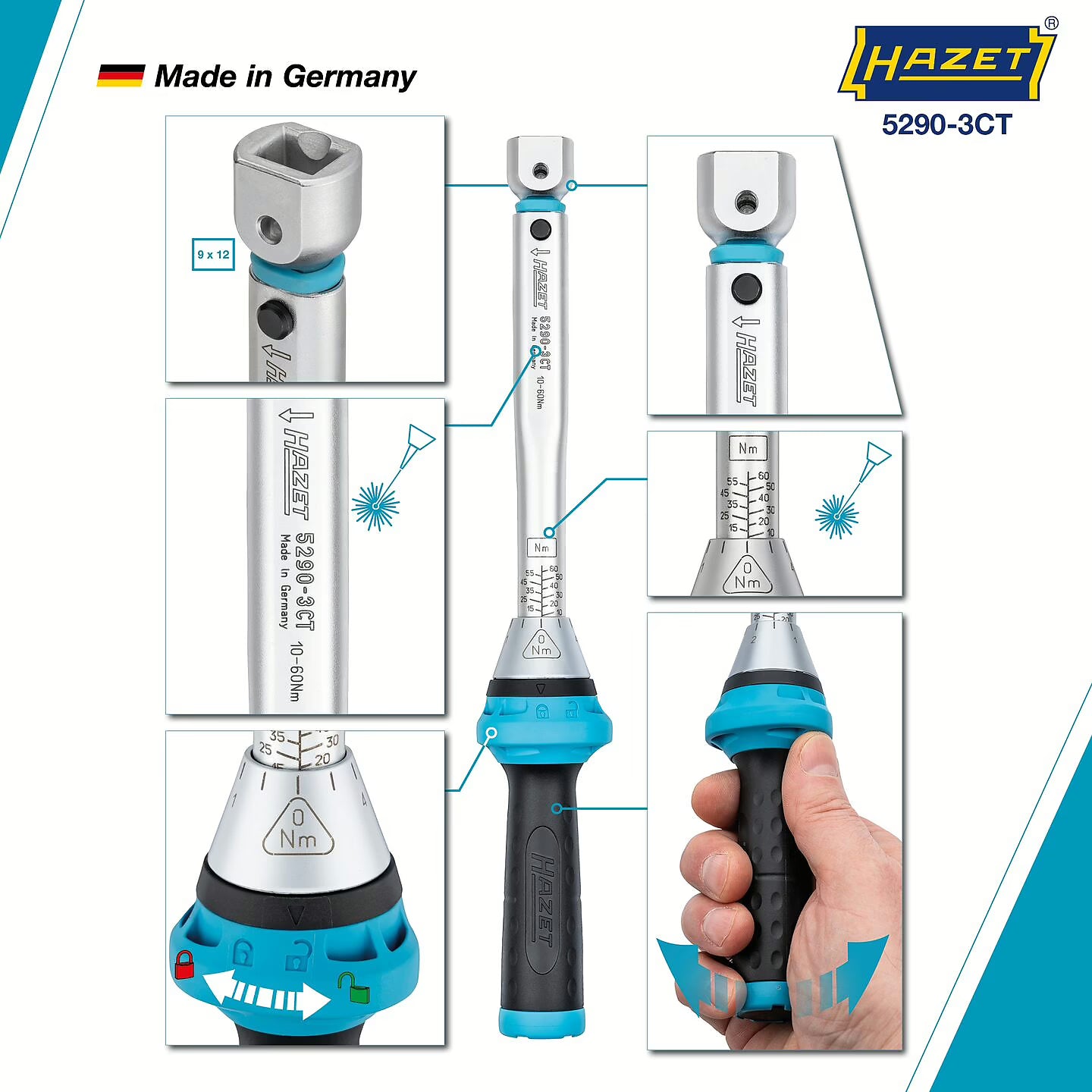

- Adjustment aid with detent points for optimised operator guidance ensures safe and fast adjustment of the desired torque value by turning the handle
- Safe locking of the setting values by latching function on the rotary assembly
- Rotary assembly in triangular form prevents uncontrolled rolling
- Lock symbols indicate the respective locking status
- Can be attached to the cable loop through openings on the locking rotary assembly
- Easy-to-read, high-contrast scale
- Permanent readability due to laser marking on the scale bush
- With calibration certificate and serial number

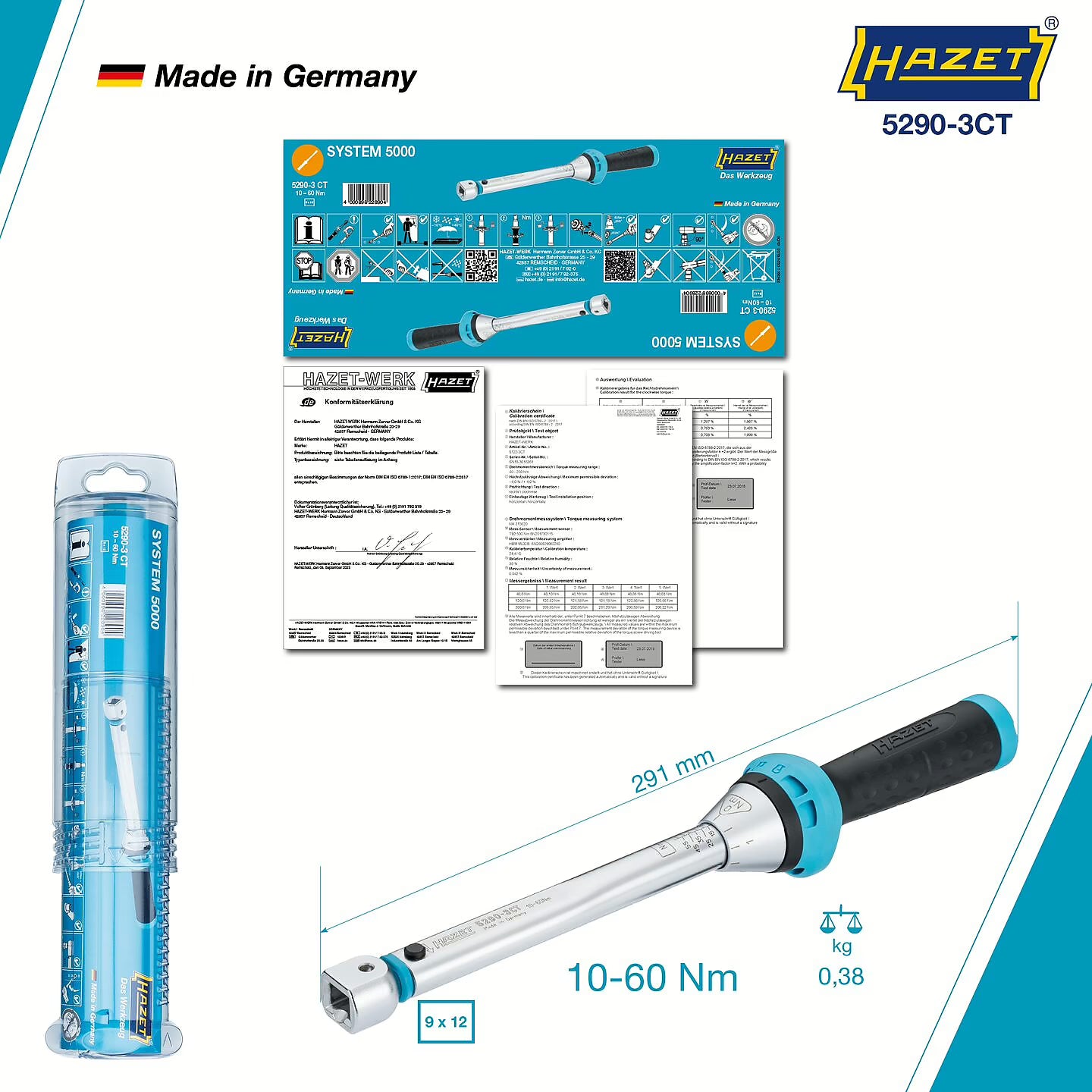

- Delivery in sturdy Hexa plastic box
- Made in Germany

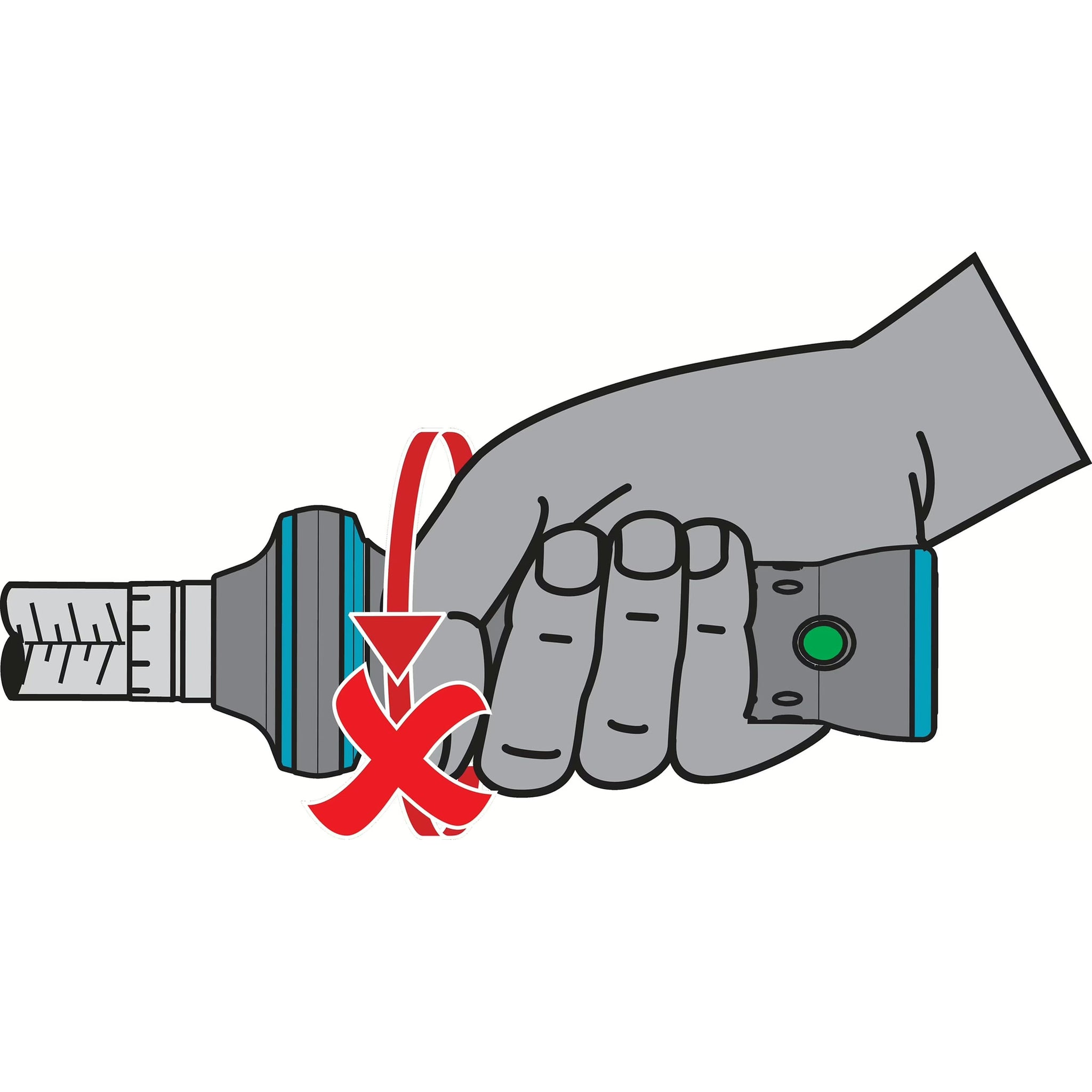

- No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required
Technical Data
| Output |
|
| Tolerance | 3 % |
| Tightening torque minimum | 10 Nm |

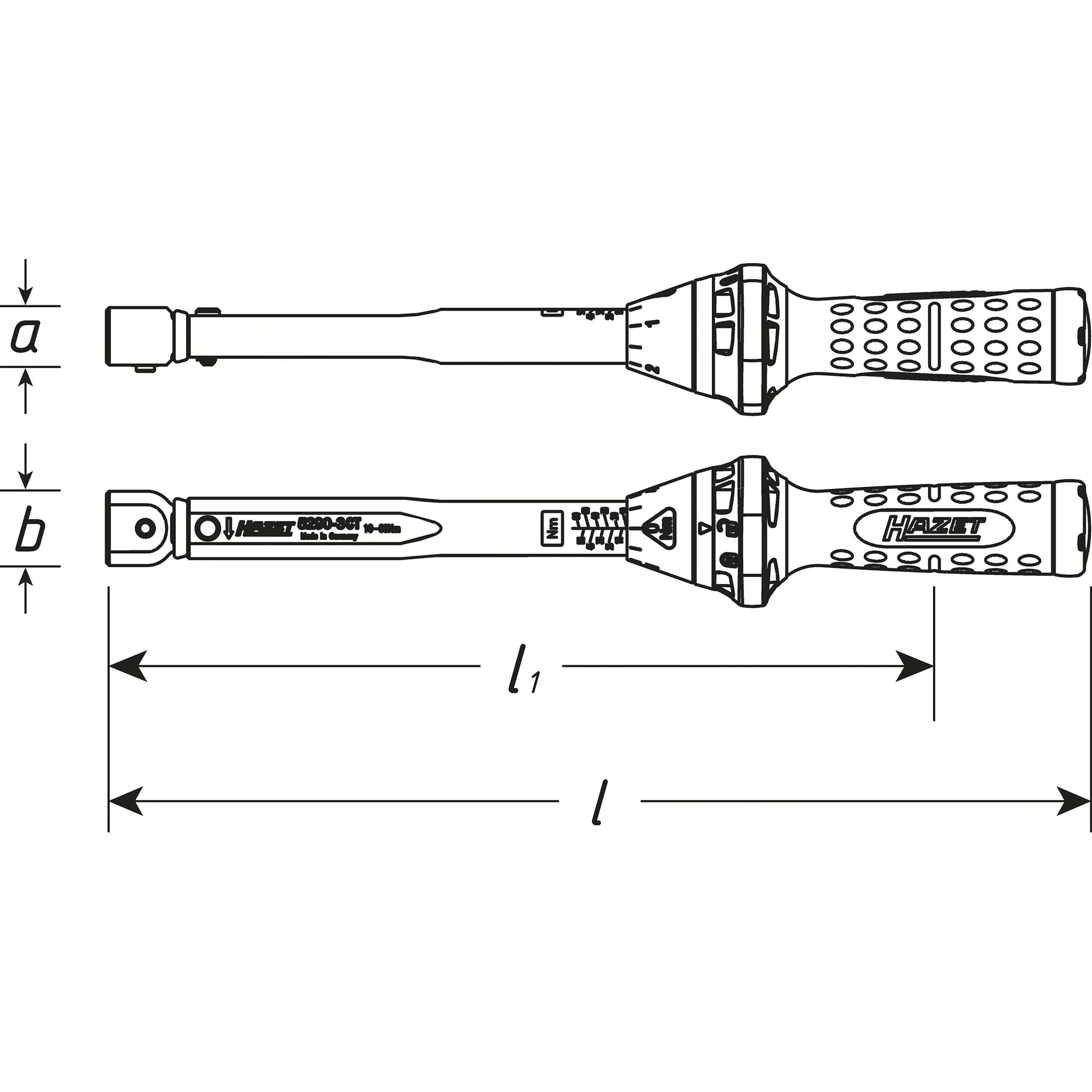

| Head Width b | 22 mm |
| Tightening torque maximum | 60 Nm |
| Head Thickness a | 17 mm |
| Scale Graduation (Nm) | 0.5 Nm |
| Standard |
|
| Inside micrometre of the adjusting tool l2 | 30 mm |
| Dimension | 291 mm |
| Actuating force min.-max. kg | 3.7 – 23.4 |
| Effective torque wrench length I1 mm | 245 mm |
