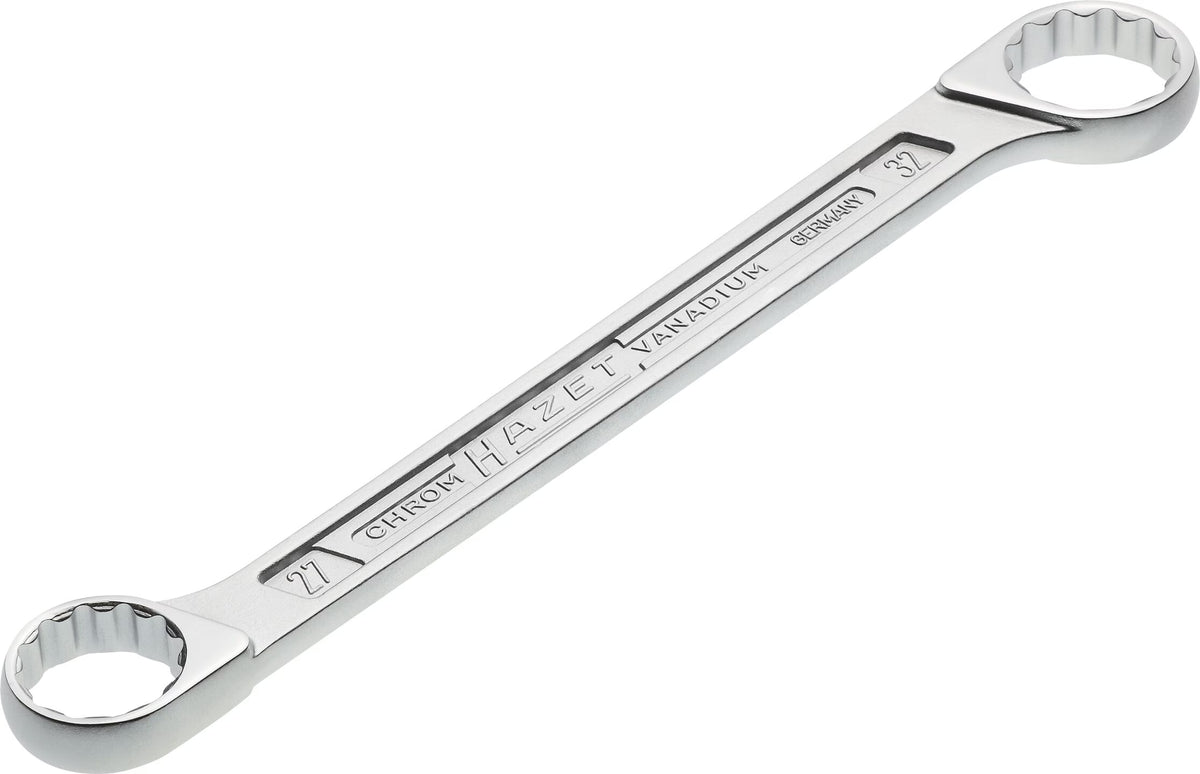

Double box-end wrench

Size 27 x 32 mm ∙ Outside 12-point traction profile

HAZET wrench – high precision tightening and loosening of screw connections

Long service life due to:
- High-quality chrome vanadium steel
- Compacted material structure from drop forging
- Careful heat treatment
Correct hardness and dimensional stability as guarantors of wear resistance and high load capacity
Shape, dimensions and surface design are perfectly coordinated to one another which guarantees functional handling and meets ergonomic requirements
Slim construction through optimum material composition guarantees sufficient freedom of movement even with hard-to-reach screw connections
HAZET torque values are considerably higher than the DIN ISO requirements for all wrench sizes – here DIN is the minimum requirement
Slim open-end and box-end head shape does not reduce the wrench's loading capacity, although this is well below the maximum permissible limit value according to DIN ISO

Wrench size	27 x 32 mm
Output	Outside 12-point traction profile
Standard	DIN 837 form B ISO 10103
Surface	chrome-plated, head polished

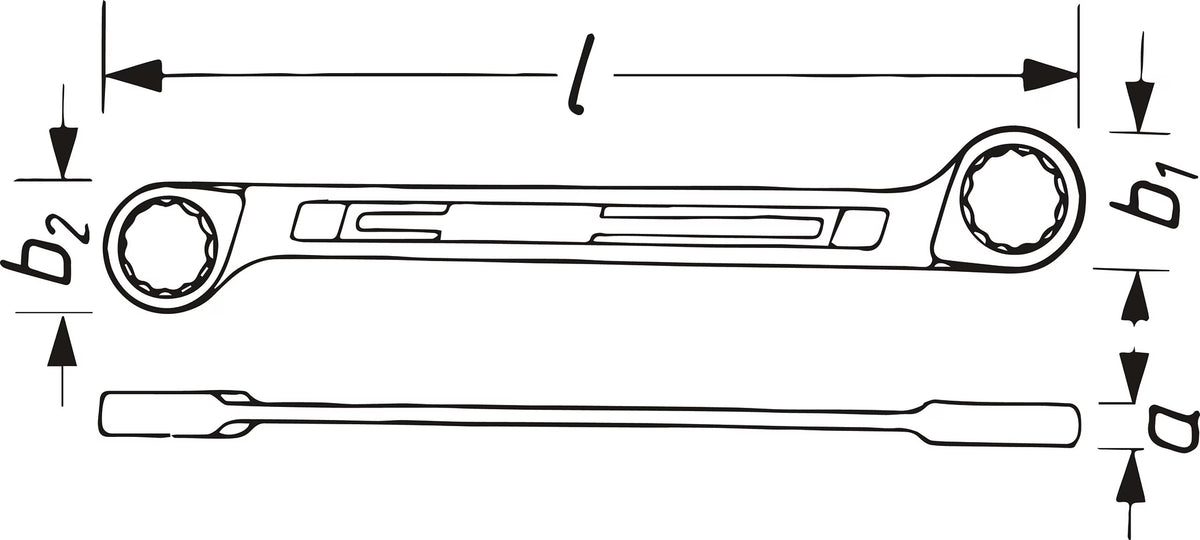

Head Thickness a	13 mm
Head Width (b1)	38.9 mm
Head Width (b2)	45.4 mm
Dimension	308,7 mm

Hazet 610N-27X32 Double box-end wrench
