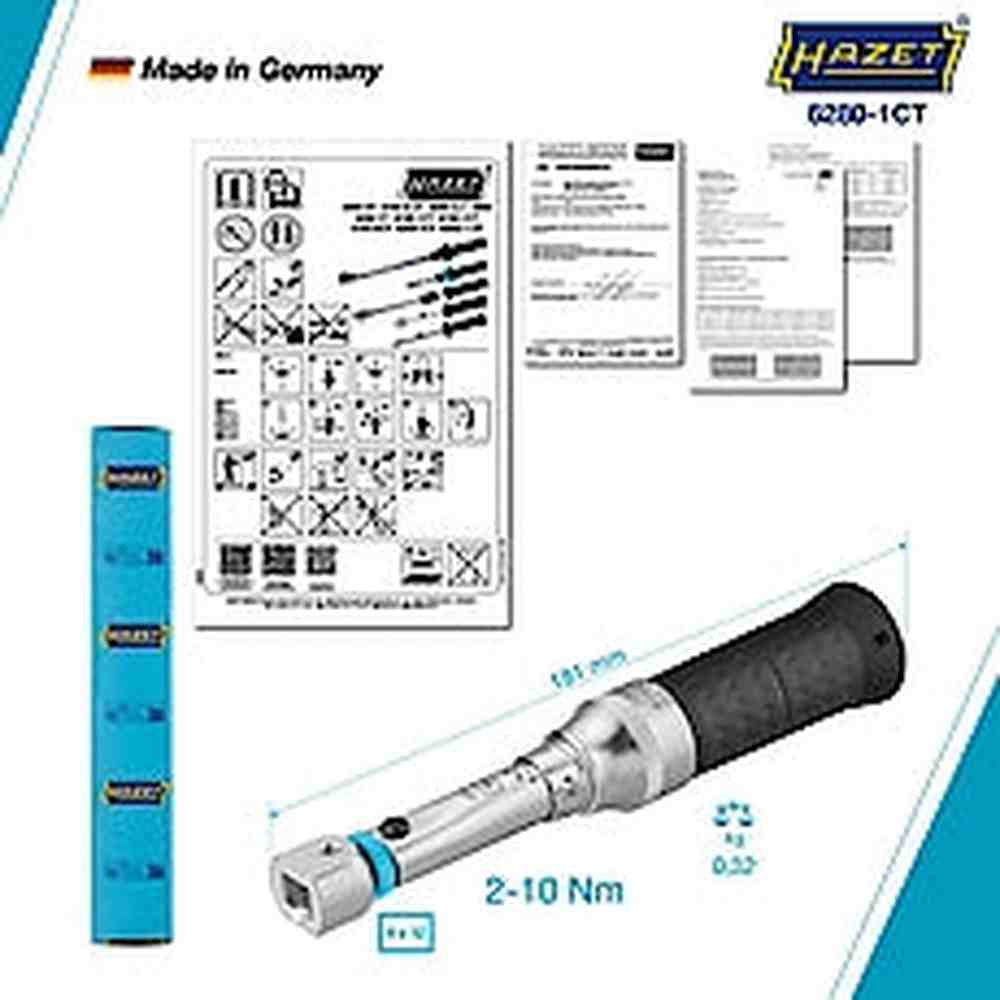

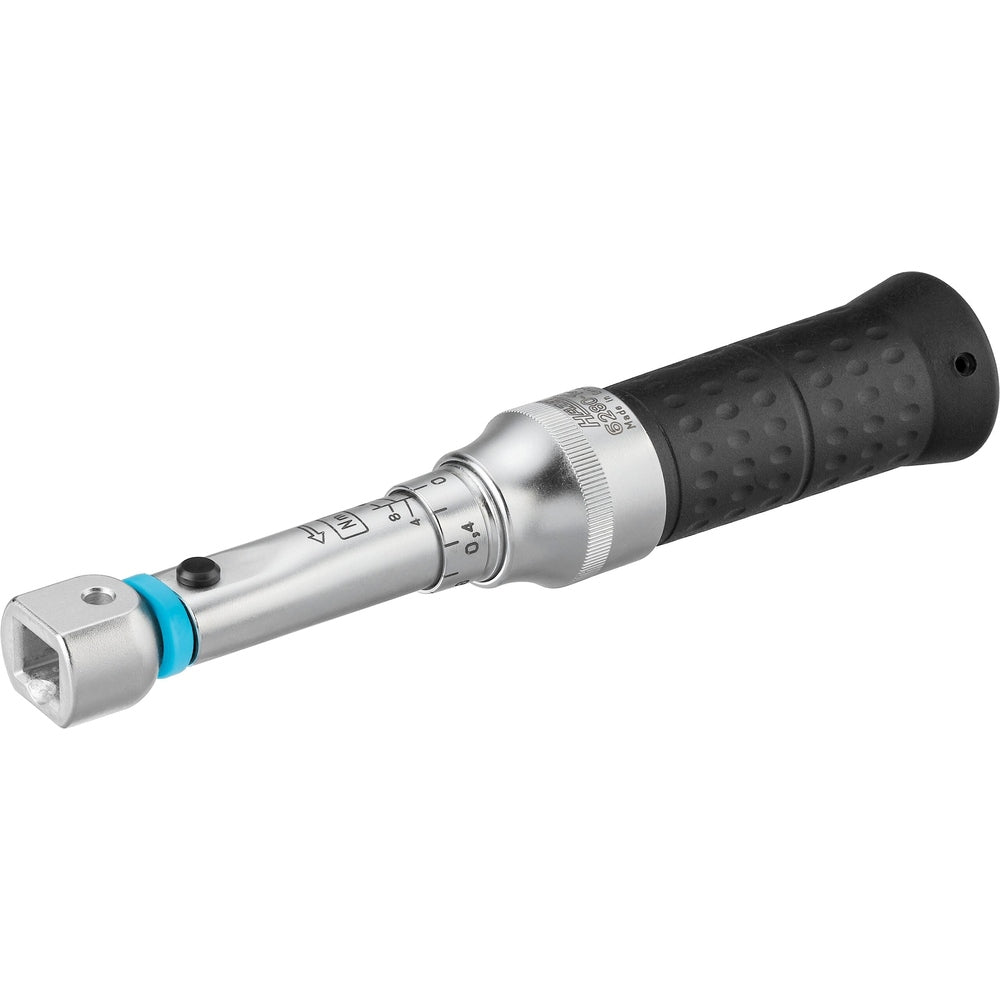

Hazet 6280-1CT Torque Wrench 9x12, 2-10 Nm
*THIS ITEM SHIPS IN 2-3 WEEKS
Hazet 6280-1CT Torque Wrench 9x12, 2-10 Nm

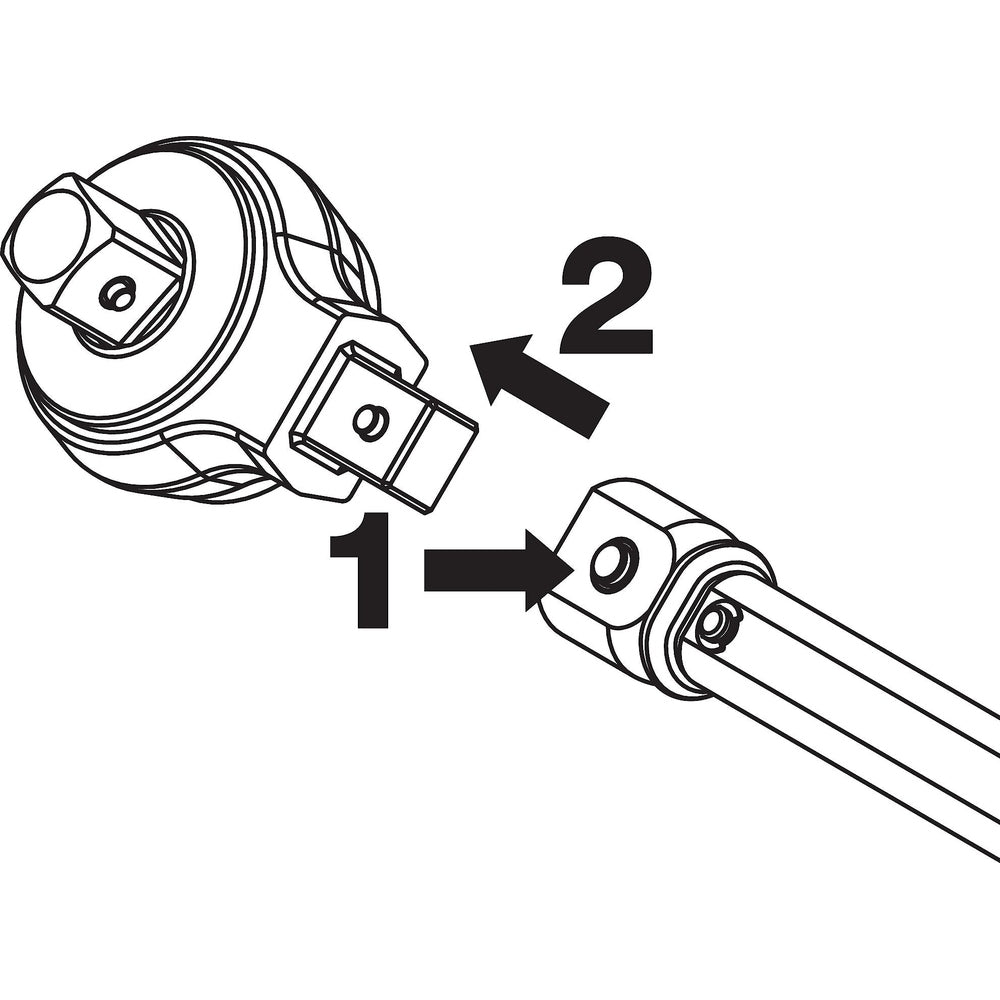

- Plug connection for holding insert tools
-
Accuracy ± 2 % of the scale value (in the direction of actuation)
Can be used for right-hand and left-hand threads by turning the insert tool - Safe:
- Haptic (close-gap release)
- Audible ("click" sound)
- With calibration certificate and serial number

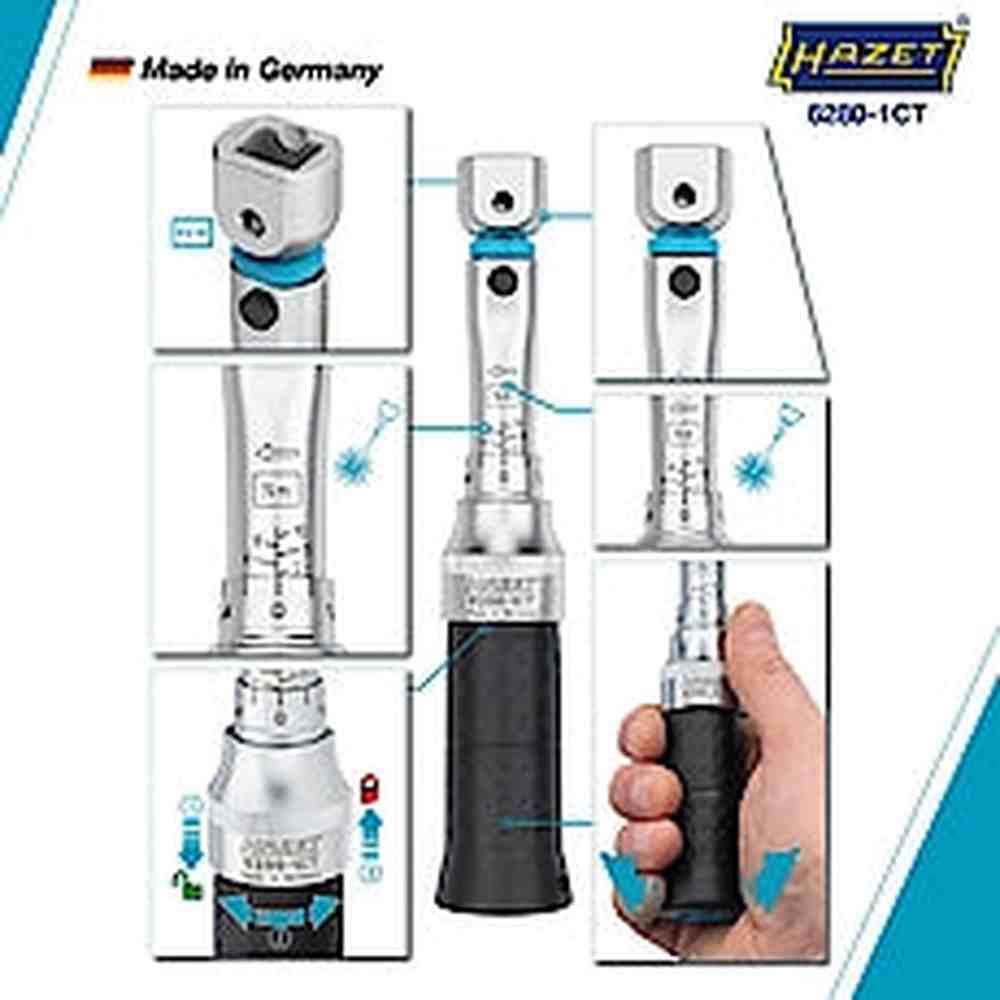

- Especially slim design thanks to spring-loaded puller sleeve for locking the setting values
- Safe and fast adjustment of the desired torque value by turning the handle
- Made in Germany
- No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required
SYSTEM 6200-1 CT insert torque wrench ∙ 2 – 500 Nm ∙ with insert square ∙ accuracy ± 2 / 4 %
| Output |
9 x 12 mm insert square, hollow |
| Tolerance | 2 % |
| Tightening torque minimum | 2 Nm |
| Head Width b | 22 mm |
| Tightening torque maximum | 10 Nm |
| Head Thickness a | 17 mm |
| Scale Graduation (Nm) | 0.2 Nm |
| Standard |
DIN EN ISO 6789-2:2017 |
| Inside micrometre of the adjusting tool l2 | 19.5 mm |
| Length | 181 mm |
| Actuating force min.-max. kg | 1.3 – 6.6 |
| Effective torque wrench length I1 mm | 141 mm |
