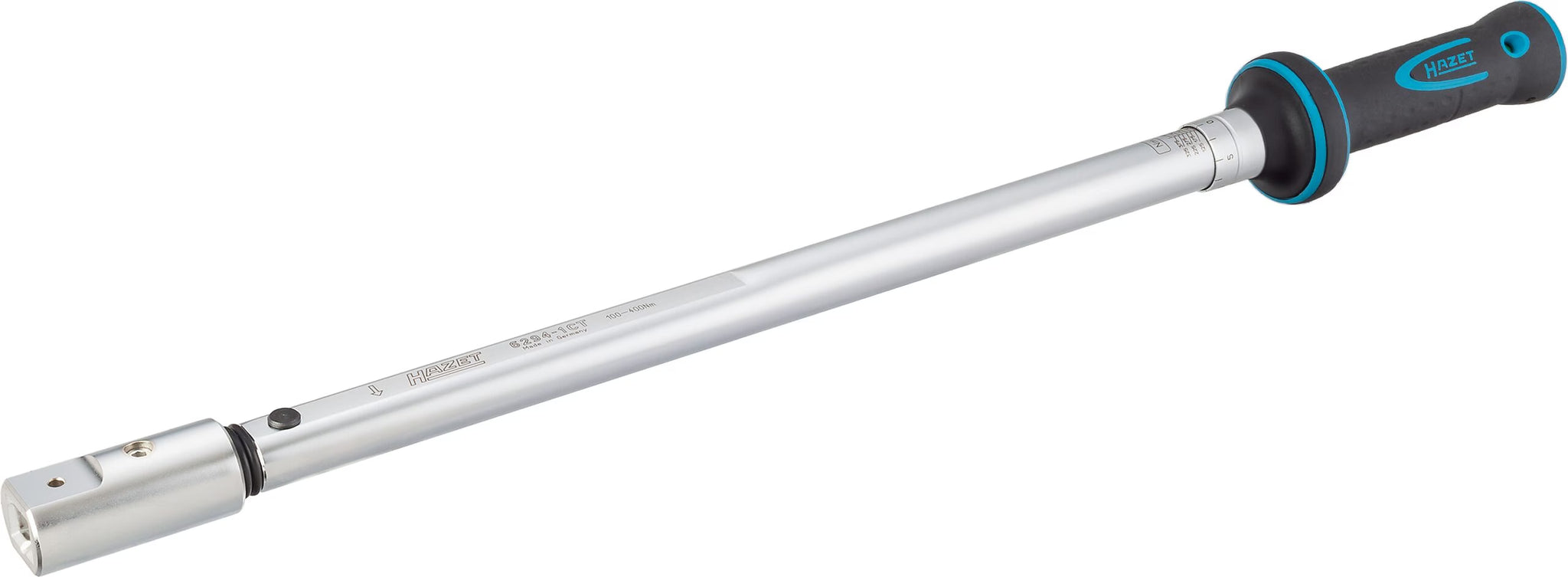

14 x 18 mm Torque wrench ∙ 100 – 400 Nm ∙ ±2%

Length: 718 mm ∙ 100 – 400 Nm ∙ 2 % ∙ 14 x 18 mm insert square ∙ hollow

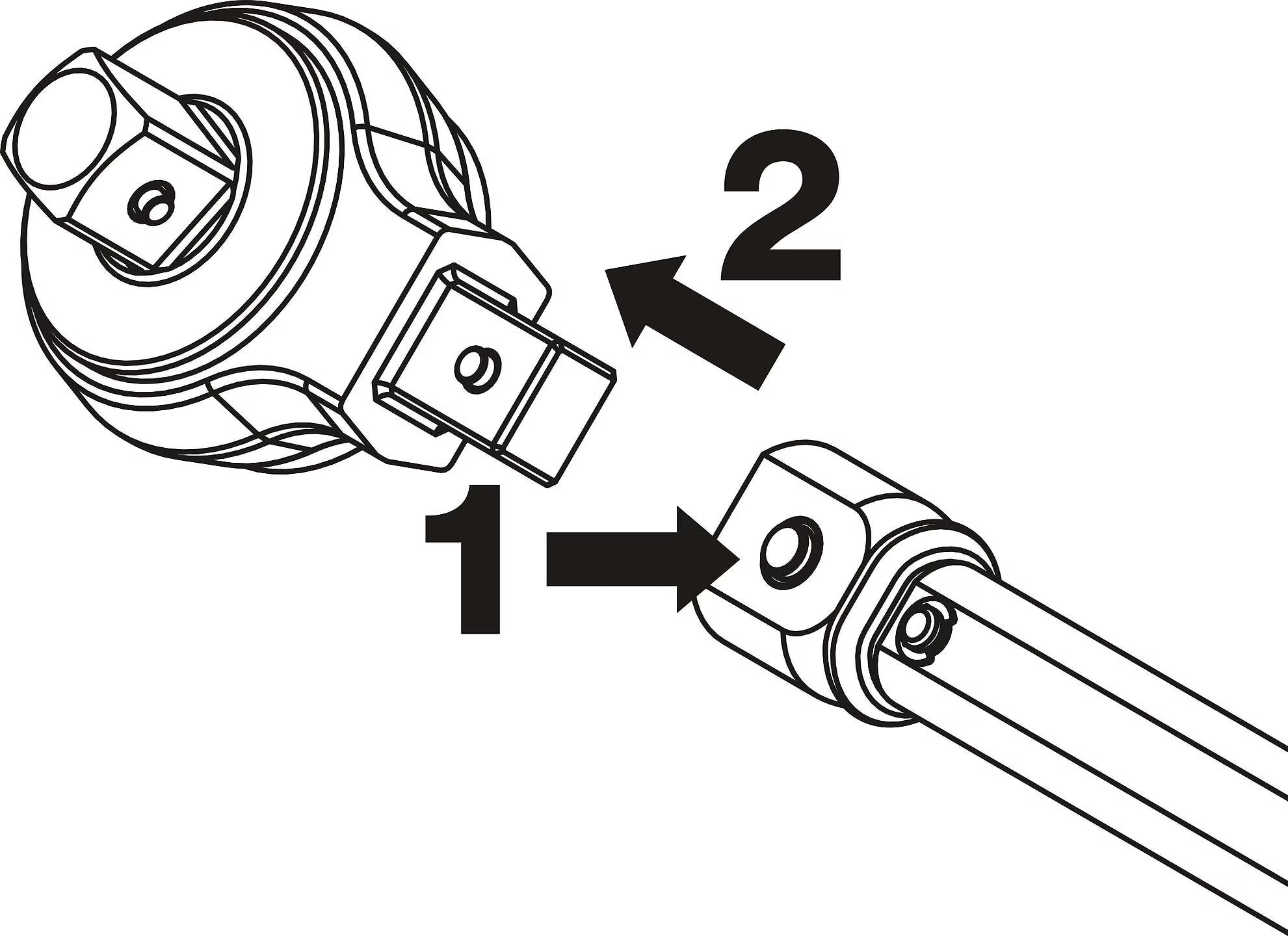

Plug connection for holding insert tools
Accuracy ± 2 % of the scale value (in the direction of actuation)
Can be used for right-hand and left-hand threads by turning the insert tool
Safe:
- Haptic (close-gap release)
- Audible (“click” sound)
With calibration certificate and serial number

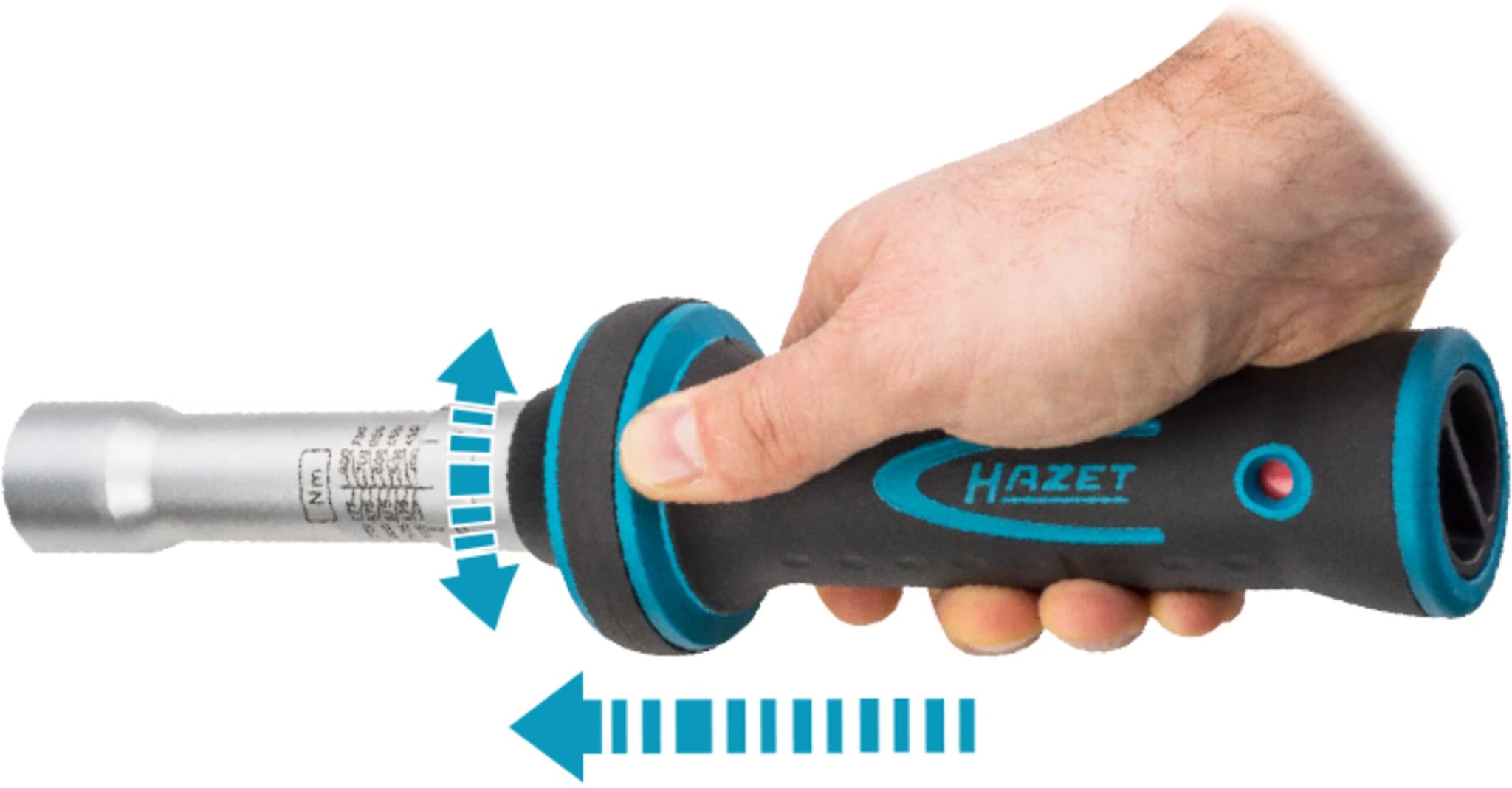

Safe and fast adjustment of the desired torque value by turning the handle
Secure storage in safe box with inspection window
2-component handle for improved feel
Simplified locking for adjusting the torque value
Viewing window for visual checking of the locking
Knob for additionally locking the set value

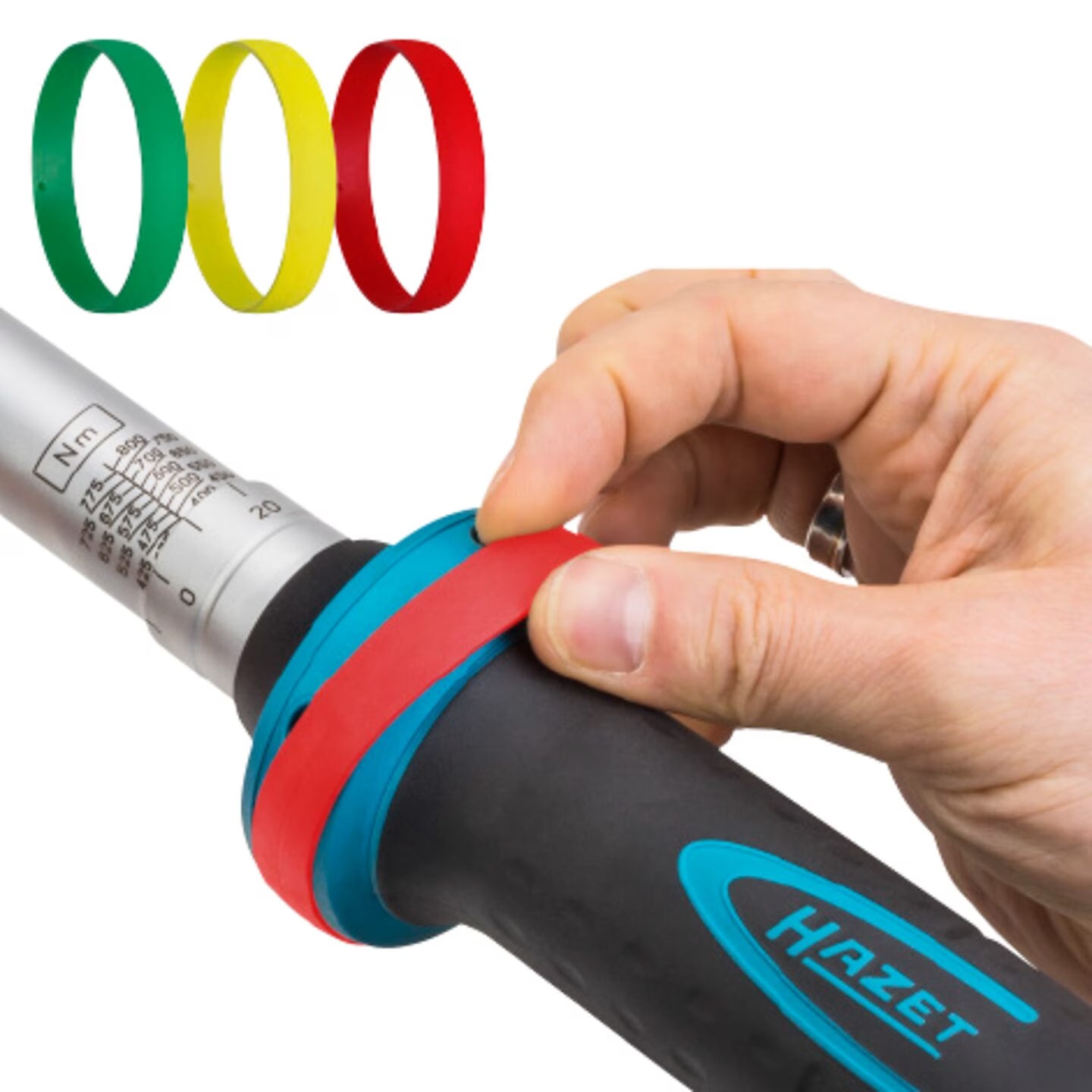

4 coloured coding rings (red, yellow, green, black) for markings in the case of personalisation or special workflows
Made in Germany

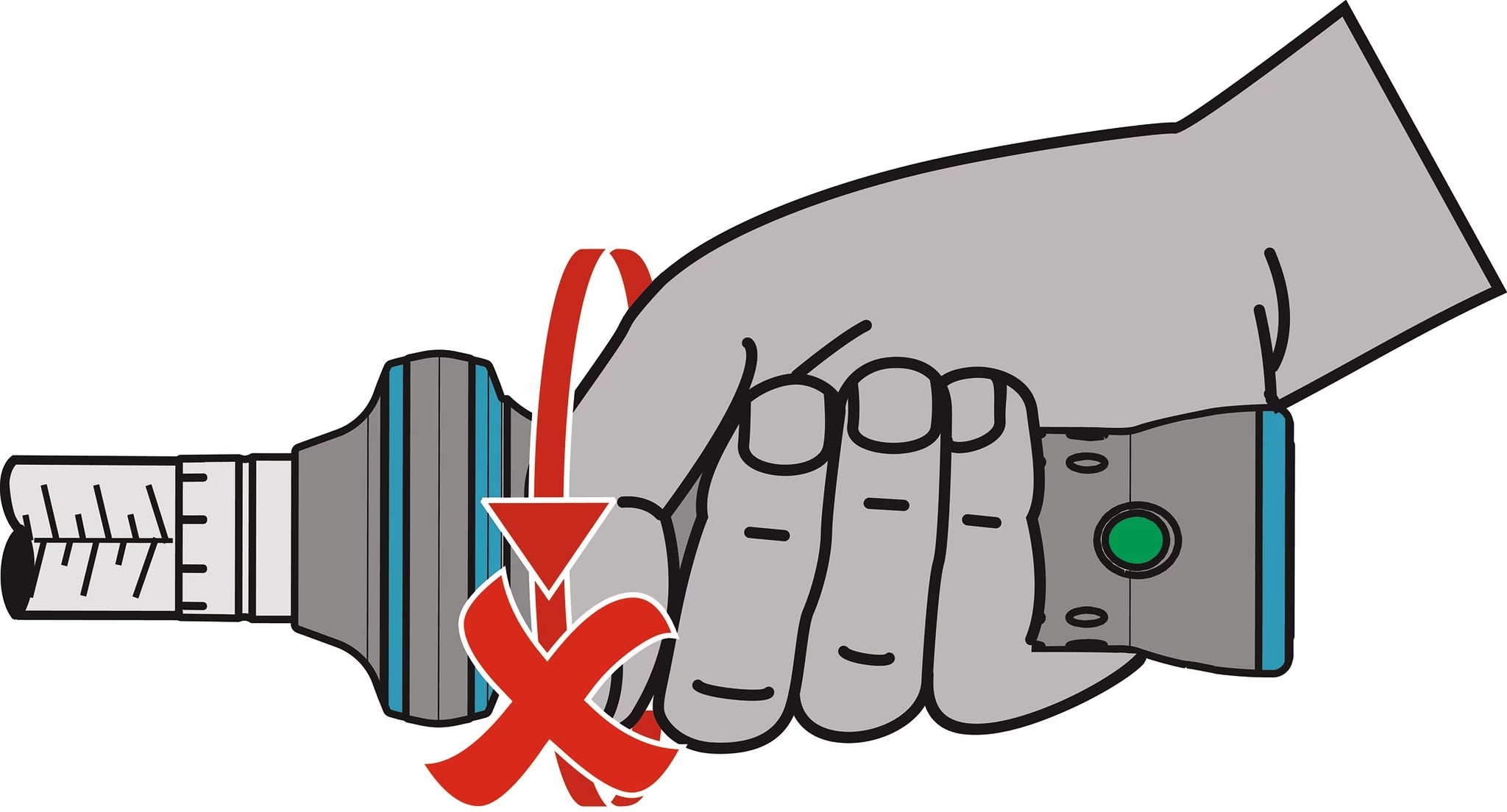

No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required

Tolerance	2 %
Output	14 x 18 mm insert square, hollow
Tightening torque minimum	100 Nm
Tightening torque maximum	400 Nm
Scale Graduation (Nm)	2.5 Nm
Dimension	718 mm
Actuating force min.-max. kg	14.7 – 59.9
Standard	DIN EN ISO 6789-2:2017

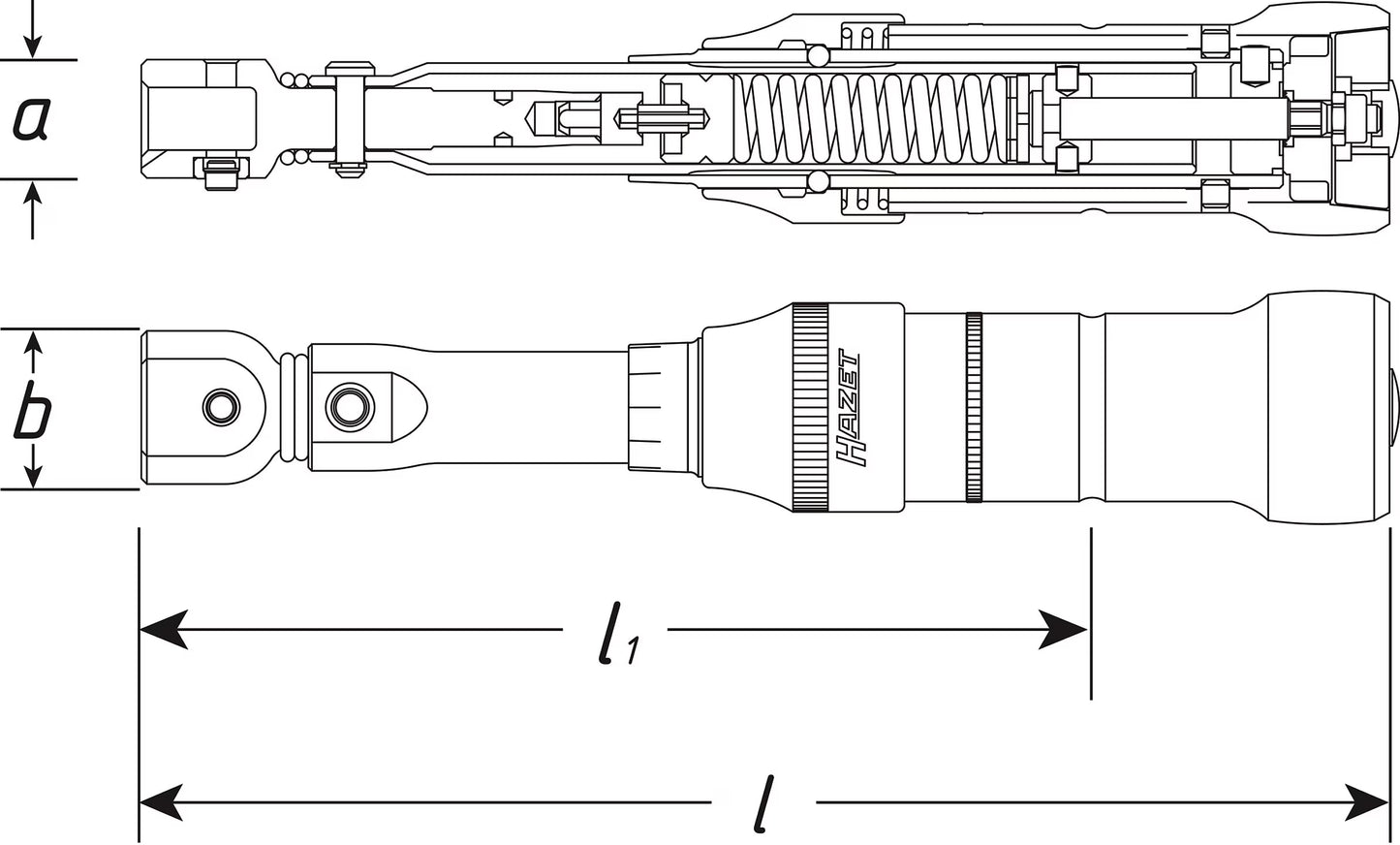

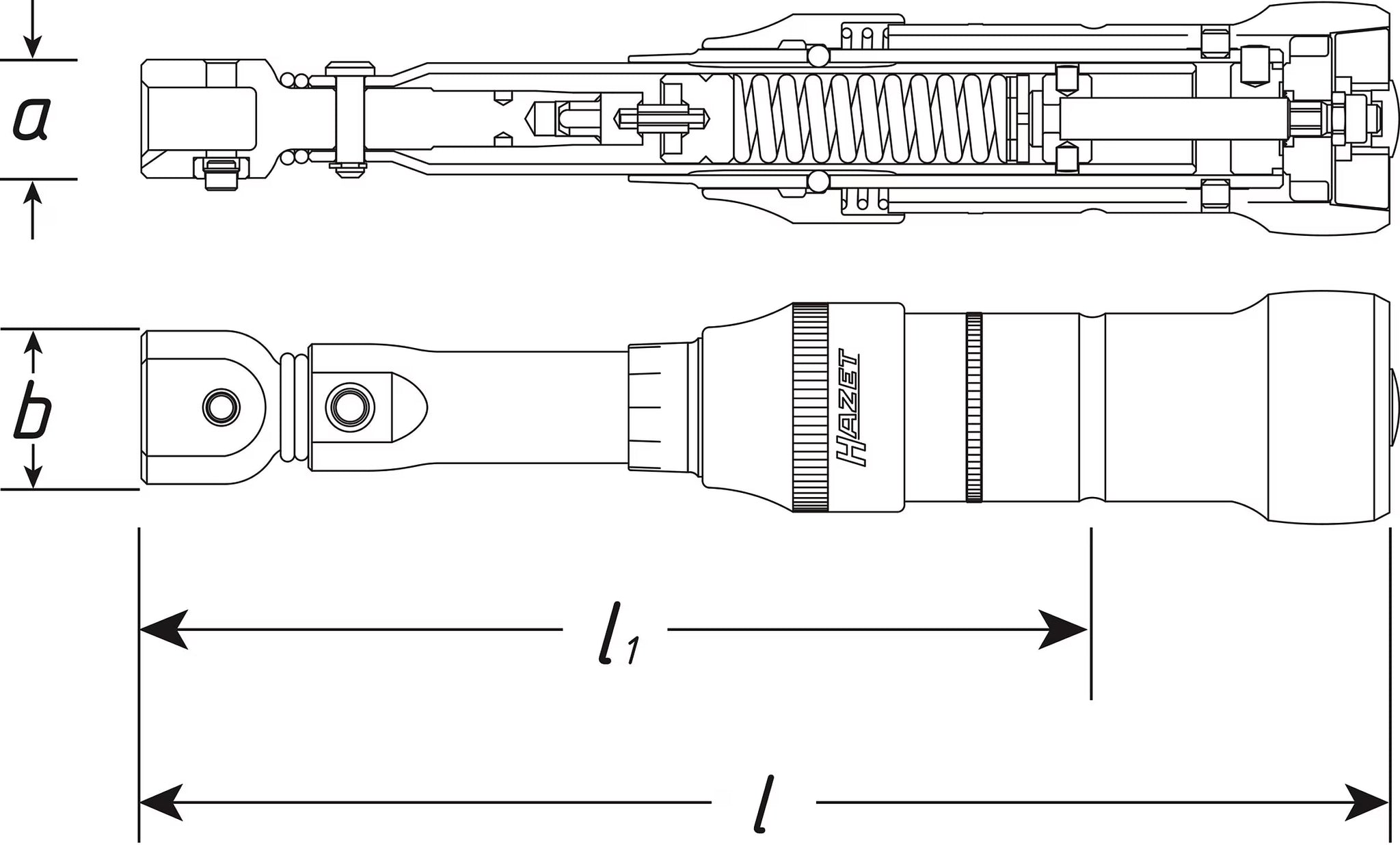

Inside micrometre of the adjusting tool l2	44 mm
Effective torque wrench length I1 mm	649 mm
Head Width b	35.5 mm

Hazet 6294-1CT 14 x 18 mm Torque wrench ∙ 100 – 400 Nm ∙ ±2%
