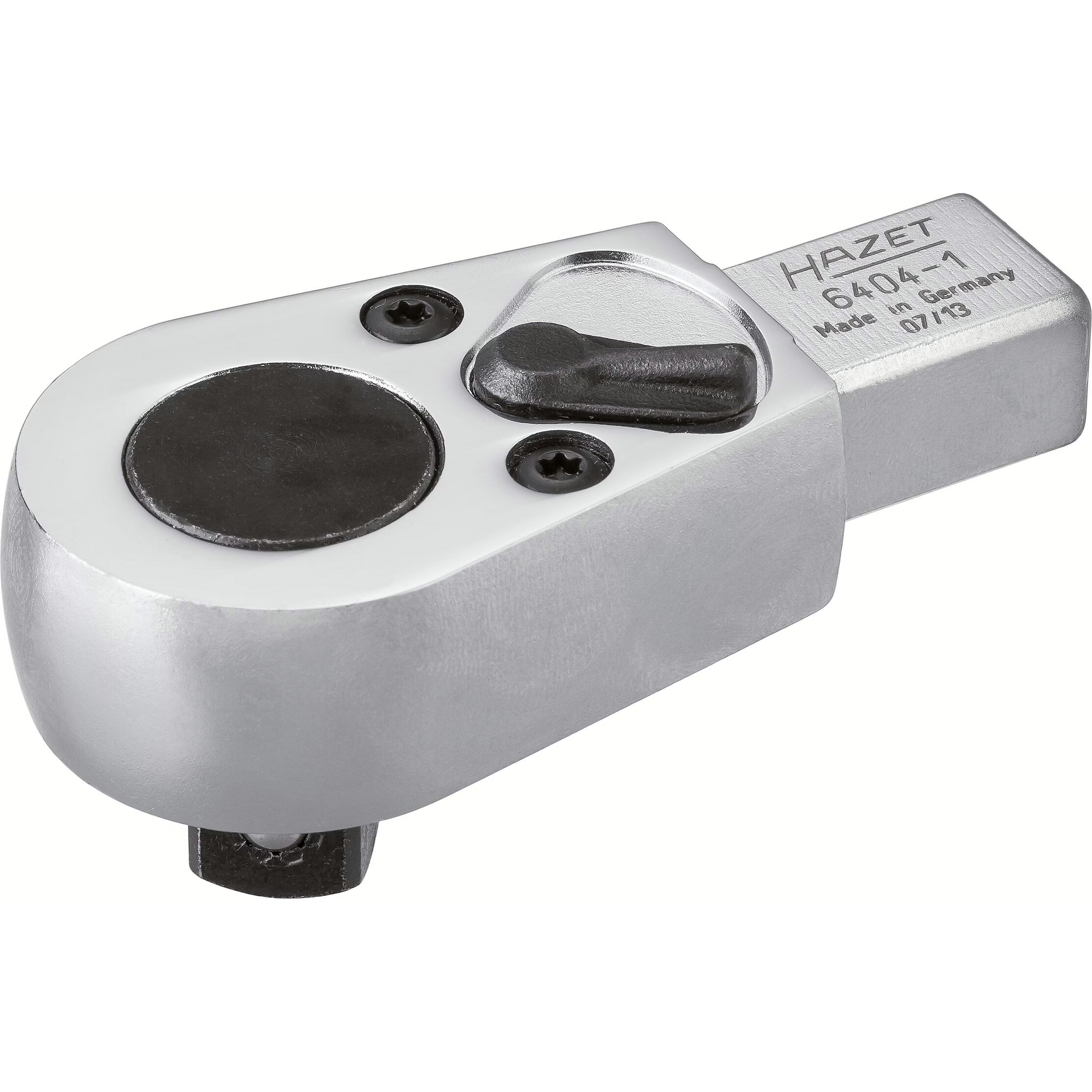

Hazet 6404-1 - Insert reversible ratchet
NOTE* This item ships in 1-2 weeks
Length: 83.5 mm ∙ 14 x 18 mm insert square ∙ solid ∙ 1/2 inch square ∙ solid
- 6401-120 teeth ∙ operating angle 18° – maximum 40 Nm
6402-130 teeth ∙ operating angle 12° – maximum 120 Nm
6403-132 teeth ∙ operating angle 11.25° – maximum 120 Nm
6404-132 teeth ∙ operating angle 11.25° – maximum 300 Nm - Drop forged
- Made in Germany
Technical Data
| Output |
|
| Drive |
|

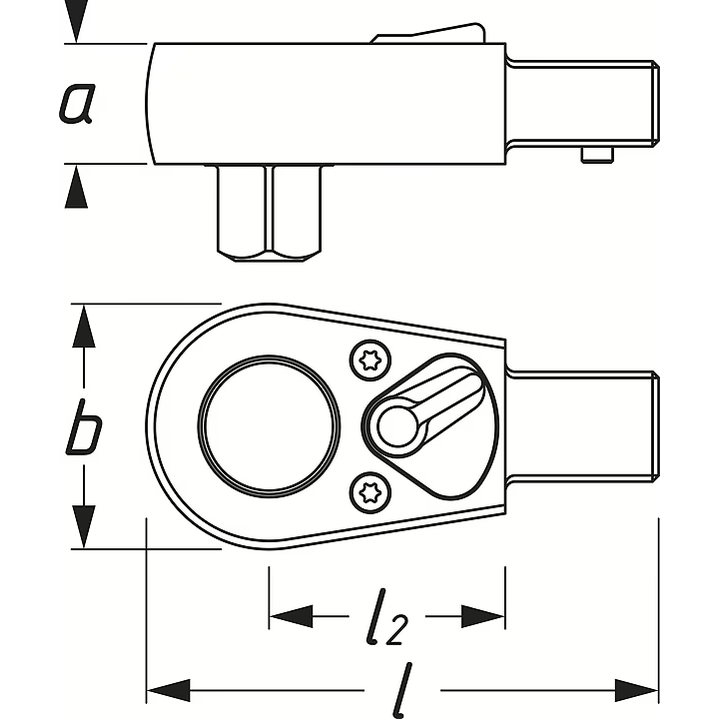

| Head Width b | 40 mm |
| Head Thickness a | 19.6 mm |
| Standard |
|
| Inside micrometre of the adjusting tool l2 | 38.5 mm |
| Dimension | 83.5 mm |
| Tightening torque maximum | 300 Nm |
