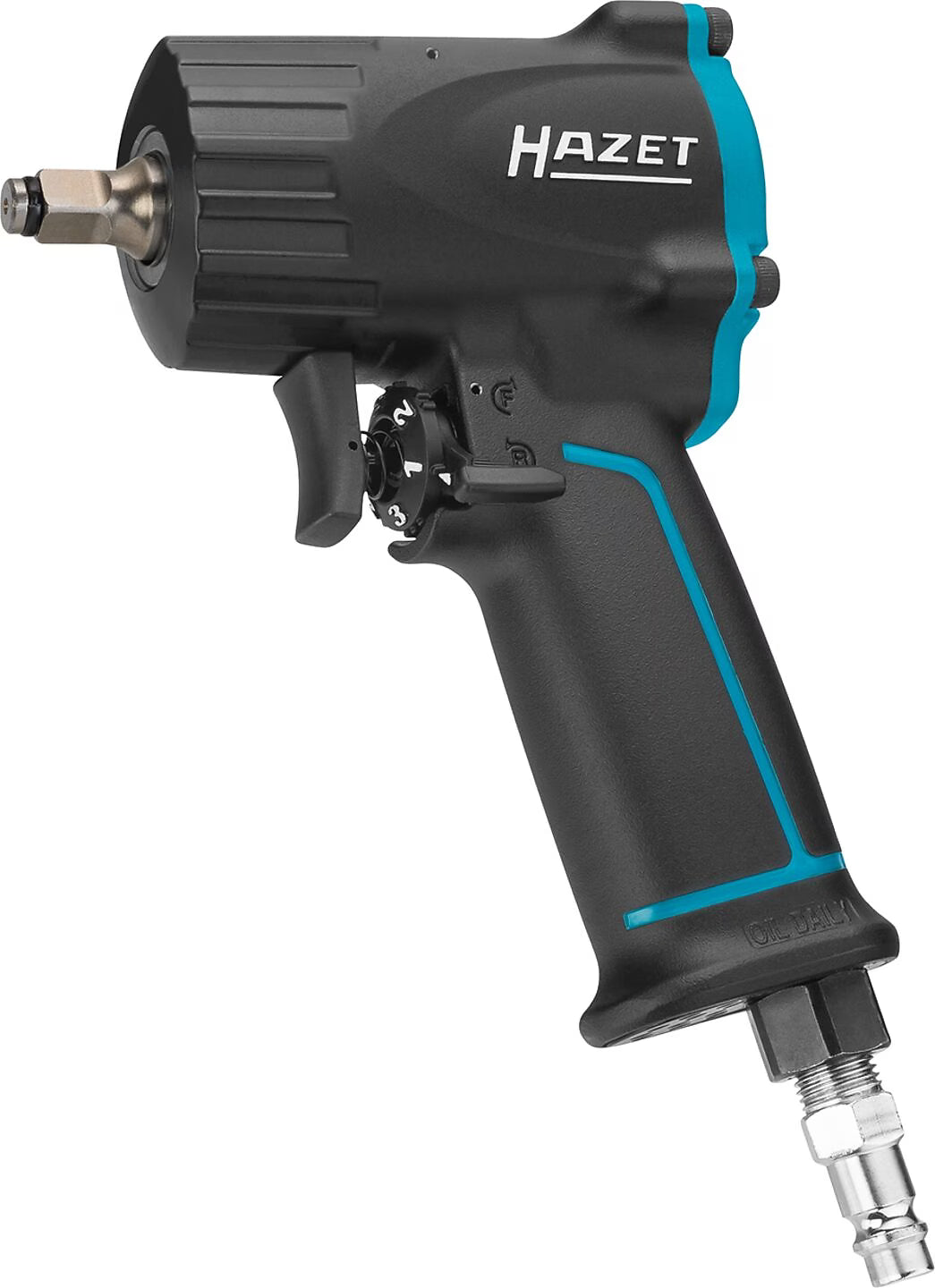

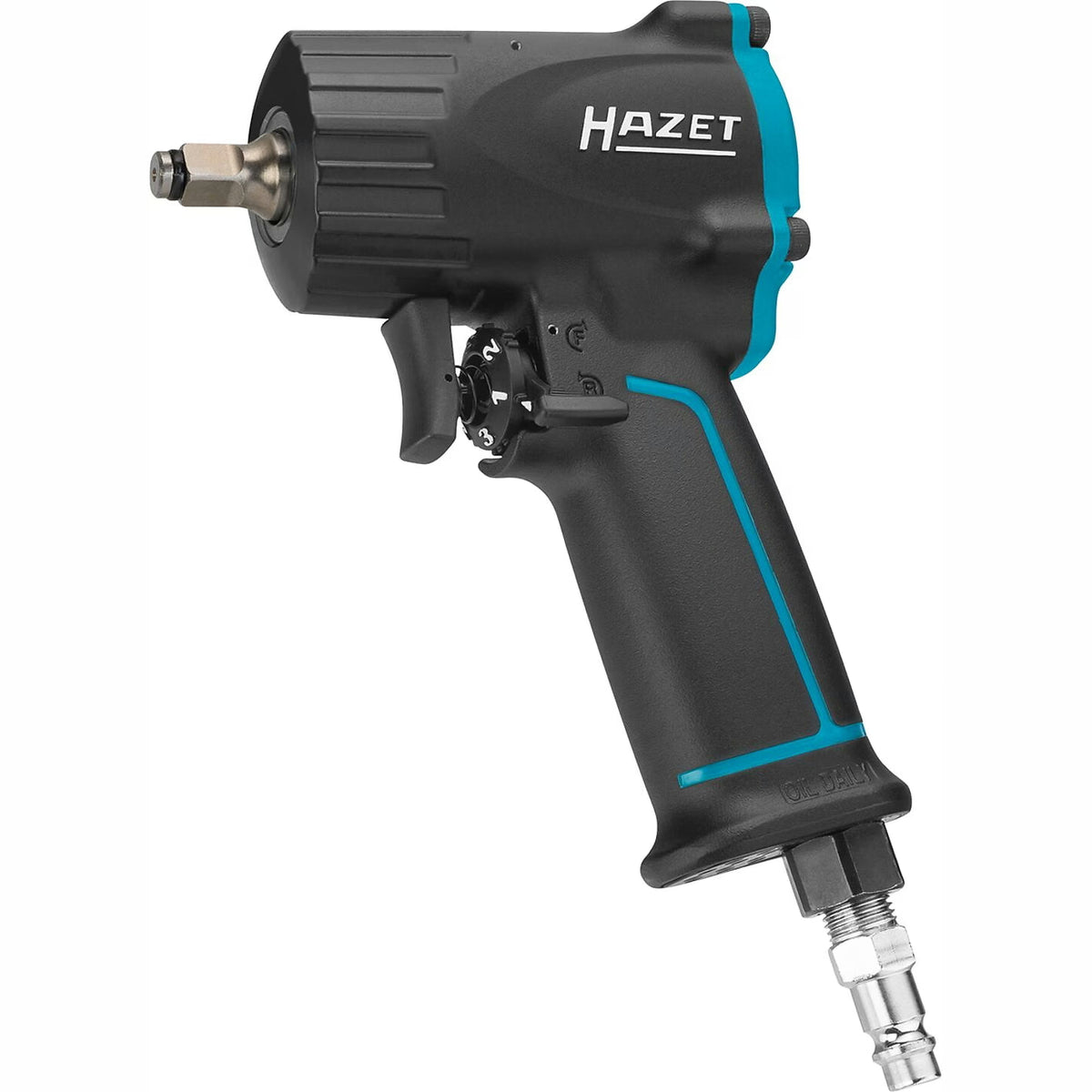

³⁄₈″ Impact wrench ∙ extra short ∙ 461 Nm

461 Nm ∙ 3/8 inch square ∙ solid ∙ Single hammer striking mechanism

Loosening torque maximum: 461 Nm
Extremely compact construction enables working in areas with restricted access
One-hand operation for right and left handed operators
Exhaust air is guided through the handle downwards
Reduced vibrations
Easy handling

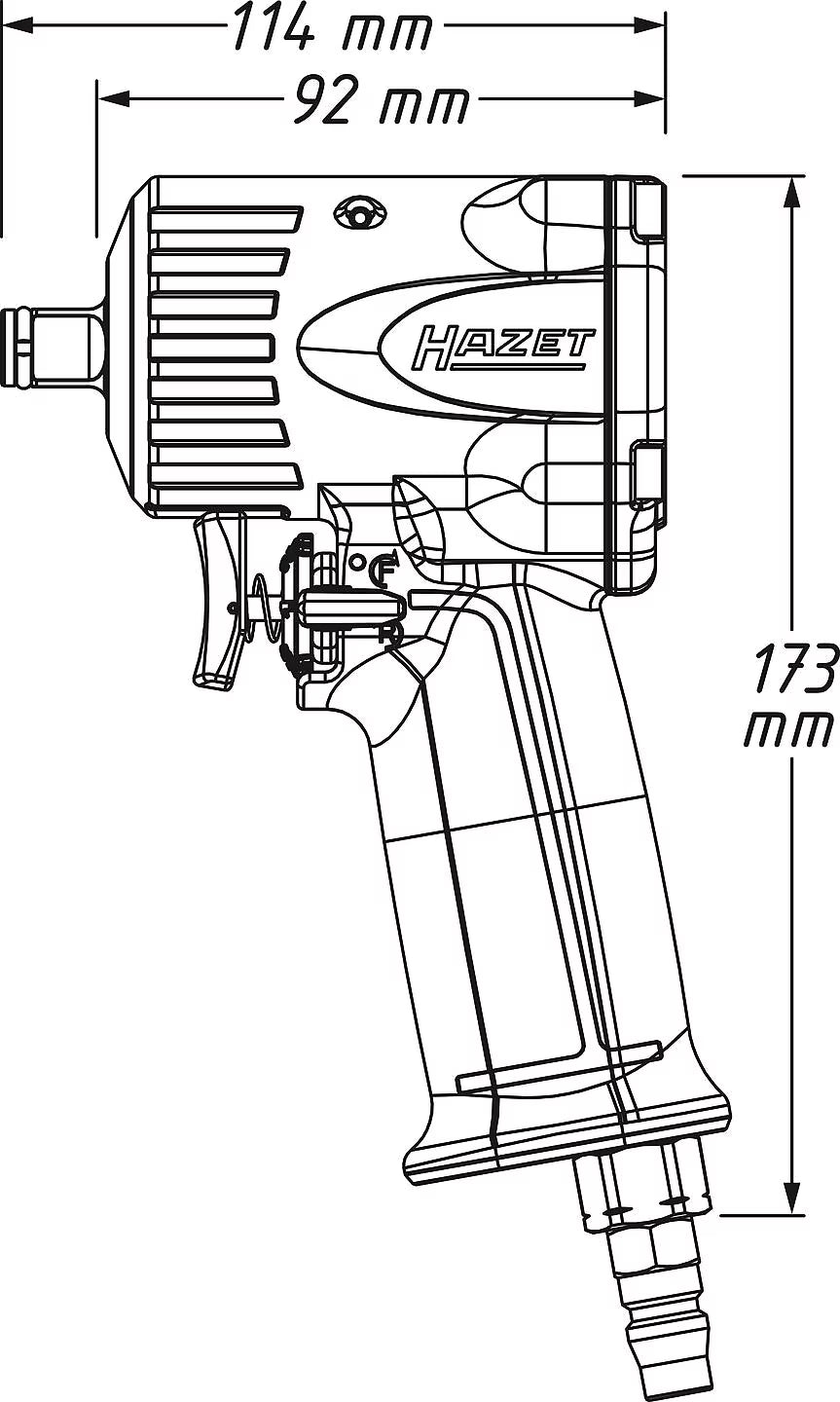

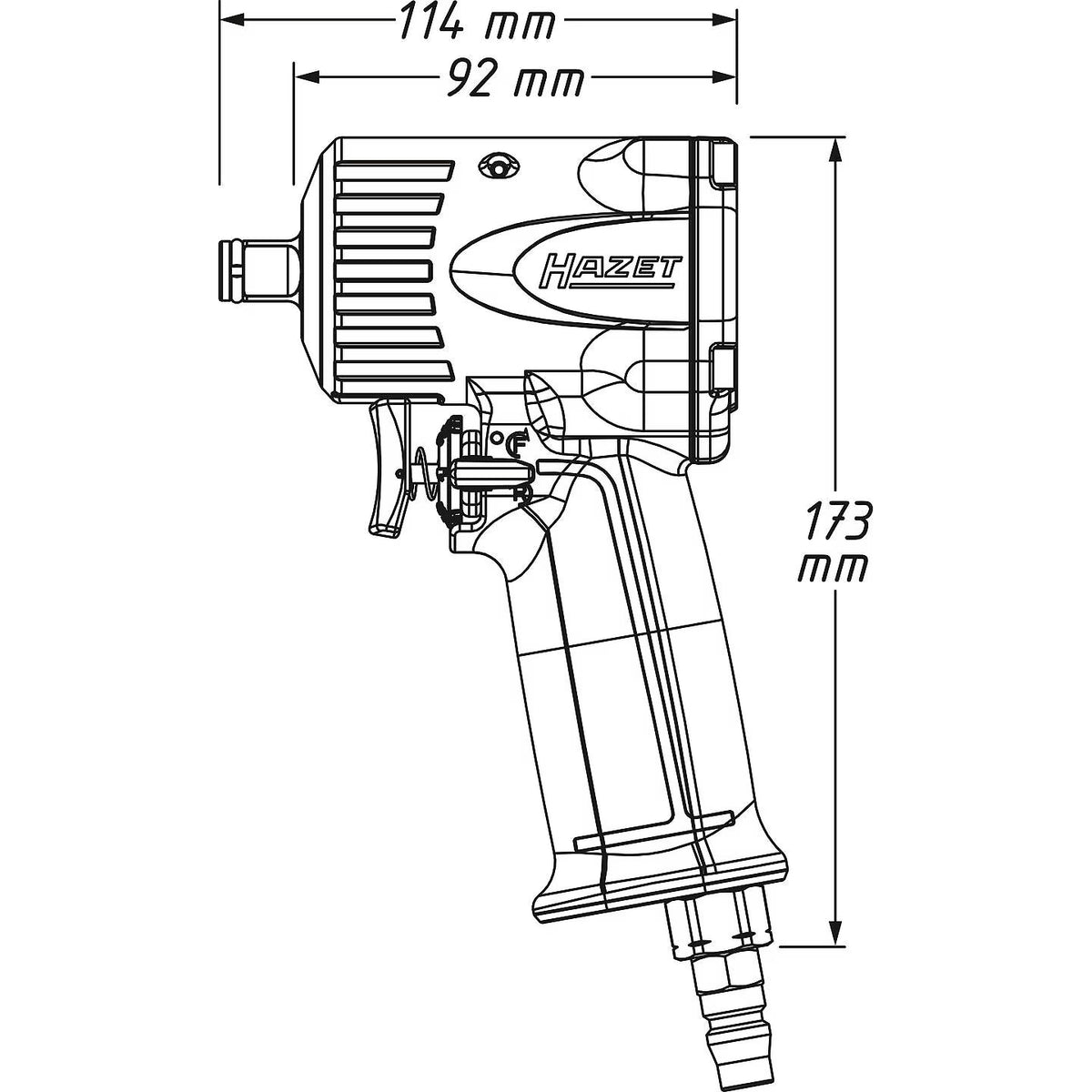

Extra short – only 92 mm

Loosening torque maximum	461 Nm
Manual/impact operation	For impact operation
Tightening torque maximum	461 Nm
Output	3/8 inch (10 mm) square, solid
Net weight	1.24 kg

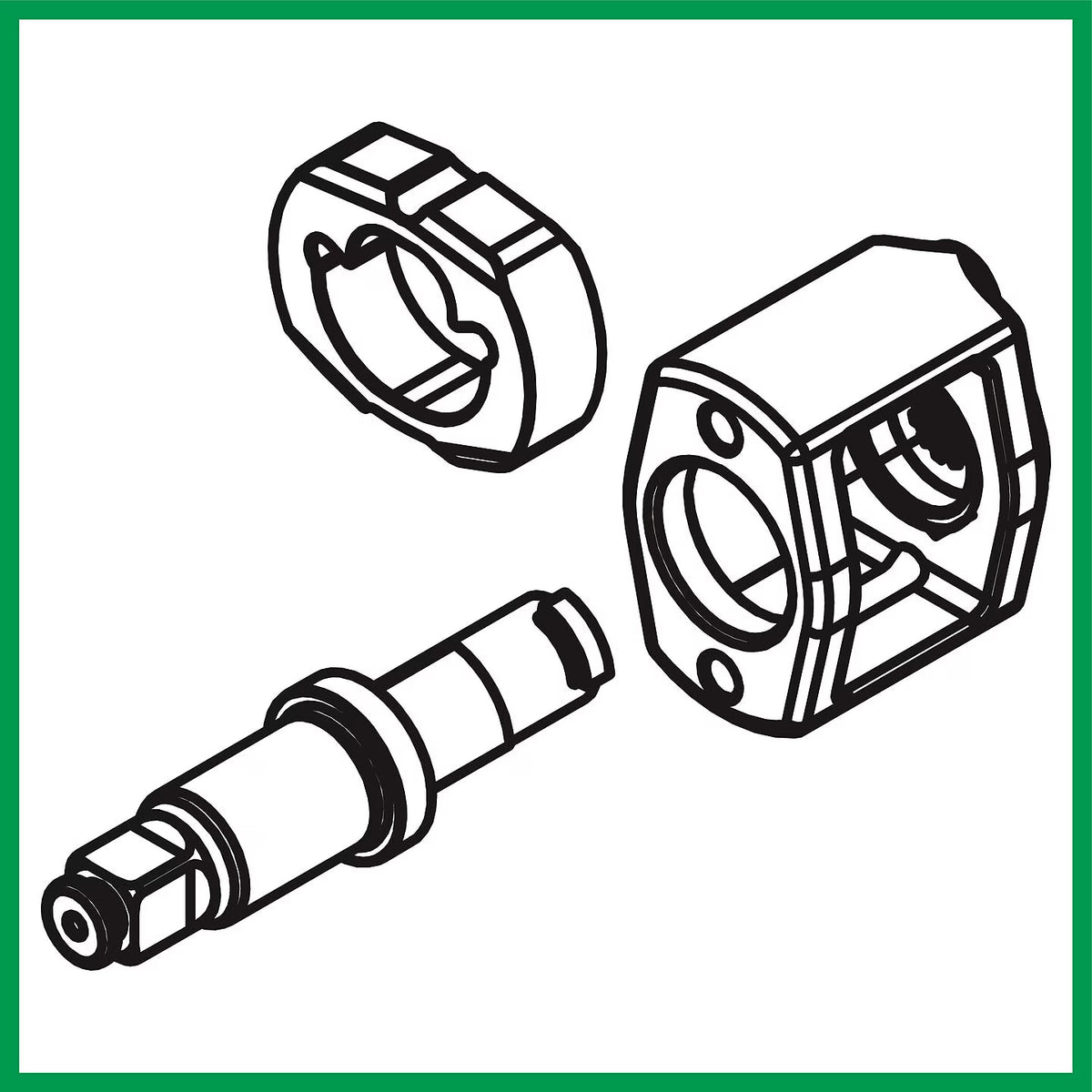

Striking mechanism (type)	Single hammer striking mechanism
Air requirement	85.2 l/min
Forward and reverse	three-stage (forward), single-stage (reverse)
Recommended torque	375 Nm
Handle	Cold insulated handle
Hose diameter (recommended)	10 mm
Vibration acceleration	7.78 m/s2
Sound pressure level	90.3 dB(A) Lp A
Revolutions per minute	6500
Thread type air inlet	BSPT
Air connection inlet	Inside thread 12.91 mm (1/4″)
Loosening torque (maximum) determined with screw size M	13 M

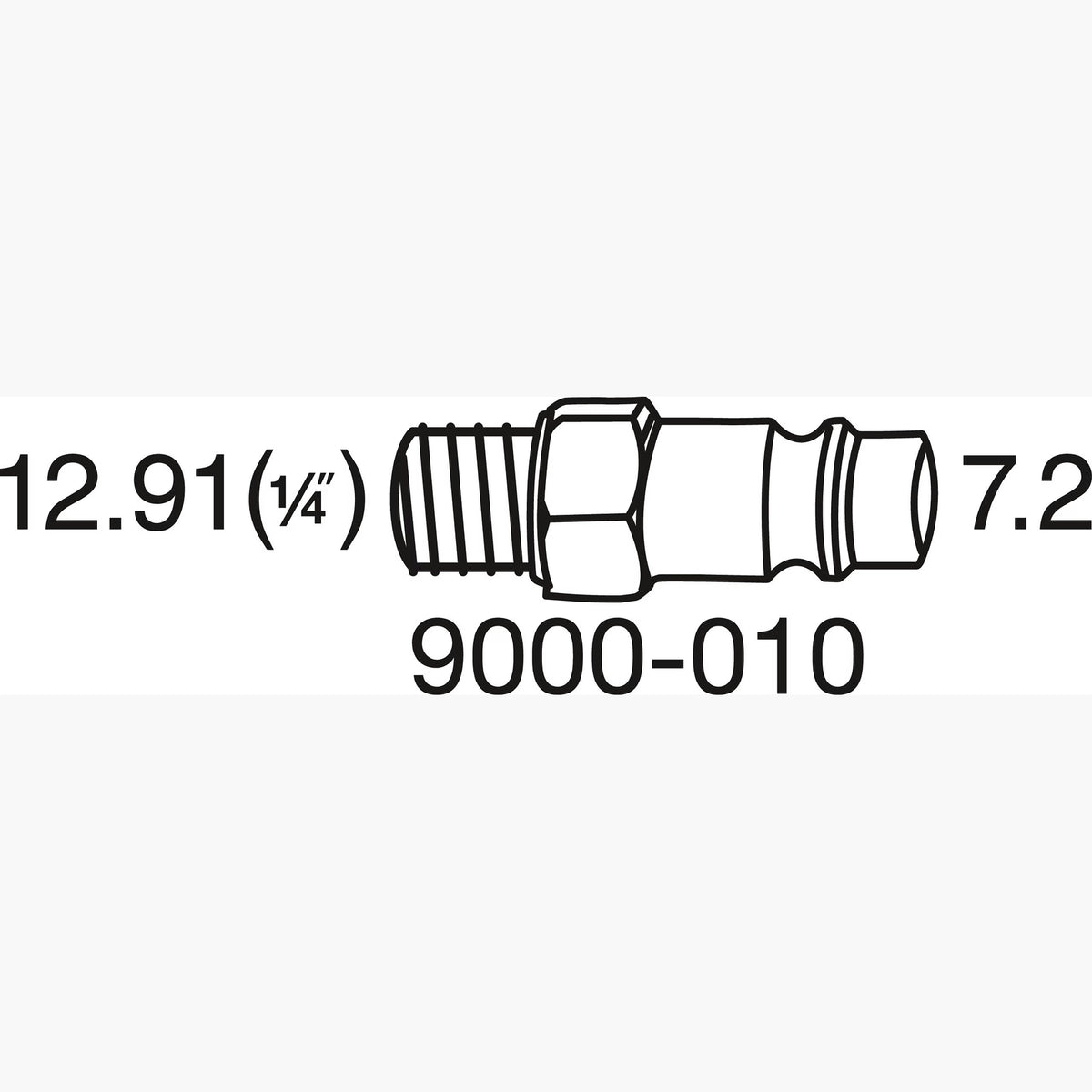

Coupler plug	Nominal size 7.2 (included)
Sound power level	101.3 db(A) Lp W
Air requirement [l/sec]	1.4 l/sec
Working pressure (bar)	6.3 bar

Hazet 9011M 3⁄8″ Impact wrench ∙ extra short ∙ 461 Nm
