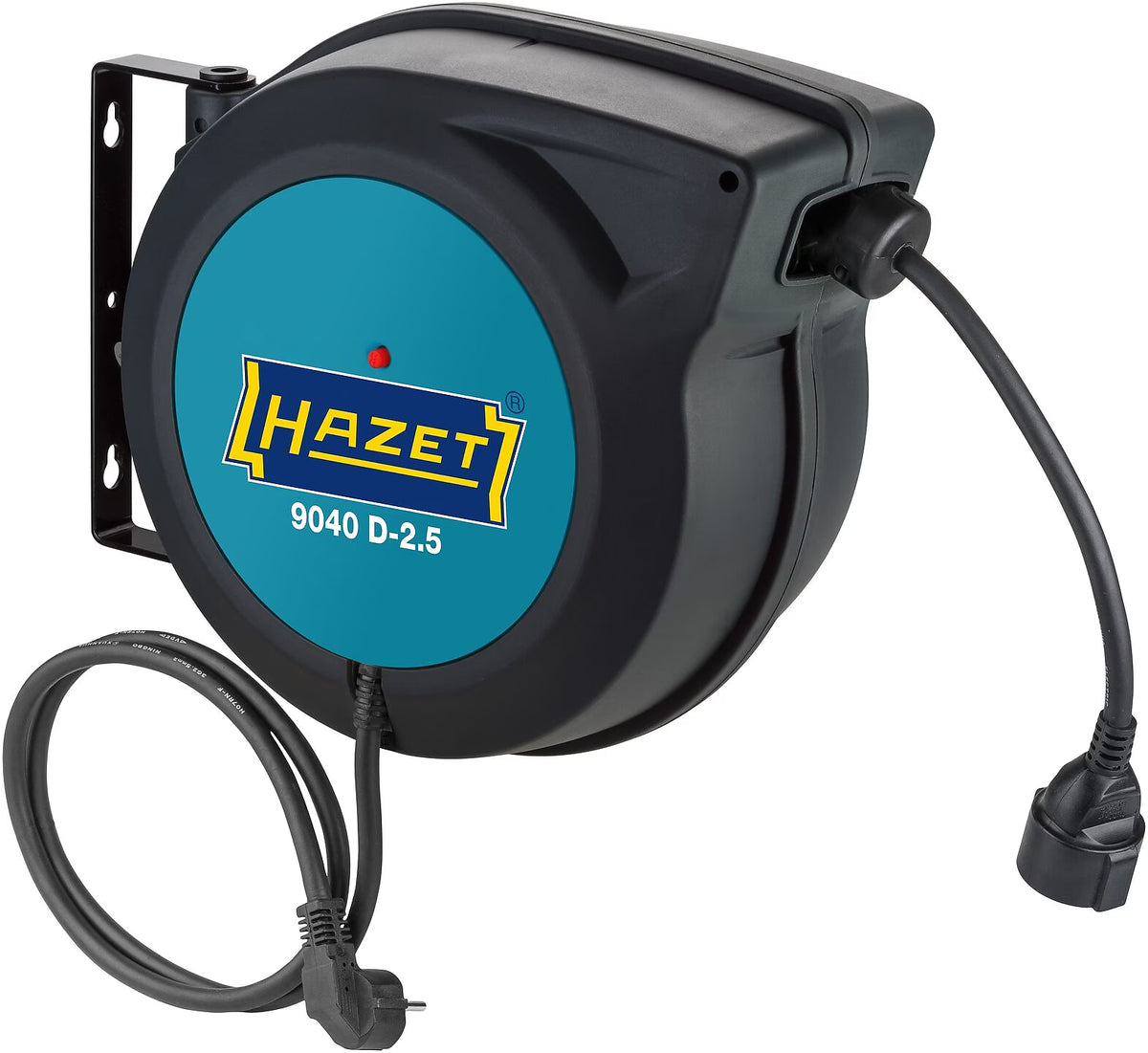

Cable reel

Application:
Automatic cable reel offers tidiness in the workshop – cable not left lying around, thus reducing the risk of accidents
Hose with “Stop at any point” function
Braked winding to prevent risk of accidents
Including line circuit breaker
230 Volt alternating current (AC)
Only suitable for indoor use
Cable: H07RN-F 3 x 2.5 mm²
Cable length: 20 m
Connecting cable length: 1.3 m
Integrated drill template for mounting on cardboard packaging
Closed special plastic case
Rotating metal mounting bracket made for separate installation at the workplace

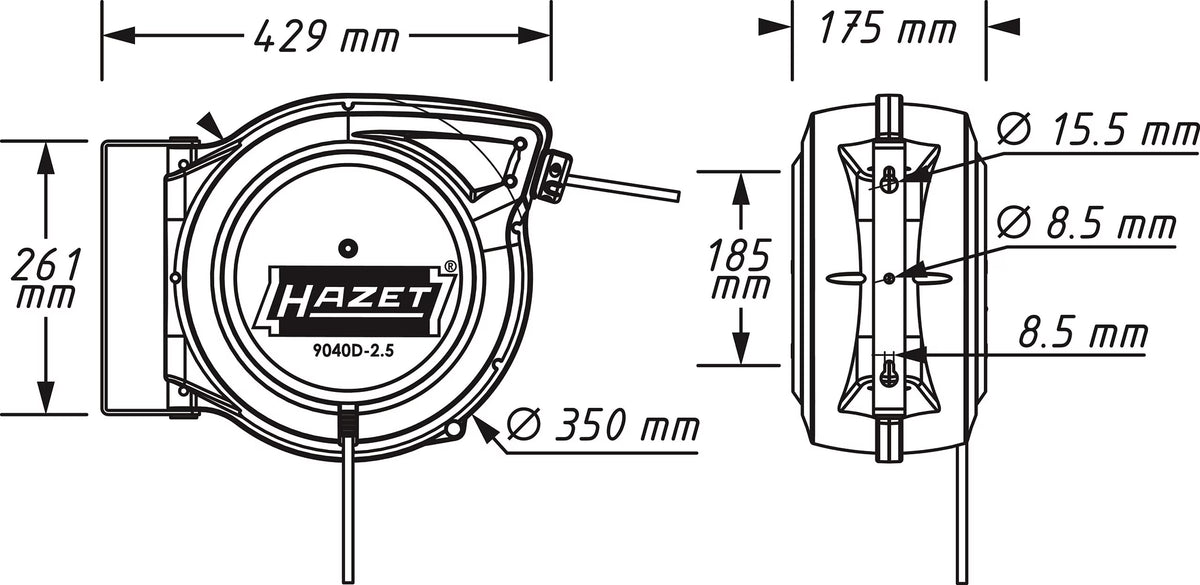

Borehole spacing of retaining bracket: 186 mm
Resilient when wound up with 1600 watts
Resilient when unwound with 3200 watts
Meets all relevant requirements defined in the European Directives for Machinery 2006/42/EC

Operating temperature range	-20°C – 45°C
ElektroG [Electrical and Electronic Equipment Act] device category / type of use	Category 5 – Small equipment 50 cm or less / B2B
Net weight	9.2 kg
Power consumption nominal output W	3200 W
Type of protection (IP)	IP20
Plug	Type EF 2Pin (Safety plug)

Hazet 9040D-2.5 Cable reel
