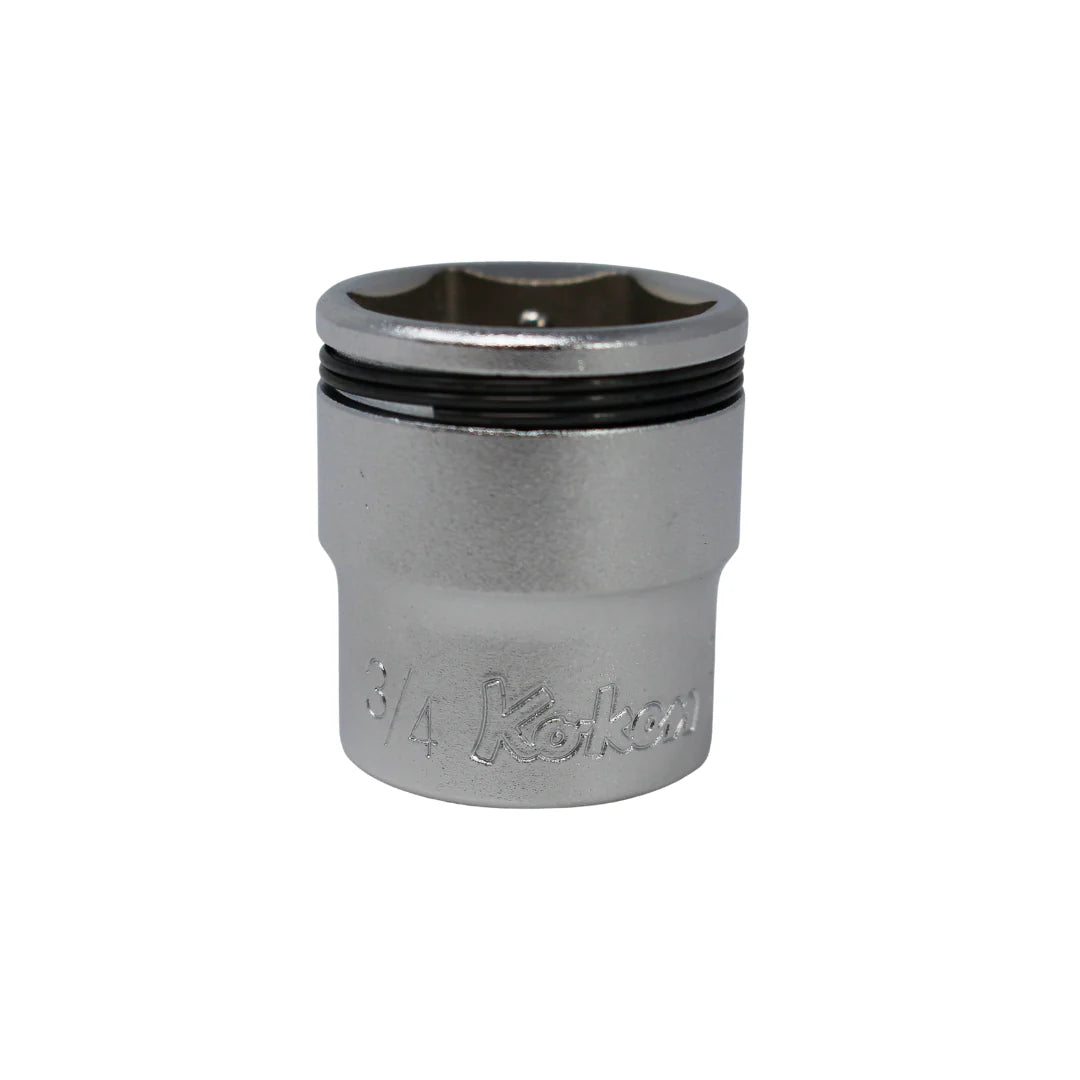

Koken 3450A-3/4 3/8 Sq. Dr. SAE Nut Grip Chrome Socket in 3/4
Nut Grip, 1/2” drive, Standard Length, Chrome Hand Sockets. NUT GRIP is Ko-ken's special design for non-magnetic nuts/bolts to be held firmly in a 6-point socket. The design consists of two balls held in place by a spring steel ring.

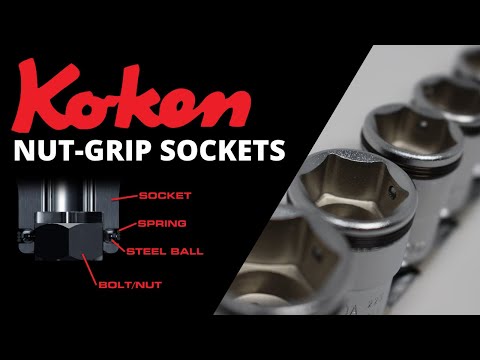

Our nut grip sockets are unique to Ko-ken and truly a revolutionary way of approaching this type of socket. Our fastener holds nuts and bolts in place without the use of magnets. Our system is built with a coil spring and ball bearings on opposing flats. When a nut or bolt is in the socket the ball bearings push out on the springs holding the nut/bolt in place.
| Input Drive Size: | 3/8" |
| Drive shape: | Square |
| Type: | Nut Grip Socket |
| Output Size: | 3/4" |
| Output Shape: | Nut Grip |

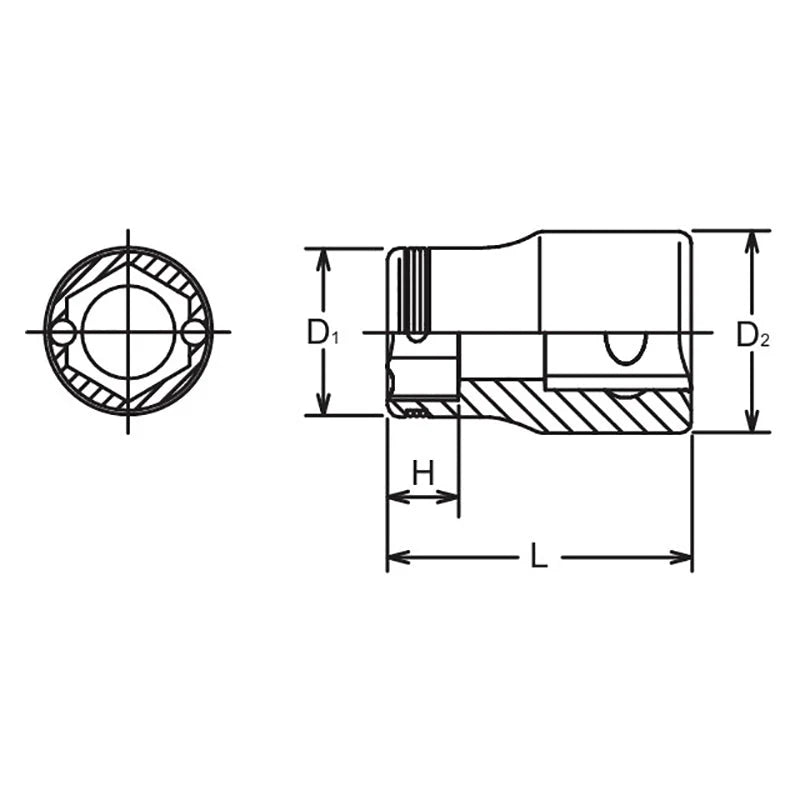

Product Dimension (Refer Line Drawing Image):
| D1 Size: | 26mm |
| D2 Size: | 23.5mm |
| H Size: | 11.5mm |
| L Size: | 29mm |
