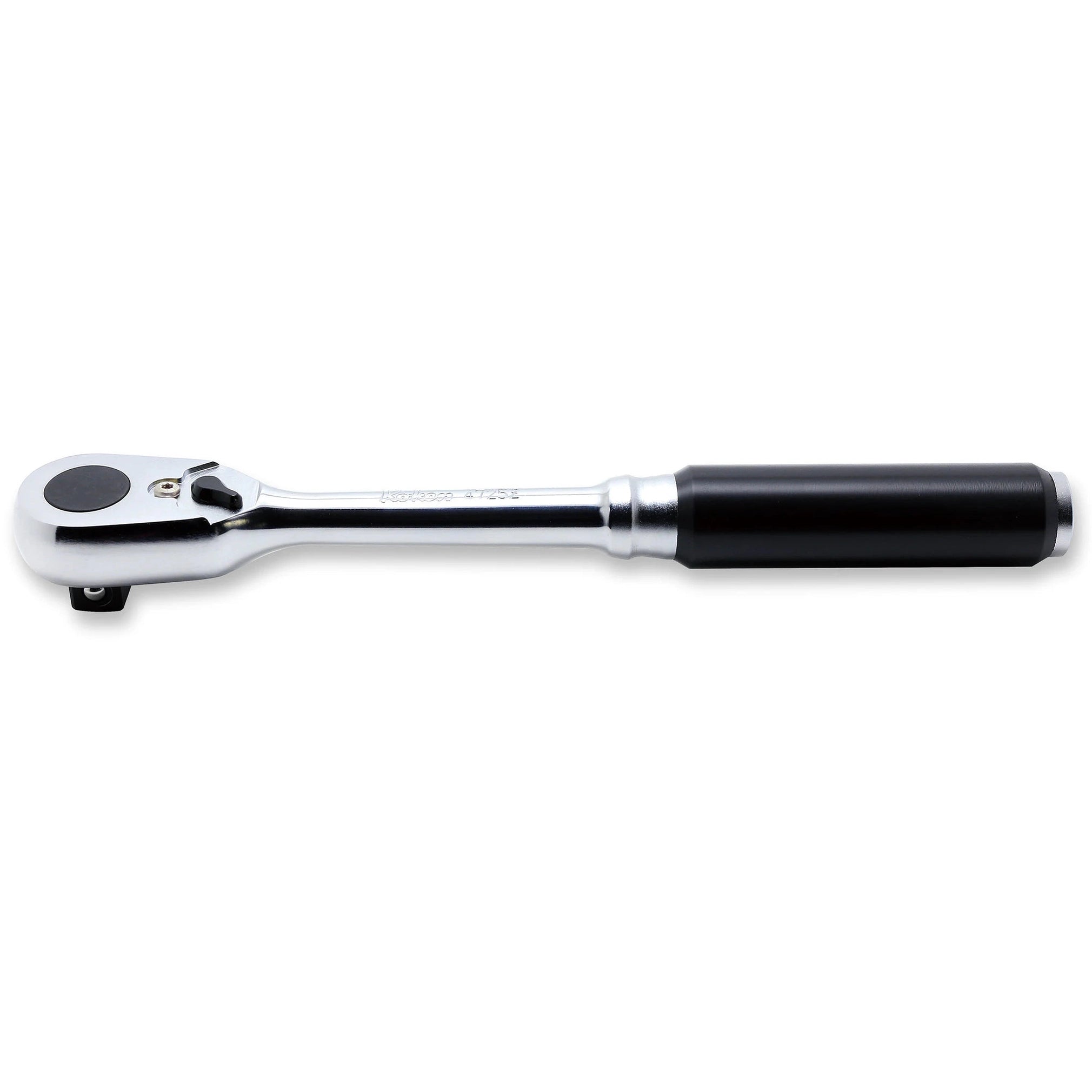

Koken 4725Z - 1/2 Sq. Dr. Ratchet Handle 72 teeth Length 253mm Z-series

Ko-ken 72 Tooth Ratchets – Precision, Strength, and Control

Ko-ken ratchets are renowned for their precision engineering, delivering exceptionally low backlash, compact head sizes, and high torque performance. The newly designed 72 tooth ratchet continues this legacy, combining our hallmark features with refined advancements.

Featuring a patented dual pawl mechanism with a single spring, this ratchet provides a smooth 5° arc swing, allowing for superior control in tight spaces. The innovative design increases surface area contact within the gear, resulting in a 10% higher torque limit while preserving Ko-ken’s signature low-torque backlash performance.

After four years of intensive development and testing, we’ve optimized the spring pressure to maintain a consistent, precise feel with minimal resistance—perfect for professional users demanding accuracy and durability.

Repair Kit: 4725RK-2

Input Drive Size:	1/2"
Drive Shape:	Square
Length:	253mm
Head Type:	Fixed
Gear Teeth:	72 Teeth

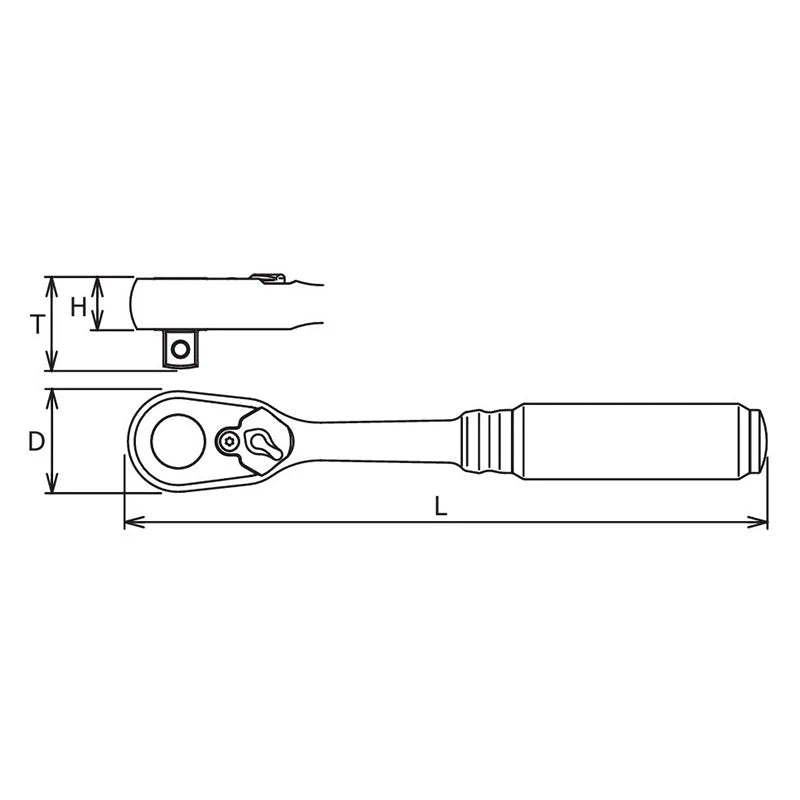

Product Dimension (Refer Line Drawing Image):

T Size:	32.8mm
D Size:	36.5mm
H Size:	18.2mm
L Size:	253mm

Koken 4725Z - 1/2 Sq. Dr. Ratchet Handle 72 teeth Length 253mm Z-series
