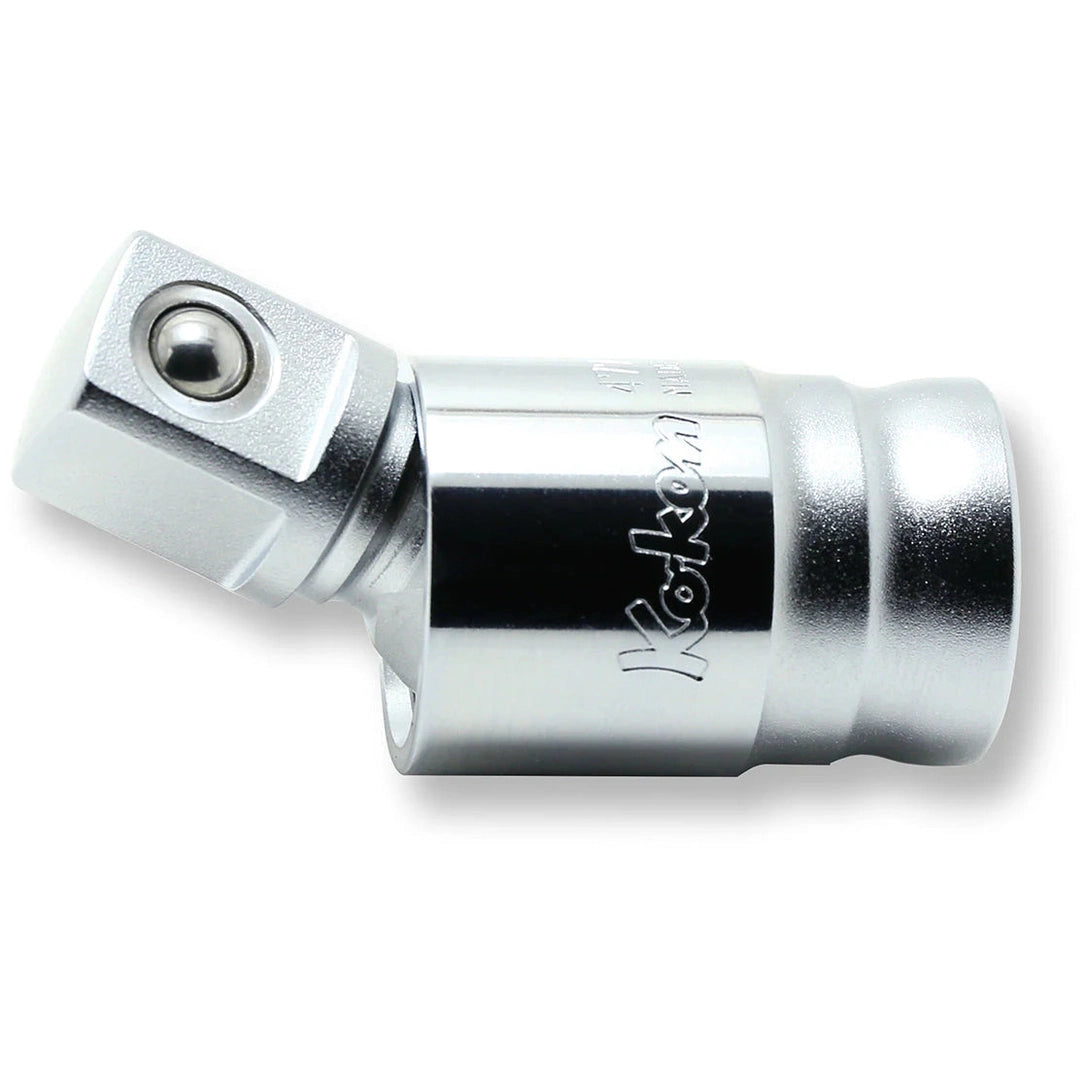

Koken 4771Z - 1/2 Sq. Dr. Universal Joint 1/2 Square Length 55.8mm Z-series
Koken 4771Z - 1/2 Sq. Dr. Universal Joint 1/2 Square Length 55.8mm Z-series

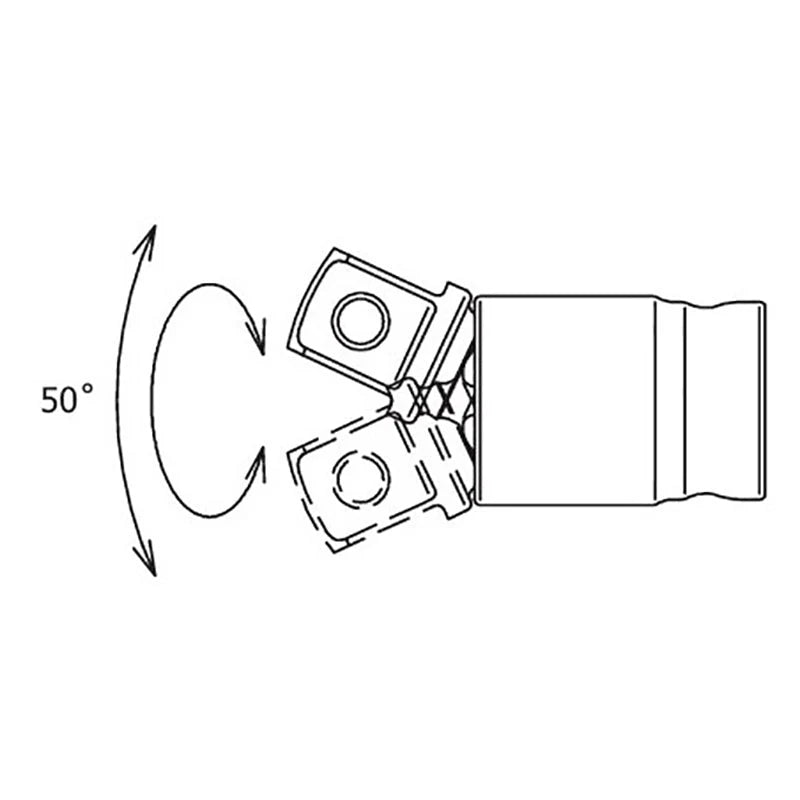

Pinless Universal Joint Design
An ordinary ball type universal join has a structure with a pin type joint. Ko-kens universal joints are connected with mutually engaged hexahedrons. This connection disperses the load across whole outer circumference. The same durability is obtained with this design in comparison to the pin-type.
| Input Drive Size: | 1/2" |
| Drive Shape: | Square |
| Length: | 55.8mm |
| Type: | Universal Joint |
| Output Size: | 1/2" |

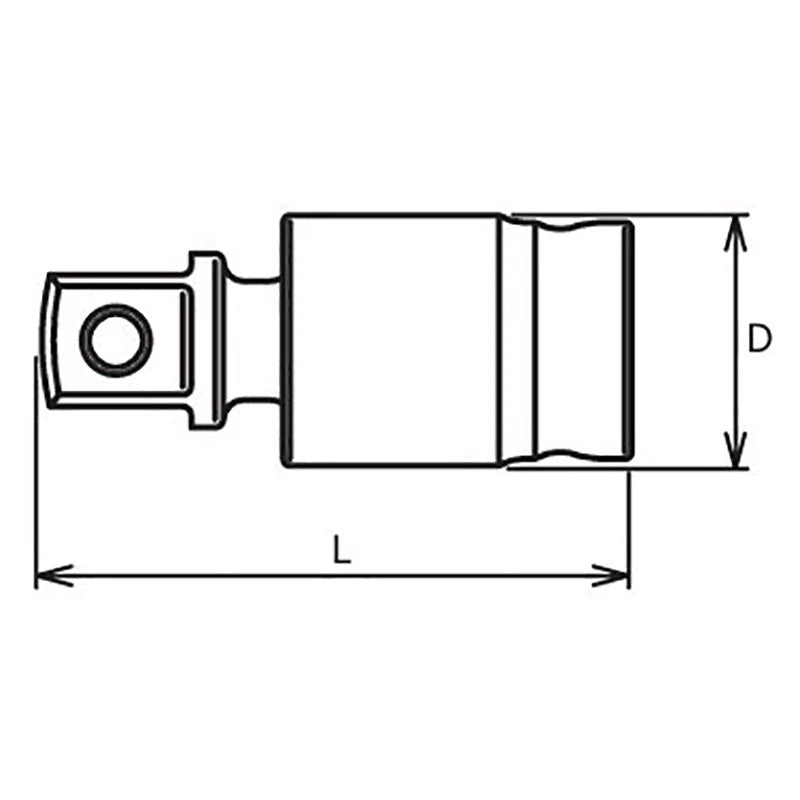

Product Dimension (Refer Line Drawing Image):
| D Size: | 23.7mm |
| L Size: | 55.8mm |
