Kukko 15-B | 4-Piece Separator Set with Separating Diameter 22 mm - 115 mm & Reach 350 mm
*THIS ITEM SHIPS IN 2-3 WEEKS
Kukko 15-B | 4-Piece Separator Set with Separating Diameter 22 mm - 115 mm & Reach 350 mm
Description

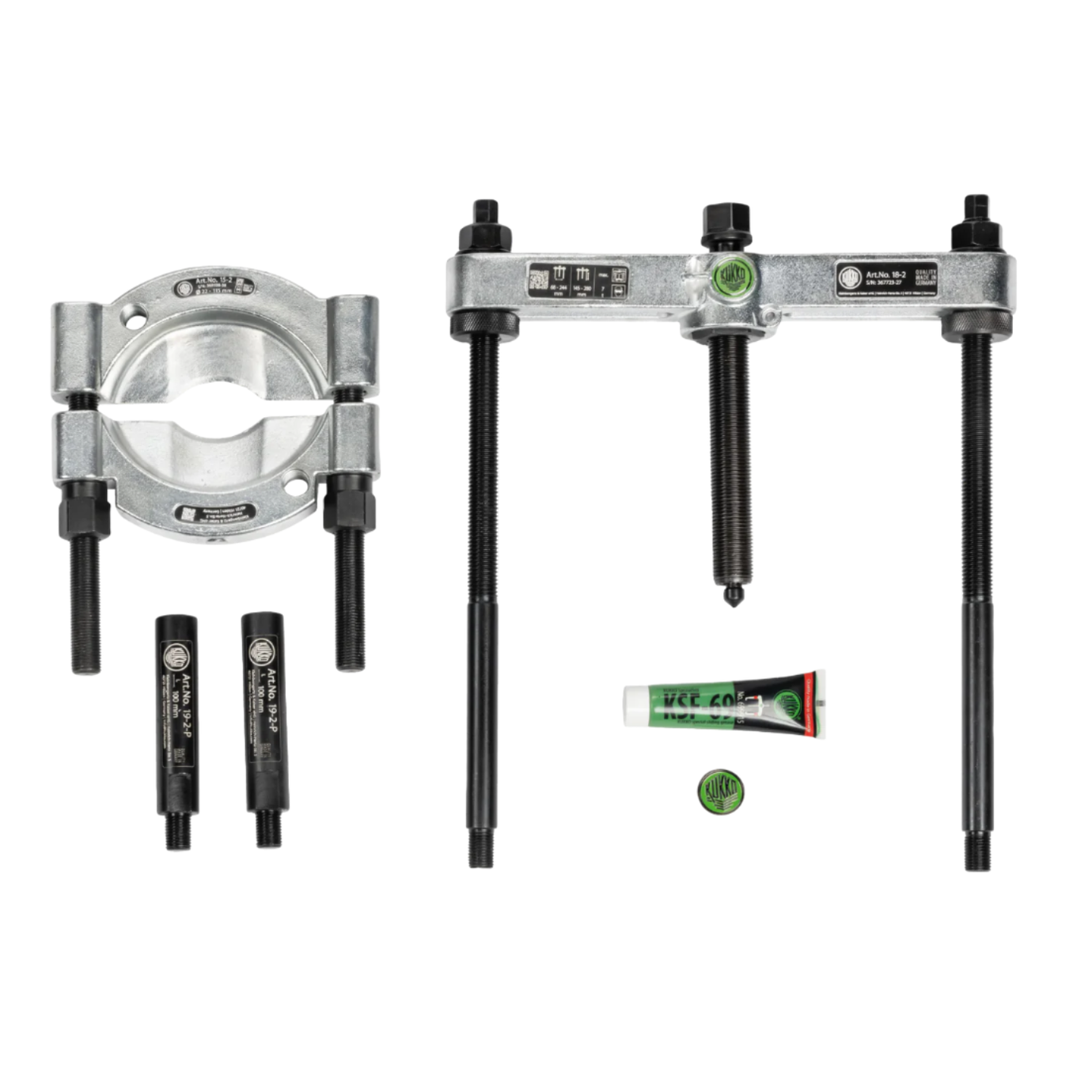

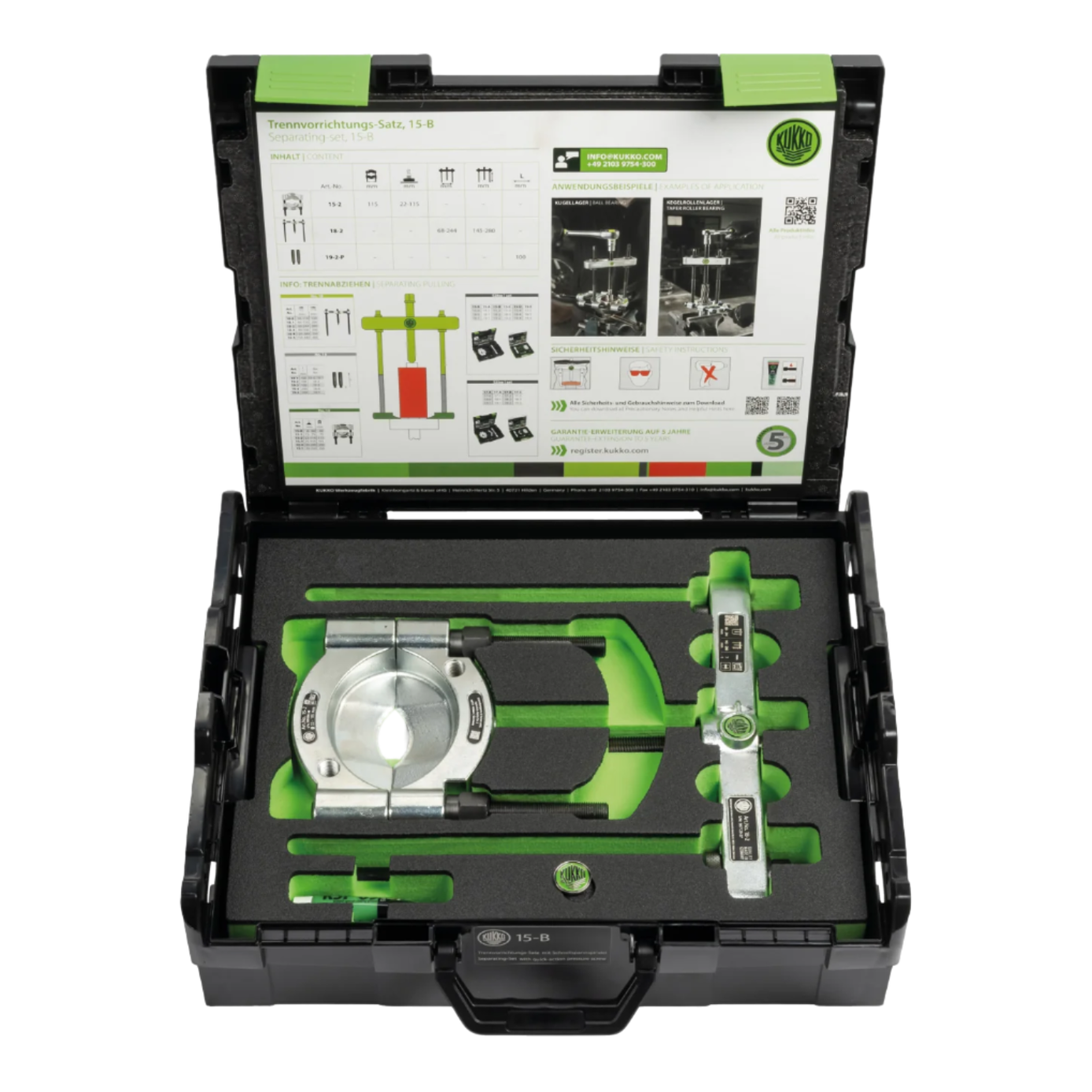

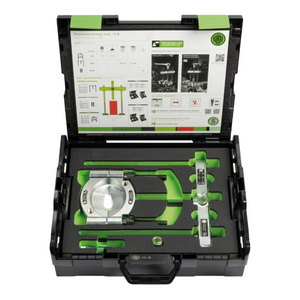

The 4-piece separator set 15-B is used for pulling ball bearings, roller bearings, inner rings, and other flat-lying parts in crafts, industry, and workshops when there is not enough space for puller jaws. The separating-pulling process is capable of gently separating those parts initially before they can be pulled off from the outside. This 4-piece set includes one separator and one puller device as well as a pair of extensions, ensuring the full application range.
Application
-

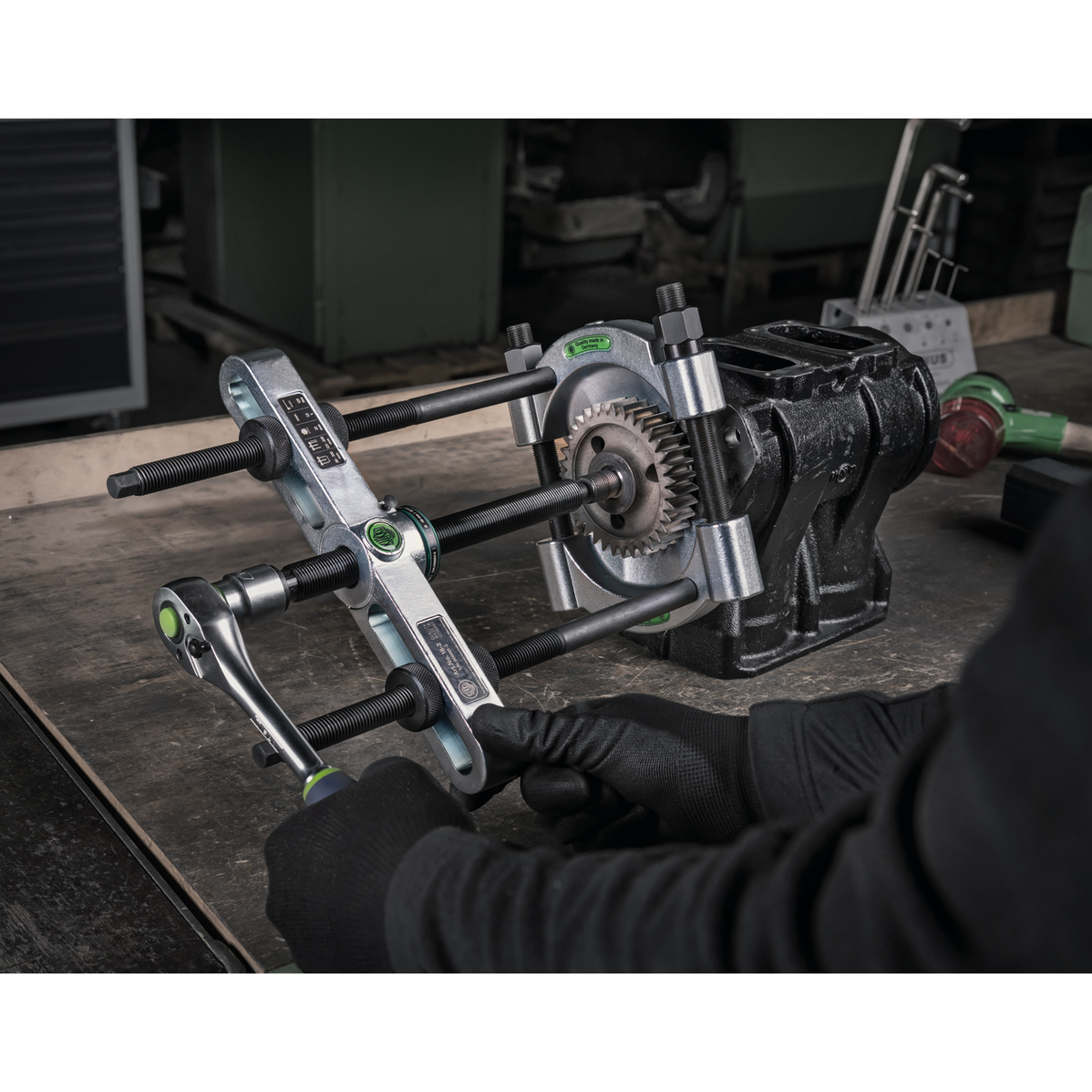

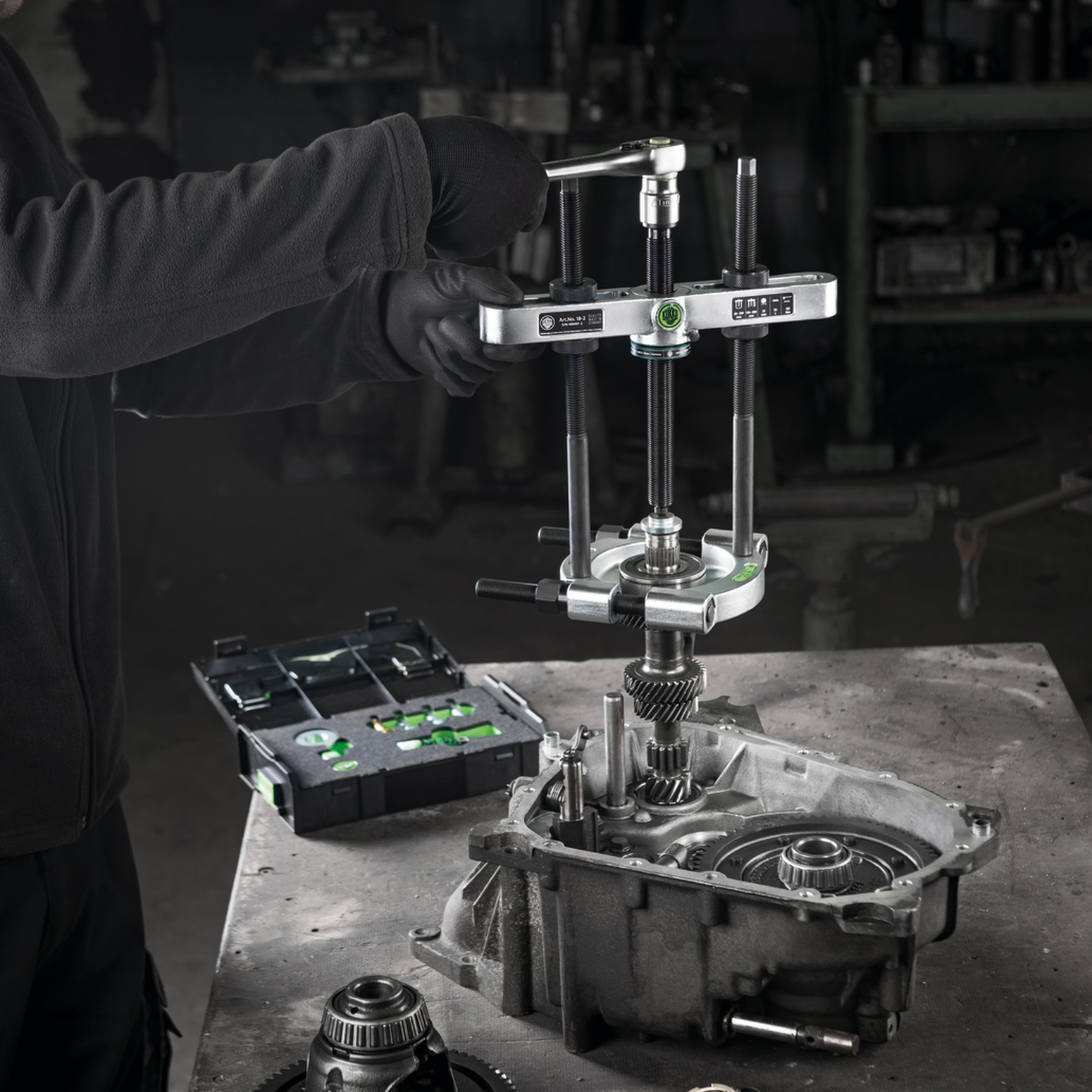

For pulling off ball bearings, roller bearings, inner rings and other parts that lie flat on the surface
Spare Parts
- 015210Side bolt with nut for separator K-20-15, 15-B, 818-215, 15-2, Y-215-2
- 018275Side screw for pullers 15-B, 17-B, 68-2, 18-2, 18-2-B
- 15-2Seperator with separation diameter 22 mm - 115 mm, 41 mm usable cutting depth (mounting thread M14x1,5)
- 18-2Puller, up to spread, 260 mm reach M14x1,5
- 18-2-TCrossbar for puller 18-2-B, 15-B, 17-B, 18-2
- 19-2-PTwo extensions for pullers (extension 100 mm, mounting thread M14x1,5)
- 621170Mechanical pressure spindle Ø 20,955 mm for spindle thread G 1/2" / 14, 170 mm length, 5,4 mm thread
