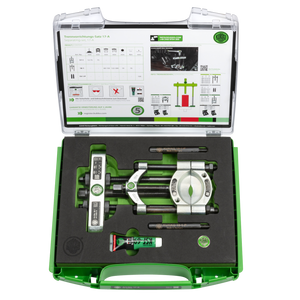

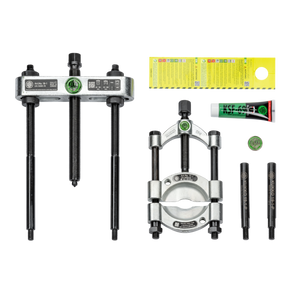

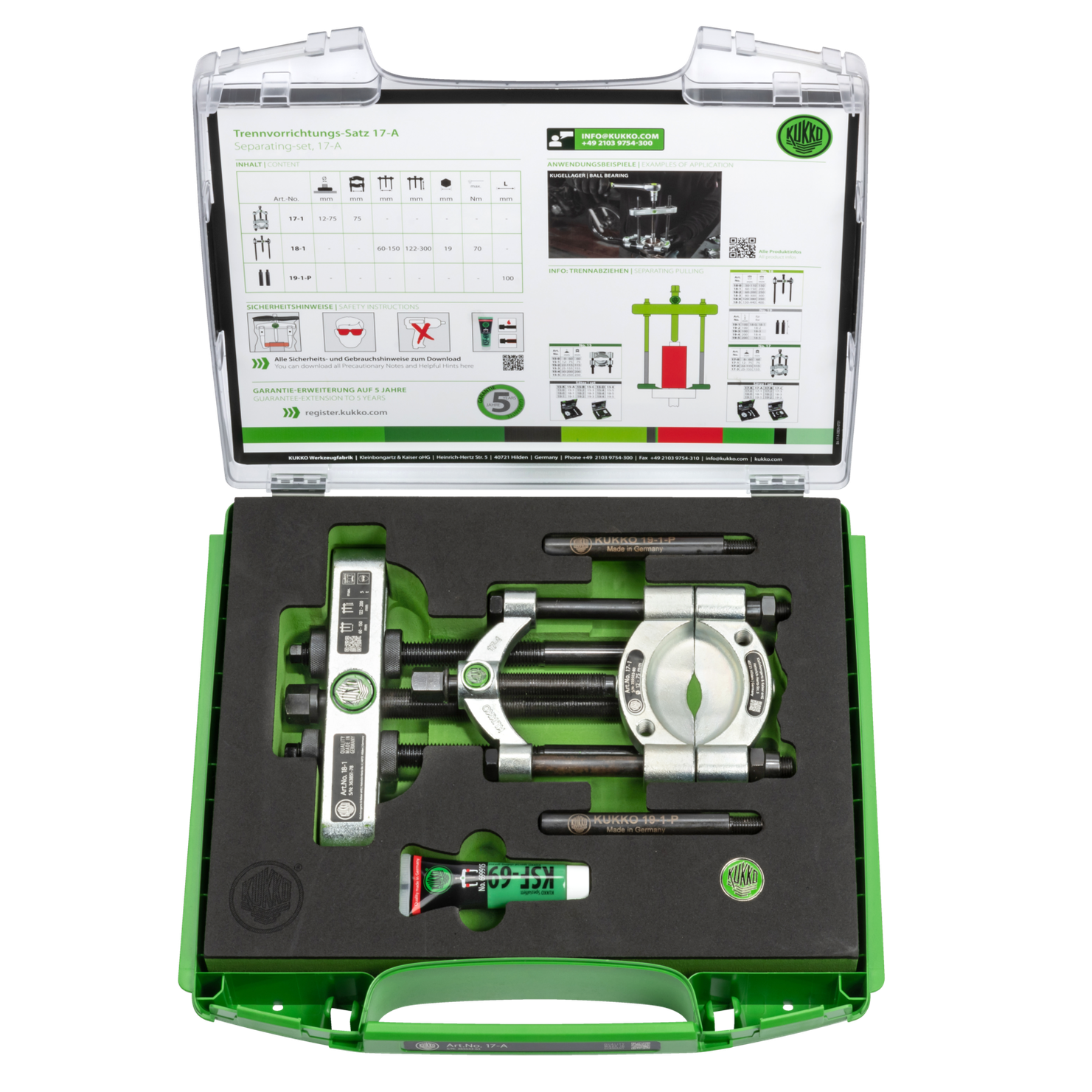

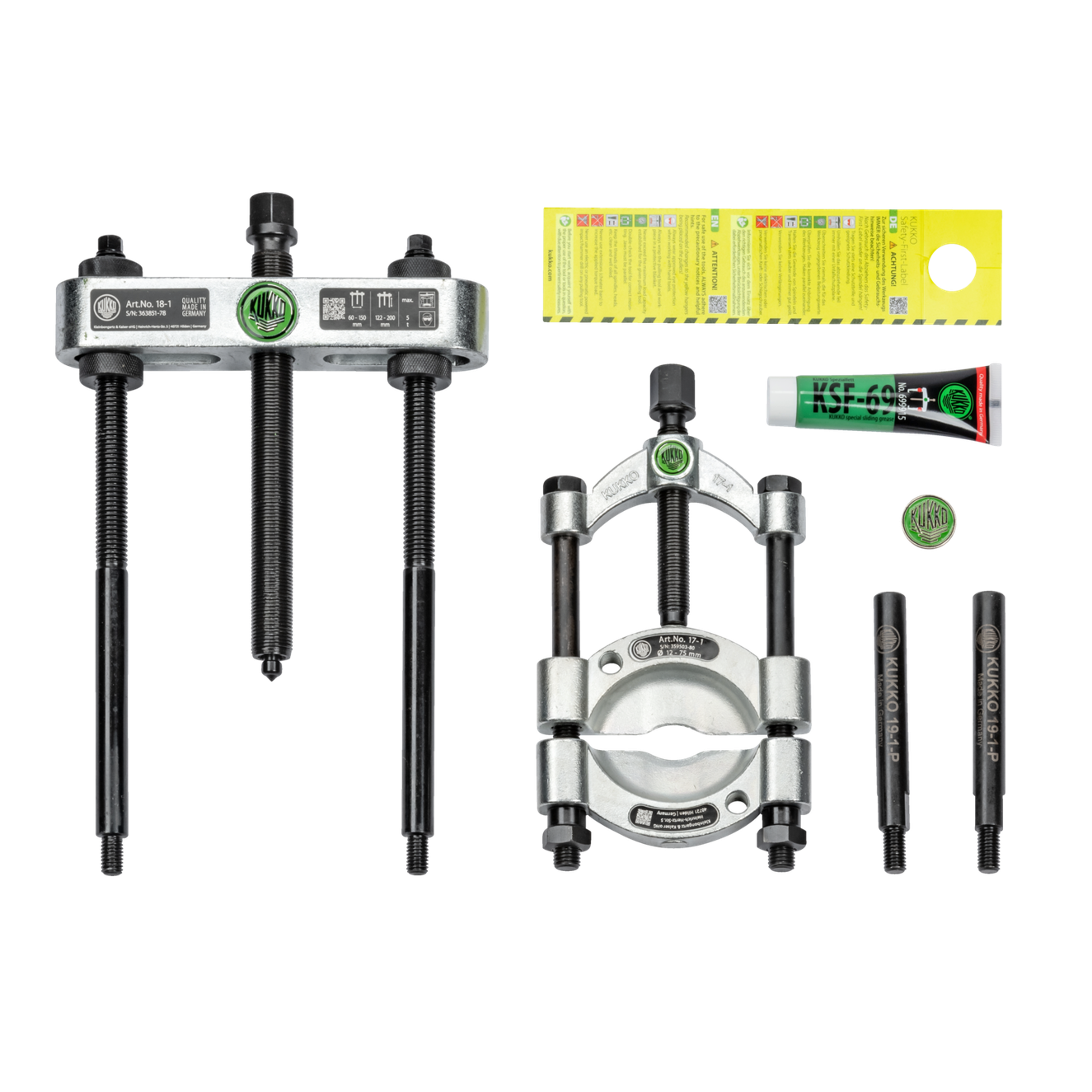

Kukko 17-A | 4-piece separator set with quick clamping pressure spindle Ø 12-75 mm/300 mm
4-piece separator set with quick clamping pressure spindle Ø 12-75 mm/300 mm
Description
The 17-A 4-piece separating device set is used for pulling ball bearings, roller bearings, inner rings, and other flat-lying parts in crafts, industry, and workshops when there is not enough space for puller jaws. The separating-puller process is capable of gently separating those parts before they can be pulled out from the outside. Compared to the series 15, the series 17 is particularly handy because the separating jaws can be quickly and concentrically tightened using a pressure spindle. This 4-piece set includes one separating and puller device as well as a pair of extensions, ensuring full application versatility.
Application
-

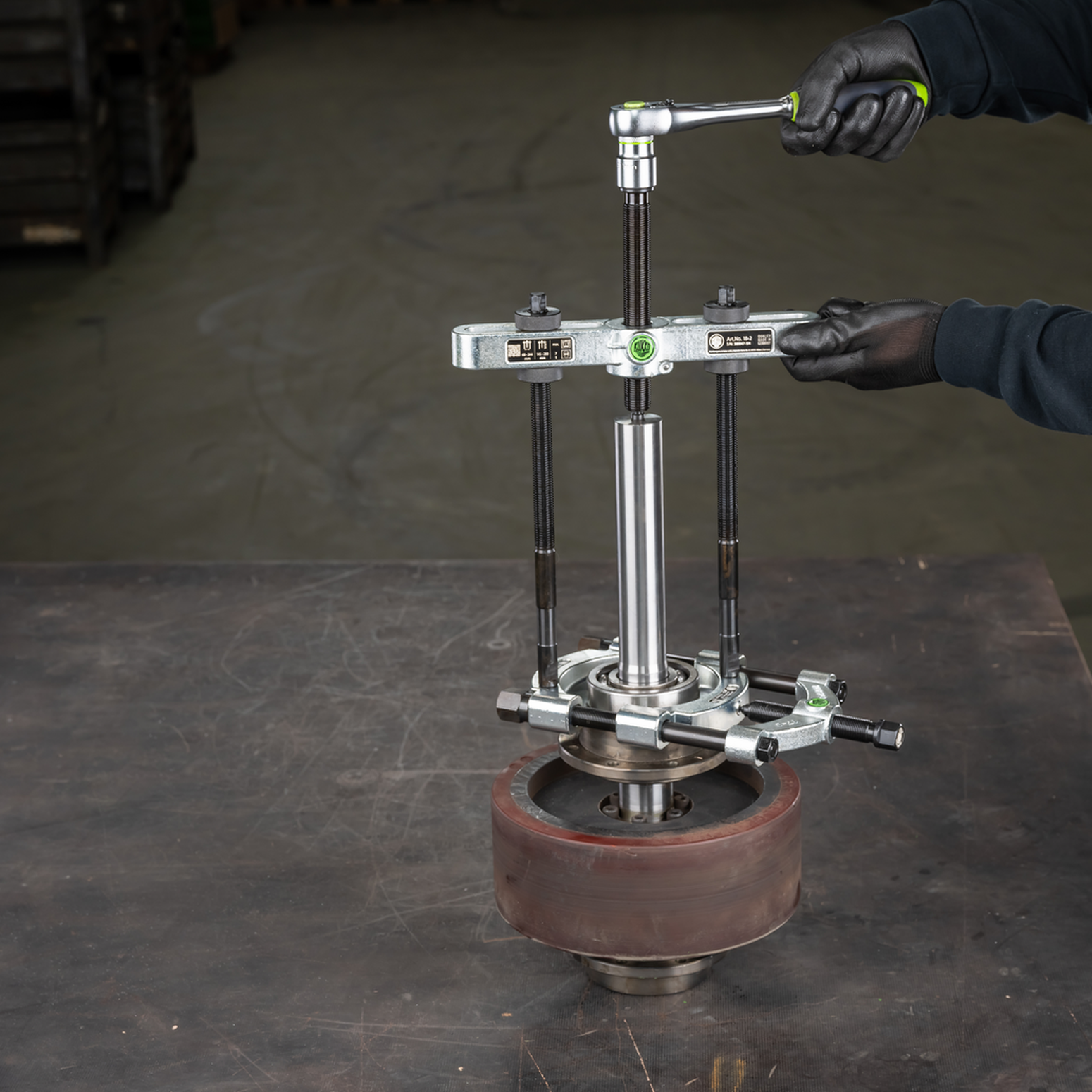

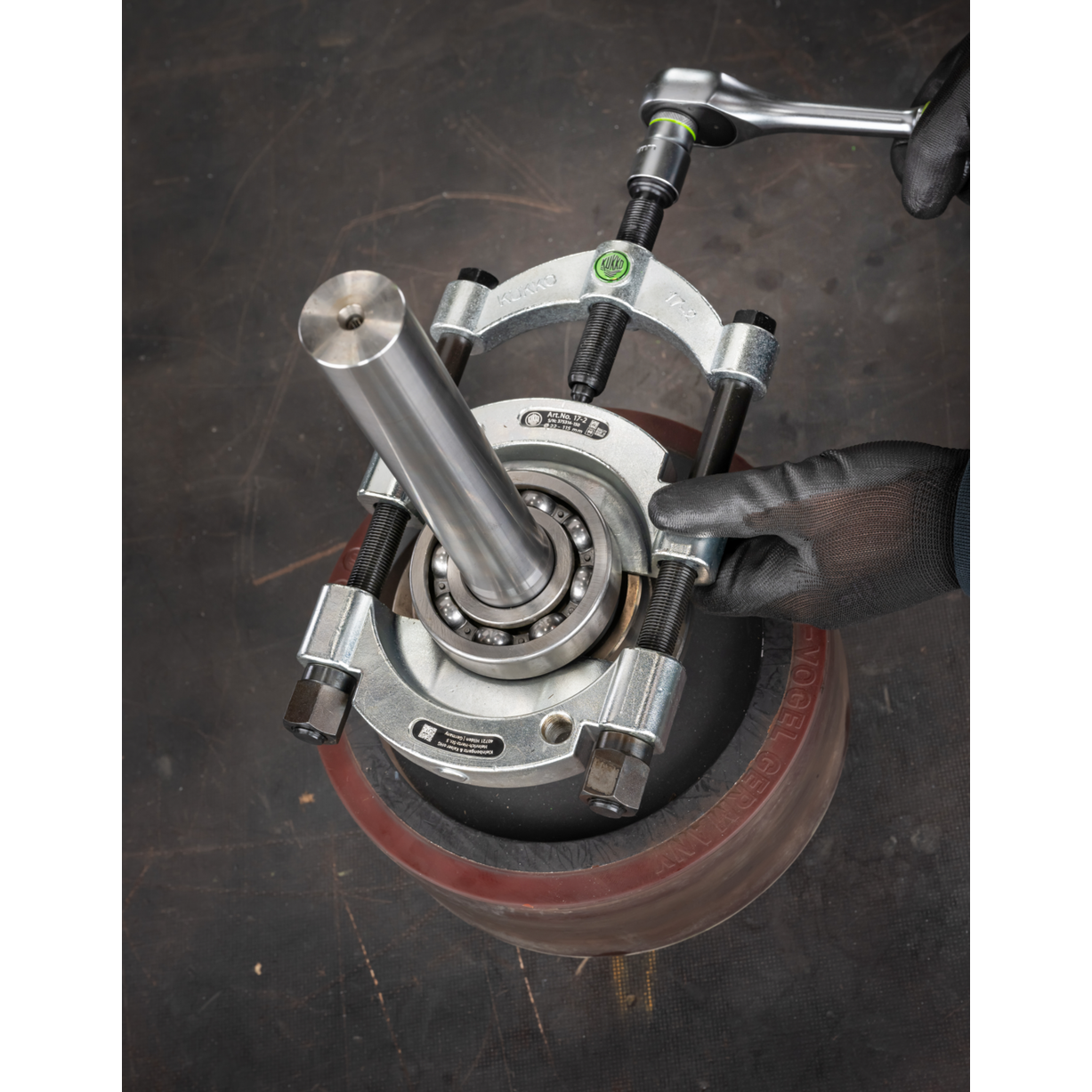

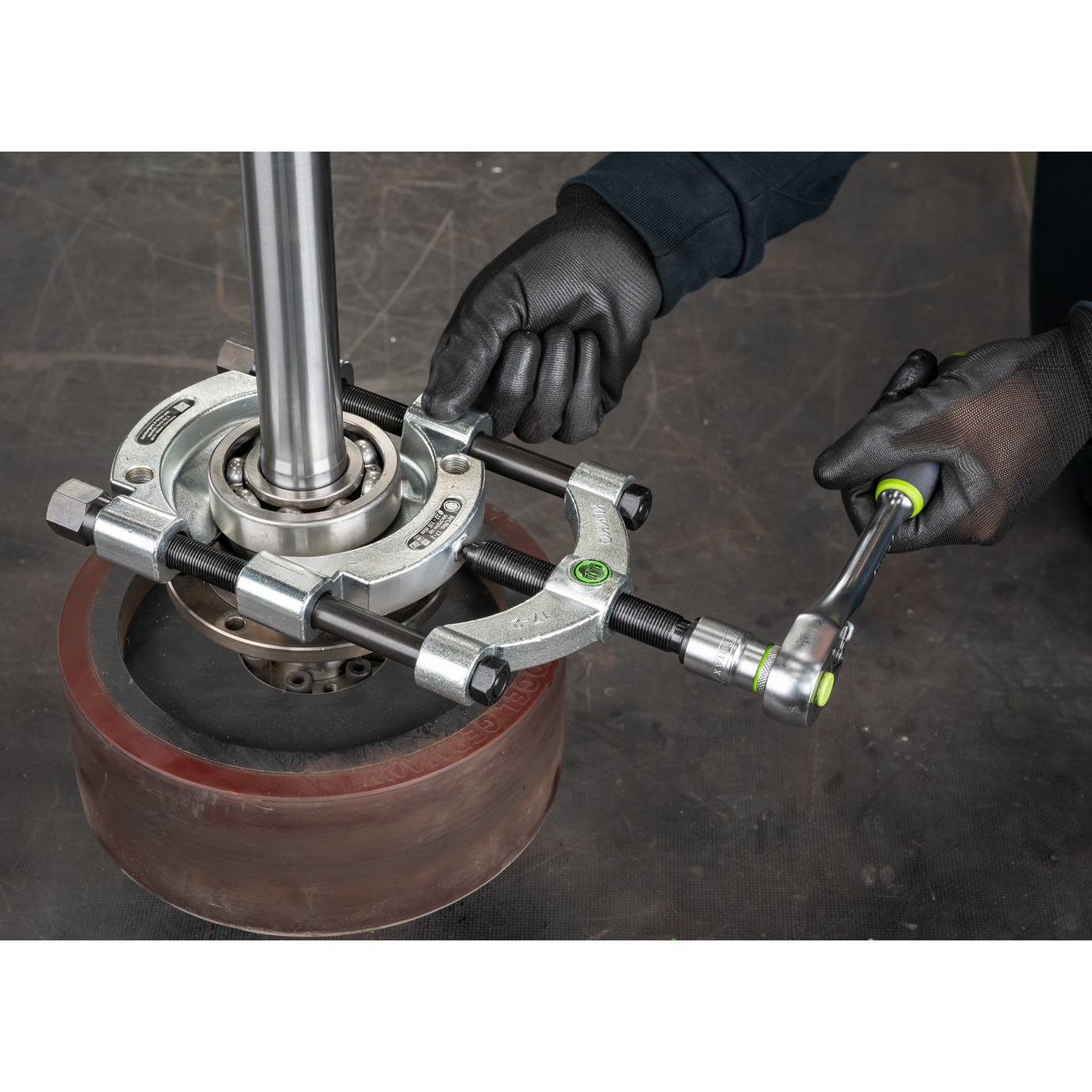

For pulling off ball bearings, roller bearings, inner rings and other parts that lie flat on the surface
Spare Parts
- 017167 Side bolt with nut for separators 17-A, 17-1
- 018265 Side screw for puller 15-A, 17-A, 68-10, 18-1
- 17-1 Seperator with quick-clamping pressure spindle, separation diameter 8 mm - 75 mm, 25 mm usable reach
- 17-1-06 Pressure spindle for separators with quick-clamping pressure spindle 17-1, 17-A
- 17-1-T Crossbar for separators with quick clamping spindle 17-1, 17-A
- 18-1 Puller, up to spread, 200 mm reach M10
- 18-1-T Crossbar for puller 15-A, 17-A, 18-1
- 19-1-P Two extensions for pullers (100 mm extension, mounting thread M10)
- 618175 Mechanical pressure spindle Ø 18 mm for spindle thread M 18x1,5, 175 mm length, 4,5 mm thread
