NOTE* This item ships in 5–10 business days

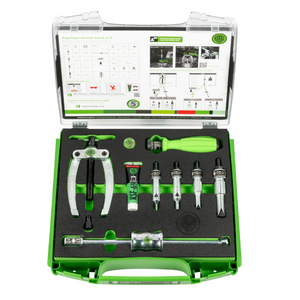

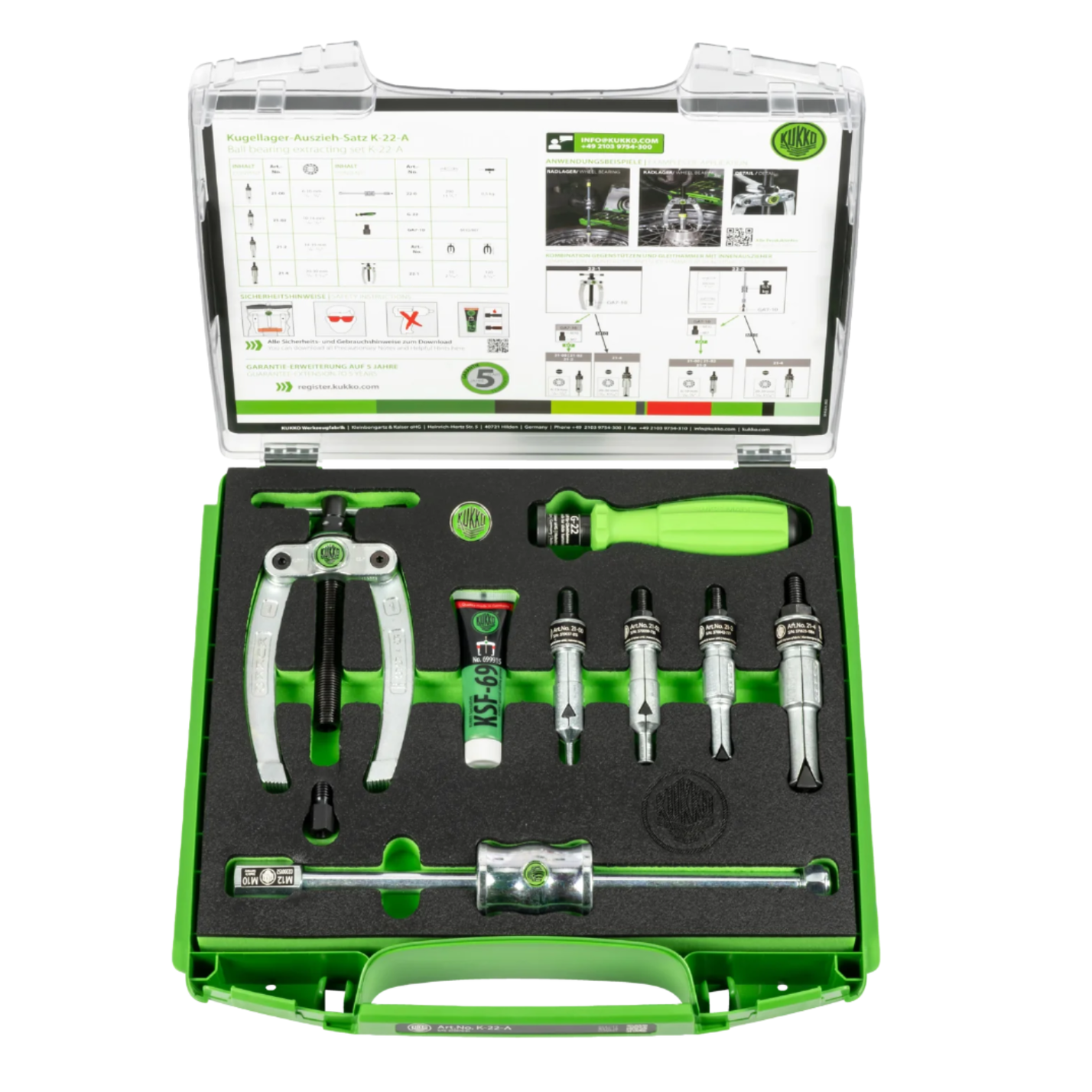

Kukko K-22-A | 8-Piece Ball Bearing Extraction Set ˜ 6-30 mm

Description

The 8-piece ball bearing puller set with counter stay and sliding hammer K-22-A is used for pulling internal bearings, bearing outer rings, and bushings in crafts, workshops, and industry. The multi-section design of the internal extractors with their extra large gripping edges allows for the safe extraction of internal parts. The included counter stay or the sliding hammer is used together with the internal extractors, depending on whether there is sufficient support surface available. Depending on the size of the ball bearing and the extraction situation, the set is available in various designs.

Application

For extracting internal bearings, bearing outer rings and bushes

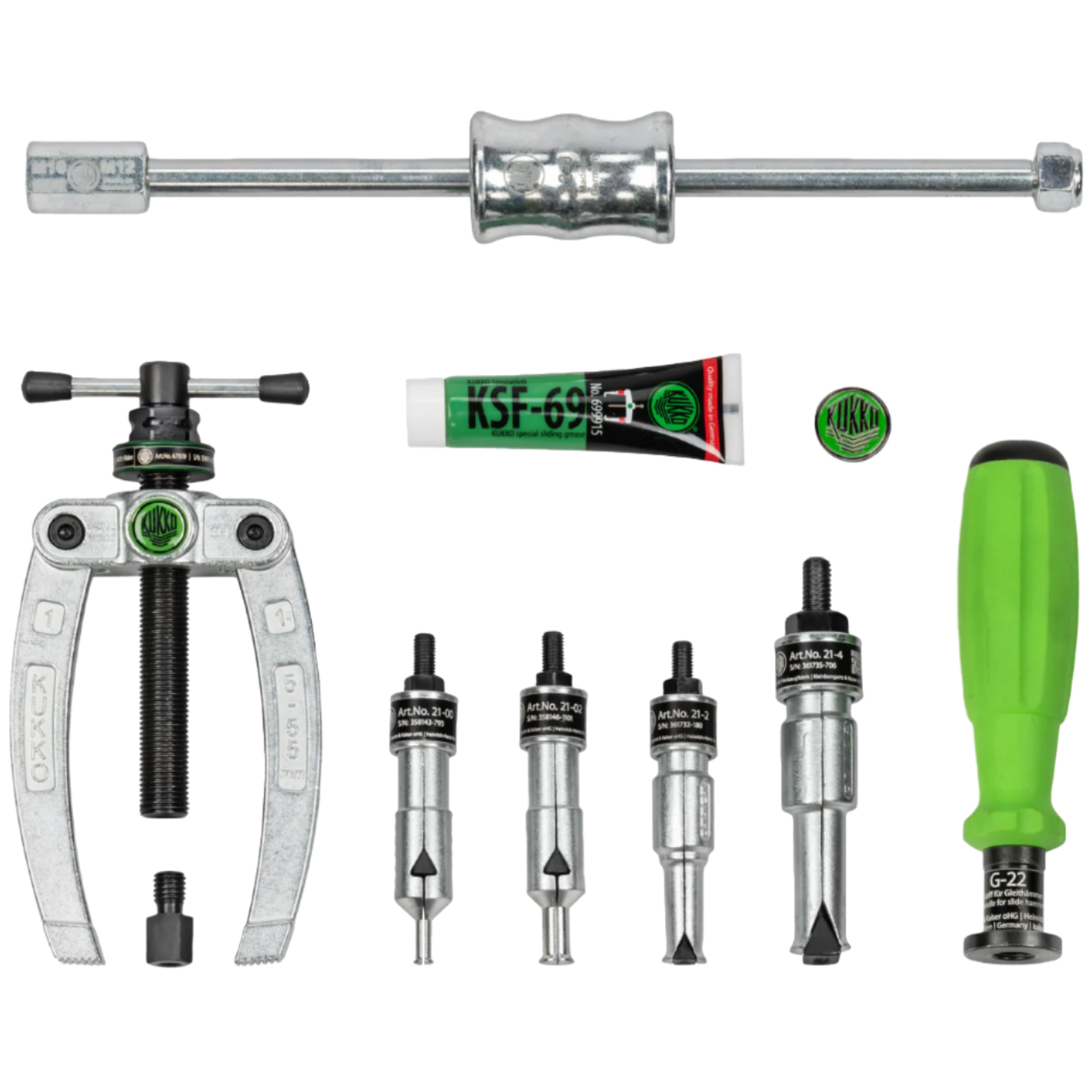

Spare Parts

21-002-shell internal extractor with spread 6 mm - 10 mm, 12 mm insertion depth
21-022-shell internal extractor with spread 10 mm - 14 mm, 15 mm deployment depth
21-22-shell internal extractor with spread 14 mm - 19 mm, 27 mm depth of use
21-42-jaw internal extractor with spread 20 mm - 30 mm, 40 mm insertion depth
22-0-05Sliding hammer device with 200 mm impact stroke, 0.5 kg impact weight
22-1Counter stays, up to 60 mm spread, 115 mm reach
671519Power nut with diameter 30 mm, wrench size 19 mm, thread dimension M15
G-223-jaw grip for sliding hammer

Datasheet

Kukko K-22-A | 8-Piece Ball Bearing Extraction Set Ø 6-30 mm
