NOTE* This item ships in 5–10 business days

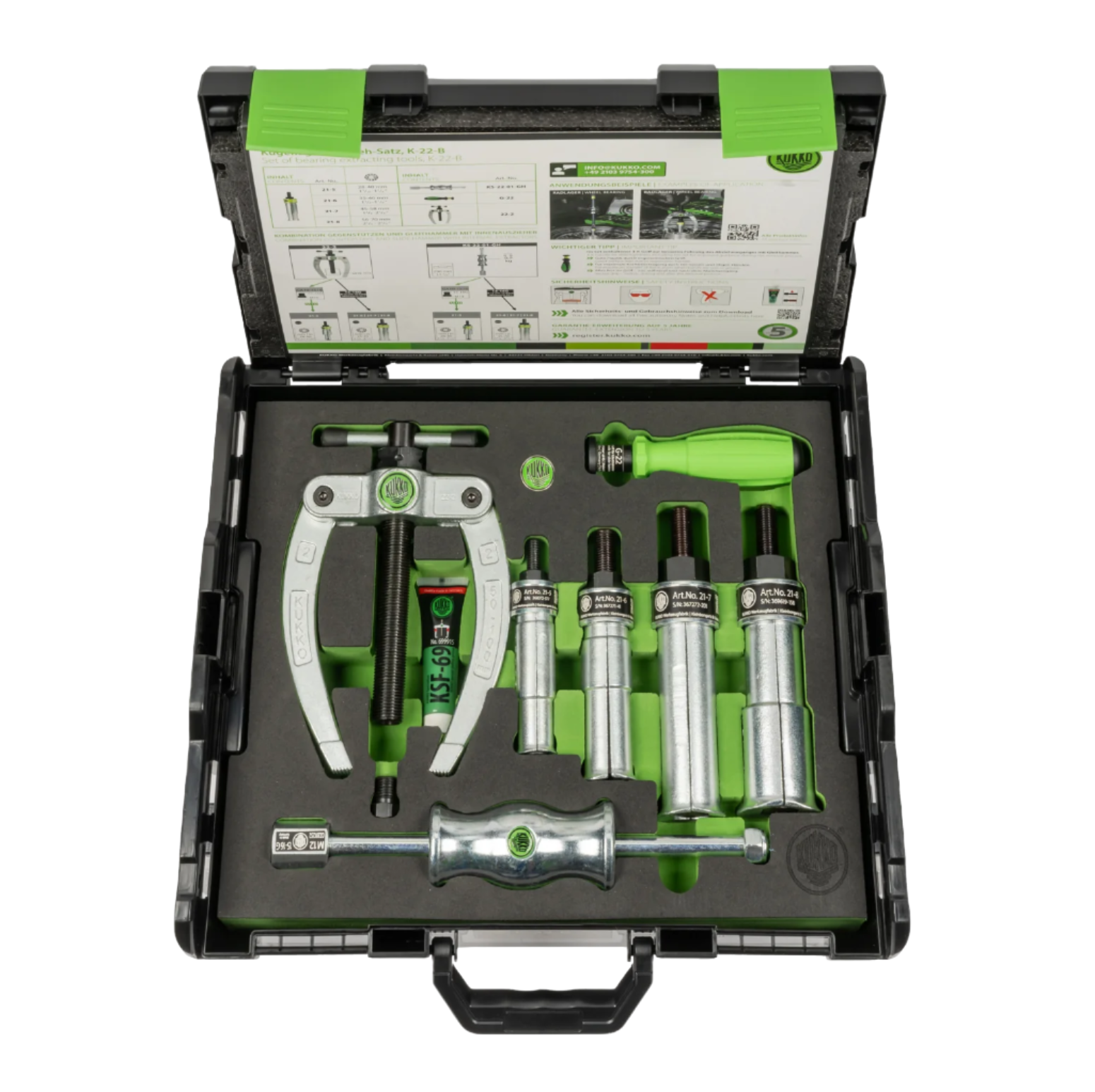

Kukko K-22-B | 8-Piece Ball Bearing Extraction Set ˜ 28-70 mm

Description

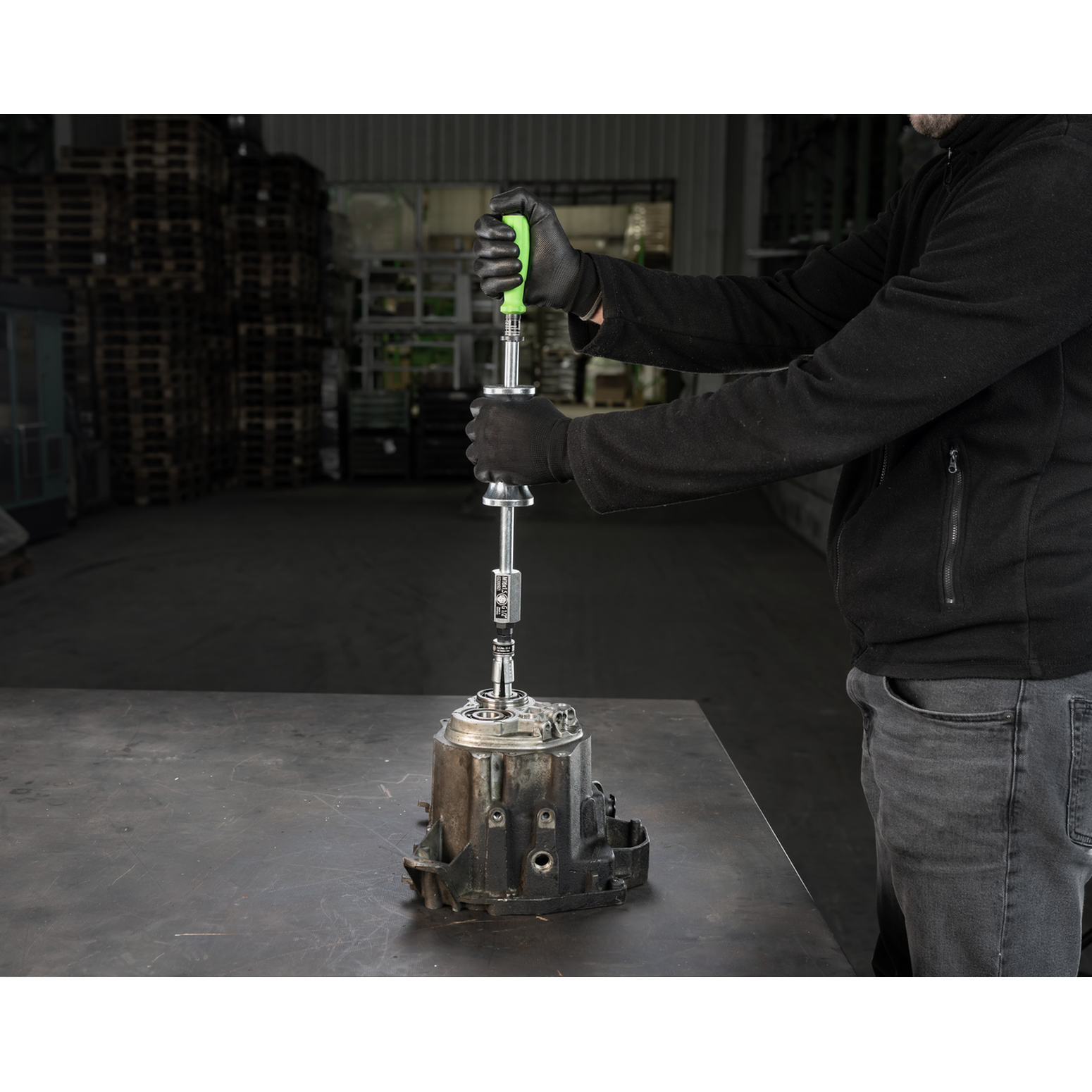

The 8-piece ball bearing puller set with counter stay and sliding hammer K-22-B is used for pulling internal bearings, outer bearing rings, and bushings in crafts, workshops, and industry. The multi-shell design of the internal extractors with their extra-large gripping edges allows for the safe extraction of internal parts. The included counter stay or the sliding hammer is used together with the internal extractors, depending on whether a sufficient support area is available. Depending on the size of the ball bearing and the extraction situation, the set is available in various designs.

Application

For extracting internal bearings, bearing outer rings and bushes

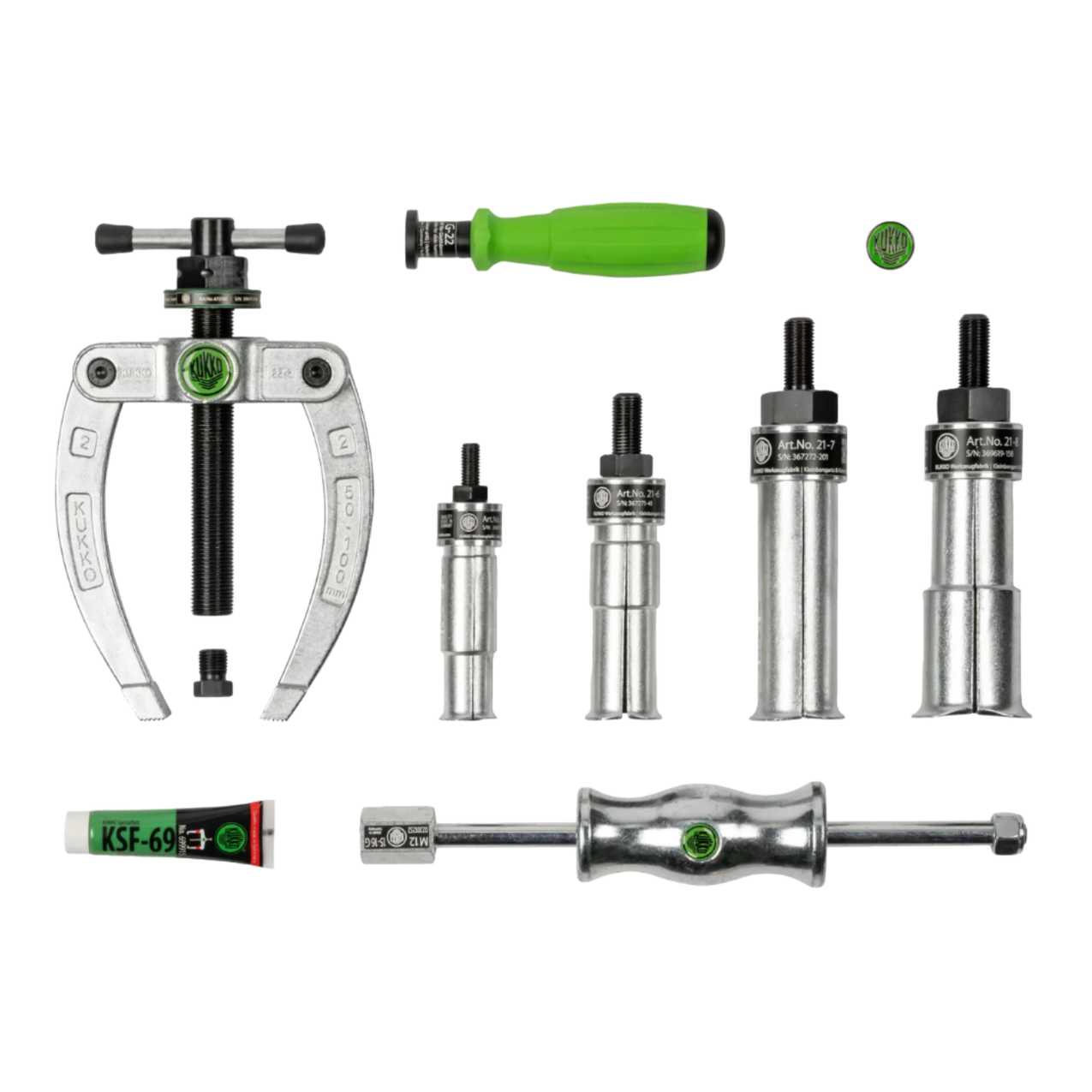

Spare Parts

21-52-jaw internal extractor with spread 28 mm - 40 mm, 28 mm depth of use
21-62-shell internal extractor with a spread of 35 mm - 46 mm, 48 mm depth of use
21-72-shell internal extractor with spread 45 mm - 58 mm, 100 mm depth of use
21-82-jaw internal extractor with spread 56 mm - 70 mm, 100 mm insertion depth
22-0-10Sliding hammer device with 250 mm impact stroke, 1 kg impact weight

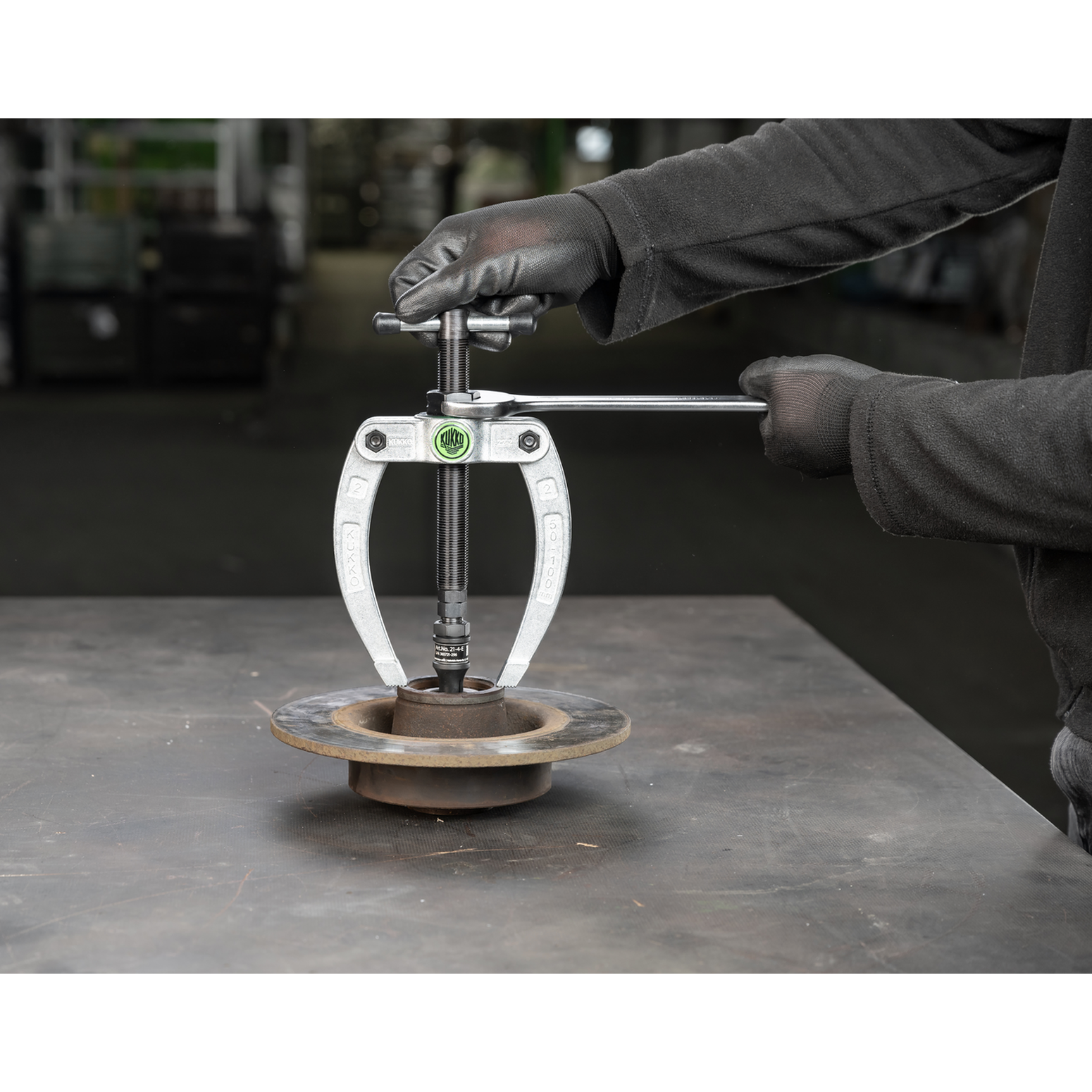

22-2Counter stay, up to 100 mm spread, 165 mm reach
G-223-jaw grip for sliding hammer

Datasheet

Kukko K-22-B | 8-Piece Ball Bearing Extraction Set Ø 28-70 mm
