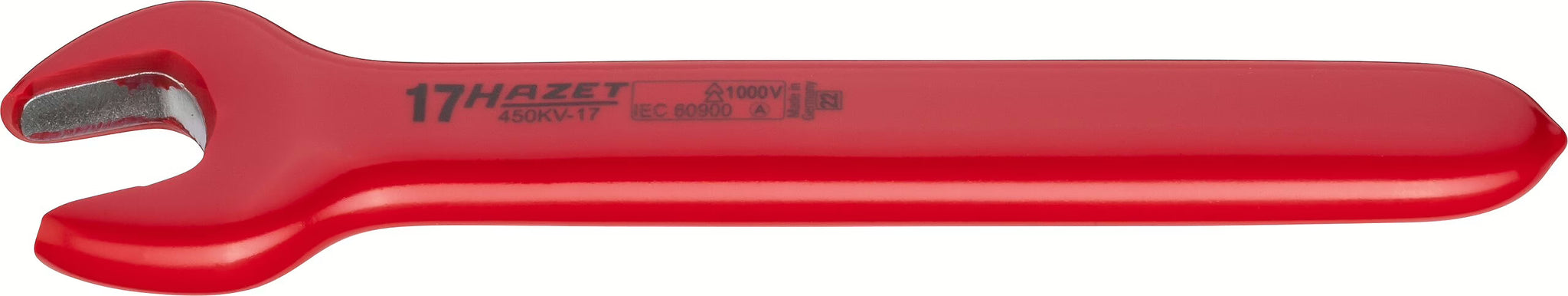

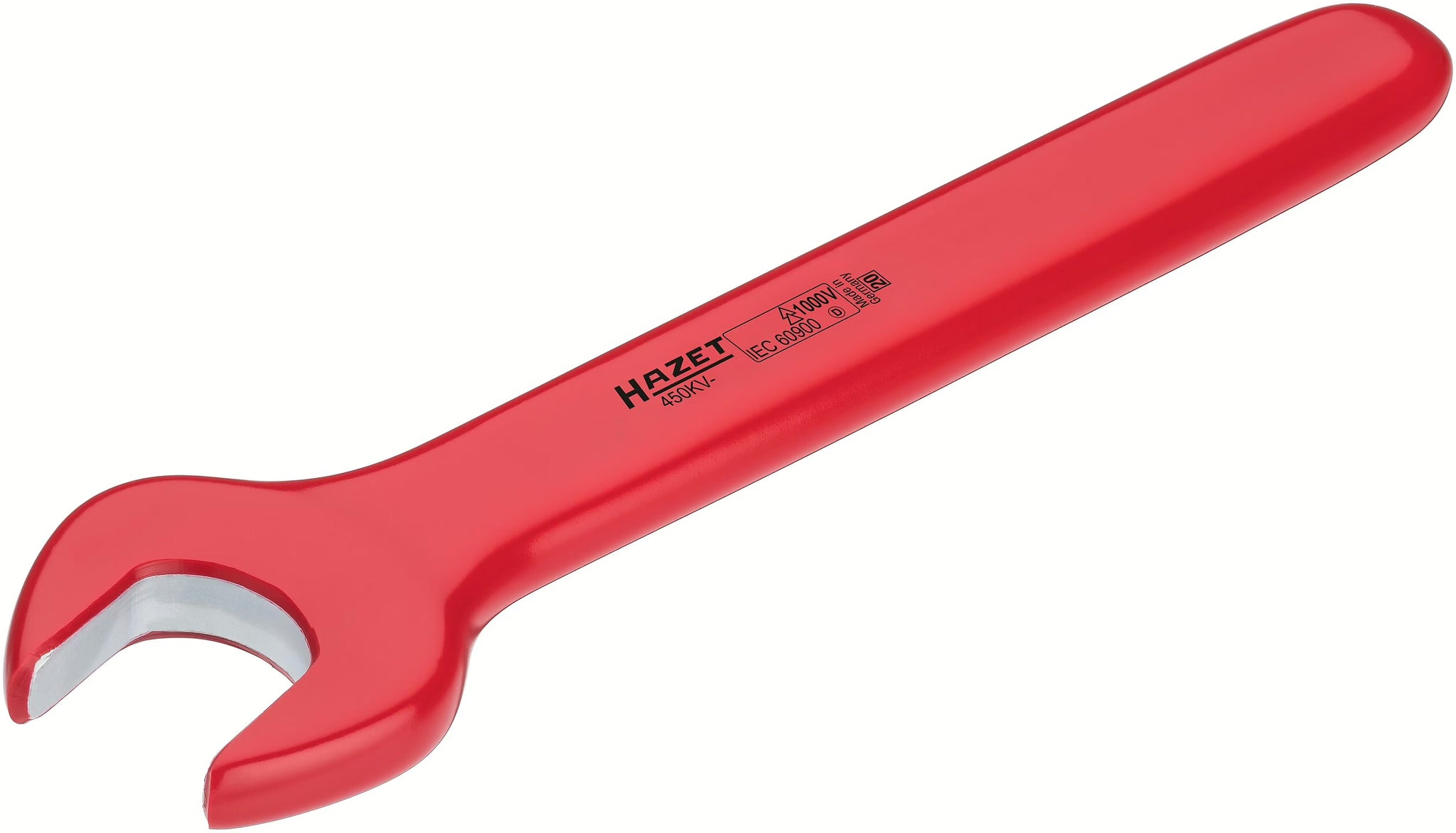

Single open-end wrench ∙ with protective insulation

Size 17 mm ∙ Outside hexagon profile

HAZET wrench – high precision tightening and loosening of screw connections

Long service life due to:
- High-quality chrome vanadium steel
- Compacted material structure from drop forging
- Careful heat treatment
Correct hardness and dimensional stability as guarantors of wear resistance and high load capacity
Shape, dimensions and surface design are perfectly coordinated to one another which guarantees functional handling and meets ergonomic requirements
Slim construction through optimum material composition guarantees sufficient freedom of movement even with hard-to-reach screw connections
HAZET torque values are considerably higher than the DIN ISO requirements for all wrench sizes – here DIN is the minimum requirement
Slim open-end and box-end head shape does not reduce the wrench's loading capacity, although this is well below the maximum permissible limit value according to DIN ISO

Wrench size	17 mm
Output	Outside hexagon profile
Standard	IEC 60900:2018
Protective insulation	Protective insulation up to 1000 V
Surface	with protective insulation

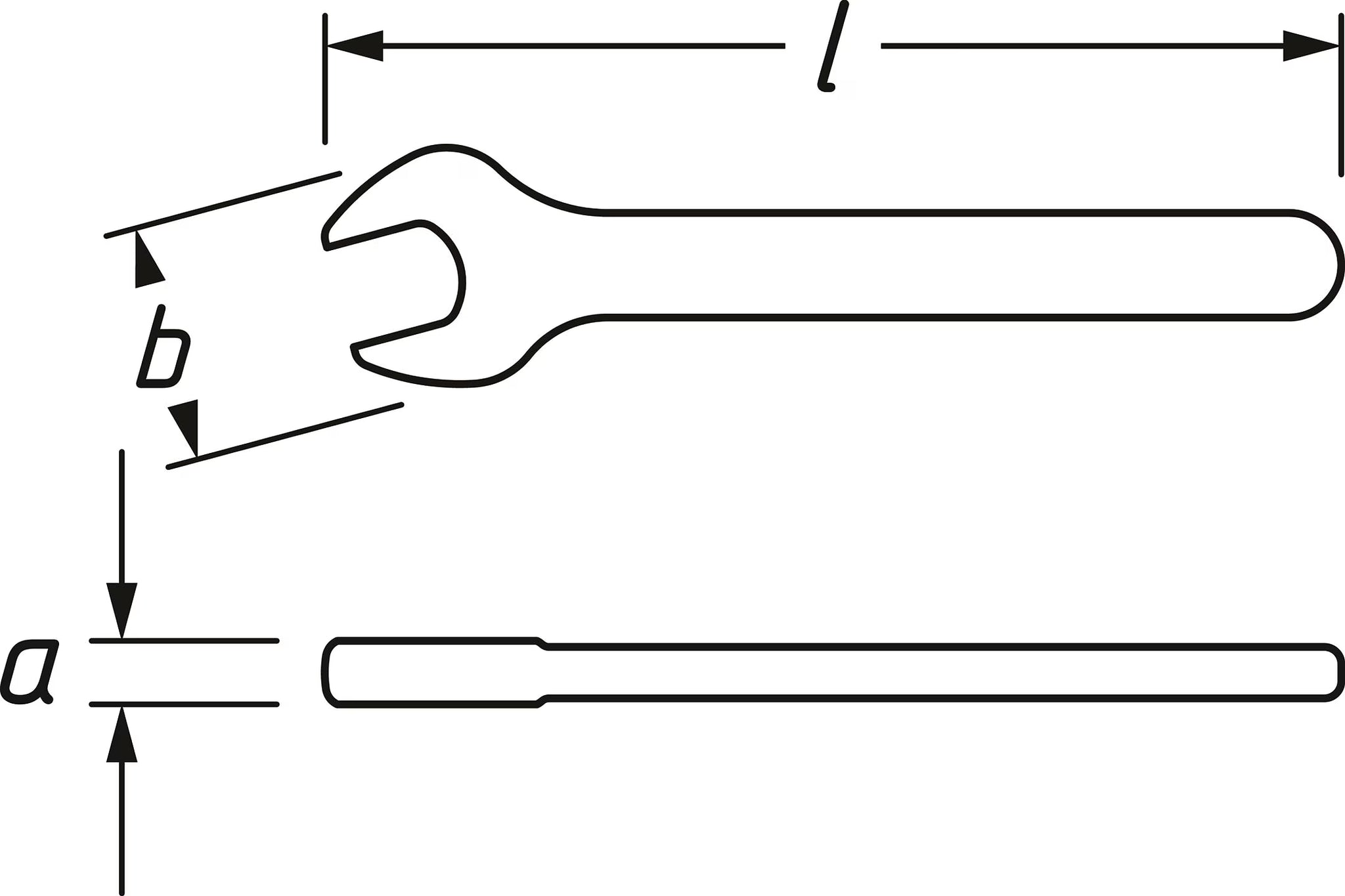

Dimension	171 mm
mouth position	15 °
Head Thickness a	10.9 mm
Head Width b	39.8 mm

Hazet 450KV-17 Single open-end wrench ∙ with protective insulation
