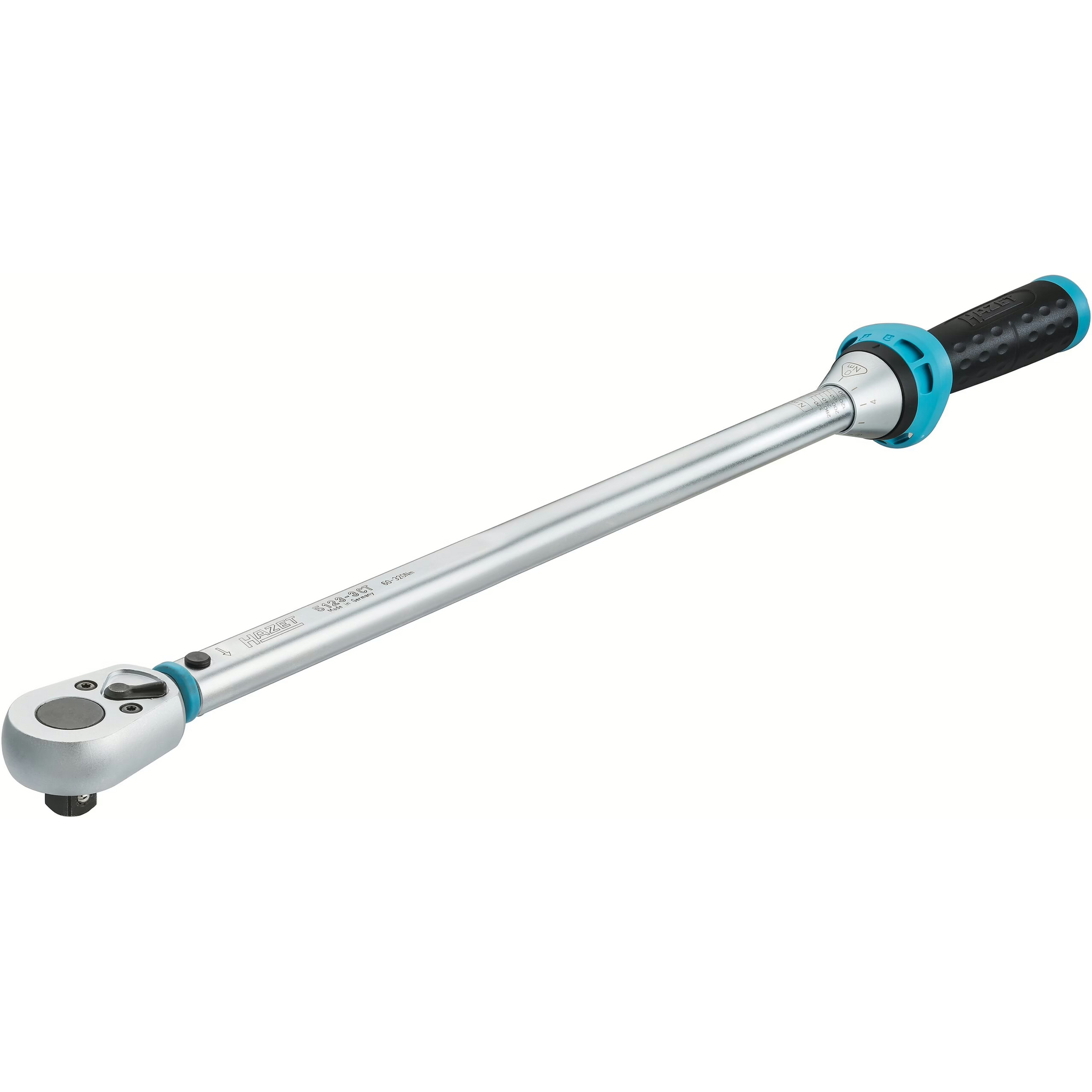

Hazet 5123-3CT 1⁄2″ Torque wrench - 60 – 320 Nm - ±3%

  • $443.99
    Unit price per
Shipping calculated at checkout.


Length: 628 mm ∙ Torque range : 60 – 320 Nm ∙ Accuracy: 3 % ∙ 1/2 inch square ∙ solid

NOTE* This item ships in 1-2 weeks

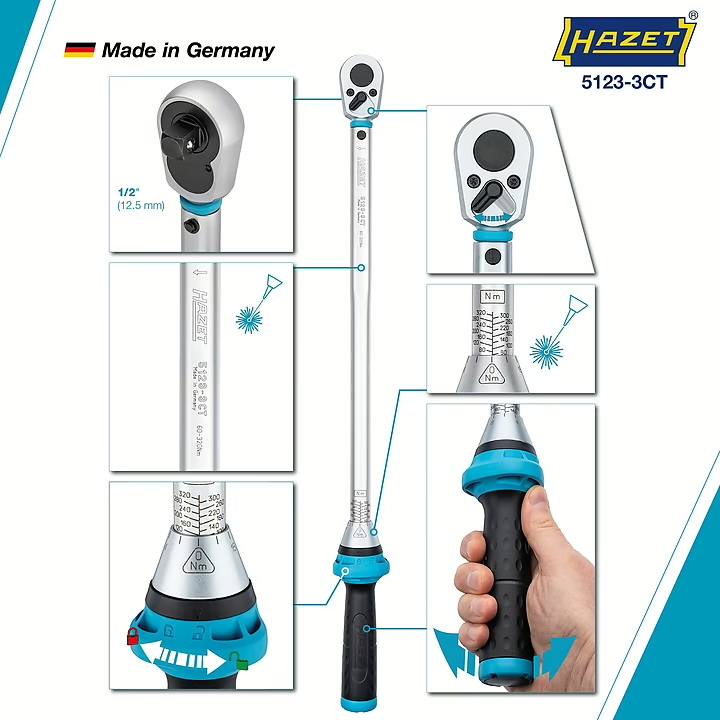

  • User-friendly reversible ratchet

 SYSTEM 5000-3 CT

  • Accuracy ± 3% of the scale value (in direction of actuation for right-hand tightening) (5107-3CT ± 4% accuracy of scale value)
  • For left-hand tightening, use our torque wrenches with insert tool
  • Safe:
  • Designed for rough workshop use

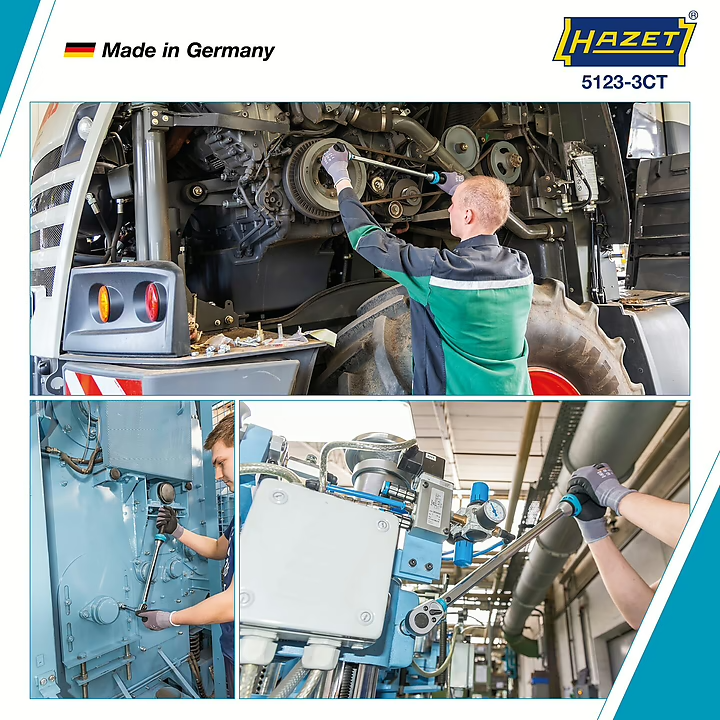

  • Wide range of applications for controlled screw tightening in tyre service, bicycle, passenger car and commercial vehicle applications as well as various applications in trade and industry
  • Optimised sealing ring to protect against debris
  • Ratchet repair set for customer-oriented self-assembly enables decades of use
  • Handle with better grip for easier power transmission
  • Adjustment aid with detent points for optimised operator guidance ensures safe and fast adjustment of the desired torque value by turning the handle
  • Safe locking of the setting values by latching function on the rotary assembly
  • Rotary assembly in triangular form prevents uncontrolled rolling
  • Lock symbols indicate the respective locking status
  • Can be attached to the cable loop through openings on the locking rotary assembly
  • Easy-to-read, high-contrast scale
  • Permanent readability due to laser marking on the scale bush
  • Integrated shift lever
    5121-3CT– 5123-3CT: shift lever with idle function – reduces risk of injury and malfunction
  • With calibration certificate and serial number
  • Delivery in sturdy Hexa plastic box
  • Made in Germany

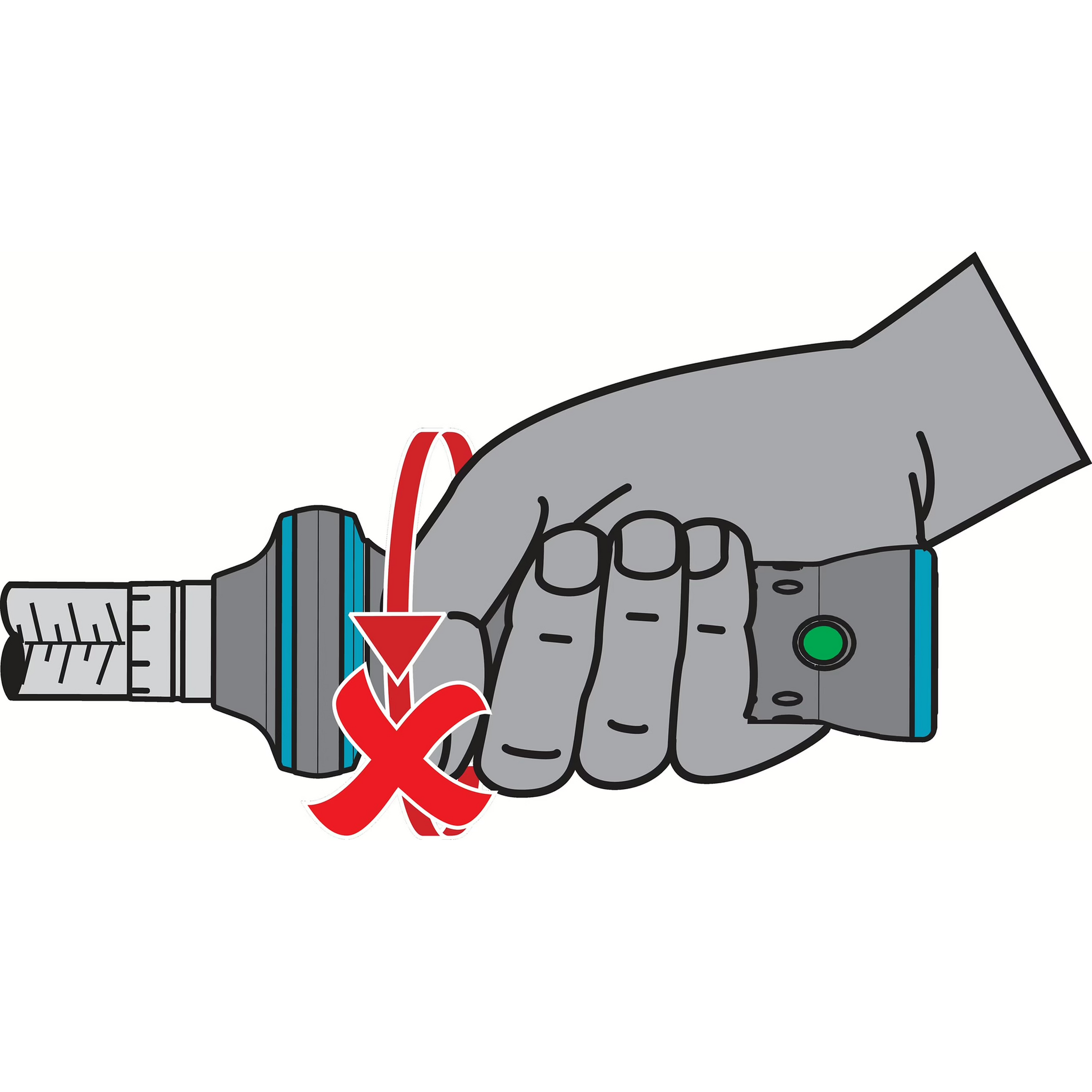

  • No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required

Torque tools in industry

Manual/impact operation

For manual operation

Tolerance 3 %
Output

1/2 inch (12.5 mm) square, solid

Tightening torque minimum 60 Nm
Tightening torque maximum 320 Nm
Number of teeth 32 teeth
Scale Graduation (Nm) 2 Nm
Opening angle 11.25 °
Standard
  • DIN EN ISO 6789-2:2017
  • DIN 3120
  • ISO 1174-1
Dimension 628 mm
Actuating force min.-max. kg 11.3 – 62.2
Head Width b 44 mm
Head Thickness a 19.6 mm
