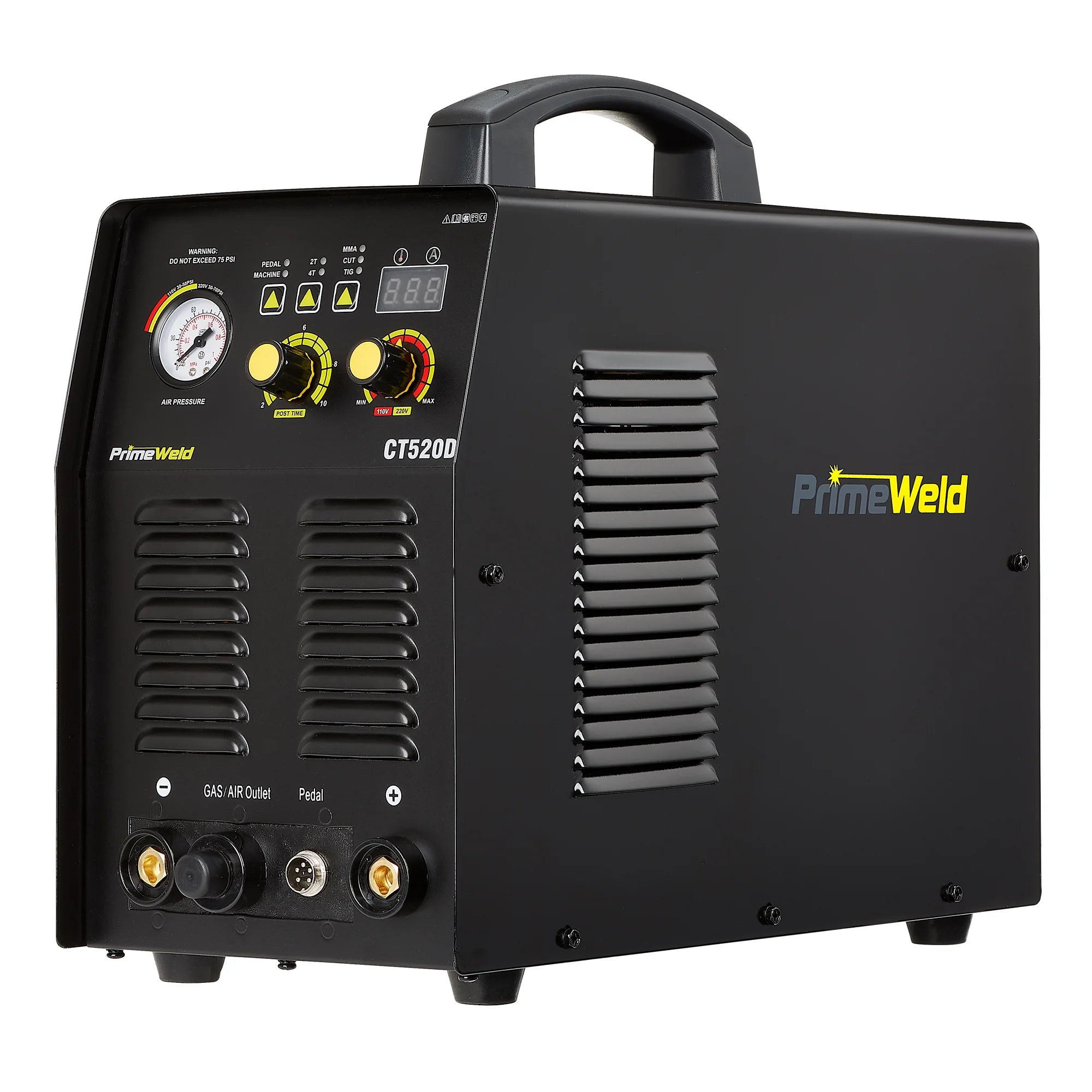

PrimeWeld CT520D 50A Plasma Cutter Welder Combo

  • $567.95
    Unit price per
Shipping calculated at checkout.


The PrimeWeld CT520D 50A Plasma Cutter Welder Combo is the most cost-effective way on the market to start fabricating. This portable plasma cutter puts a TIG welder and a stick arc welder on your workbench.

Two in One Compact Build Optimized for Productivity

You’re getting three welders in one box that delivers the ability both to cut and weld. Improve your productivity by reducing your movements. Cut parts from stock and weld them into your creations on the same bench just minutes apart.

Plasma Cutter Welder Combo

The CT520D Plasma Cutter Welder Combo runs on either 120 volts or 240 volts, a convenience that allows you to plug in and start building and repairing things just about anywhere. At 120 volts you can run TIG on sheet metal as thin as 24 gauge and still cut a 1/4-inch steel plate. When it’s plugged into 240 volts, the 160-amp stick and 180-amp TIG process weld up to a 1/2-inch plate, and the workhorse CT-520D can cut that, too.

ADVANCED HEAT CONTROL AND DYNAMIC ARC FORCE

PrimeWeld offers an optional heat control pedal that controls the TIG and plasma arc levels. Start cutting and welding with ease by touching the electrode to the material surface briefly, pulling the trigger, and you’re fabricating.

Increase productivity and produce better quality with arc force control. The arc force control dynamically maintains arc characteristics on the fly while you weld, delivering a stick welding process that’s much more intuitive and forgiving. Spend more time concentrating on your welding instead of worrying about machine settings and worksite conditions.

DURABILITY, VERSATILITY, AND THOUGHTFUL DESIGN

PrimeWeld designed every welding machine to allow you to weld longer. The CT-520D Plasma Cutter Welder Combo features uphold this standard. Get dual-voltage convenience, triple-threat versatility, and lots of fabrication power to your workshop at an excellent price.

FEATURES PRIMEWELD’S LEGENDARY SUPPORT, PLUS NO-HASSLE 3-YEAR WARRANTY

PrimeWeld Customer Service connects you with our knowledgeable team in just minutes. If you have any questions or issues, our knowledgeable, professional staff will get you welding and keep you welding no matter which PrimeWeld model you choose.

Features

CT520D Plasma Cutter Combo Details:

  • Dual powered 120/240-volt input
  • IGBT Inverter powered
  • DC Stick Welder (MMA)
  • DC TIG Welder (GTAW-PD)
  • 50-amp Plasma Cutter
  • Start welding out of the box

PROTECTION FEATURES:

  • Cold Electrode
  • Overcurrent protection
  • Overheating protection
  • Power spike protection

TIG FEATURES (GTAW):

  • GR-17 TIG Torch
  • 13-foot connector hose
  • High-Frequency lift-type TIGstart
  • Shielding Gas Pre-Flow and Post-Flow

PLASMA CUTTER FEATURES:

  • Will cut 1/2-inch steel
  • AG60 Plasma Torch
  • 13-foot torch hose
  • Air preflow/post flow

STICK ARC (MMA) FEATURES:

  • Quality 13-foot stinger clamp
  • Change to TIG/Plasma with the flip of a switch
  • Arc Force Control

USABILITY FEATURES:

  • Optional TIG/Plasma foot pedal
  • Dinse connectors
  • Digital Power Display
  • Built-in Shielding Gas solenoid
  • Regulator gauge on the front
  • 13-foot ground, plasma, and TIG leads
  • TIG/MMA/Plasma selection switch
Specifications

BREAKER SIZE

  • (120V) 30 amps
  • (240V) 50 amps

TIG OUTPUT IN AMPS

  • TIG 120 volts: 10-120 amps
  • TIG 240 volts: 10-200 amps

ARC OUTPUT IN AMPS

  • Arc 120 volts: 10-120 amps
  • Arc 240 volts: 10-160 amps

PLASMA OUTPUT IN AMPS

  • Plasma 120 volts: 10-27 amps
  • Plasma 240 volts: 10-50 amps

DUTY CYCLE TIG

  • 35 percent @ max rating  (120/240V)
  • 100 percent @ 72 amps   (120V)
  • 100 percent @ 130 amps   (240V)

DUTY CYCLE STICK (MMA)

  • 35 percent @ max rating  (120/240V)
  • 100 percent @   72 amps   (120V)
  • 100 percent @ 100 amps   (240V)

DUTY CYCLE PLASMA CUTTER

  • 60 percent @ max rating  (120V)
  • 30 percent @ max rating  (240V)
  • 100 percent @   21 amps   (120V)
  • 100 percent @ 30 amps   (240V)

PLASMA CUTTER AIR PRESSURE

  • 40 to 70 PSI

GAS PREFLOW

  • 0.5 seconds

GAS POSTFLOW

  • 2 seconds

WEIGHT

  • 32 pounds

CT520D PLASMA STICK WELDER COMBO INPUT/OUTPUT SPECIFICATIONS

IGBT Inverter Type:

IGBT

Voltage/phase:

Dual Voltage 120/240 1 Phase

TIG output type:

DC only

TIG Start Type:

High-Frequency Only

Pulse:

No

Plasma Cutter Arc Start Type:

High-Frequency

Pilot Arc:

No

OK-to-Cut Indicator / Low Air Pressure Safety:

No

OCV:

  • TIG: 70V

  • Stick: 70V

  • Plasma: 220V

Max Inrush (|1MAX) Amps:

  • @ 110V: 31A

  • @ 220V: 27A

Maximum Rated (|1EFF) Input Amps:

  • @ 110V: 19A

  • @ 220V: 17A

TIG Output Amps/Volts @ Rated Duty Cycle:

120V:

  • 120A/14.8V @ 35% Duty Cycle

  • 93A/13.7V @ 60% Duty Cycle

  • 72A/12/9V @ 100% Duty Cycle



240V:

  • 200A/18V @ 35% Duty Cycle

  • 160A/16.4V @ 60% Duty Cycle

  • 130A/15.2V @ 100% Duty Cycle

Stick Output Amps/Volts @ Rated Duty Cycle:

120V:

  • 120A/24.8V @ 35% Duty Cycle

  • 93A/23.7V @ 60% Duty Cycle

  • 72A/22.9V @ 100% Duty Cycle

240V:

  • 160A/26.4V @ 35% Duty Cycle

  • 130A/25.2V @ 60% Duty Cycle

  • 100A/24V @ 100% Duty Cycle

Plasma Output Amps/Volts @ Rated Duty Cycle:

120V:

  • 27A/90.8V @ 60% Duty Cycle

  • 21A/88.4V @ 100% Duty Cycle



240V:

  • 50A/100V @ 35% Duty Cycle

  • 40A/96V @ 60% Duty Cycle

  • 30A/92V @ 100% Duty Cycle

TIG DC Amp/Volt Range:

  • 120V: 10A-120A, 10.4V-14.8V

  • 240V: 10A-200A, 10.4V-18V

Stick Amp/Volt Range:

  • 120V: 10A-120A, 20.4V-24.8V

  • 240V: 10A-160A, 20.4V-26.4V

Plasma Amp/Volt Range:

  • 120V: 10A-27A, 84V-94V

  • 240V: 10A-50A, 84V-100V

Preflow Time:

Fixed

Post Flow Time:

Fixed

OverCurrent Protection:

Yes

Duty Cycle Protection:

Yes

Air Pressure OK Safety Indicator:

No

Stick Arc Force Control:

Auto-Adaptive

Torch Type:

t AG-60 High-Frequency

Recommended Cutting Air Pressure:

55-60 psi

What's Included

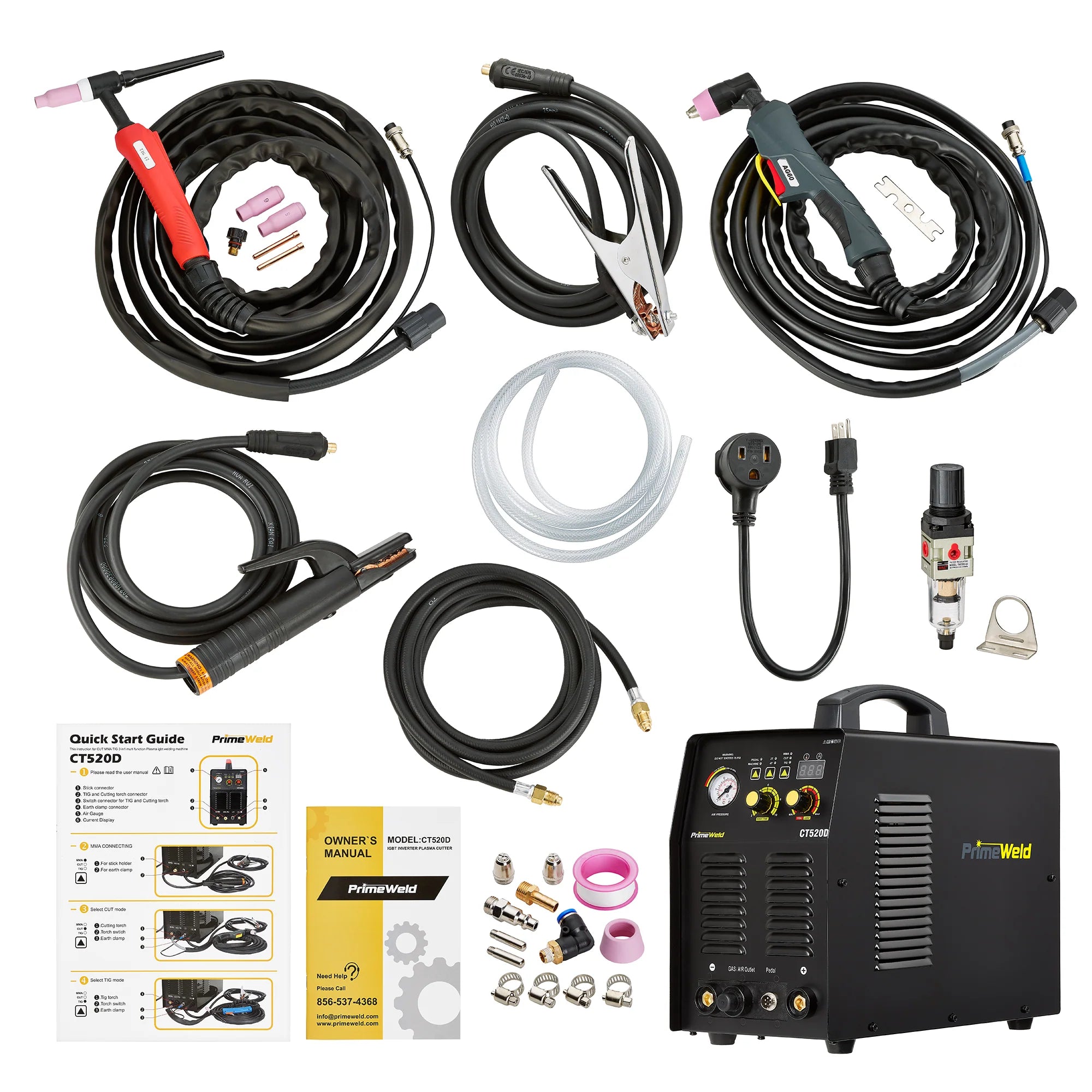

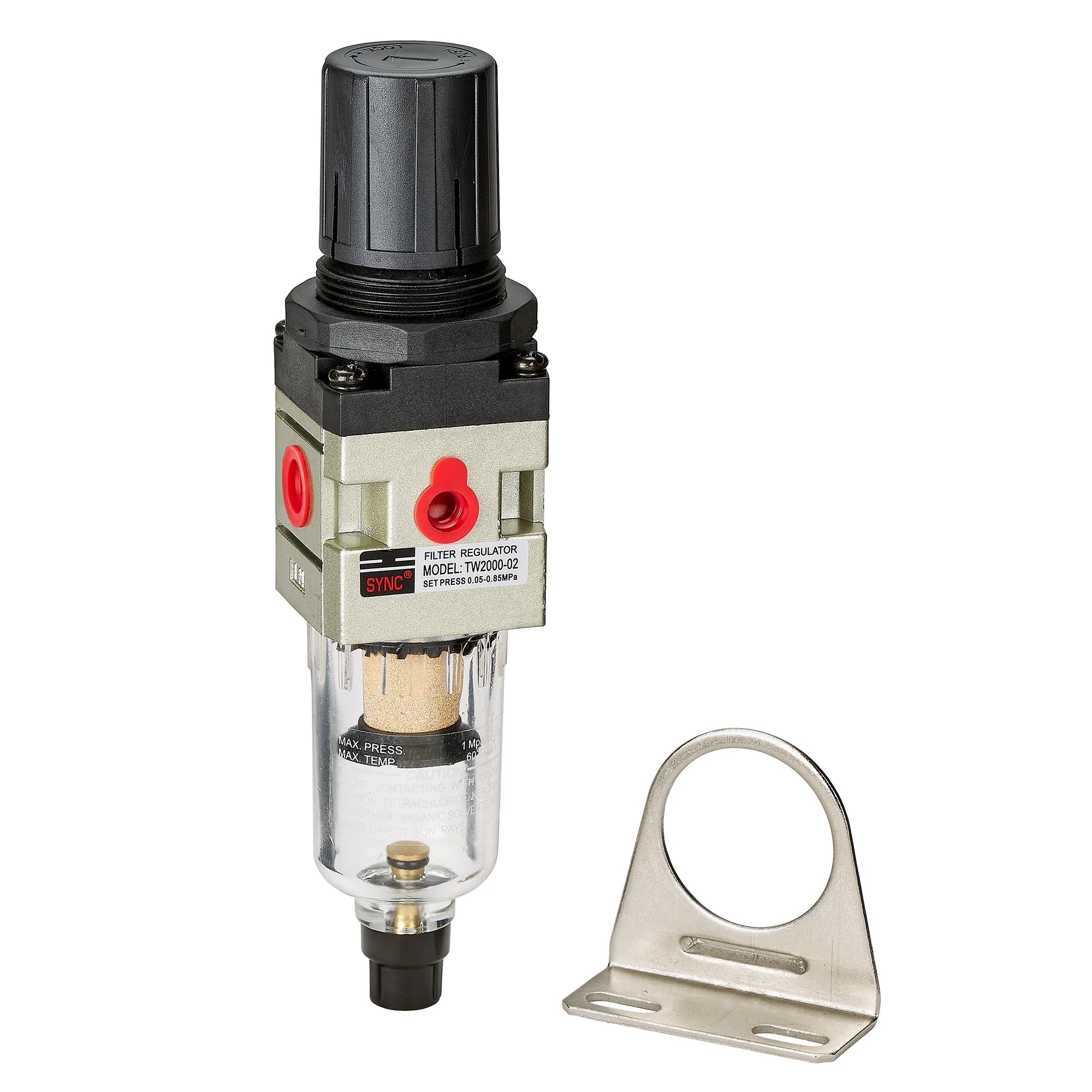

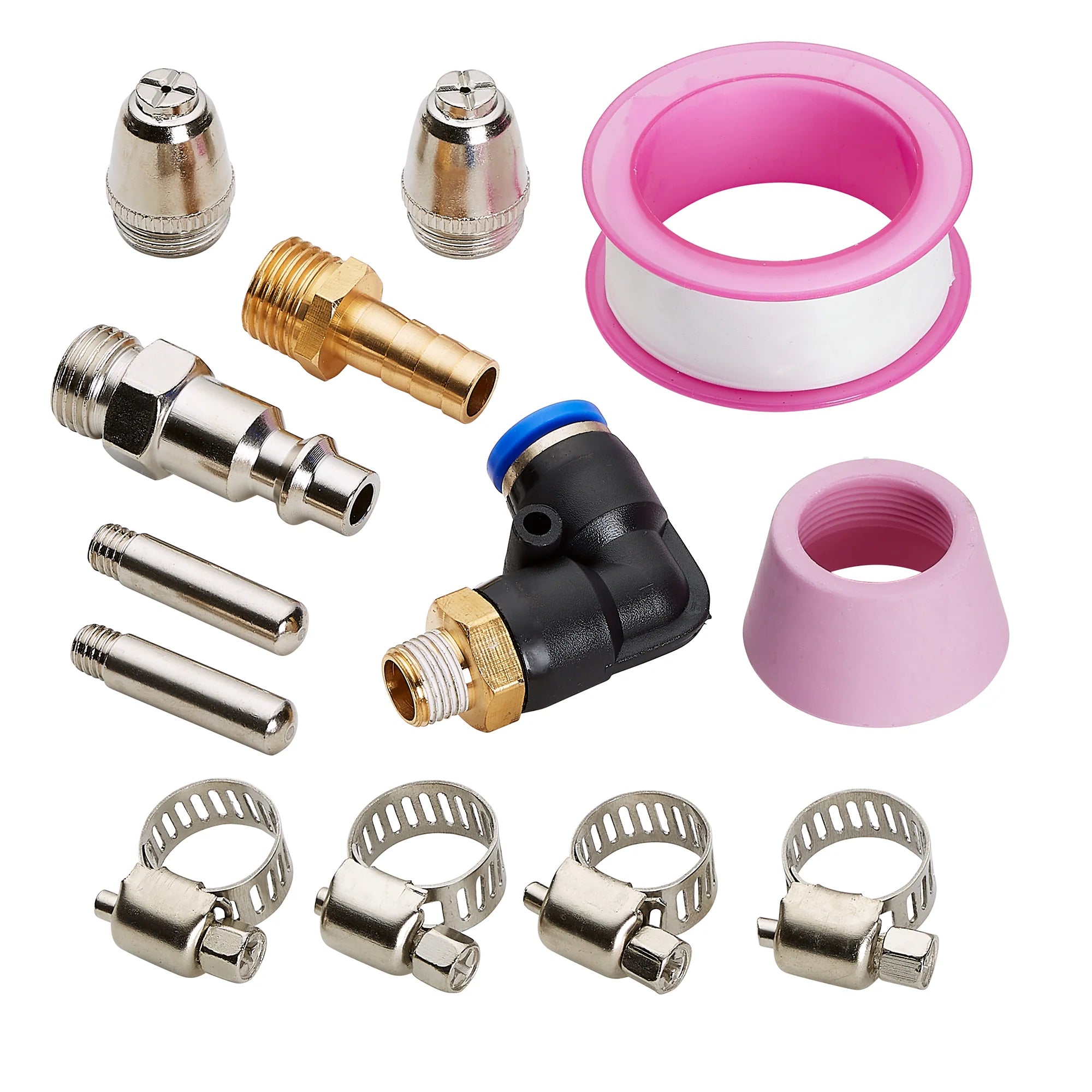

CT520D 50A Pilot Arc Plasma Cutter Combo Comes With:

  1. GR-17 TIG Torch

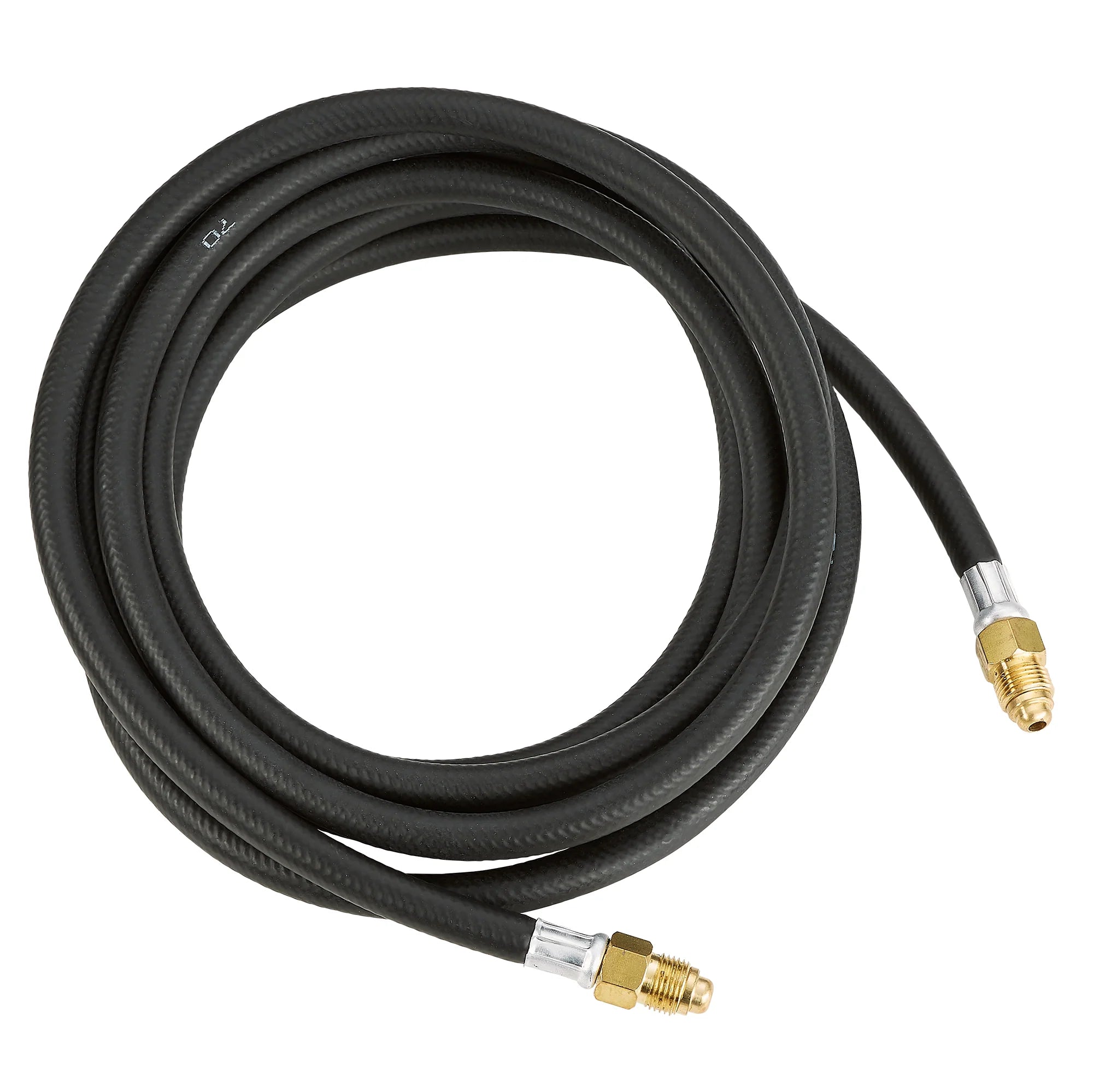

  2. TIG Hose

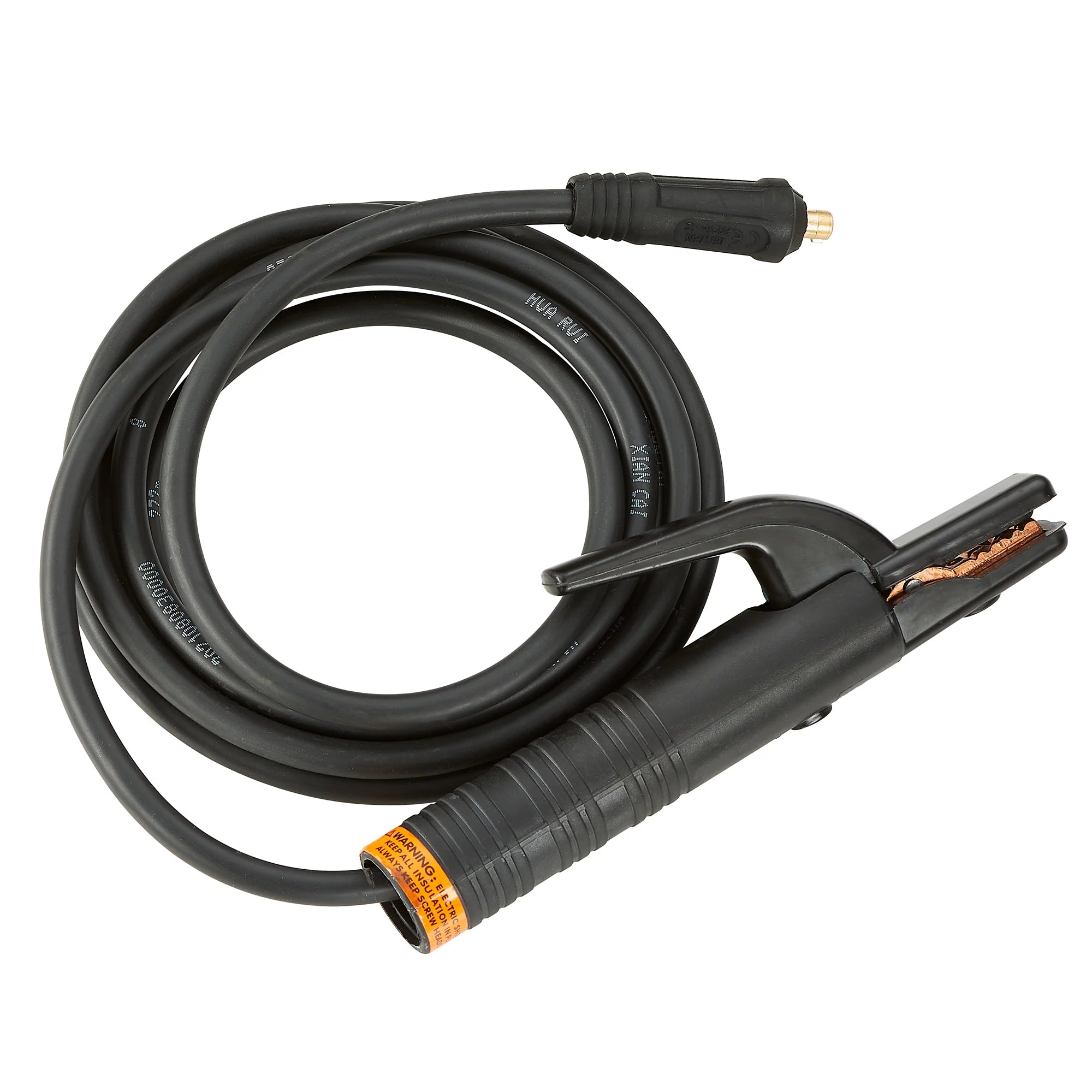

  3. Arc Welder Electrode Clamp 13 ft

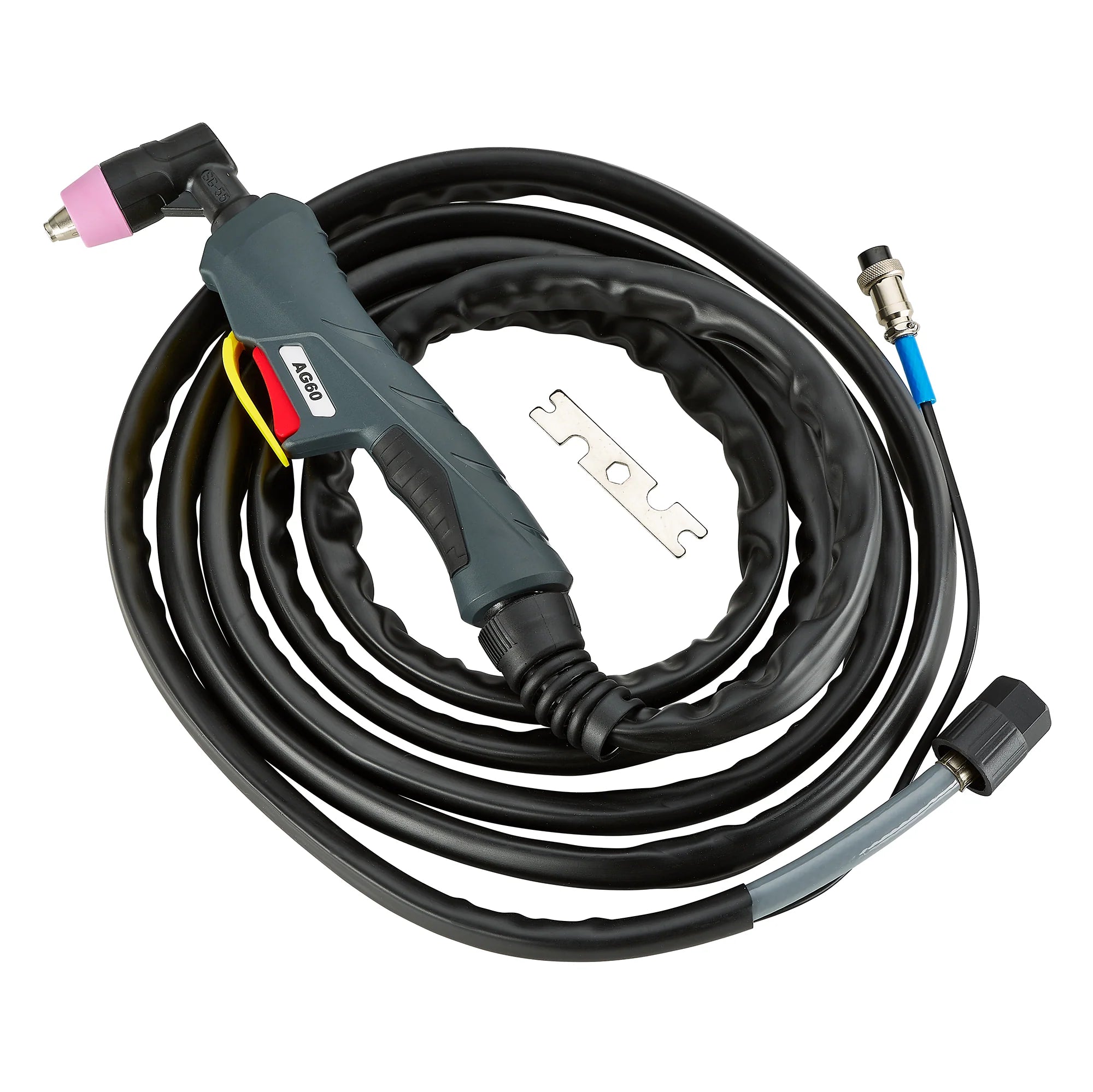

  4. AG60 Plasma Torch
  5. Plasma Hose

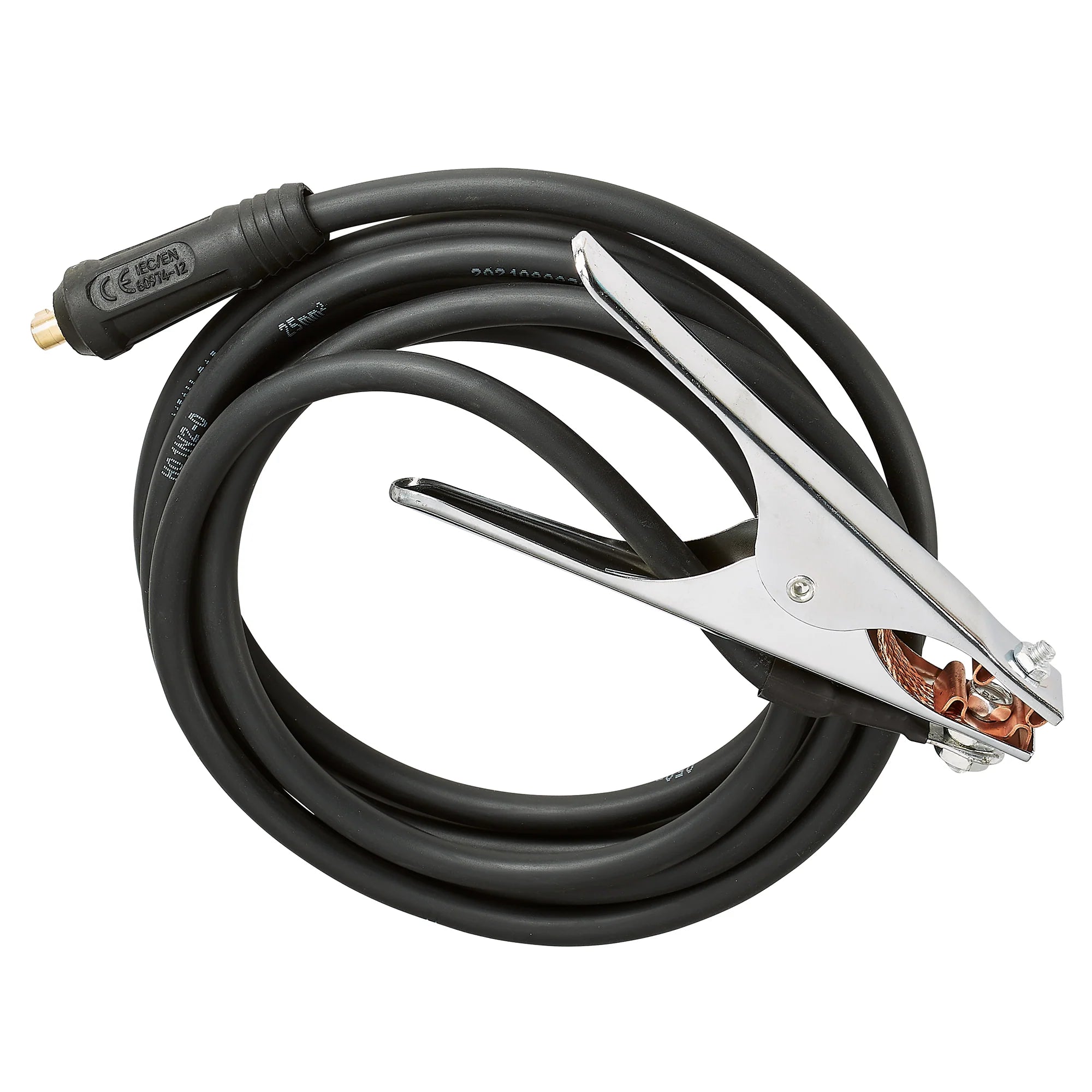

  6. Ground Clamp 13 ft
  7. Gas hose
  8. Flow Meter

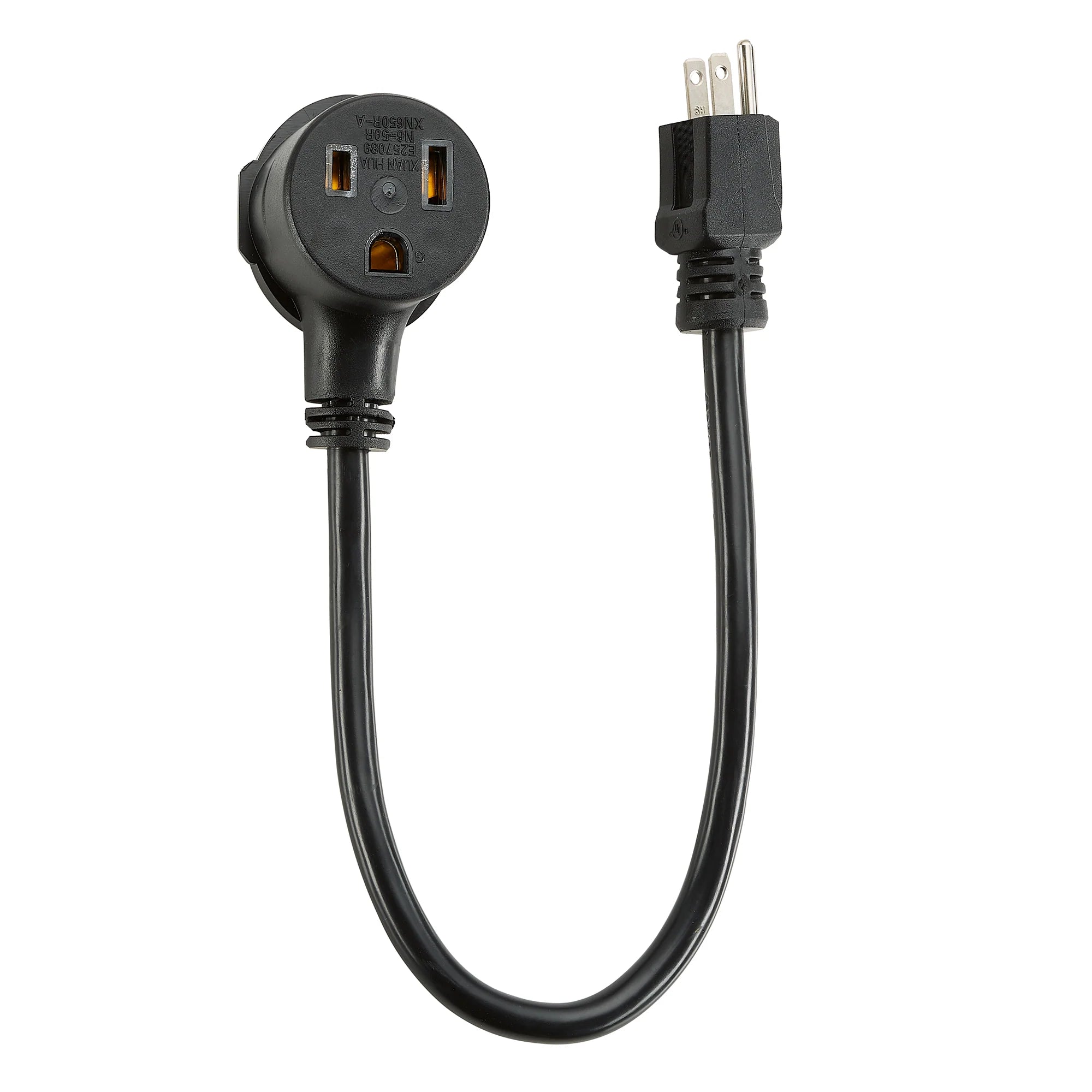

  9. 240-volt to 120-volt adapter pigtail
  10. FREE SHIPPING in our WELL-PACKED, HEAVY-DUTY CARTON!

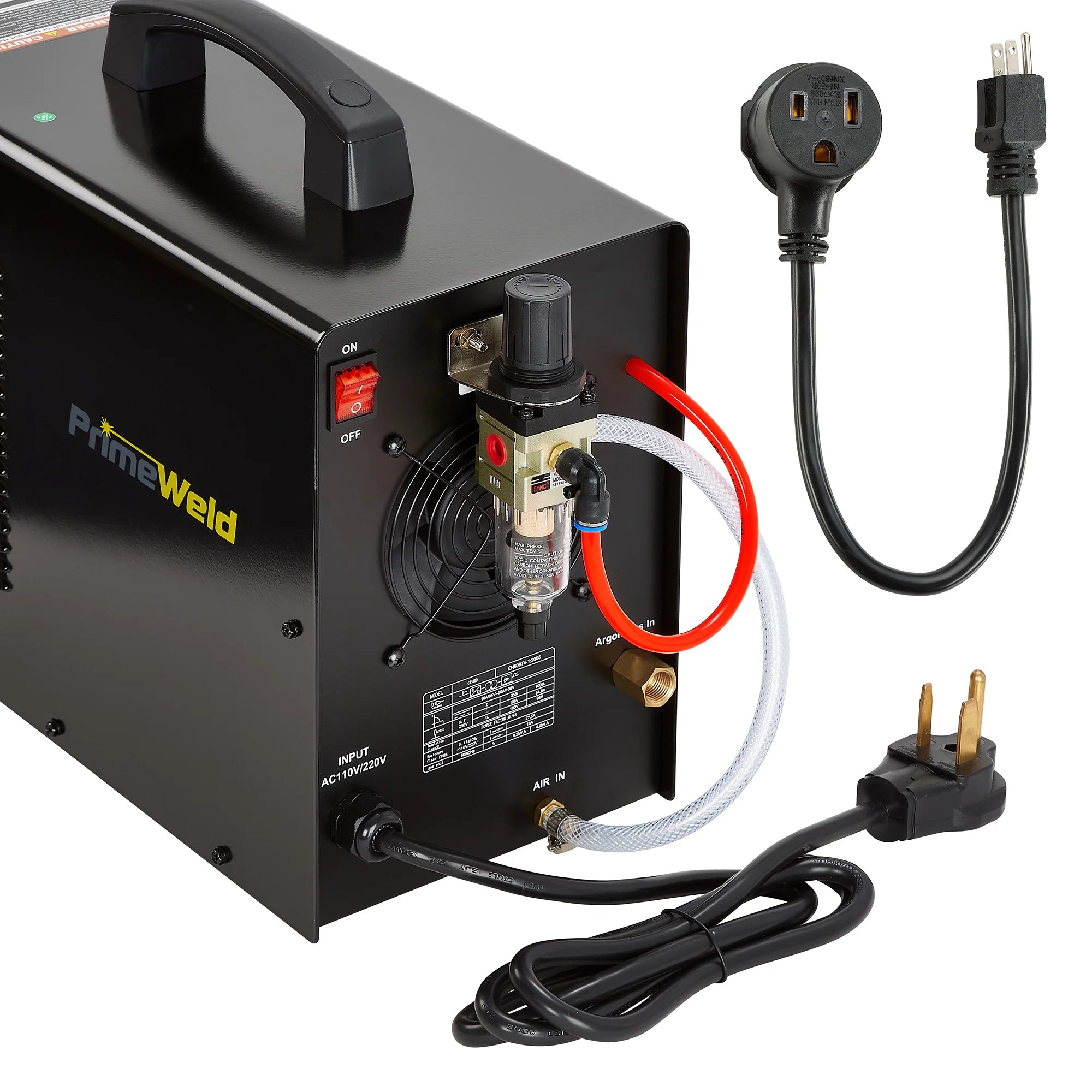

    ct-520d components

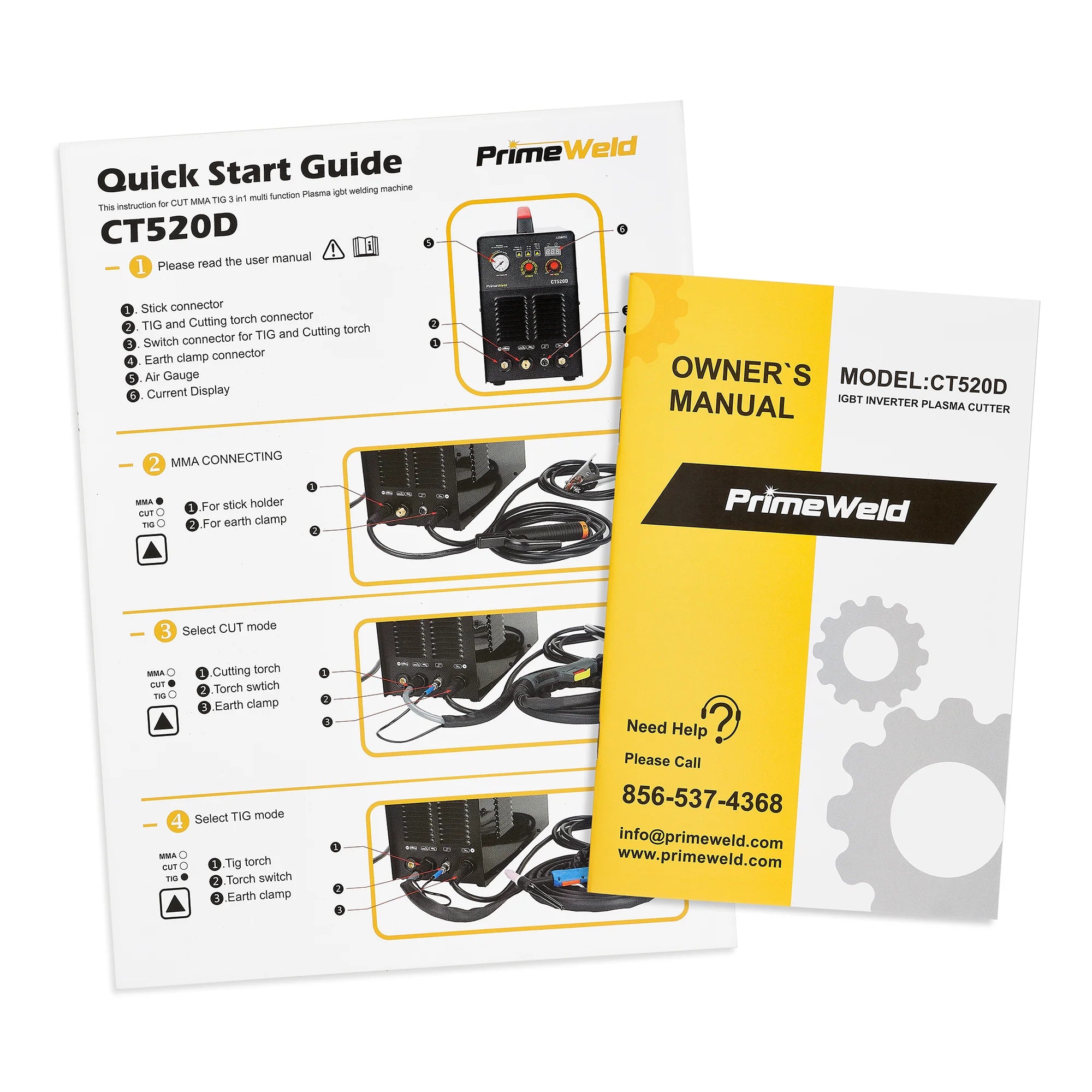

    How to Use

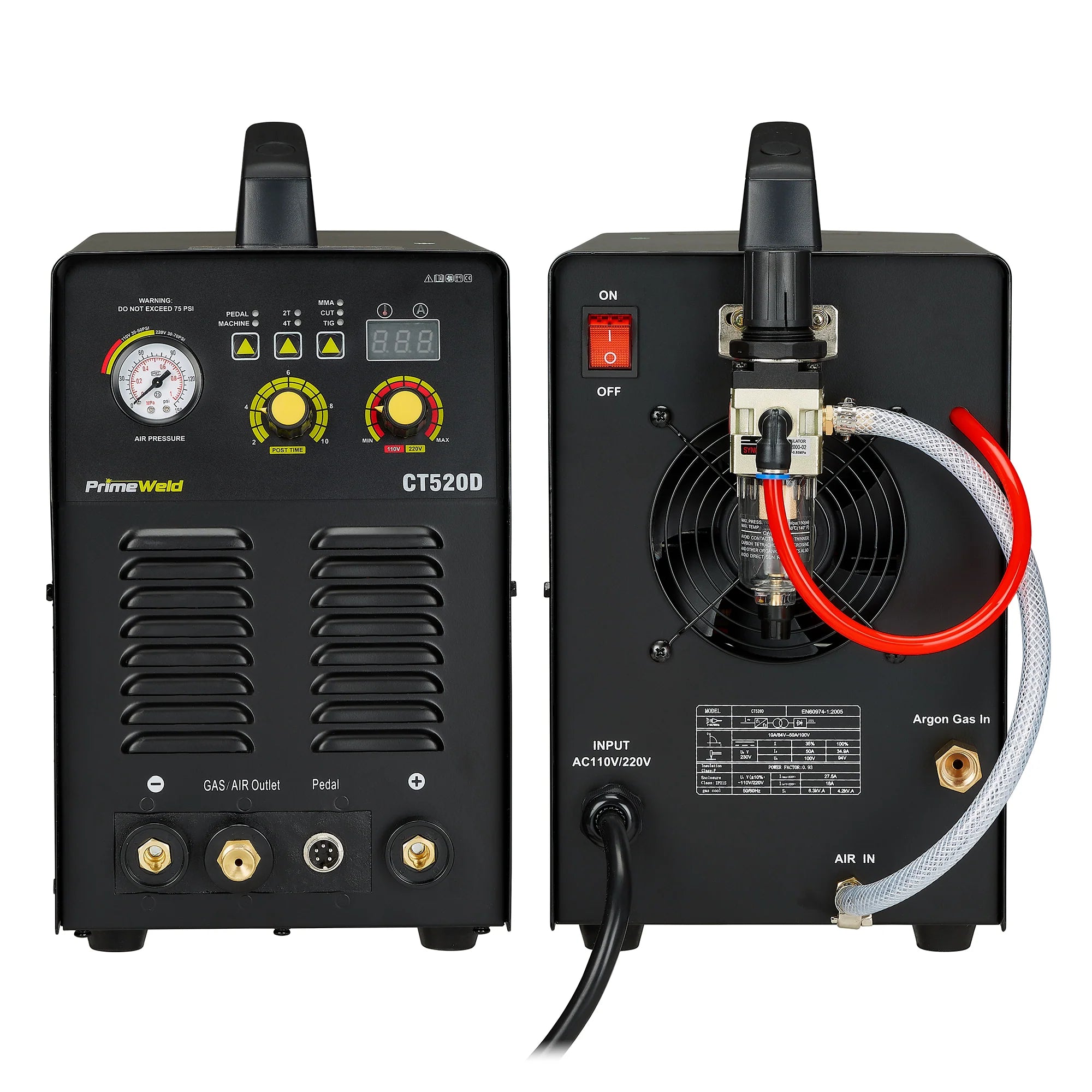

    CT-520D 50A Plasma Cutter / Stick Welder Combo front and back panel views

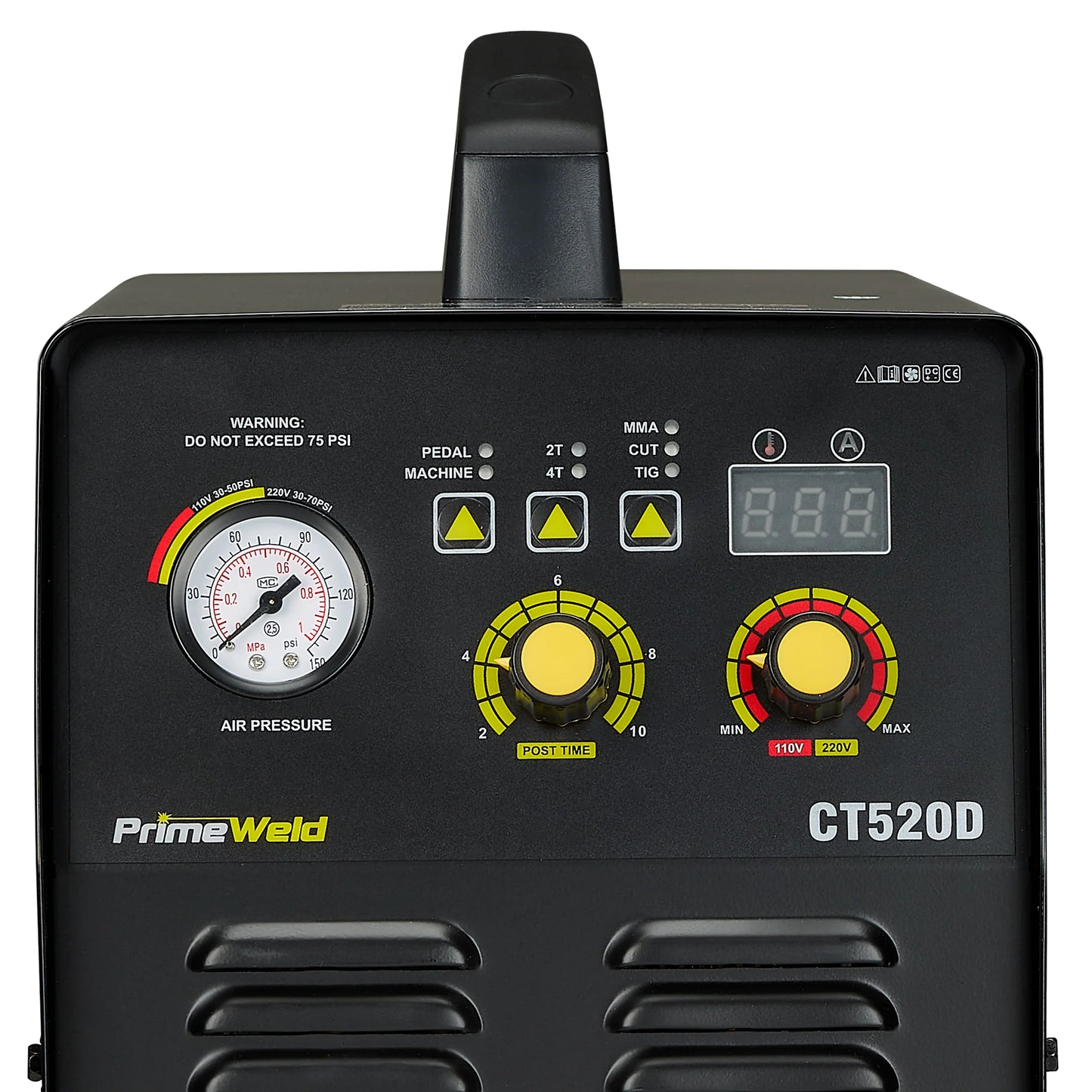

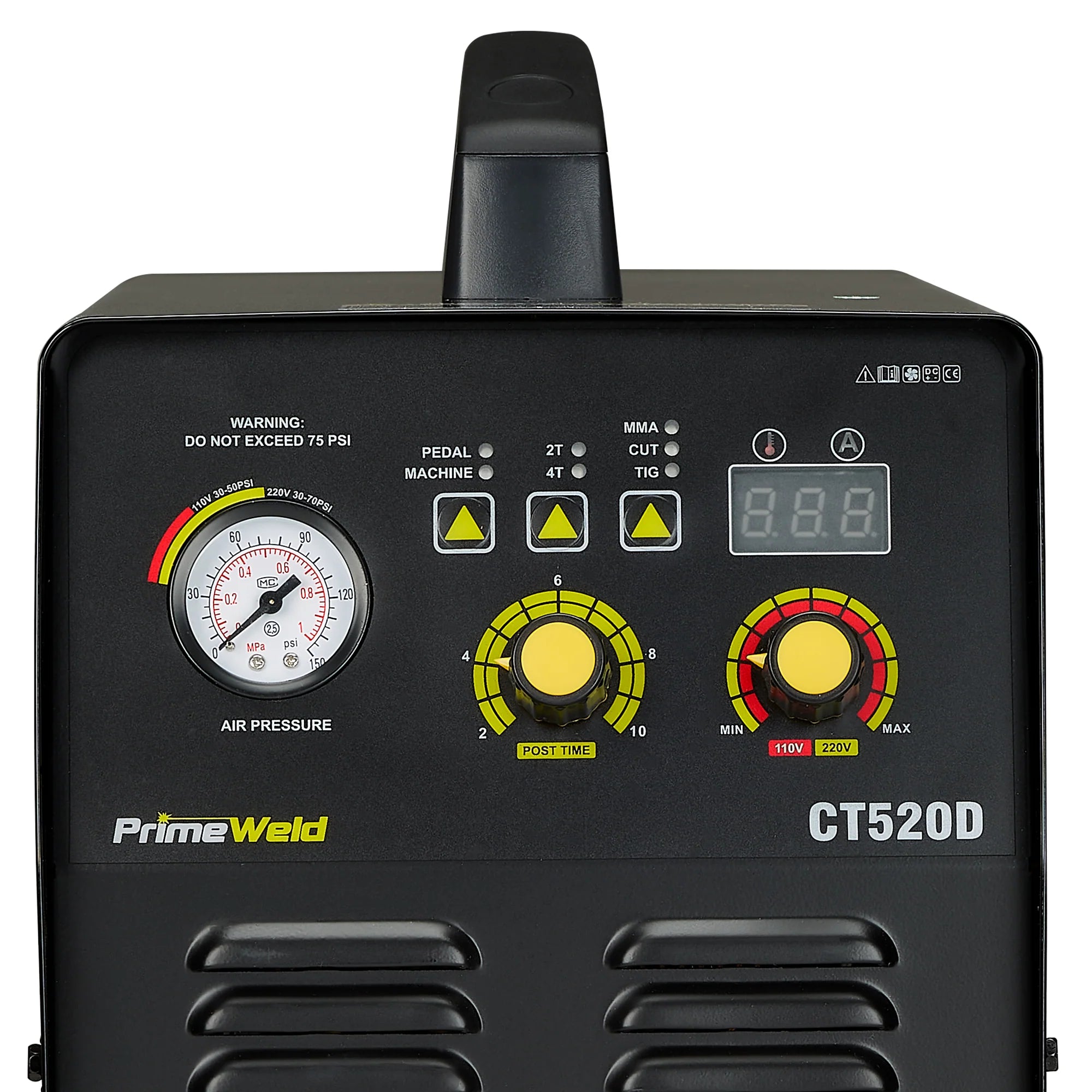

    CT520D Plasma Stick Welder Combo Front & Rear Panel Switches & Features

    1.

    Overheating indicator illuminates when the working temperature of the IGBT is overly high. Meanwhile, the machine stops working.

    2.

    It is the current indicator, lighting when machine power on

    3.

    LED Current Display

    4.

    Amperage Control Knob

    5.

    Time adjustment for post air

    6.

    Air Pressure Gauge.Suggest Air Range: 45-70PSI

    7.

    Machine indicator, Current knob can use in this selection, can not use pedal.

    Pedal: current knob on the machine can not be used in this selection, can use the pedal to adjust the current.

    8.

    4T is selected press and release trigger Arc starts, press and release trigger Arc stops.

    2T is selected press trigger Arc starts, release trigger Arc stops.

    9.

    TIG function please select it before using the machine

    Cutting function please select it before using the machine

    Stick function please select it before using the machine

    10.

    Stick connector

    11.

    TIG and cutting torch connector

    12.

    Switch connector for TIG and Cutting torch

    13.

    Earth clamp connector

    14.

    Air regulator

    15.

    Power switch

    16.

    Quick air connector

    17.

    Power cable Input Voltage 110/220v, Voltage Automatic Identification, no need to hand switch

    18.

    Argon gas in

    19.

    Air in

    20.

    To Air Meter

    Selector Switches

    AMP DISPLAY

    Indicates actual amp output while welding. While adjusting or not welding, the function of the display changes to display the selected amperage.

    ON/TEMP/DUTY CYCLE: ON/OFF

    The On indicator should always be lit while the unit is plugged in and the power switch is switched on. If the Overcurrent light is lit, turn the unit off and check for possible causes including undersized cables, poor connections, and overheating cables. If the Duty Cycle is lit, do not turn off the unit until it has had sufficient time to cool (10-15 minutes). Cycle the power switch to reset the machine only after the machine has had time to cool. The Duty Cycle and the Overcurrent warning lights should go off after cycling the power switch on the machine. If it does not, contact us.

    PANEL/PEDAL SWITCH

    This switch determines which mode controls the unit, the torch switch (Panel) or the pedal. Using either one will determine how the unit reads and sets the maximum output of the machine.

    TIG/CUT/ STICK

    This switch selects processes. Do not switch this switch while welding or cutting, Do not switch it with the wrong torch connected or immediate failure of the unit may result. Improper polarity can contribute to torch failure as well. Make sure all connections are installed properly before cutting or welding.

    AMP CONTROL

    Controls amperage while welding or cutting by using the knob to preset maximum amperage.

    POST FLOW CONTROL: 2-8 SECONDS

    Sets the post flow time of the shielding gas while welding in TIG mode. While in plasma (cut) mode, it sets the post flow time of the air. Time is an approximation only and can vary a little from the setting posted on the dial. The air or shielding gas may stop flowing before full maximum time is reached. Consider the maximum setting mark a reference guide only.

    PILOT ARC

    This connection is only used with the plasma cutting torch. The small ringed wire connects here. Unscrew the plastic thumb nut and attach the wire to the post. Reinstall the thumb nut over the wire with finger pressure only. Do not overtighten

    NEGATIVE CONNECTOR: DINSE 25

    Location of the negative terminal connection. Dinse-style. For Stick: Work Clamp Connection. For TIG: Torch Connection. For Plasma: Torch Connection.

    QUICK CONNECT GAS OUTLET: 9MM

    Connects the shielding gas to the TIG torch. To connect: Push the torch fitting into the connector until the collar slides forward with a click. To Release: Slide the collar back and it will automatically release. Do not turn or twist the connector.

    CONTROL CONNECTOR: 5 PINS

    Connect the foot pedal or torch switch to this socket to control the welder. Only the foot pedal or torch control connector can be plugged in at one time. If the torch has a torch switch feature, tie the loose connector back and leave it disconnected while using the pedal.

    POSITIVE CONNECTOR (WORK PIECE ON SOME MODELS): DINSE 25

    Location of the positive terminal connection. Dinse-style connector. For Stick: Torch connection. For TIG, Plasma: Work Clamp Connection.

    AIR PRESSURE GAUGE: 75 PSI MAX SUPPLY 55-65 PSI OPERATING

    Use the air pressure to measure air supply pressure for the plasma cutting process only. The pressure is irrelevant while being used for TIG welding, although some pressure may register while the gas is actively flowing. Supply air pressure should not exceed 85 psi from the air compressor or internal leaks may develop. Adjust the operating pressure while air is flowing. Adjust the air pressure to 55-65 psi and increase or decrease pressure from there to achieve optimum cutting results while air is actively flowing. To adjust air pressure with torch, briefly fire torch with post flow set to maximum. Adjust air flow while the air is still flowing. Use air only for cutting. If a large differential in air pressure is observed (more than 10-12 psi), check for restrictions, kinks or blown connections. If all checks out ok, you may need to use a larger diameter supply hose or compressor.
