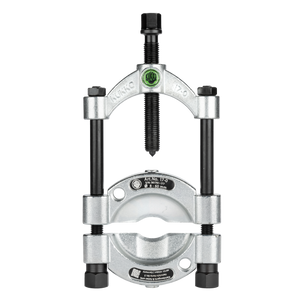

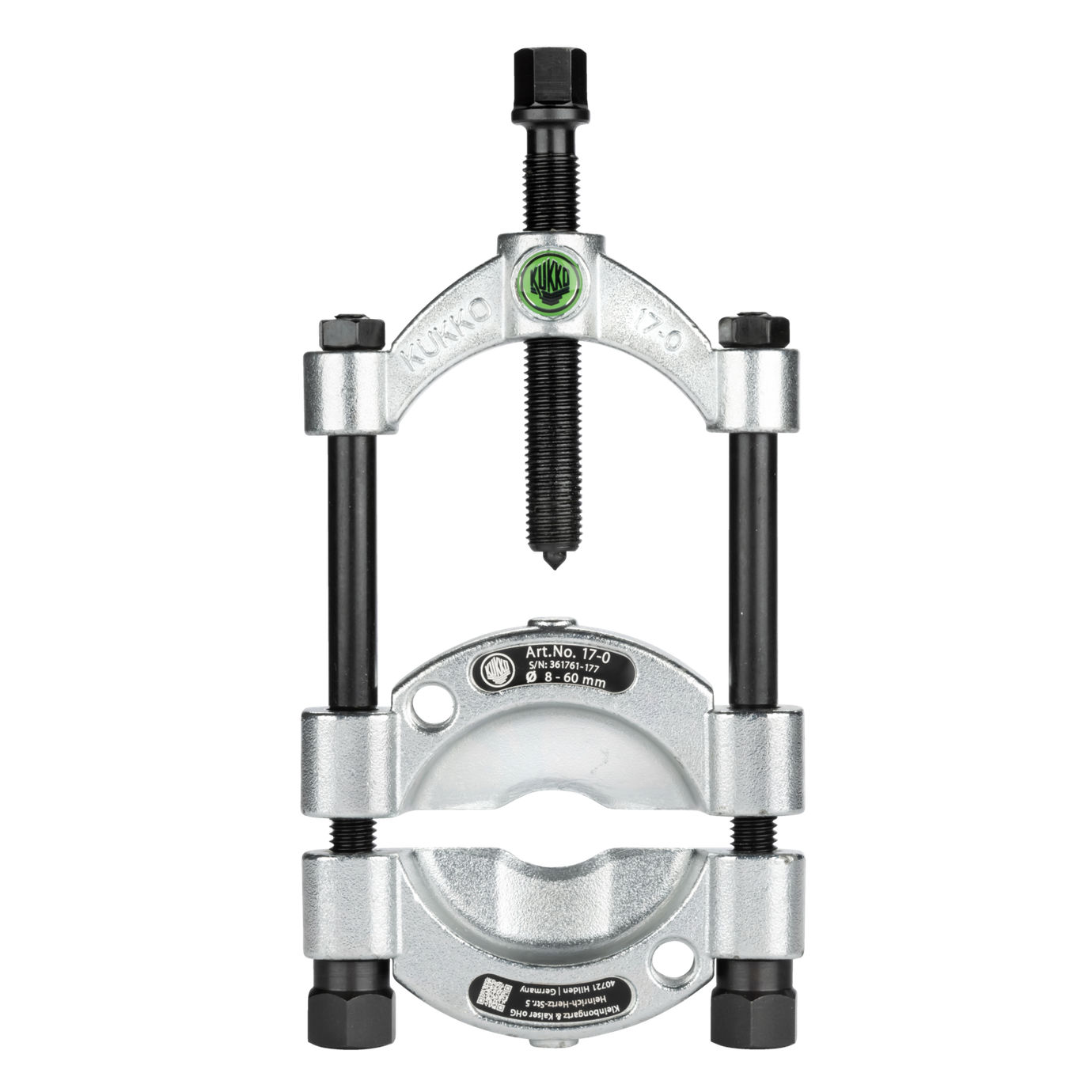

Kukko 17-0 | Seperator with quick clamping pressure spindle, separation diameter 8 mm - 60 mm, 21 mm usable cutting depth
Separator with quick clamping pressure spindle, separation diameter 8 mm - 60 mm, 21 mm usable cutting depth
Description

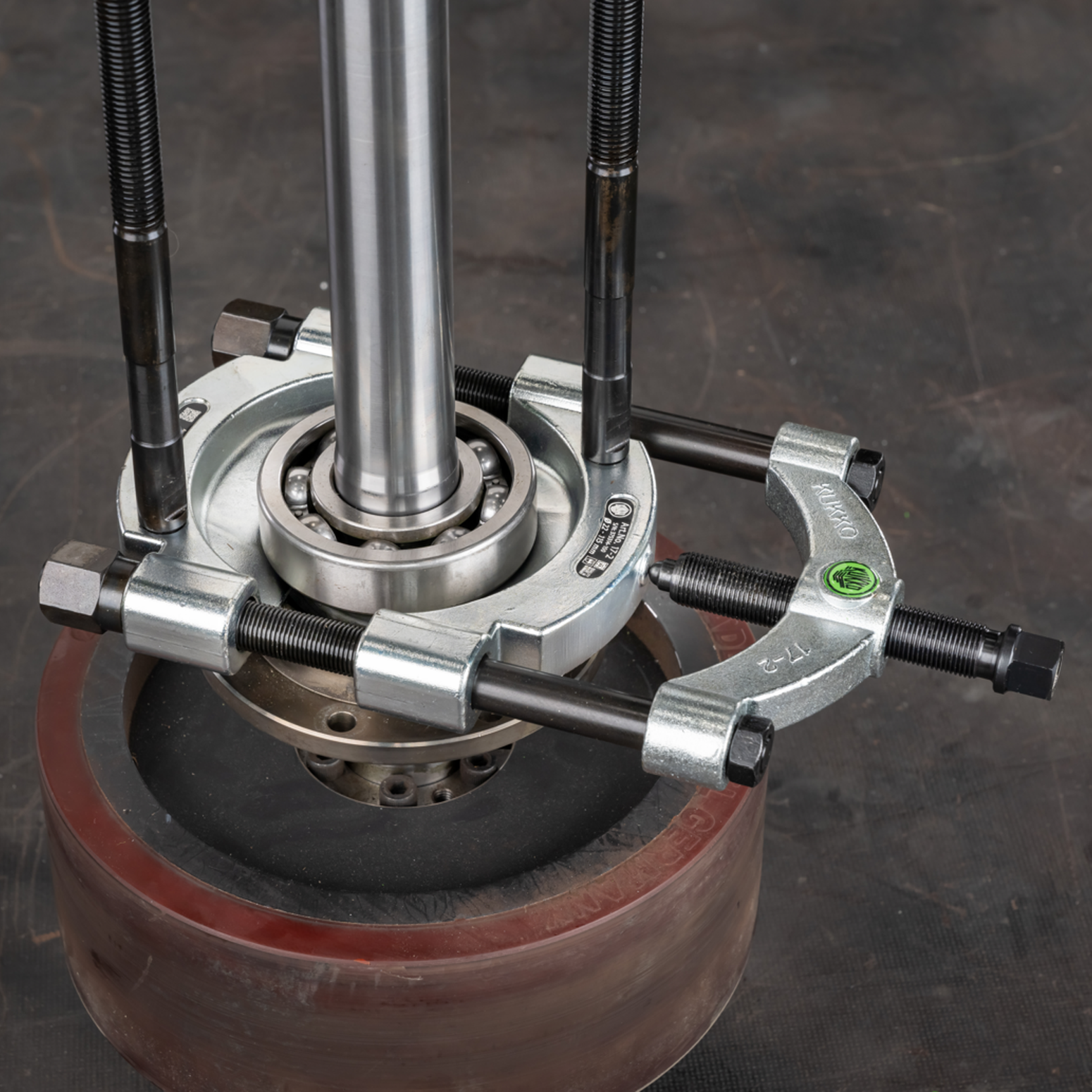

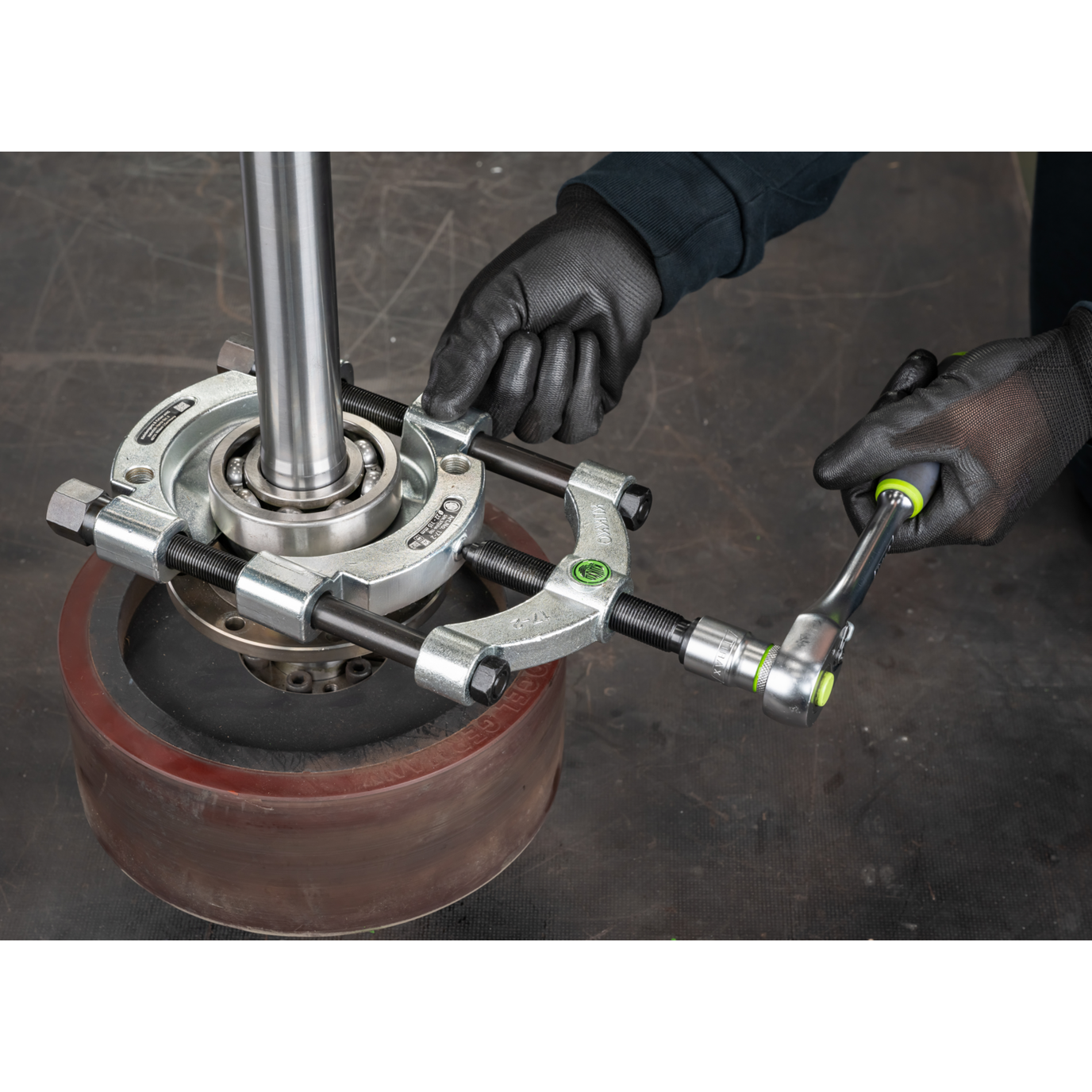

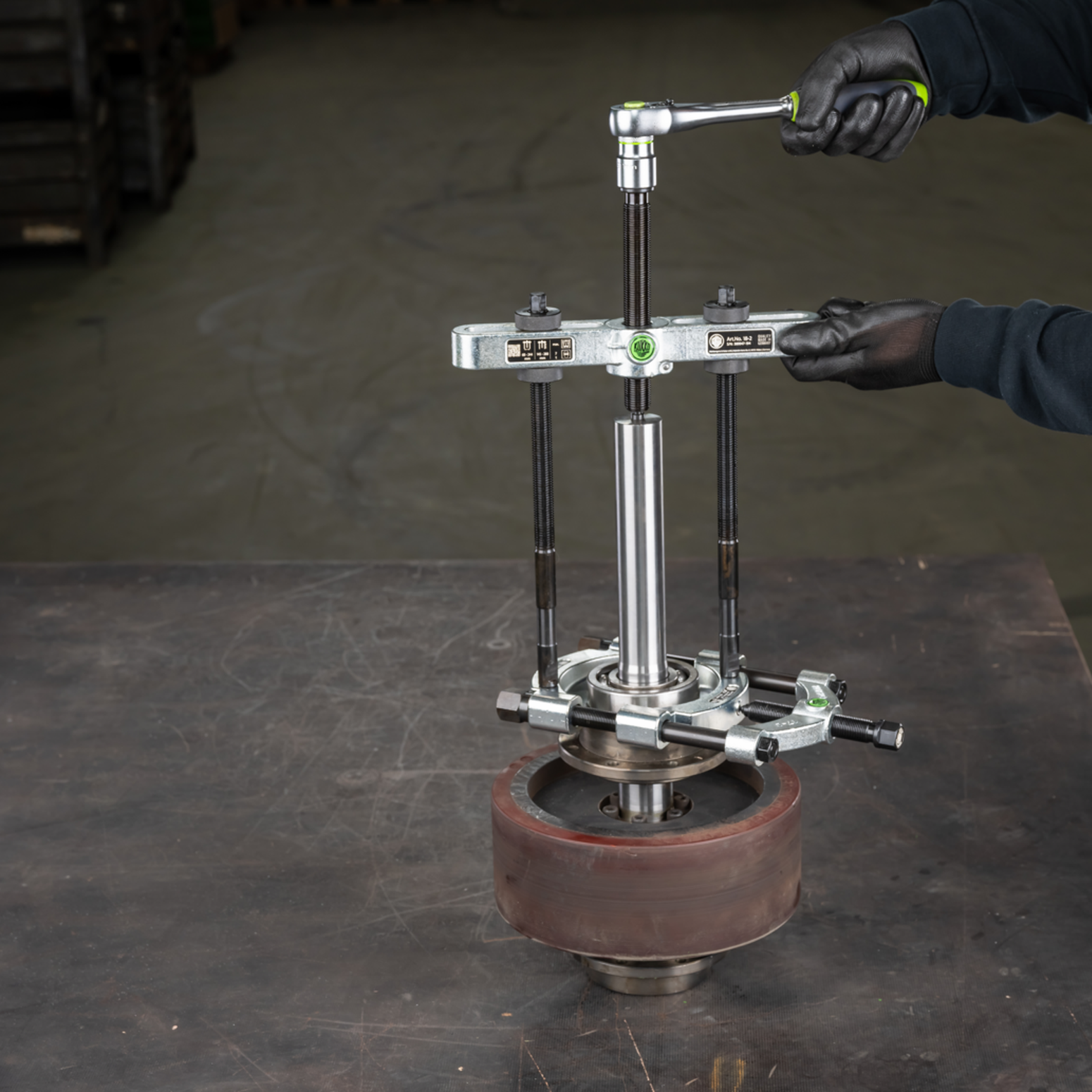

The separating devices of the series 17 are used together with the pullers of the series 18 for pulling ball bearings, roller bearings, inner rings, and other flat-lying parts in crafts, industry, and workshops, where there is not enough space for puller jaws. The separating-pulling process is capable of gently separating those parts initially before they can be pulled off from the outside. Compared to the series 15, the series 17 is particularly handy because the separating jaws can be quickly and concentrically tightened by a pressure spindle.
Application
-
Together with the extractors of series 18 for extracting ball bearings, roller bearings, inner rings and other parts in flat contact with the surface
Spare Parts
- 017140 - Side bolt with nut for separators 17-K, 17-0
- 17-0-06 - Spindle for separators with quick clamping spindle 17-0
- 17-0-T - Crossbar for separators with quick clamping spindle 17-0, 17-1, 17-K
